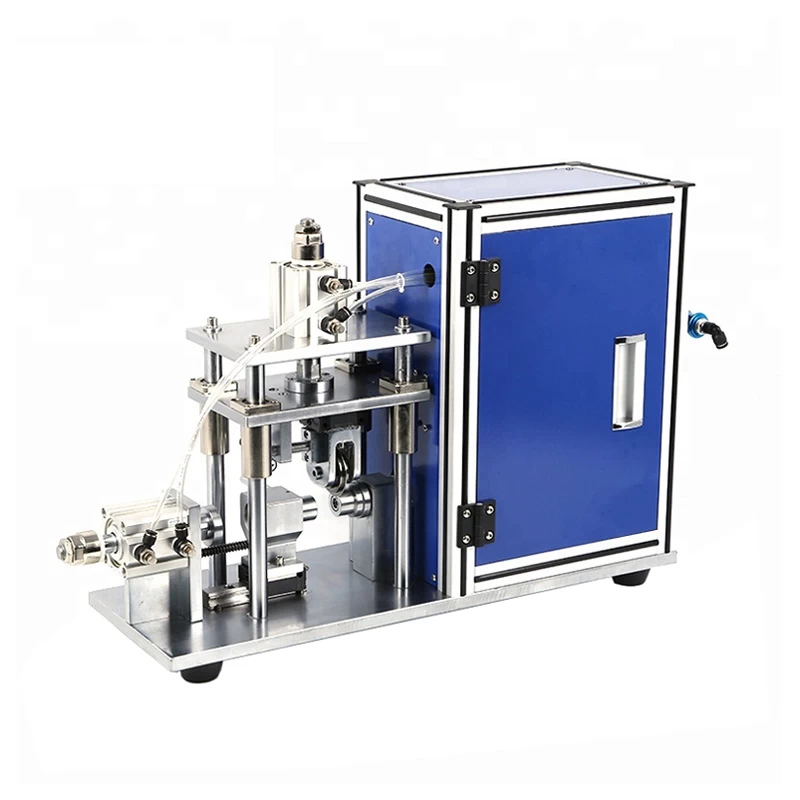

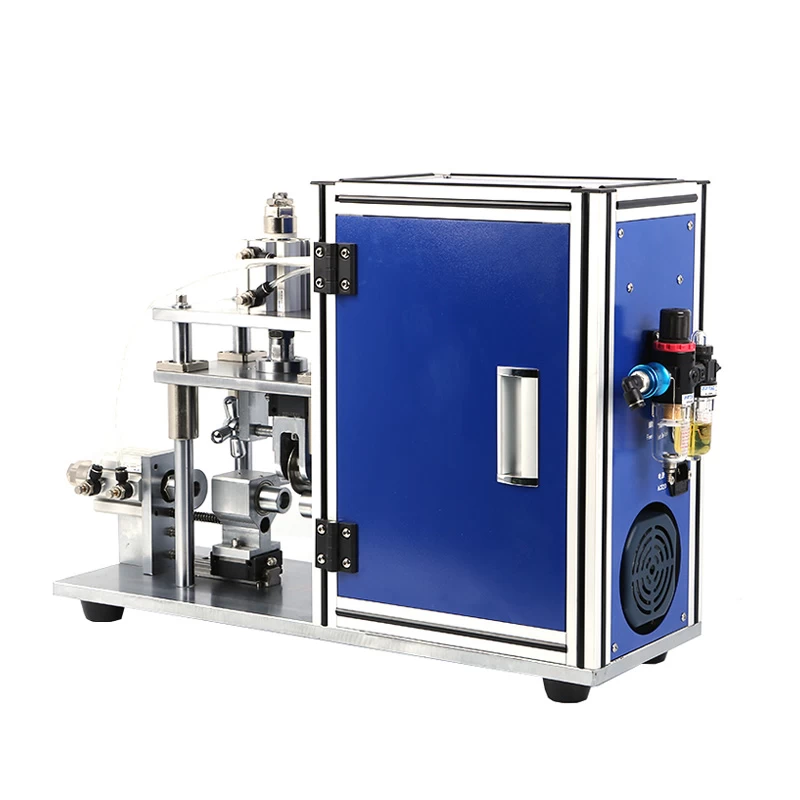

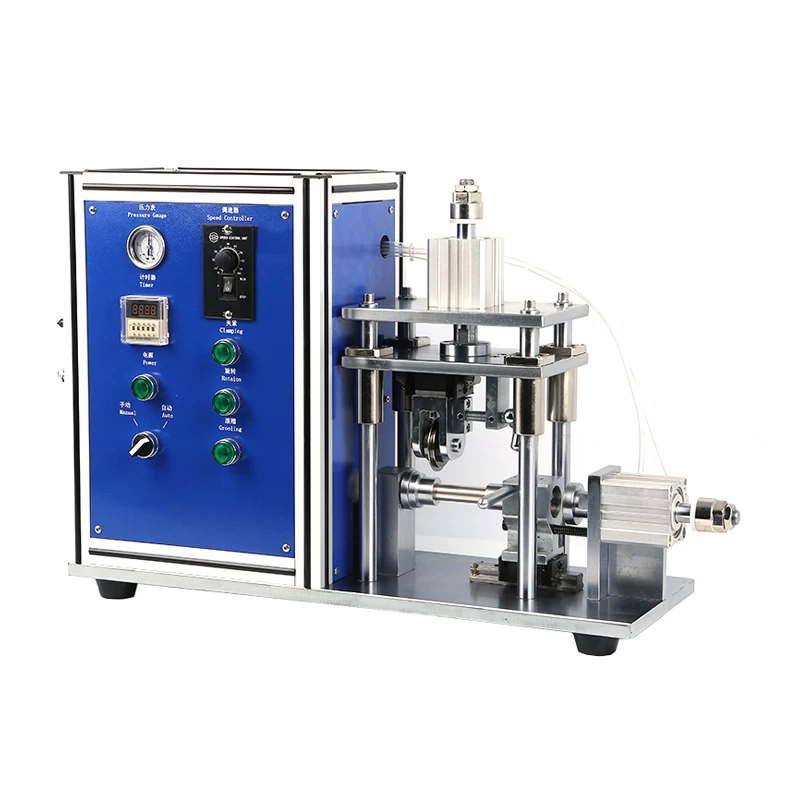

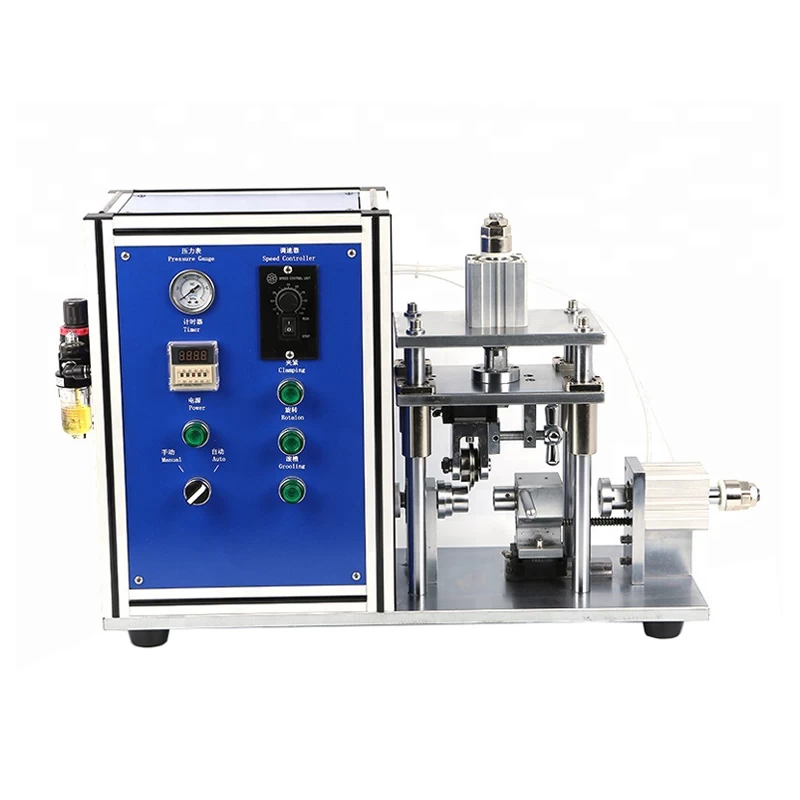

Semi-Auto Cylindrical Battery Grooving Machine for 18650 21700 32650

Semi-auto cylinder cell grooving machine is used for grooving various cylindrical cases including CR123,18650 26650, 32650 and AA.



Semi-Auto Cylindrical Battery Grooving Machine for 18650 21700 32650

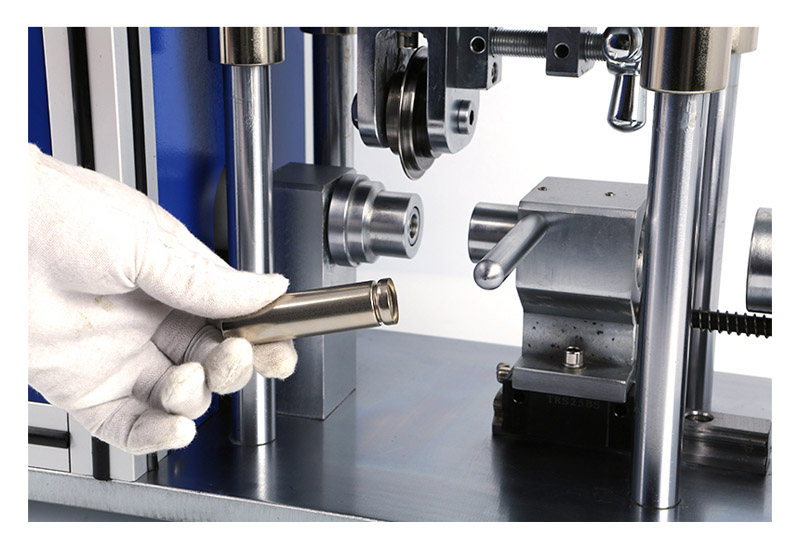

Applicable for uniform semi-automatic rolling groove of cylindrical stainless steel shell or capacitor aluminum shell

Features :

1. Grooving width is adjustable.

2. Grooving depth is adjustable.

3. Grooving time can be set.

4. Stepless-speed is used for grooving speed.

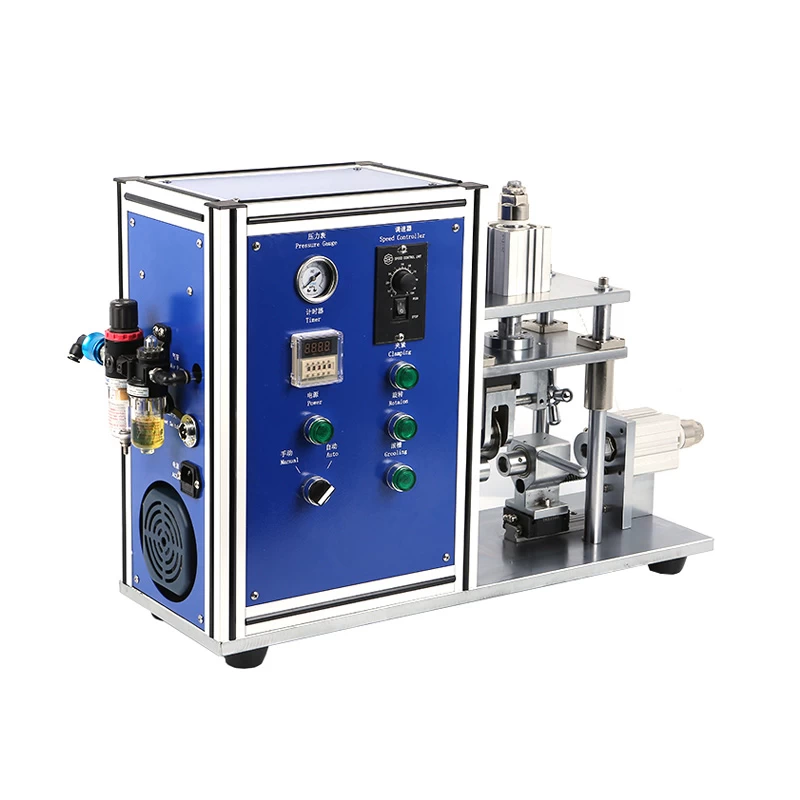

5. Use Manual or automatic grooving mode.

6. Different types of cylindrical battery shell can be grooved.

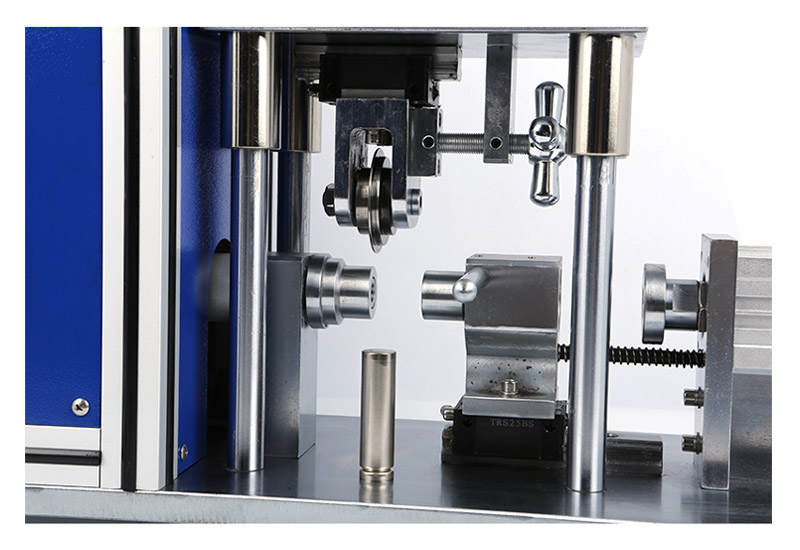

7. Hobbing cutter is precision machined to ensure the accuracy and reliability of grooving formation and the stability of use.

8. The operation is convenient and can be handled inside the glove box.

Specifications:

Model

Semi-Auto Cylindrical Battery Grooving Machine AOT-GC650

Source voltage

110V-220V AC, 50/60Hz Single Phase

Power

140W

Warranty

One year limited with life time support

Suitable battery model

18650 26650 32650 can be customized

Grooving cutter position

0-20mm(adjustable)

Grooving speed

0-300r/S(adjustable)

Grooving depth

1-5mm adjustable

Grooving width

1.1-1.5mm

Grooving precision

±0.1mm

Knife life

>1000000 times

Air supply;

0.5-0.7MPa

Dimension

600*450*350mm

Weight

68kg

Advantages

1 CustomizedCustomized die for other cylindrical cell types is available according to request.

2 Each type of cylinder cell can only be grooved specifically by certain model of this equipment. Please select the type of cylinder cell for the corresponding grooving die of each cylinder cell type.
