What it is
In industrial automation systems, analog output modules play a key role in converting digital quantities into voltage

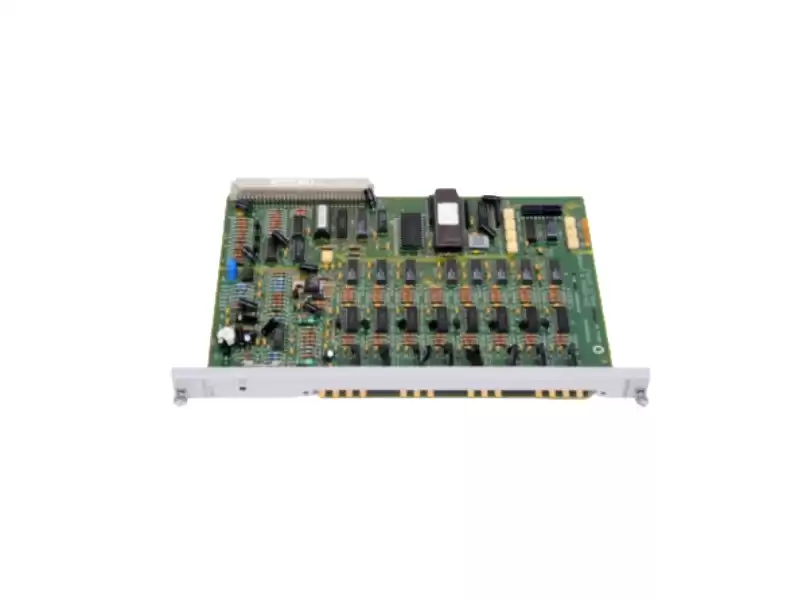

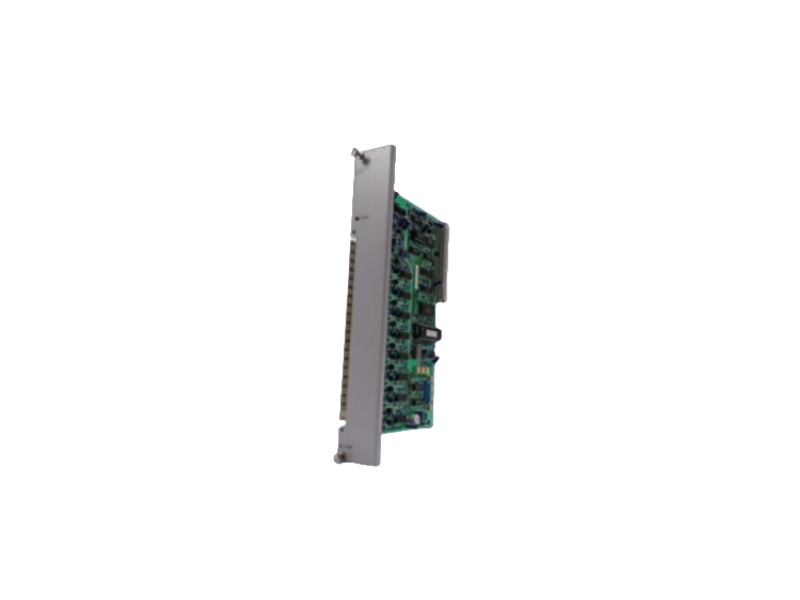

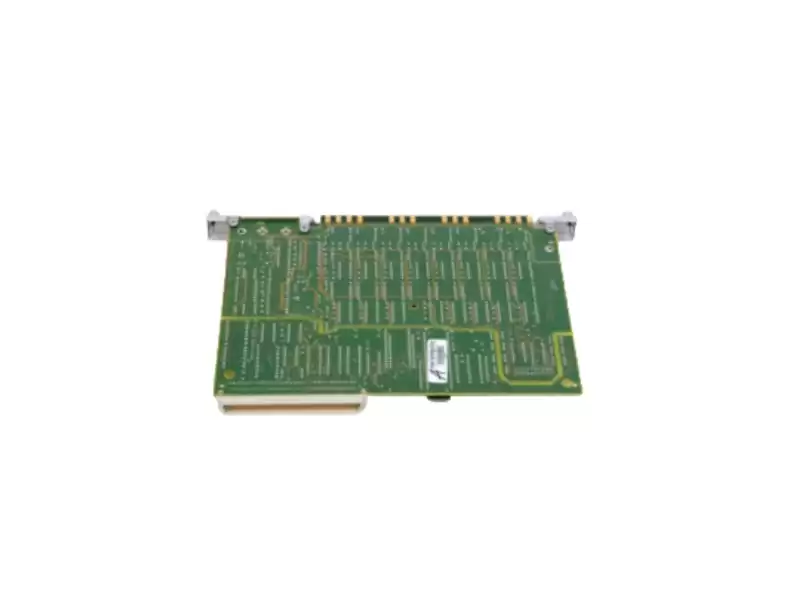

or current signals to drive actuators (such as valves, regulators, motor drives, etc.). The Siemens 505-6208 is a common
8-channel analog output module in the SIMATIC TI / SIMATIC 505 series and is widely used in older control systems.
Key features include:
Ø Multi-channel output: A single module provides eight independent analog outputs, suitable for controlling multiple actuators or circuits.
Ø Voltage/current compatibility: Outputs 0-10 V or 0-20 mA signals to meet diverse device interface requirements.
Ø High precision and stability: 12-bit resolution and isolation ensure accurate and interference-resistant output signals.
Ø Excellent compatibility: Designed specifically for the SIMATIC TI/505 series, it's an easy replacement or upgrade for legacy systems.
Ø Easy integration: Use as an analog output expansion module to expand control capabilities in legacy automation systems.
Technical Specifications
Channels: 8 analog outputs. Multi-channel output capability is suitable for controlling multiple actuators.
Output Type: 0-10 V or 0-20 mA.
Resolution: 12 bits.
Conversion Time: 56 ms (maximum).
Isolation: Channels are isolated from the backplane, improving interference immunity and ensuring system stability.
Typical Applications and System Integration
Ø Multi-channel output: A single module provides eight independent analog outputs, suitable for controlling multiple actuators or circuits.
Ø Voltage/current compatibility: Outputs 0-10 V or 0-20 mA signals to meet diverse device interface requirements.
Ø High precision and stability: 12-bit resolution and isolation ensure accurate and interference-resistant output signals.
Ø Excellent compatibility: Designed specifically for the SIMATIC TI/505 series, it's an easy replacement or upgrade for legacy systems.
Ø Easy integration: Use as an analog output expansion module to expand control capabilities in legacy automation systems.
