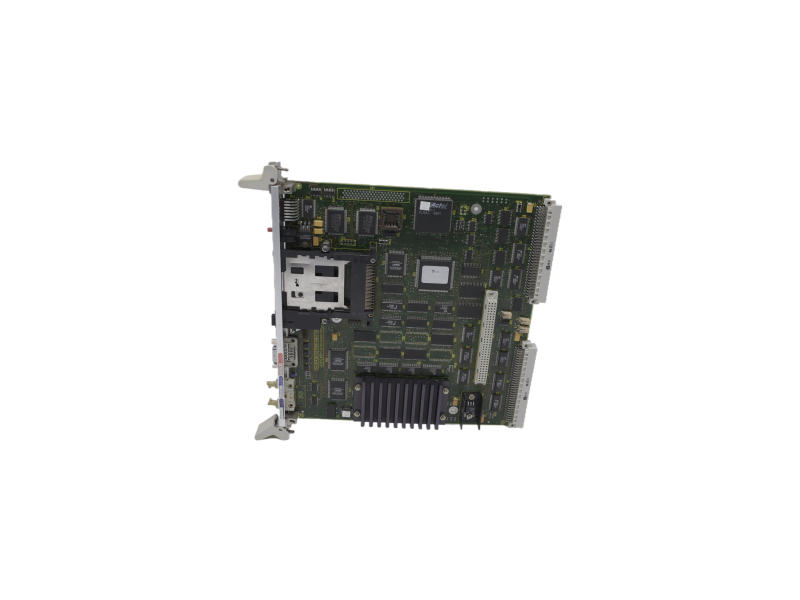

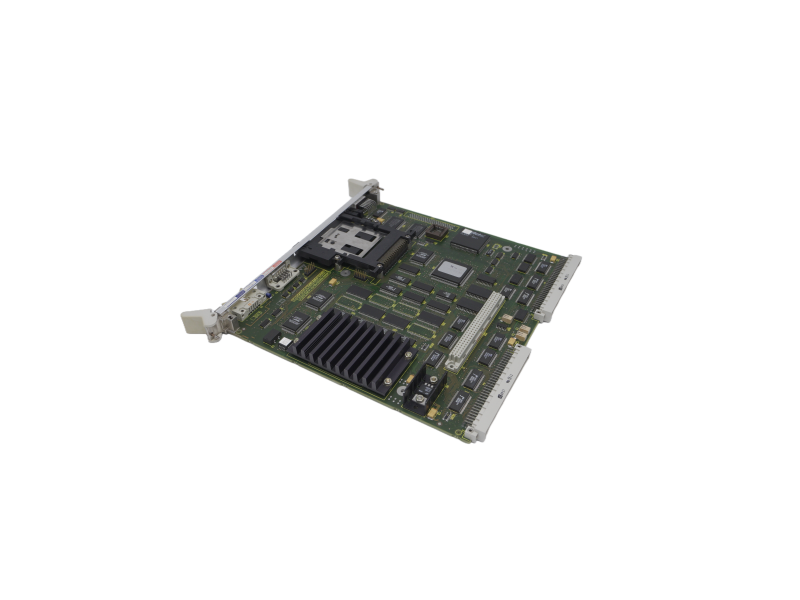

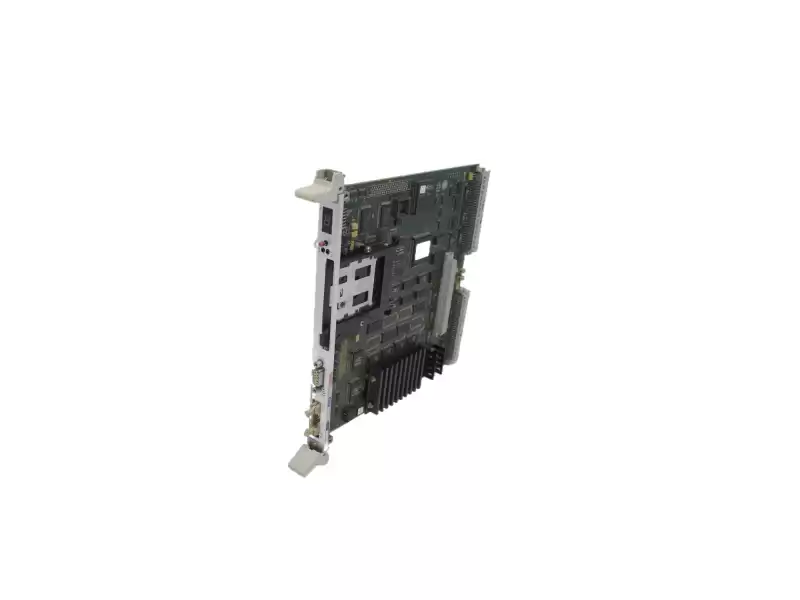

Data Sheet: SIEMENS 6DD1600-0AK0 – SIMADYN D PM6 RAPID 64-bit CPU Module
Purpose
6DD1600-0AK0 is the high-performance CPU heart of any SIMADYN D rack. It executes rolling-mill tension control, hydro-governor loops, or compressor anti-surge logic with sub-millisecond cycle times .
Key Technical Data (per datasheet)
• Processor 64-bit RISC, 64 / 128 MHz
• Memory 8 MB DRAM (program) + 256 kB SRAM (battery-backed diagnostics)
• I/O on-board 8 binary inputs (4 interrupt-capable)
• Interfaces RS-232 (DUST1), L-bus, C-bus, PROFIBUS-DP (optional)
• Cycle time 0.1 ms typical loop, 0.5 ms configured control task
• Power 24 V DC ±20 %, 8 W max
• Temp range –25 °C … +70 °C
• Size / weight 100 × 160 mm DIN-rail slot, 0.6 kg
• Certifications CE, UL, CSA Class I Div 2
Real-World Uses
• Steel-mill tandem drive tension loops
• Compressor anti-surge logic
• Servo-hydraulic fatigue test rigs
Ready-to-Ship SIMADYN-D Kit
|
Part Number
|
Description
|
|
6DD1600-0AK0
|
PM6 CPU module (this unit)
|
|
6DD1610-0AH2
|
MS52 8 MB Flash-EPROM memory card
|
|
6DD1640-0AC0
|
PROFIBUS-DP interface (12 Mbps)
|
|
6DD1681-0EB1
|
24 V DC 10 A power supply
|
|
6DD1681-0CA2
|
Battery module (10-year backup)
|
|
6DD1681-0AE5
|
RS-485 cable, 3 m
|
|
6DD1681-0AG0
|
DIN-rail mounting kit
|
All items factory-sealed and ready for same-day global dispatch from PLC Autocontroller.
