What it is

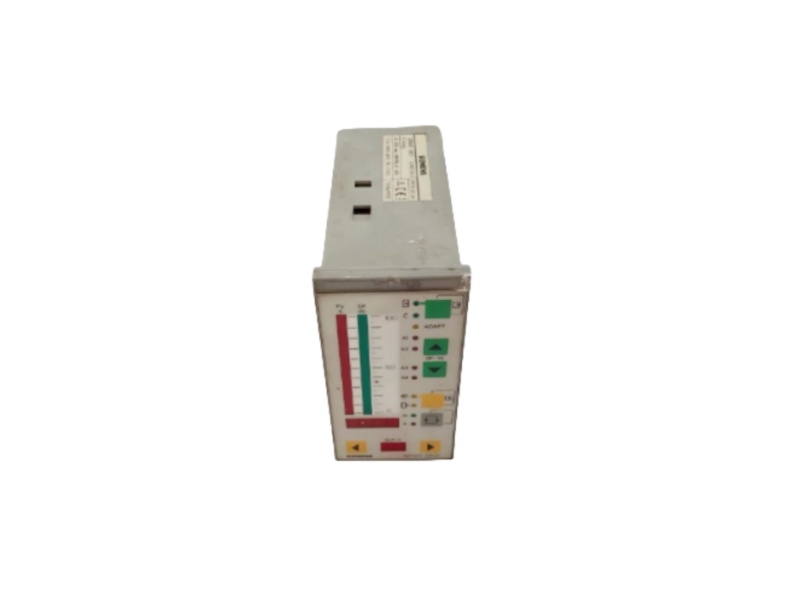

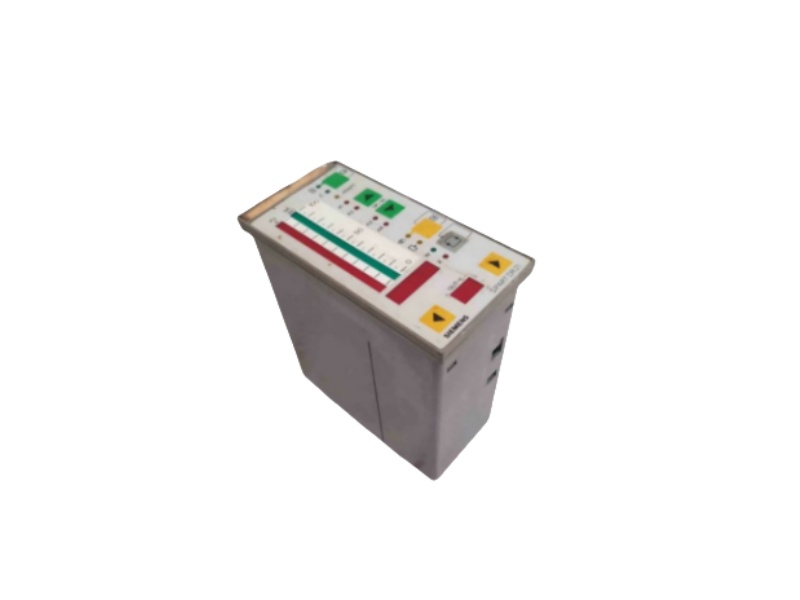

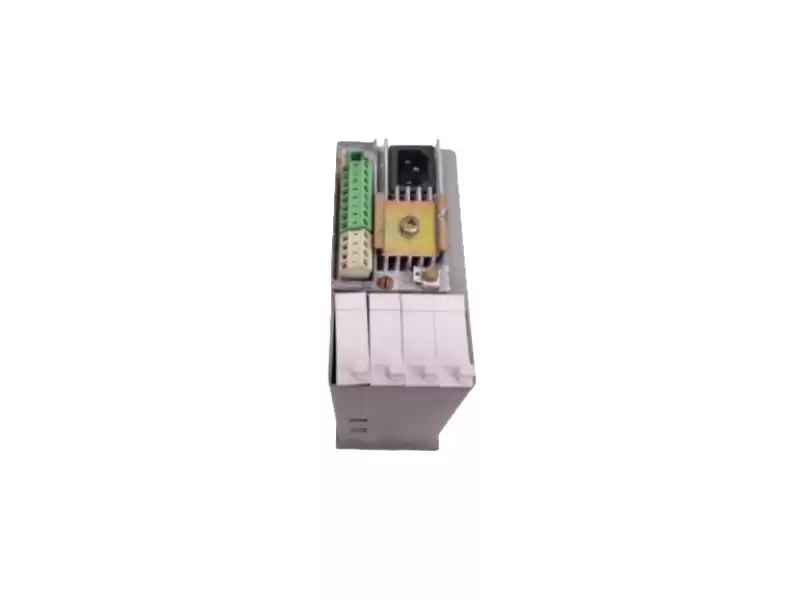

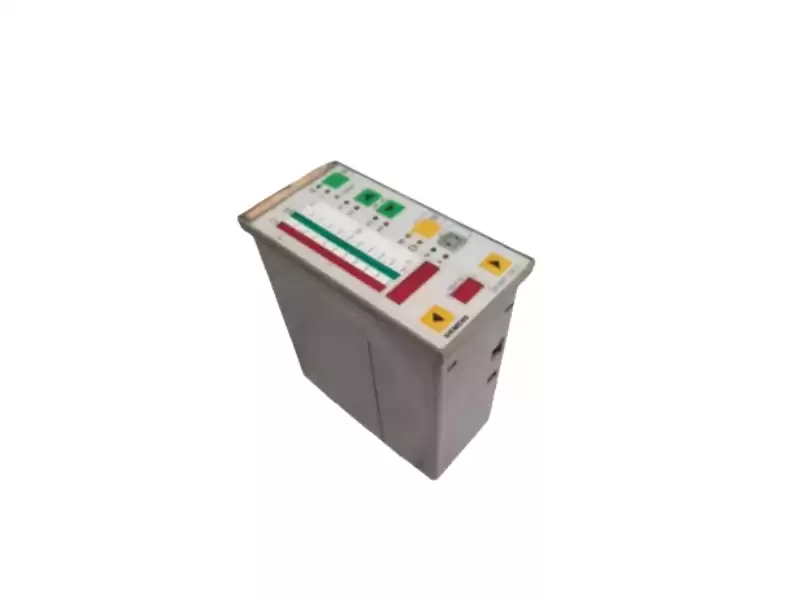

The 6DR2104-5 is a 24 V DC-powered, panel-mounted PID controller from the SIPART DR21 series that packs universal
inputs, 3-point step or continuous outputs, and auto-tuning capabilities into a 96 × 48 mm housing – eliminating the need for external sensors.
6DR2104-5 Main specifications
|
Parameter
|
Value / Note
|
|
Part no.
|
6DR2104-5 (Siemens AG)
|
|
Supply
|
20 – 35 V DC / 20 – 28 V AC, 48 – 63 Hz
|
|
Power draw
|
5 W typical
|
|
Input
|
universal: TC, RTD (2-/3-wire), 0-20 mA, 4-20 mA, 0-10 V, mV
|
|
Accuracy
|
≤ 0.2 % of span, cold-junction comp. included
|
|
Output 1
|
relay 3 A / 250 V or logic 24 V / 30 mA
|
|
Output 2
|
SSR drive 24 V / 30 mA or 0/4-20 mA (11-bit)
|
|
Control
|
PID, PI, P, on/off; auto-tune; manual mode
|
Possible Typical Application Scenarios
l Boiler Deaerator: 0-150°C Pt100 circuit with 3-point stepper output driving a 24V actuator—no PLC card required.
l CO₂ Cold Storage: On/off relay maintains -25°C room temperature within ±0.5°C, saving 30% compressor cycles.
l Extruder Barrel: 4-20 mA output powers a variable frequency drive, automatically tuning to maintain zone temperature within ±1°C at a 200°C setpoint.
Order & ship
u Xiamen stock, 1 Year Warranty
u 100% Original Package
u UPS/ DHL/ FEDEX / TNT
