Data Sheet: Siemens|6GK5212-2BB00-2AA3 | Industrial Ethernet switch
6GK5212-2BB00-2AA3 Identity

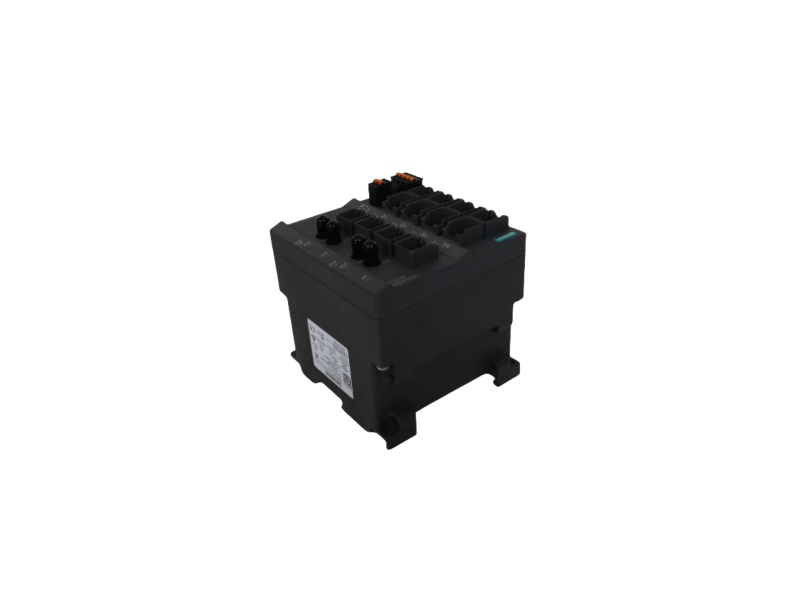

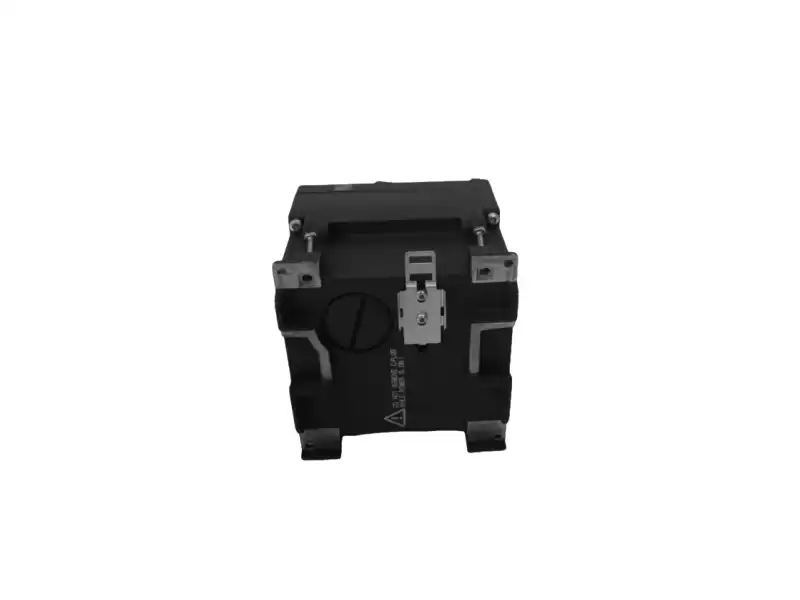

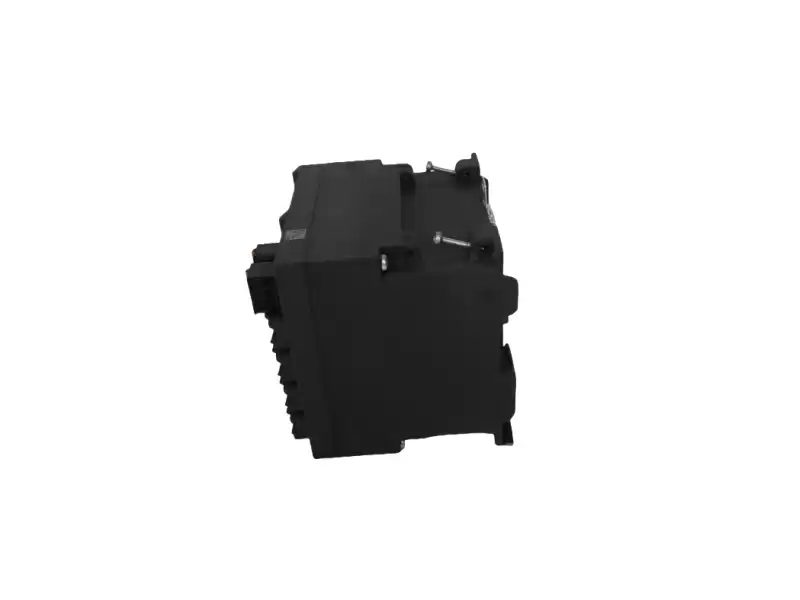

The Siemens 6GK5212-2BB00-2AA3 is a SCALANCE X212-2 managed Industrial Ethernet switch
designed for demanding industrial automation environments. It offers robust network connectivity, redundancy,
and diagnostics features, making it suitable for applications requiring high availability and performance.
Core Overview
|
Knob
|
Factory Value
|
Field Bonus
|
|
Ports
|
12 × 10/100 RJ45 + 2 × 100 Mb MM BFOC
|
550 m fibre reach, plug-and-play
|
|
Power
|
18 – 32 V DC dual input
|
0.33 A max, 7.9 W, fused on-board
|
|
Ring
|
MRP + HRP redundancy manager
|
< 0.3 s heal time, no PLC code
|
|
Mount
|
DIN / wall / S7-300 rail
|
120 × 125 × 124 mm, 1.2 kg
|
|
Temp
|
–40 … +60 °C
|
IP30, 95 % RH non-condensing
|
|
MTBF
|
51 yrs @ 40 °C
|
SN 29500, fan-less, ship-approved
|
Functions and Applications
u Industrial Ethernet Managed Switch
Provides 12 10/100 Mbps RJ45 ports + 2 100 Mbps fiber ports for reliable network connectivity.
Supports full-duplex and half-duplex modes, ensuring high-speed data transmission.
u Network Redundancy and Reliability
A built-in Redundancy Manager supports ring topologies, ensuring network operation even in the event of a single point of failure.
Supports PROFINET IO standards, making it suitable for industrial automation control networks.
Diagnostic and Monitoring Features
LED status indicators indicate port status, network traffic, and fault alarms.
Error signal output interface connects to an external alarm system.
u Power and Protection
24 V DC power input with redundant power support.
Overload protection and electromagnetic interference immunity are supported, making it suitable for harsh industrial environments.
u Management Features
Configurable port VLANs, QoS (Quality of Service), and port mirroring.
Facilitates centralized management and remote monitoring of industrial networks.
|
Package
|
|
Packing: Brand new and original in box
|
|
Delivery time: 2-3 days against the payment
|
|
All the goods will be tested before shipment
|
