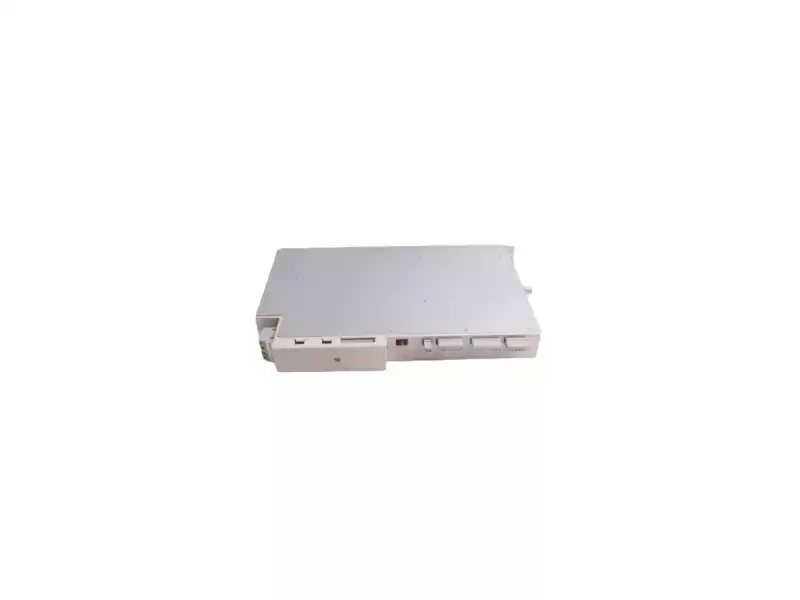

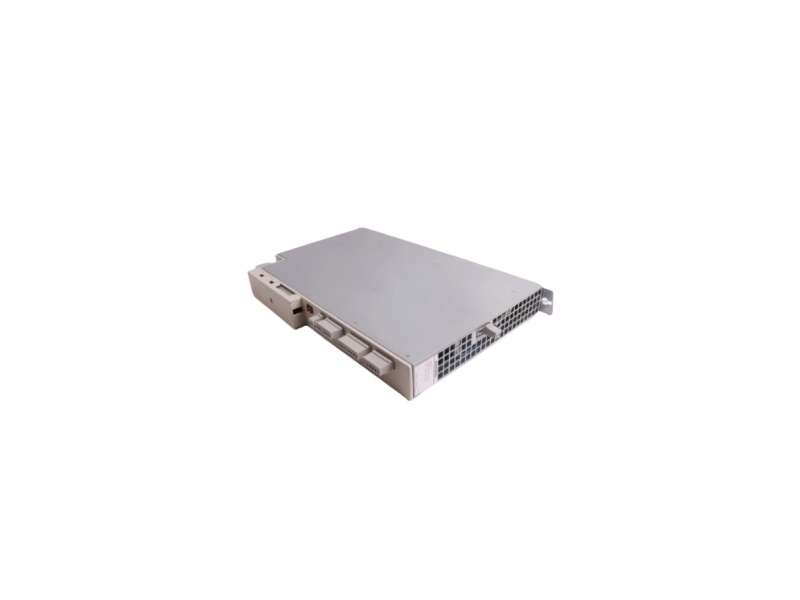

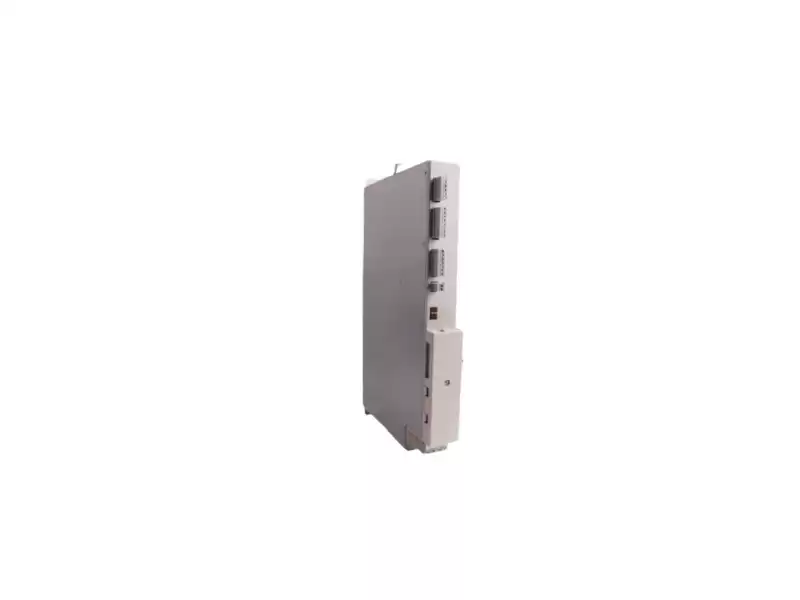

Data Sheet: Siemens|6SC6110-0GA01| control module
6SC6110-0GA01 Identity
6SC6110-0GA01 is the SIMODRIVE 611 universal control module — 24 V DC logic, 32 MB
on-board memory, ±10 V / ±20 mA analog I/O, built-in AD/DA converters, and 0.1 ms interruptible
trigger pulse generator for armature & field thyristors — bolt-on, hot-swap, no external PSU.e.
Core Overview
|
Attribute
|
Field Value
|
On-Site Benefit
|
|
System voltage
|
24 V DC (18-30 V)
|
same rail as PLC, dual inlet possible
|
|
Memory
|
32 MB
|
stores parameter set & trace buffer
|
|
Analog I/O
|
4 × ±10 V + 2 × ±20 mA
|
armature voltage, current, field, temp
|
|
AD/DA resolution
|
16-bit
|
0.02 % full scale, 1 ms scan
|
|
Trigger pulses
|
0.1 ms interruptible
|
120° thyristor firing, < 2 µs jitter
|
|
Isolation
|
2 kV RMS bus-to-logic
|
reinforced, IEC 61131-2
|
|
Temp
|
–25 … +60 °C
|
IP20, conformal coat, steel-mill proven
|
|
Size / wt
|
130 × 100 × 60 mm / 1.4 kg
|
book-size, 96-pin edge, hot-swap
|
|
Approval
|
CE, UL, cULus
|
export-ready
|
|
Old Board
|
Plug-&-Play?
|
Action
|
|
6SC6110-0GA01 any suffix
|
✔
|
copy parameter set (stored in EEPROM)
|
|
6SC6110-0GA00
|
✔
|
identical hardware, different label
|
|
6SC6110-0GB01
|
✘
|
expansion board, different connector
|
|
Package
|
|
Packing: Brand new and original in box
|
|
Delivery time: 2-3 days against the payment
|
|
All the goods will be tested before shipment
|
