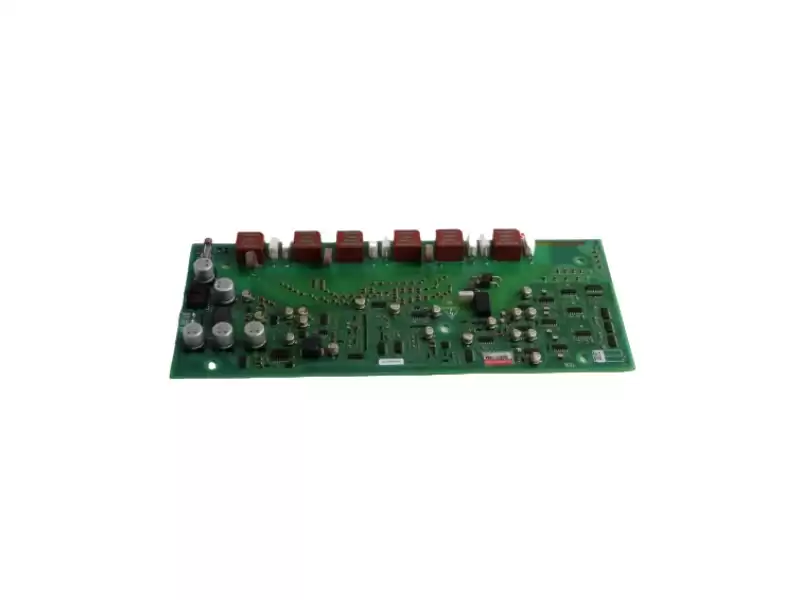

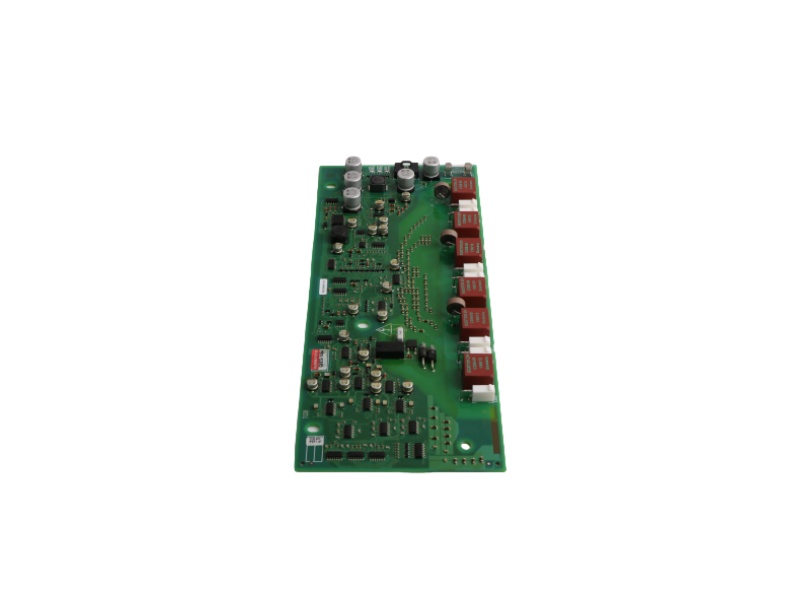

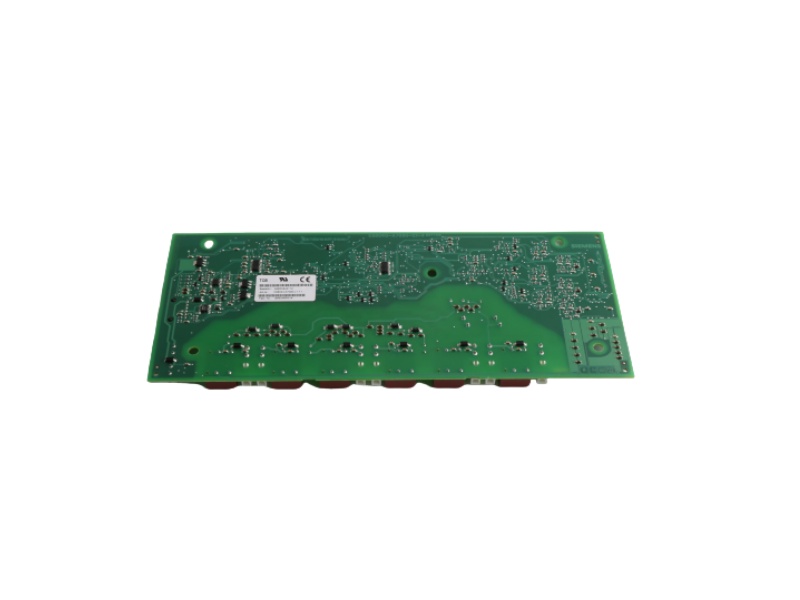

A5E00842112 is a silicon-controlled (SCR) trigger board used inside Siemens / Schneider ZB4PLUS250A
and C98043-A7090-L1 power stacks: it converts 24 V logic pulses into ±15 V gate bursts, firing up to 250 A SCR bridges —
no external PSU, no fiber optics, just screw-terminals and go.
u Spec-Snapshot Table
|
Attribute
|
Field-Measured Value
|
On-Site Benefit
|
|
Gate output
|
±15 V, 3 A peak per SCR
|
< 2 µs jitter, 120° conduction
|
|
Logic input
|
24 V DC, 20 mA per channel
|
direct from PLC relay, opto-isolated
|
|
SCR range
|
70 – 250 A, 400 – 690 V AC
|
fits MM4, G120, ATV68, ATV38 frames
|
|
Isolation
|
2.5 kV RMS primary-to-gate
|
reinforced, IEC 61800-5-1
|
|
Temp
|
–20 … +70 °C
|
conformal coat, steel-mill proven
|
|
Size / wt
|
120 × 80 × 22 mm / 0.18 kg
|
side-by-side on 35 mm DIN rail
|
|
Approval
|
CE, UL E469747
|
export-ready, IP20
|
