Singapore Popular Style Klip-Lok Roof Panel Roll Forming Machine

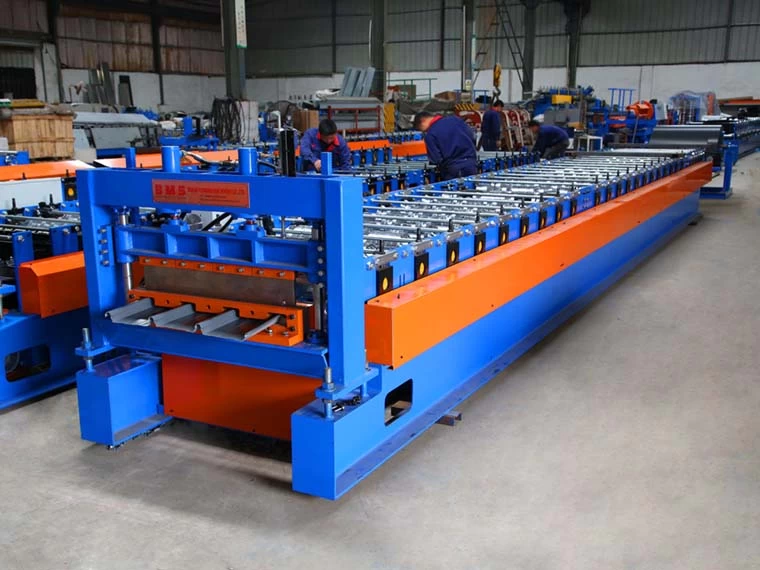

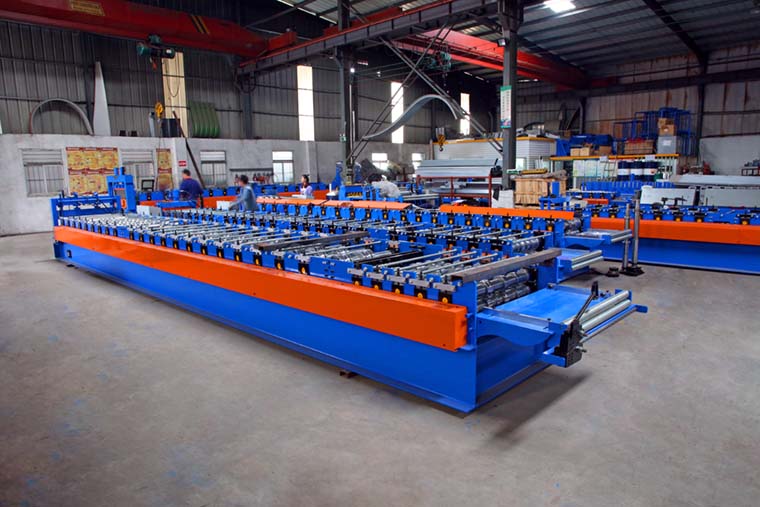

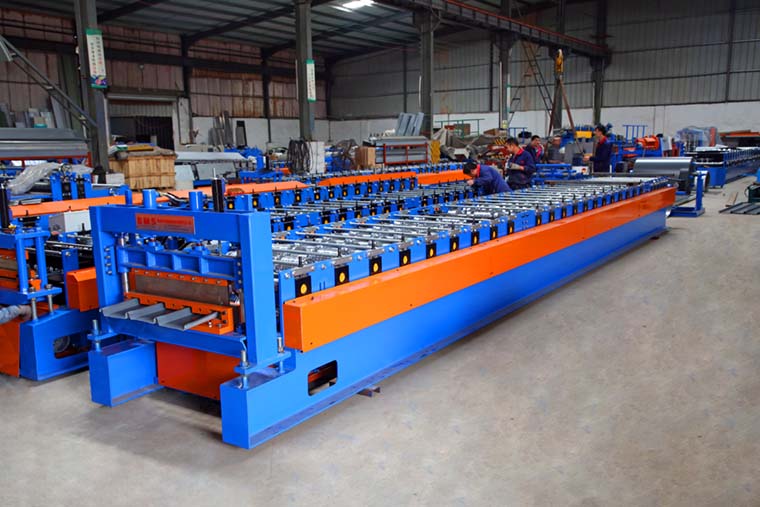

          YX41-700 Klip-Lok Roof Panel Roll Forming Machine




Klip lok Roof Panel Roll Forming Machine


Klip lok Roof Panel Roll Forming Machine



Click here for Klip-Lok Roof Panel Roll Forming Machine video

1.Main features of YX41-700 klip-lok roof panel machine


    The advantages of roof panel machine are as follows:

    1.Feeding material strength: 550Mpa coils.

    2.Rollers material: 40Cr

    3.Easy operation, low maintenance cost

    4.Stable and durable


2.Detailed Images of YX41-700 klip-lok roof panel forming machine


    Machine Parts

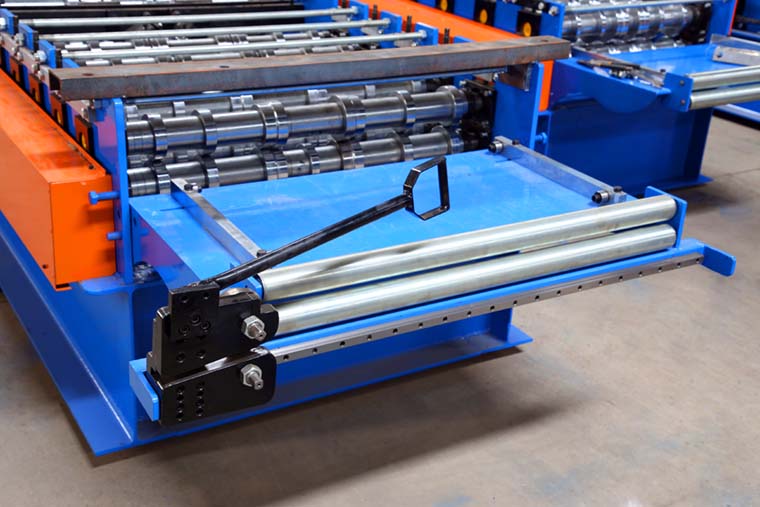

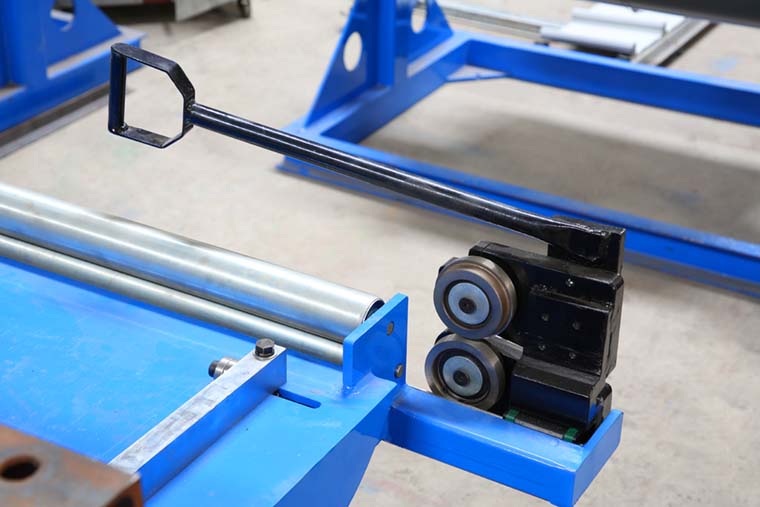

        1) YX41-700 klip-lok roof panel machine manual pre-cutter

        Brand: BMS    Original: China

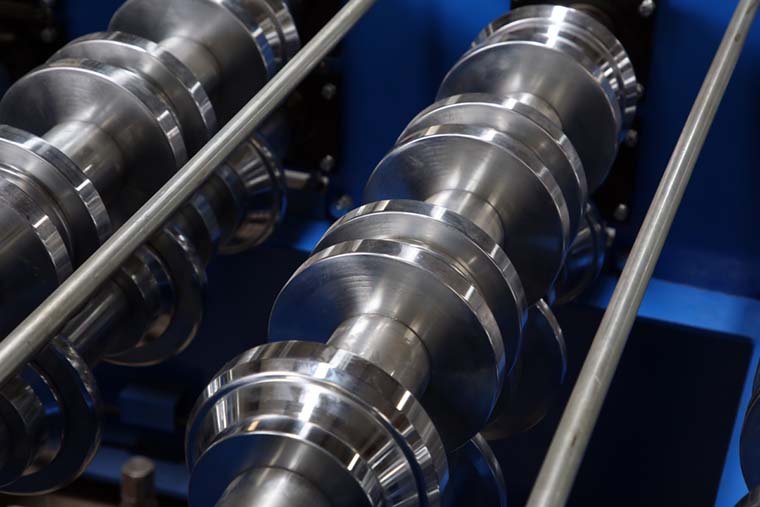

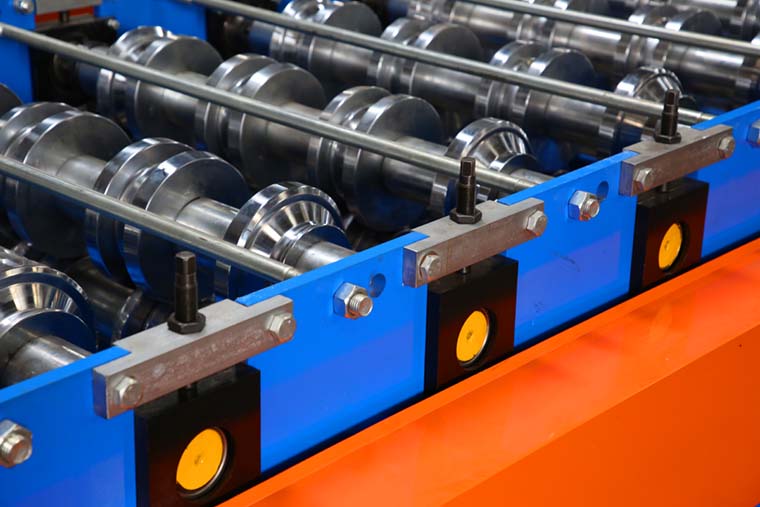

        2) YX41-700 klip-lok roof panel machine rollers

        Rollers manufactured from high quality 40Cr steel , CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body frame made from 400# H type steel by welding


Boltless Roof Panel Roll Forming Machine


Boltless Roof Panel Roll Forming Machine

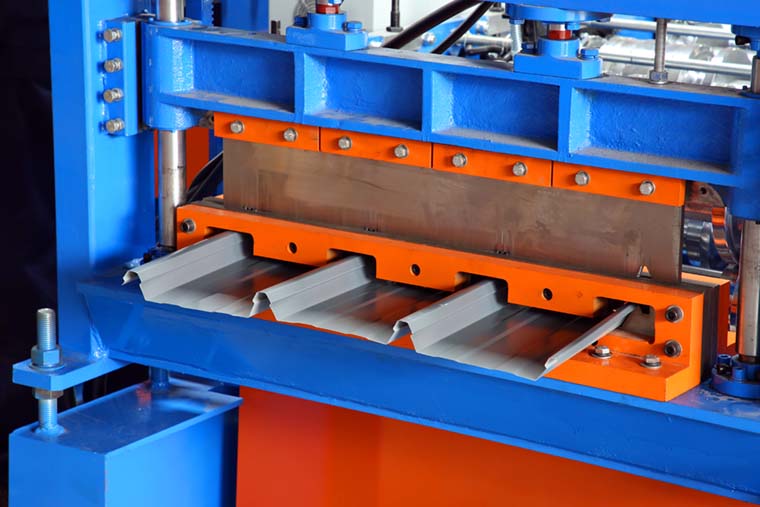

       3) YX41-700 klip-lok roof panel machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        Hydraulic motor:3KW, Hydraulic pressure range: 0-16Mpa


Joint Hidden Roofing Panel Forming Machine

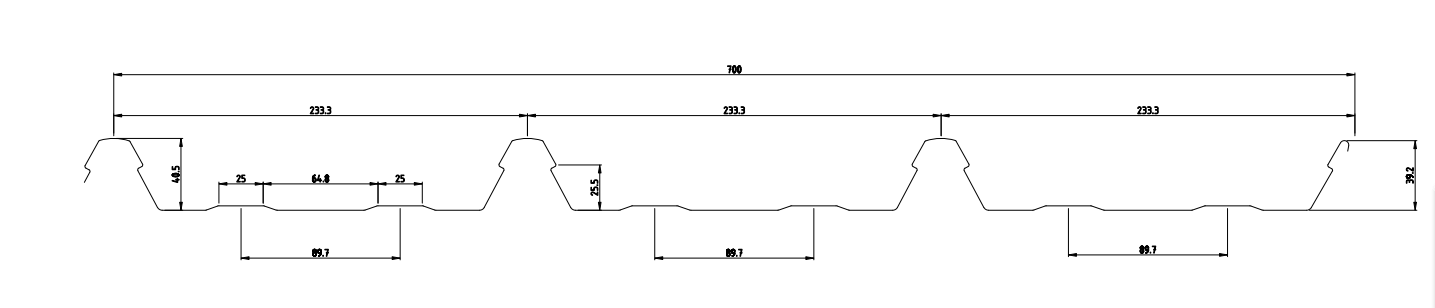

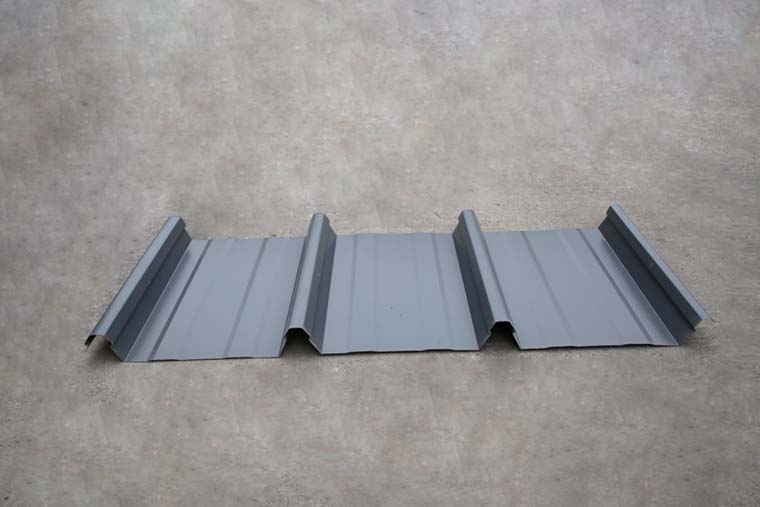

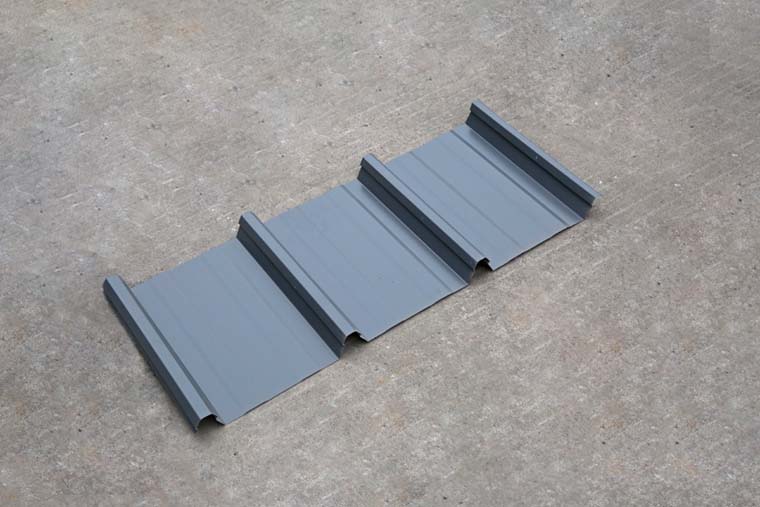

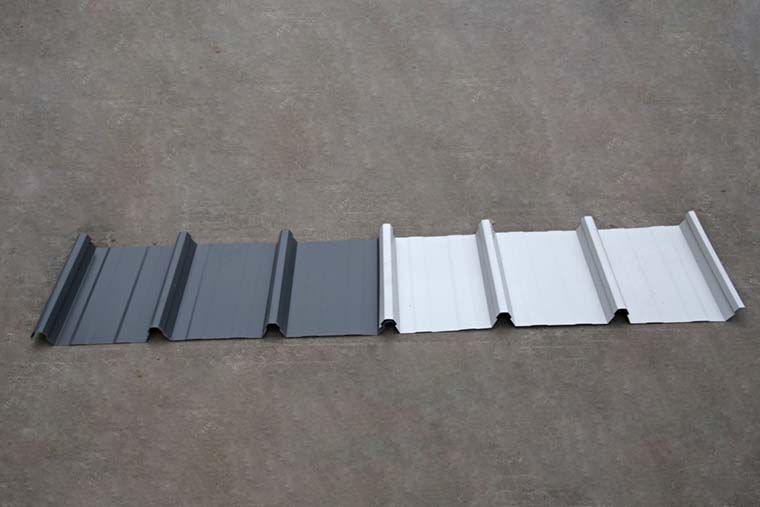

        4) YX41-700 klip-lok roof panel machine sample display

Joint Hidden Roofing Panel Forming Machine




Joint Hidden Roofing Panel Forming Machine




        5) YX41-700 klip-lok roof panel machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1250mm, coil ID range 470mm±30mm

        Capacity: Max. 5 Ton





        With 6 tons hydraulic decoiler for option

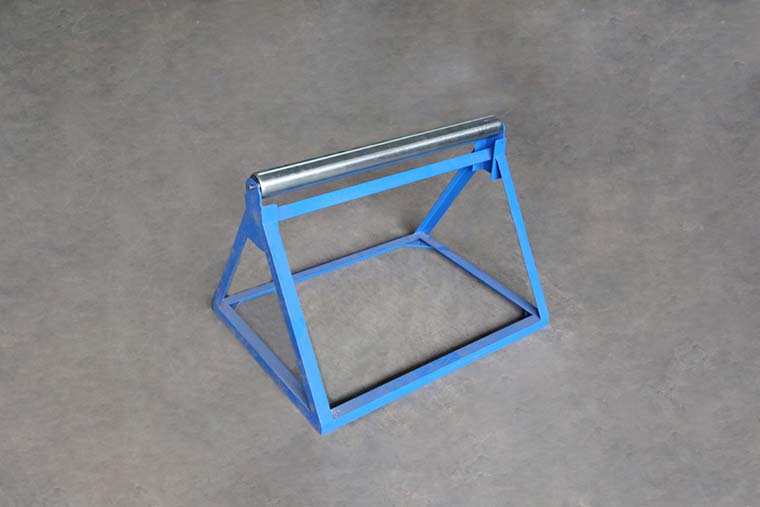

        6) YX41-700 klip-lok roof panel machine exit rack

        Un-powered,three units





Other details of YX41-700 klip-lok roof panel machine



Suitable for material with thickness 0.42-0.65mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission,24 steps to form

Main motor=7.5KW , Frequency speed control. Forming speed approx.15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of klip-lok roof panel machine



1. The warranty of YX41-700 klip-lok roof panel machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
