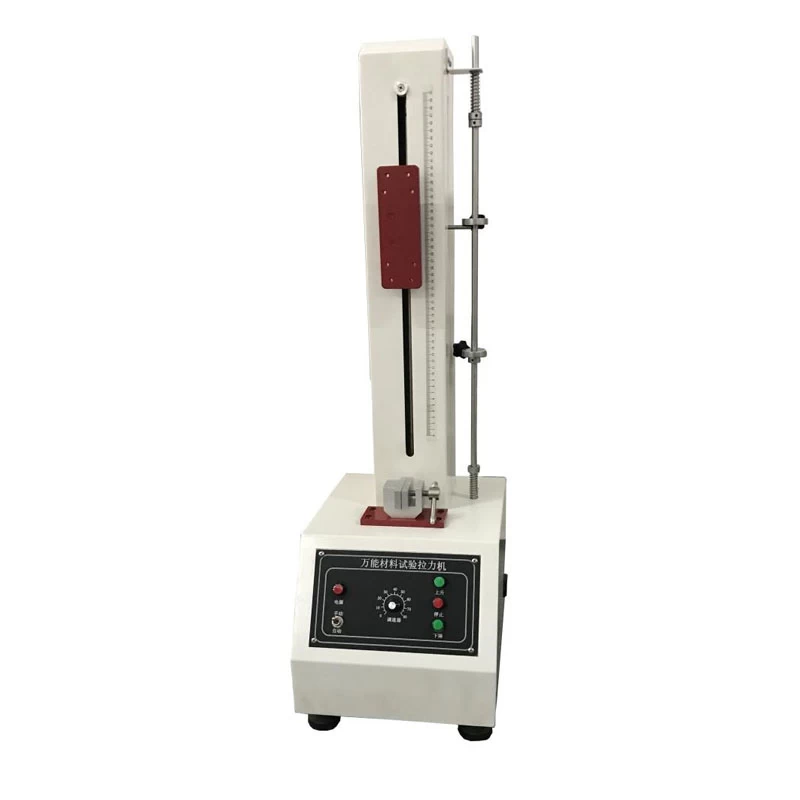

AG02-2-Single Column Universal Tensile Strength Tester
Application Of Single Column Universal Tensile Strength Tester
Single Column Universal Tensile Strength Tester is widely used to test the tensile strength, peel strength, deformation rate, breaking force, peel force, opening force, compression, bending, shear resistance and etc.. Suitable for Textile, leather, shoe materials, hardware, metal, rubber, plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather.
Key Specification Of Single Column Universal Tensile Strength Tester
|
Model
|
AG02-2 Single
Column Universal Tensile Strength Teste
|
|
Capacity
|
20N, 50N, 100N,200N, 500N, 1000N option
|
|
Control method
|
Electronic
|
|
Force measurement method
|
Push pull force meter
|
|
Force accuracy
|
±1%
|
|
Stroke
|
750mm
|
|
Test speed
|
10-300mm/min
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
35*40*110cm
|
|
Weight
|
25kg
|
Accessories Of Single Column Universal Tensile Strength Tester
|
Standard
Accessories
|
Push pull
force meter （20N, 50N,
100N,200N, 500N, 1000N option）
|
1pc
|
|
Griper
|
1set
|
|
Option
Accessories
|
Different
load of Push pull force meter
|
|
|
Different
gripers
|
|
