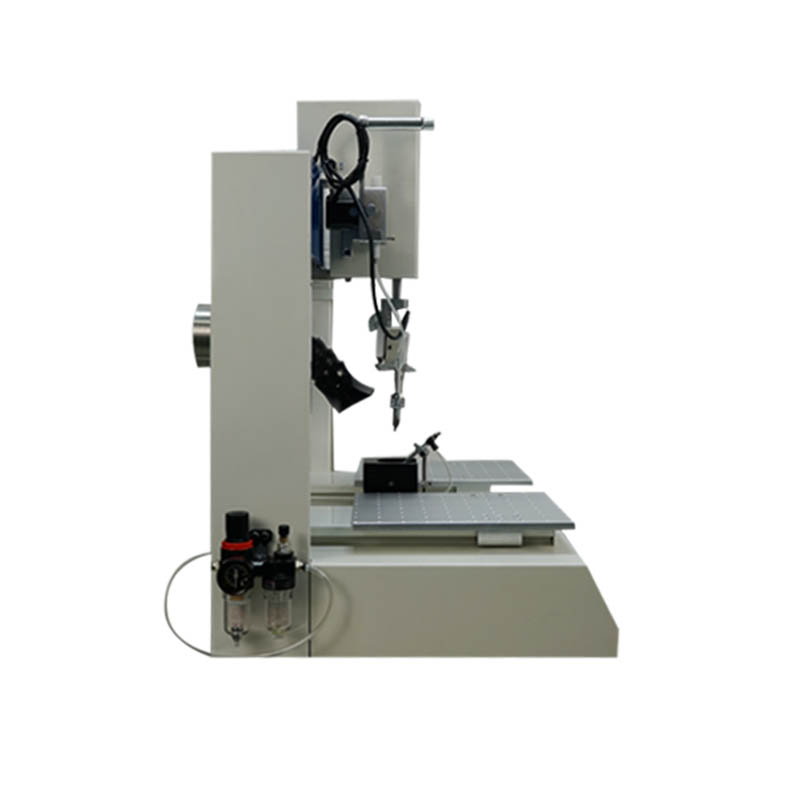

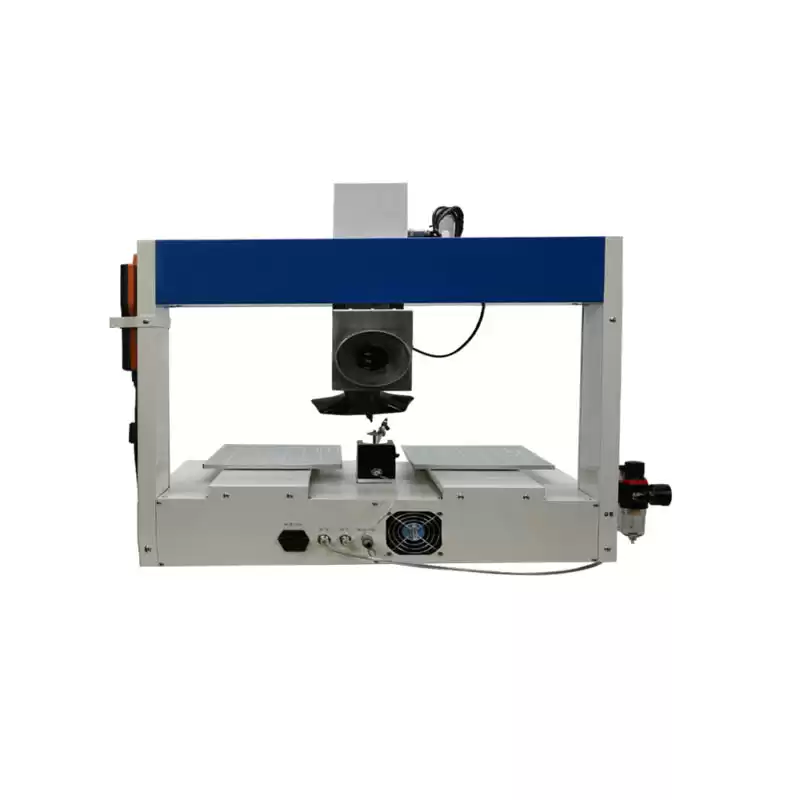

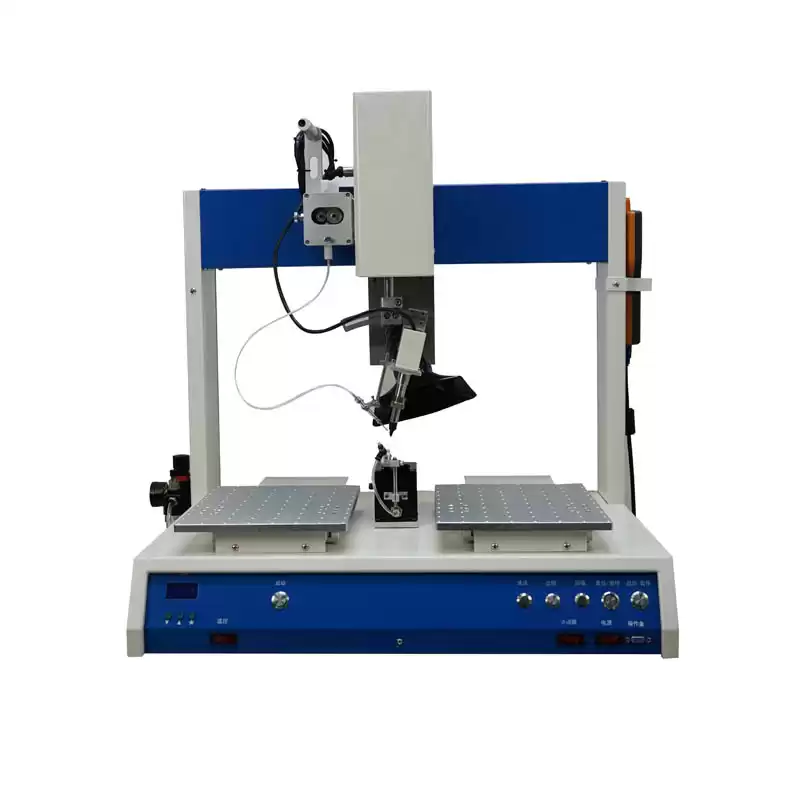

Single Head SMT Automated Robotic Soldering Machine

The PCB soldering robot machine provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering. Single head and dual tables.



Single Head SMT Automated Robotic Soldering Machine


We produce automated robotic soldering machines ;that meet the demands of applications that are too challenging for hand soldering. Manual soldering, even with the most skilled operator, cannot produce the consistent results of a soldering robot. Simple description: this automated robotic soldering machine has the advantages of reasonable structure, wide adaptability, easy maintenance, easy to use and so on. Welding workers dependence can be completely abolished, customers only in one investment, long-term benefit. This automated robotic soldering machine can complete high speed of spot soldering, line soldering, has parameter copy, automatic correction of coordinate function, greatly shorten the programming time. Suitable for auto electronics, digital, audio, LCD line, PCB line, connector, RJ network transformer.


FEATURES:

1. ;Flexible and diverse soldering methods, with spot welding, drag welding (pull welding) and other functions.

2. The mechanical arms of the equipment are all aluminum profiles, which are not deformed, rusted and stable.

3. Device writing work program can be point-to-point, block-to-block copy, shorten the programming time.

4. The automated robotic soldering machine has an automatic cleaning function, to a certain extent stabilize the quality of solder processing and extend the life of the soldering iron tip.

5. Multi-axis linkage manipulators, all adopt precision stepping motor drive and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

6. This automated robotic soldering machine is double head and single working place,we accept the double head and double working place and so on.



SPECS:

Model SMTSR124
Dimension 880*700*830mm
Weight 90Kg
Control PLC
Programming Teaching box
Driving mode Stepper motor
Stroke 500(X)x300(Y1)x300(Y2)x80(Z)x360°(R)
Soldering head 1
Repeatability ±0.02mm(X/Y/Z)
Temp. Range 0-500℃
Solder Wire Spec ¢0.3-1.6mm
Number of axes 5
Working pressure 0.4~0.6Mpa(No water mist)
Power AC110V/220V 300W
Display LCD

;

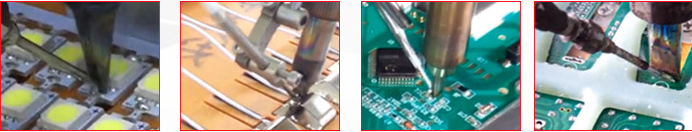

APPLICATIONS:

Suitable for automotive electronics, digital, electronic, electro-acoustic, LCD, circuit board and other production industries, connectors, networks, transformers, cable, FPC / COF soldering, computer motherboards, CABLE, speakers and motors high quality soldering.


CONFIGURATION:

1. ;Handheld teach programmer

2. ;Heating controller

3. ;Broken tin controller

4. ;Soldering tip

5. ;Tin out components

6. ;Smoke purification filter system (optional)


Spare Parts Available:

1. Customized soldering tips

2. Heater

3. Customized fixture

4. Solder wire

5. Soldering head set

Soldering Iron ; ;soldering heater ; ;Soldering tip
