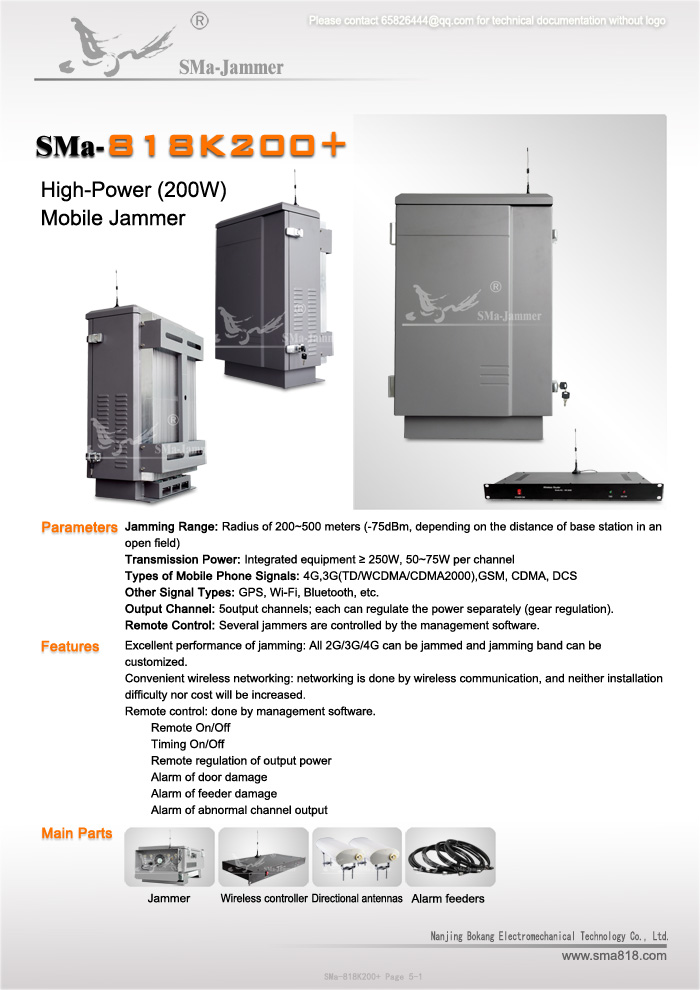

SMa-818K200+ High-Power(200W) Mobile Signal Jammer
Application
SMa-818K200+ is applicable to open field, prison, school, force, factory, etc.
Open field: 1 or 2 jammers are needed.
Prison: Generally, 4 to 10 jammers are needed, depending on the height and layout of buildings, the size of supervision area and distance of base station.
School: The quantity of jammers depends on the quantity and layout of teaching buildings or dormitory buildings and the distance of base station.
Technical Parameters
A:Jamming Range: Radius of 200~500 meters (-75dBm, depending on the distance of base station in an open field)
B:Transmission Power: Integrated equipment ≥ 250W, 50~75W per channel
C:Types of Mobile Phone Signals:4G,3G(TD/WCDMA/CDMA2000) GSM, CDMA, DCS
D:Other Signal Types: GPS, Wi-Fi, Bluetooth, etc.
E:Output Channel: 5 output channels; each can regulate the power separately (gear regulation)
F:Remote Control: Several jammers are controlled by the management software
Features
Excellent performance of jamming: All 2G/3G/4G signals can be jammed and jamming band can be customized.
Convenient wireless networking: networking is done by wireless communication, and neither installation difficulty nor cost will be increased.

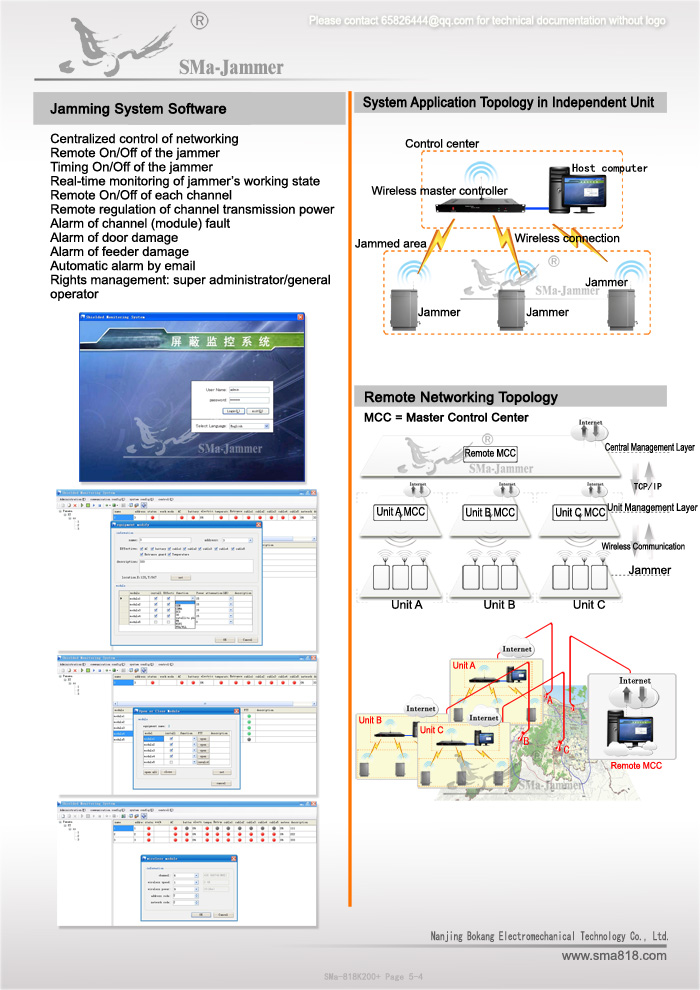

Remote control: done by management software.
a:Remote On/Off
b:Timing On/Off
c:Remote regulation of output power
d:Alarm of door damage
e:Alarm of feeder damage
f:Alarm of abnormal channel output
g:Centralized control of networking

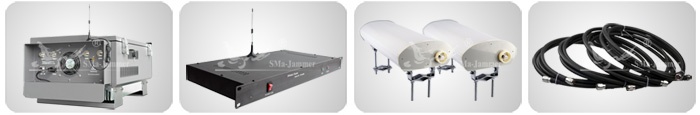

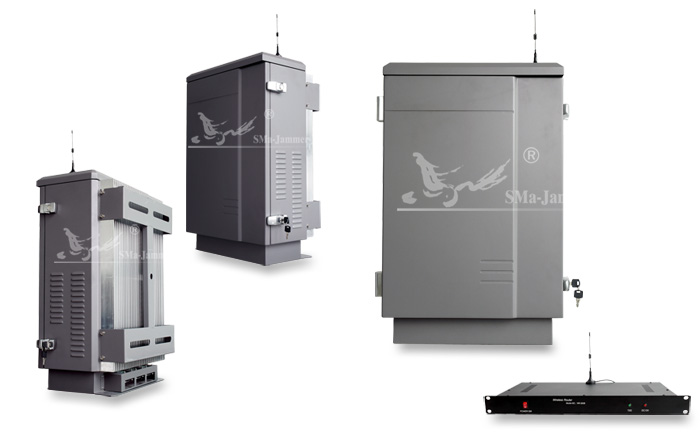

Main Parts
Jammer Wireless Controller Directional Antennas Alarm Feeders

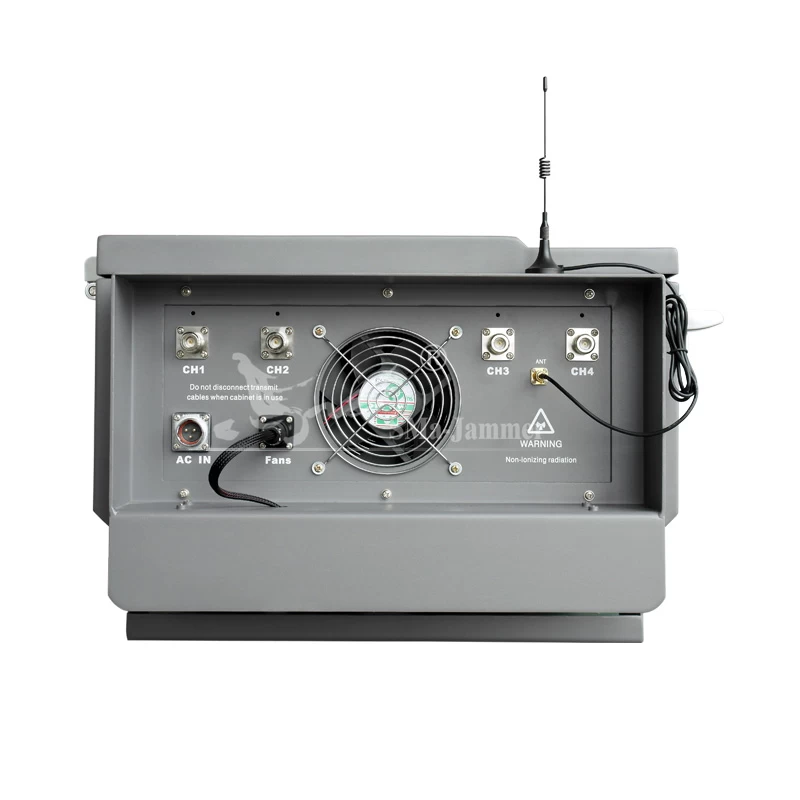

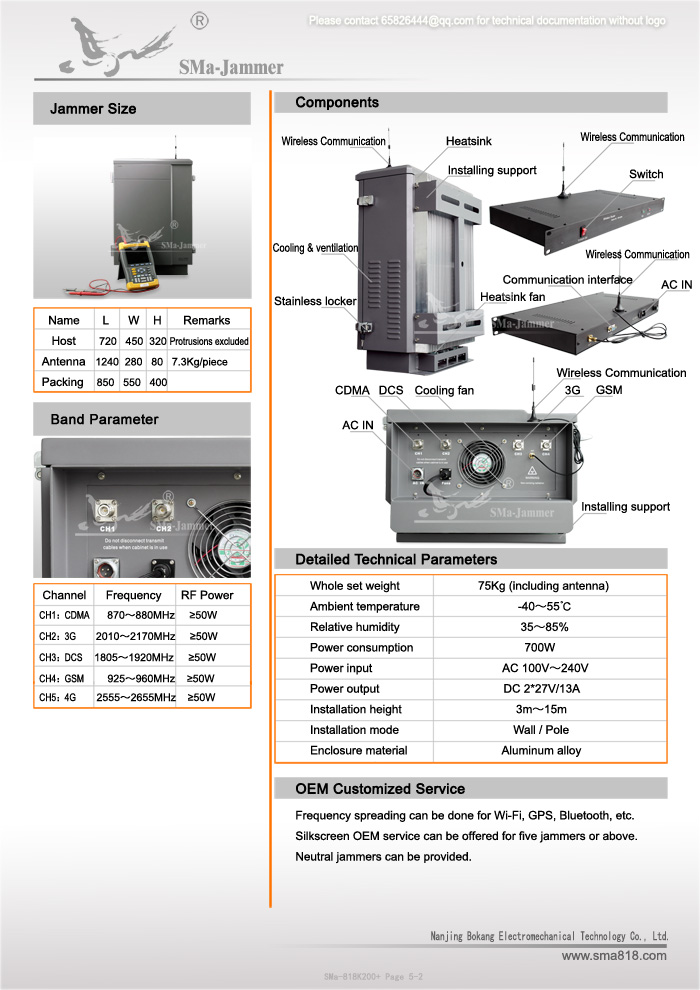

Detailed Technical Parameters
|
Band parameter
|
Channel
|
Operating frequency
|
Average output power
|
|
CH1:CDMA
|
870-880MHz
|
≥50W
|
|
CH2:3G
|
2010~2170MHz
|
≥50W
|
|
CH3: DCS
|
1805~1920MHz
|
≥50W
|
|
CH4:GSM
|
925~960MHz
|
≥50W
|
|
CH5:4G
|
2555~2655MHz
|
≥50W
|
|
Jammer size
|
720*450*320(protrusions excluded)
|
|
Antenna size
|
1240*280*80(7.3Kg/piece)
|
|
Packing size
|
850*550*400
|
|
Whole set weight
|
75Kg(including antenna)
|
|
Ambient temperature
|
-40℃~55℃
|
|
Relative humidity
|
35~85%
|
|
Power consumption
|
700W
|
|
Power input
|
AC 100V~240V
|
|
Power output
|
DC 2*27V/13A
|
|
Installation mode
|
Wall/Pole
|
|
Installation height
|
3~15m
|
|
Enclosure material
|
Aluminum alloy
|

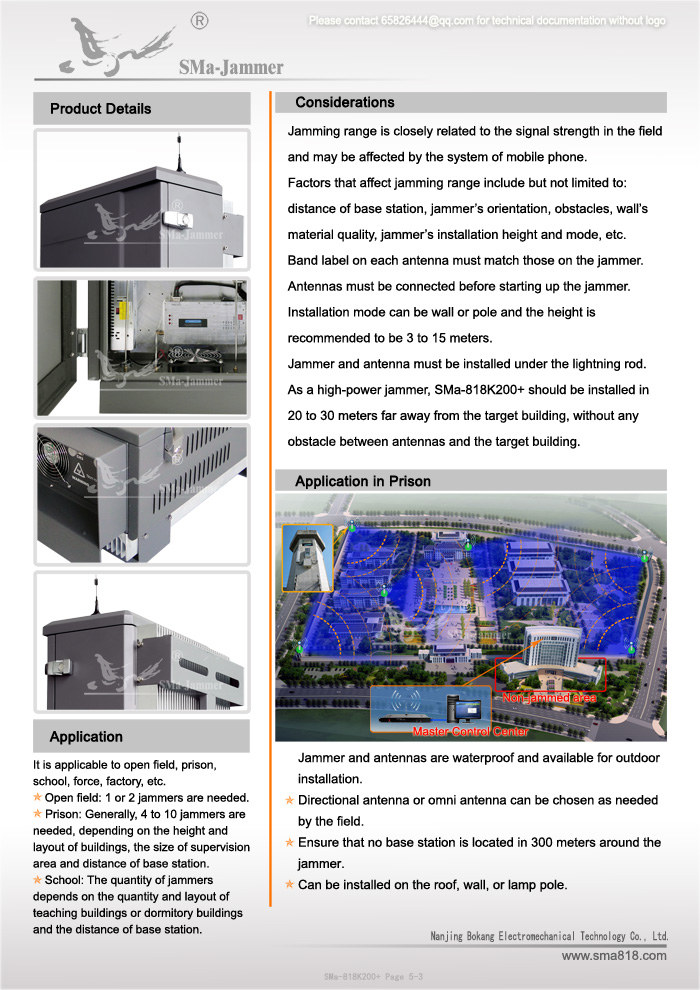

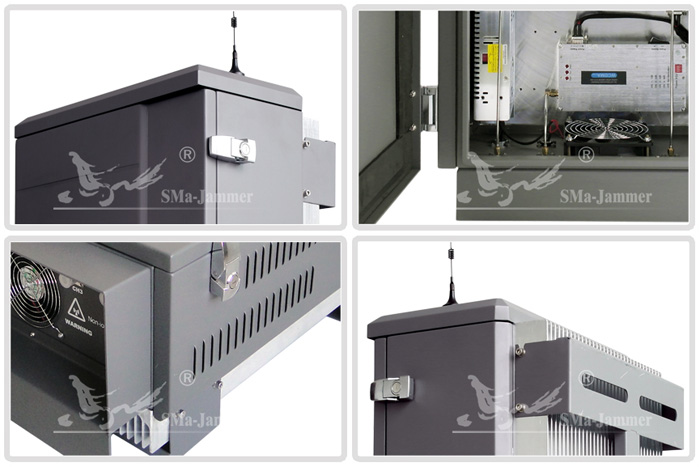

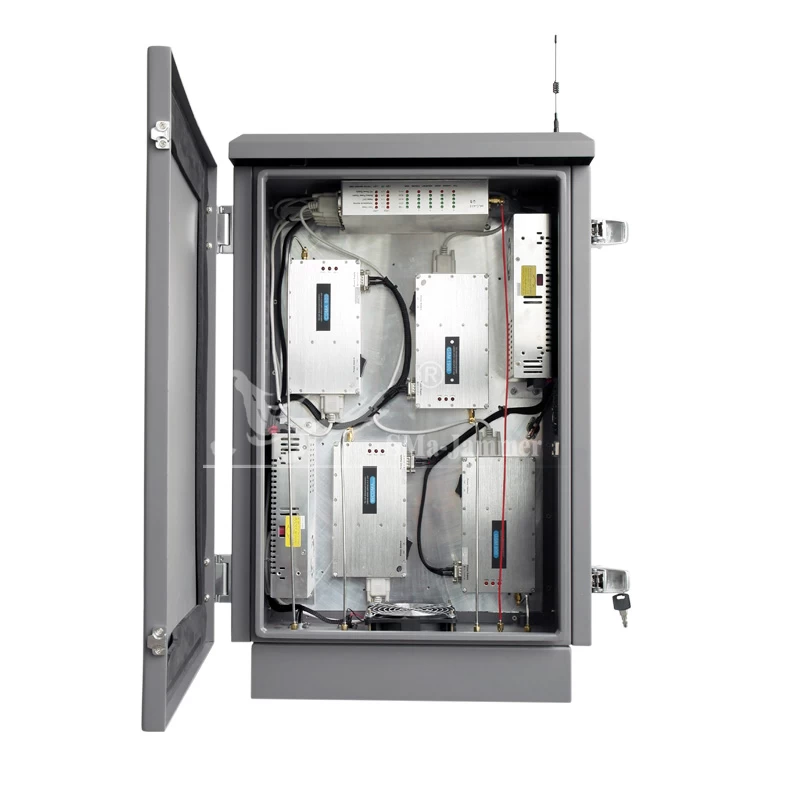

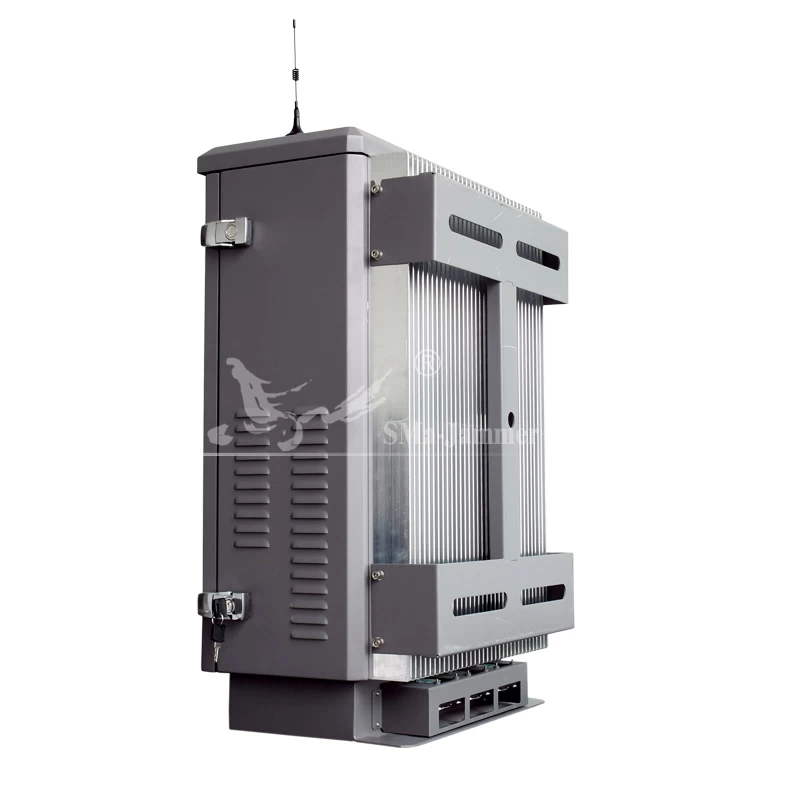

Product Details
Considerations
Jamming range is closely related to the signal strength in the field and may be affected by the system of mobile phone.
Factors that affect jamming range include but not limited to: distance of base station, jammer’s orientation, obstacles, wall’s material quality, jammer’s installation height and mode, etc.

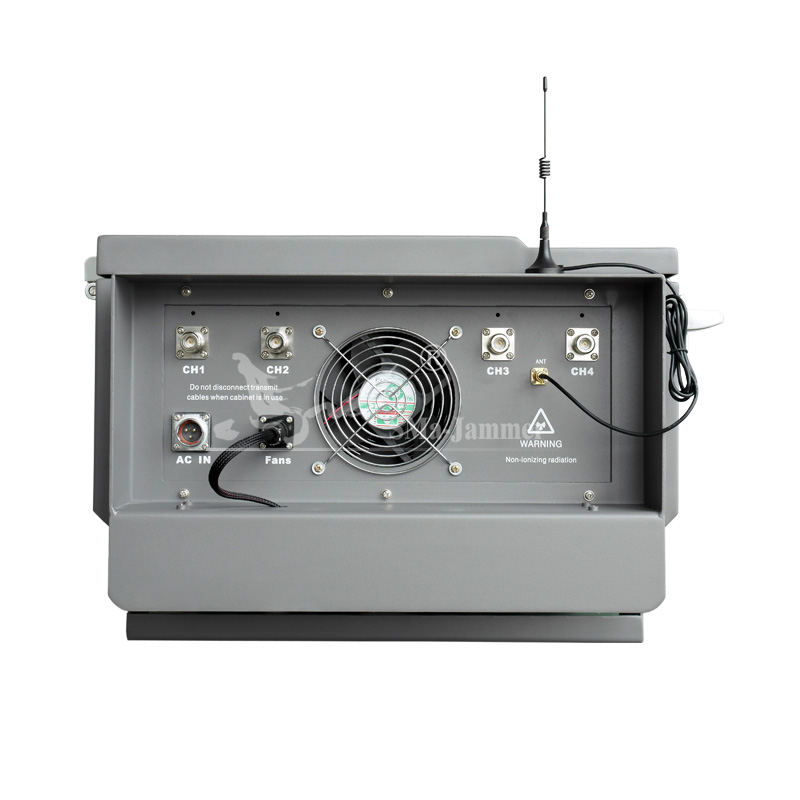

Band label on each antenna must match those on the jammer. Antennas must be connected before starting up the jammer.

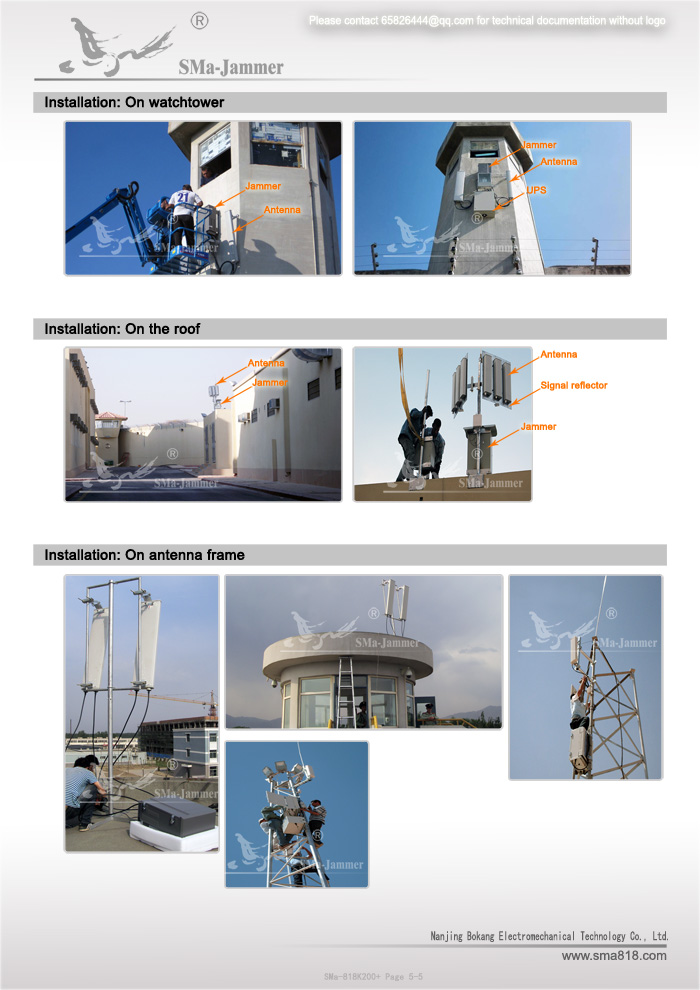

Installation mode can be wall or pole and the height is recommended to be 3 to 15 meters.
Jammer and antenna must be installed under the lightning rod.
As a high-power jammer, SMa-818K200+ should be installed in 20 to 30 meters far away from the target building, without any obstacle between antennas and the target building.
OEM Customized Service
Frequency spreading can be done for Wi-Fi, GPS, Bluetooth, etc.
Silkscreen OEM service can be offered for five jammers or above.
Neutral jammers can be provided.

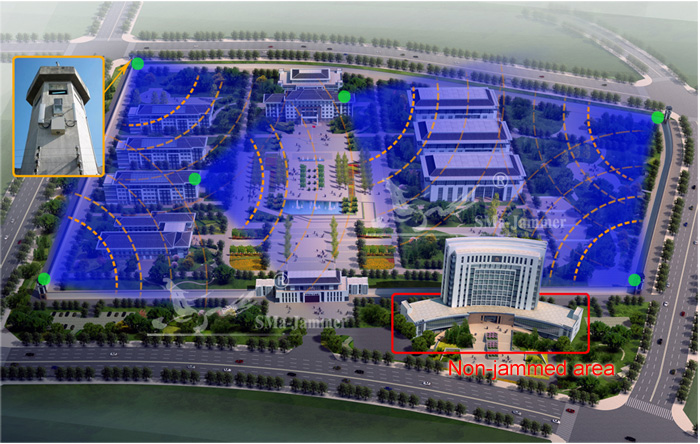

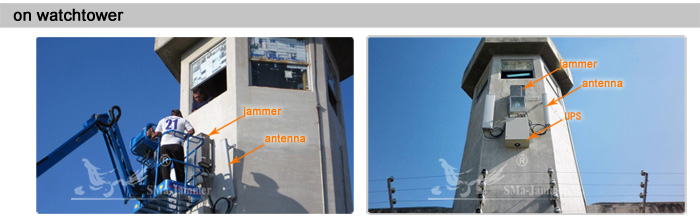

Application in Prison
Jammer and antennas are waterproof and available for outdoor installation.
Directional antenna or Omni antenna can be chosen as needed by the field.
Ensure that no base station is located in 300 meters around the jammer.

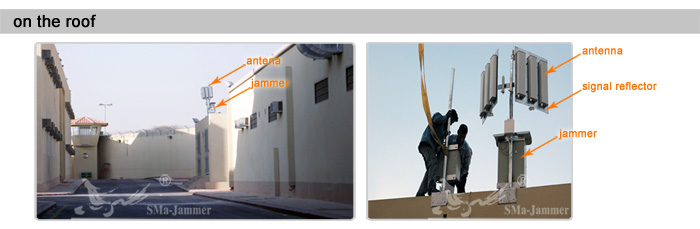

Can be installed on the roof, wall, or lamp pole.
