Small Vacuum Heat Sealing Machine for Lab Pouch Cell Battery Case Pre-Sealing

This vacuum heat sealer machine is mainly used for vacuum hot sealing after electrolyte diffusion of small pouch cell batteries.



Small Vacuum Heat Sealing Machine for Lab Pouch Cell Battery Case Pre-Sealing


Introduction:

This equipment is mainly used for vacuum hot sealing after electrolyte diffusion of pouch cell Li-ion batteries(medium,small size). This equipment accurate controls the main vacuum pumping box and pneumatic heat sealing components to automatically complete the vacuum heat sealing of laminated- aluminum battery case.


Features :

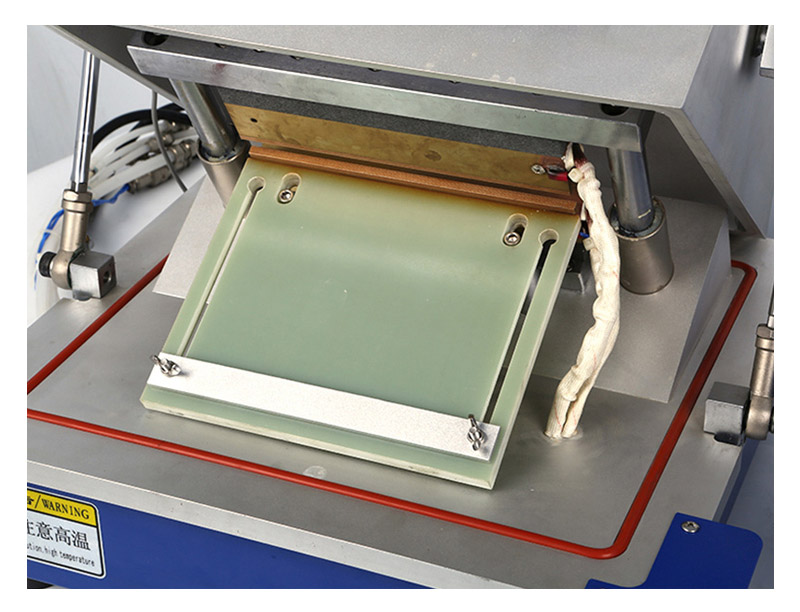

1. The sealing head is made of copper material so that the heat transfer effect is good to save power consumption and improve work efficiency and more energy-saving than other similar products.
2. Pressure of upper and lower sealing heads can be regulated by pressure regulating valve to meet different technological parameter demands.
3. The lower and upper sealing heads are driven by cylinder through two linear-guide bushes that makes them move up and down flexibly and ensures the parallelism demand after sealed by right guidance.
4. Through perspective window to observe the changes inside the chamber during work.
5. The cover chamber is driven by cylinder, guided by rotating guide bush to move up and down flexibly, accurate guide can ensure the sealing demand.
6. This equipment is applicable for different sizes of batteries and easy to regulate.

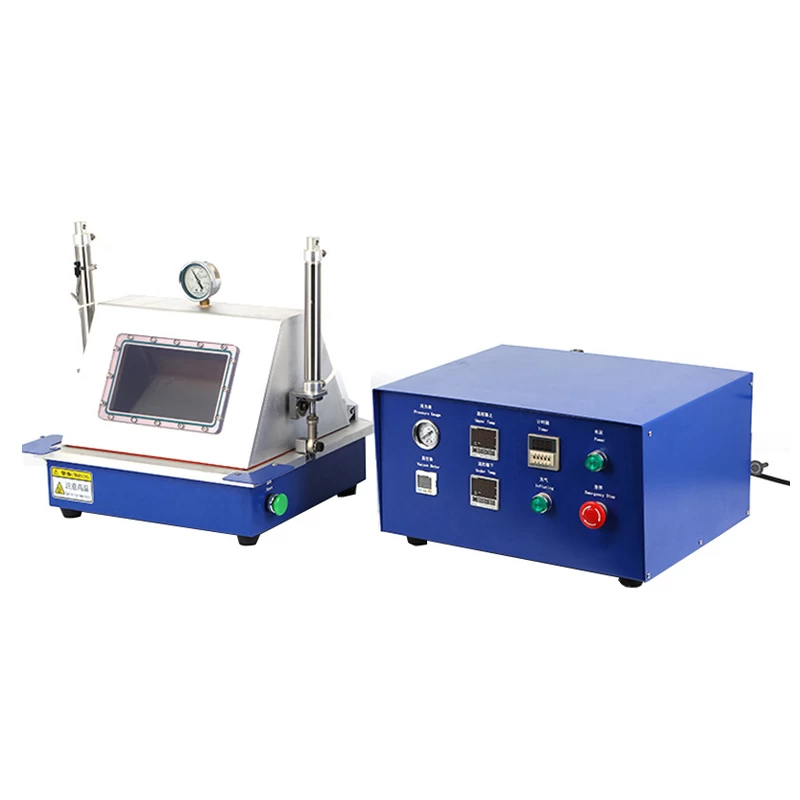

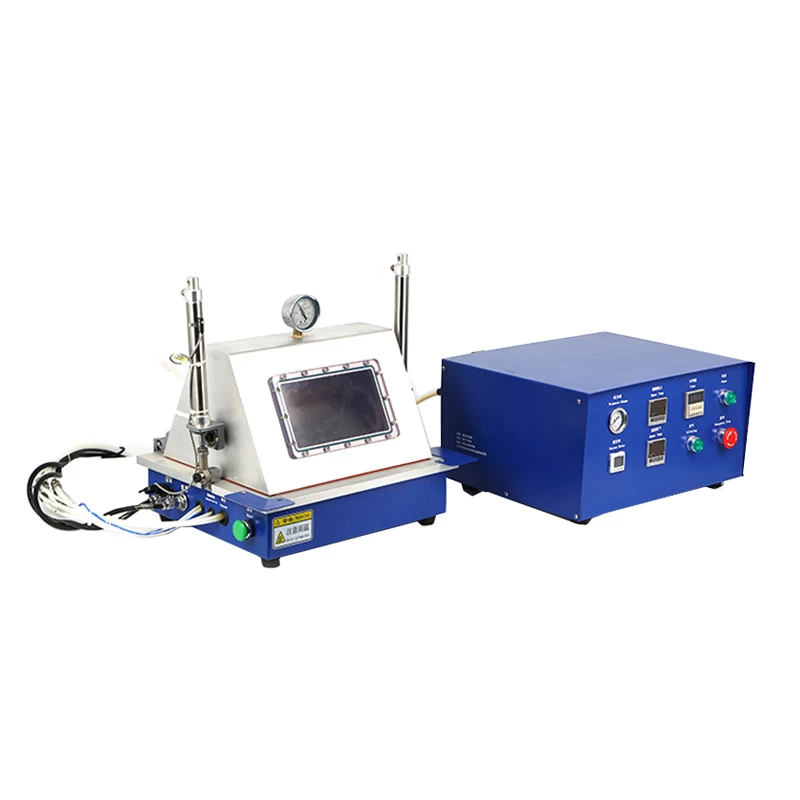

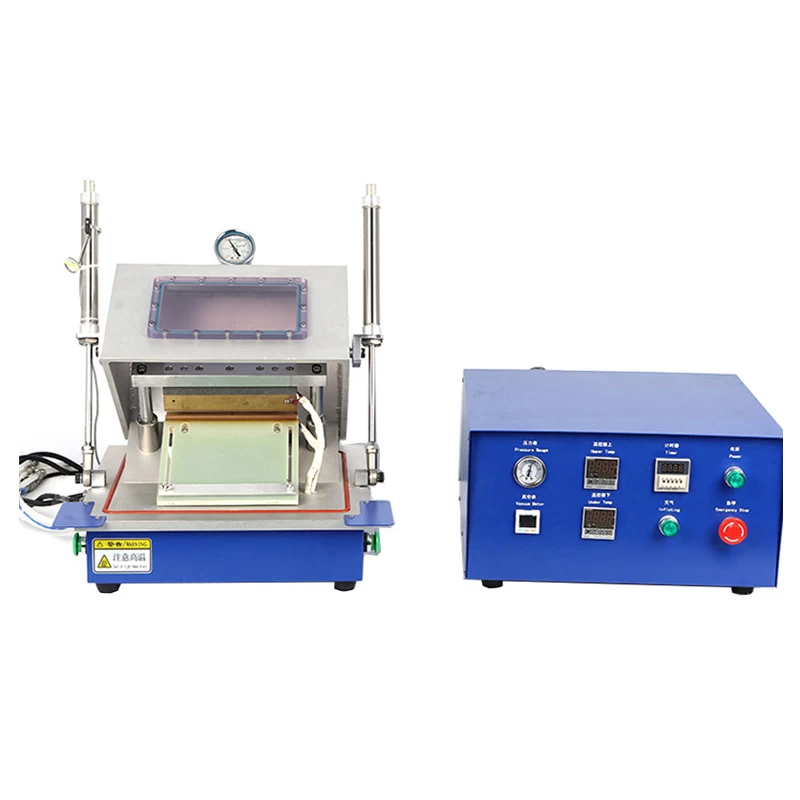

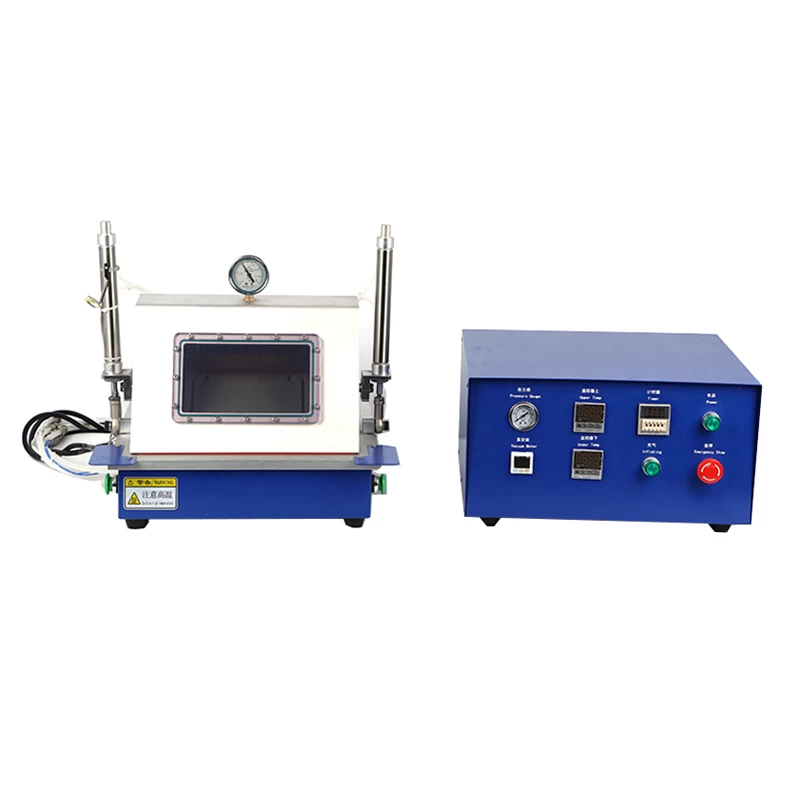

7. Split design of main machine and control box makes the equipment can work either in the glove box or the production line.


Specifications:

Model

Compact Battery acuum Sealing Machine AOT-VPS-200

Chamber material

The chamber is made of aluminum alloy that is corrosion resistant and the structure is firm.

Vacuum degree

-95Kpa~0 (Vacuum pump should be self-supplied by the buyer)

Sealing head temp

RT-250℃, adjustable

Temp accuracy

±2℃

Heat sealing pressure

0~7Kg/cm2 (adjustable)

Heat sealing time

0~99s adjustable

Sealing width

5mm

Sealing Blade

Hard type (without rubber, only for Al case sealing,doesnot suitable for sealing case with tab in between)

Max sealing size

200mm

Air consumption

About 0.2L compressed air for sealing once

Air compressor working speed

≥180 tims/h

Power

Power consumption for heating is 1KW when using 500W heating tube

Power supply

220V/50Hz

Control Box

About L420mm * W320mm * H220mm

Vacuum Box

Work Department: L470mm * W480mm * H430mm
