Typical 7.0×5.0×1.3mm ceramic SMD crystal oscillator
1. Output frequency up to 166MHz,Tr-state enable/disable
2. operation voltage:1.8V,2.5V,3.3V;
3. Typical application: xDSL,WLAN,Fiber/10G-Bit Ethernet, notebook,PDA,PC main board,VGA card
Electrical
Parameters
|
Item
|
Symb.
|
Electrical Specification
|
Remark
|
|
Min.
|
Type
|
Max.
|
Units
|
|
Nominal Frequency
|
F0
|
1.544~156.250
|
MHz
|
|
|
Frequency Stability
|
|
±10~±30 or specify
|
ppm
|
All condition*
|
|
Operating Temperature Range
|
TOPR
|
-10~60 -20~70 -40~85
|
℃
|
|
|
Storage Temperature
|
TSTG
|
-55
|
|
125
|
℃
|
|
|
Power supply Voltage
|
VDD
|
1.8~5.0±10%
|
V
|
|
|
Aging Per Year
|
Fa
|
-5
|
|
5
|
ppm
|
First Year
|
|
Supply current
|
Ic
|
0.1~40
|
mA
|
|
|
Output sy
|
Sy
|
40
|
|
60
|
%
|
|
|
etry
|
|
Rise time
|
Tr
|
|
|
10
|
ns
|
10%~90%VDD
|
|
Fall time
|
Tf
|
|
|
10
|
ns
|
90%~10%VDD
|
|
Output voltage
|
VOH
|
90%
|
|
|
VDD
|
|
|
|
VOL
|
|
|
10%
|
VDD
|
|
|
Output load HCMOS LOAD
|
|
15 30 50
|
PF
|
|
|
Start up time
|
|
|
|
10
|
mS
|
|
|
Pin 1, tri-state
function
|
pin 1=H or open......output
active at pin 3
|
|
pin
1=L......high impedance at pin 3
|
|
Fan Out Type
|
COMS/HCOMS/LVCMOS
|
|
Package type
|
POSC7050
|

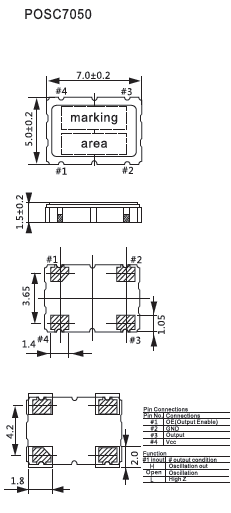

Dimensions
