We are professional high current power inductor manufacturer, we design various RM type current inductors, DIP/SMD type current inductors, large current inductors and other type large current inductors.
Our high current shielded power inductors have high saturation current, very low core losses-ferrite(MnZn) and high current capability. Mainly used in storage inductor for high efficiency DC/DC converters, especially used by buck converters, filter for audio applications, etc. We accept custom design and OEM service, if you have any requests, welcome to contact us.
Quick Details
|
Part No: Shielded Power Inductors
|
|
Brand name: MCT
|
|
Operation temperature: -40°to+125°C
|
|
Custom made: Available
|
|
Less temperature rise
|
|
Logo: Can be customized
|
|
Ferrite core PQ20/16
|
|
Packing: Carton,can custom
|
|
Wingding with flat copper-single layer
|
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
|
OEM: Available
|
|
Lead time: 25 days after payment
|
|
Shipping: Air, Ship, etc
|
Part Information

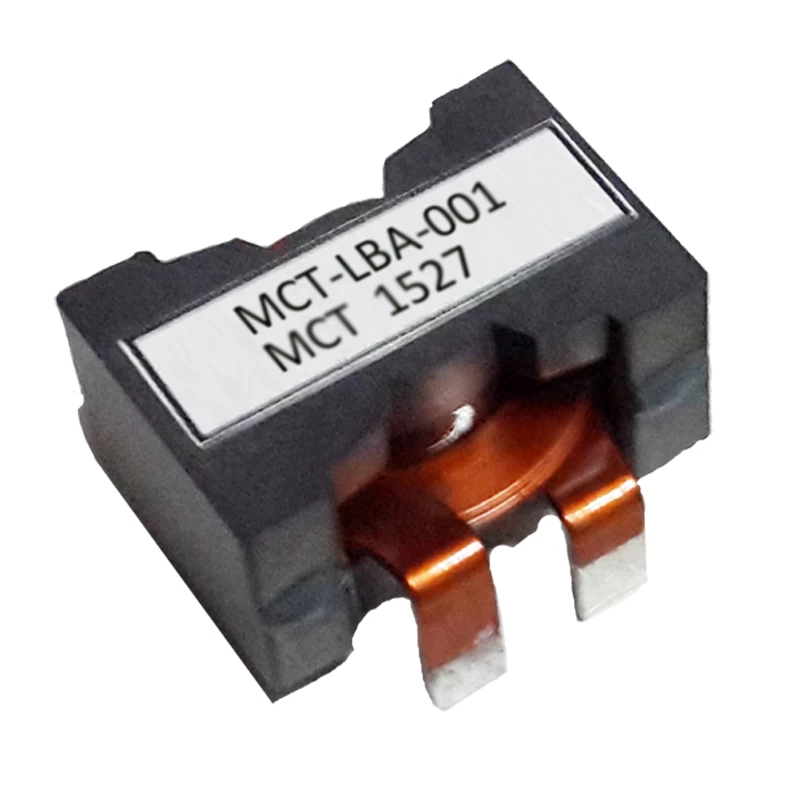

Product Name: SMD Shielded Power Inductor PQ Type High Current Chokes
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Switching power supplies, High frequency SMPS, EMI filters, High current DC/DC converters, Automotive electronics.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray(Available in tape and reel package, three-layer carton packaging)
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Electrical Data and Part Number(PN)
|
I in A
|
L in uH
|
RDC/mΩ
|
PN
|
|
10.00
|
12
|
0.060
|
MCT-LBA-001
|
|
16.00
|
8.0
|
0.070
|
MCT-LBA-002
|
|
20.00
|
5.0
|
0.050
|
MCT-LBA-003
|
|
25.00
|
2.7
|
0.025
|
MCT-LBA-004
|
|
30.00
|
2.2
|
0.020
|
MCT-LBA-005
|
