Rail splice is used to connect two rails, insert the connector into the two rails, and fix it with self-tapping screws from the outside.

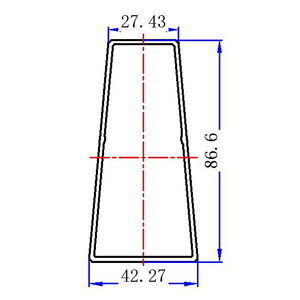

Drawing of component section
Parameter table of section
|
A
|
426.6702
|
Ip
|
491741.8274
|
|
Ix
|
393895.2391
|
Iy
|
97846.5883
|
|
ix
|
30.3839
|
iy
|
15.1435
|
|
Wx(Up)
|
8573.8471
|
Wy(Left)
|
4629.2577
|
|
Wx(Down)
|
9687.7601
|
Wy(Right)
|
4629.2577
|
|
Area moment around
the X-axis
|
5744.5282
|
Area moment around
the Y-axis
|
3056.5918
|
|
Distance from the center of
the shape to the left edge
|
21.1366
|
Distance from the center of
the shape to the right edge
|
21.1366
|
|
Distance from the center of
the shape to the top edge
|
45.9415
|
Distance from the center of
the shape to the lower edge
|
40.6591
|
|
Principal moment I1
|
393895.239
|
Direction of principal
moment 1
|
(1.000,0.000)
|
|
Principal moment I2
|
97846.588
|
Direction of principal
moment 2
|
(0.000,1.000)
|
Component composition
|
Item No.
|
GT-CB2-SP
|
|
Item Name
|

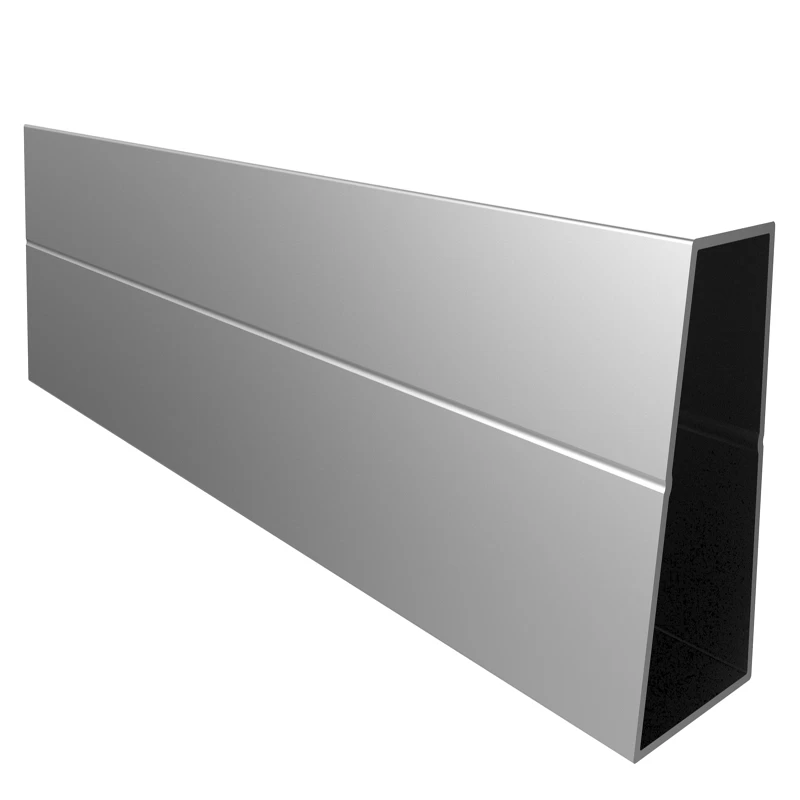

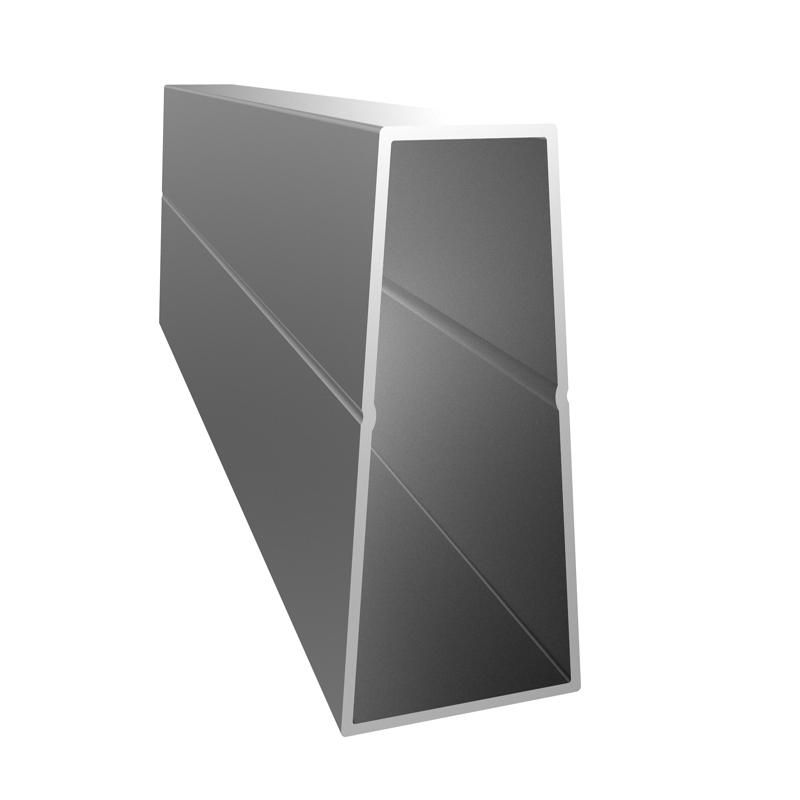

2# Solar ground rail splice
|
|
Component
|
Component name
|
Spec（mm）
|
Qty
|
2# Solar ground rail splice
|
300
|
1
|
Self-tapping screw
|
St6.3*25
|
8
|
|
|
|

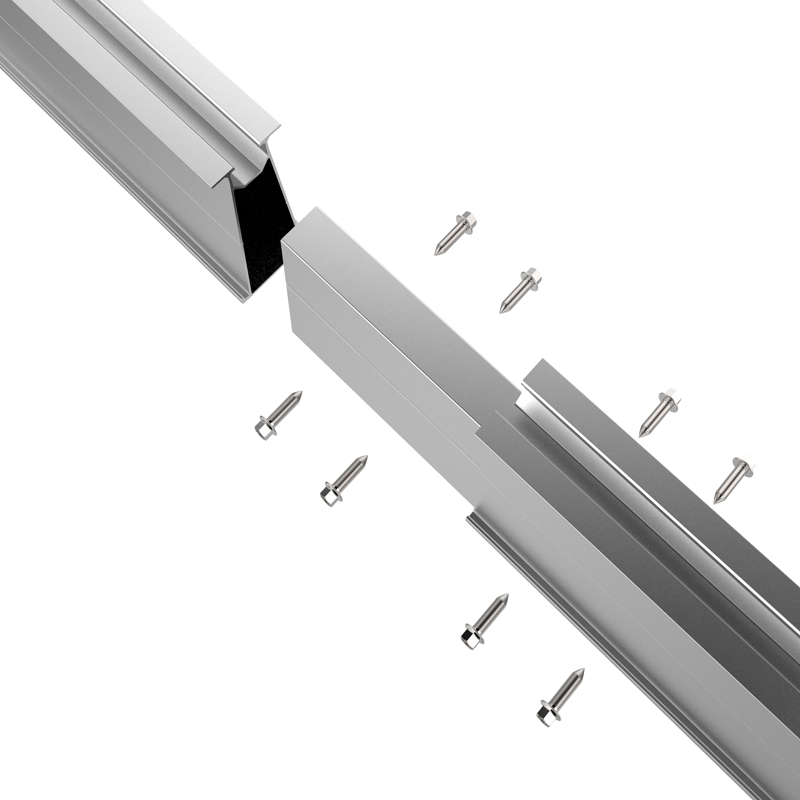

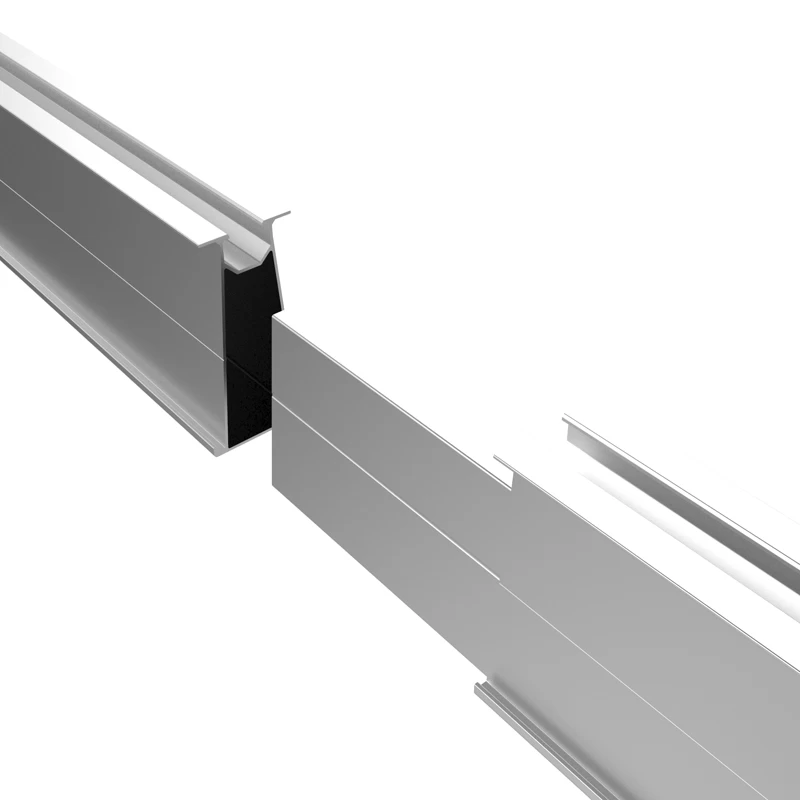

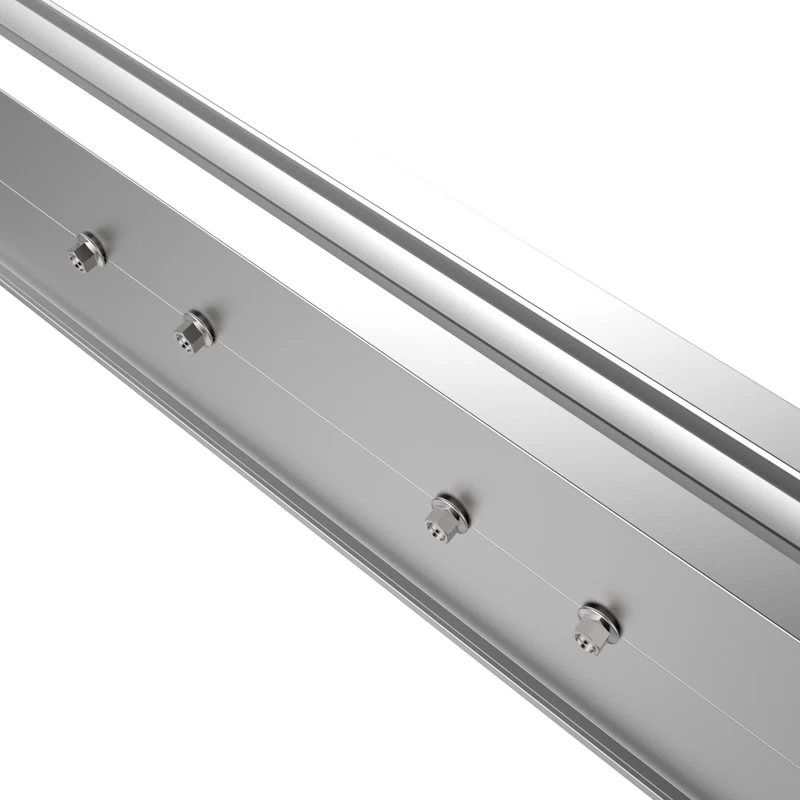

Detail drawing of component installation
