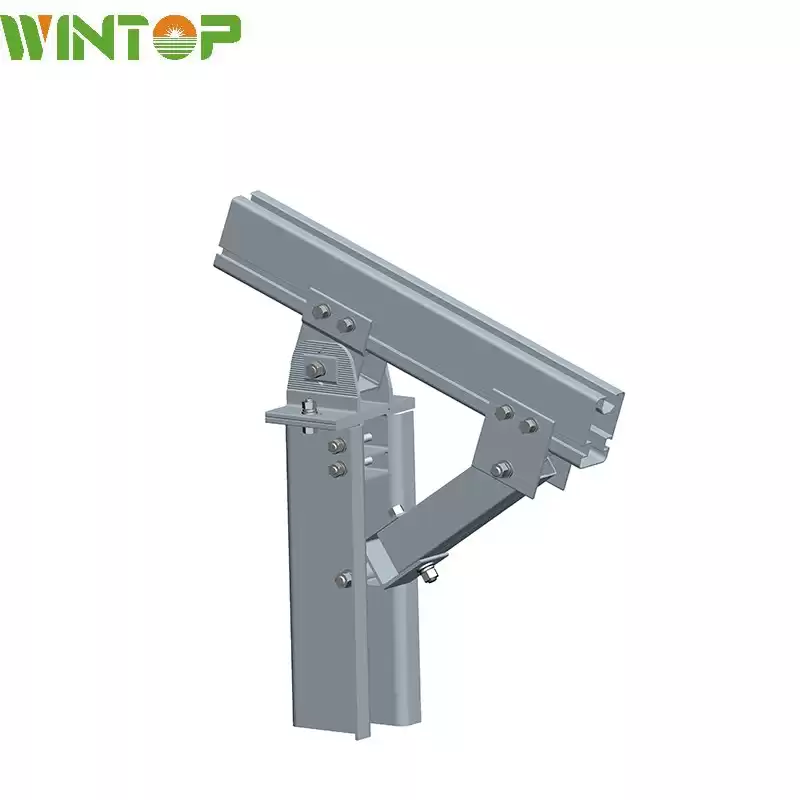

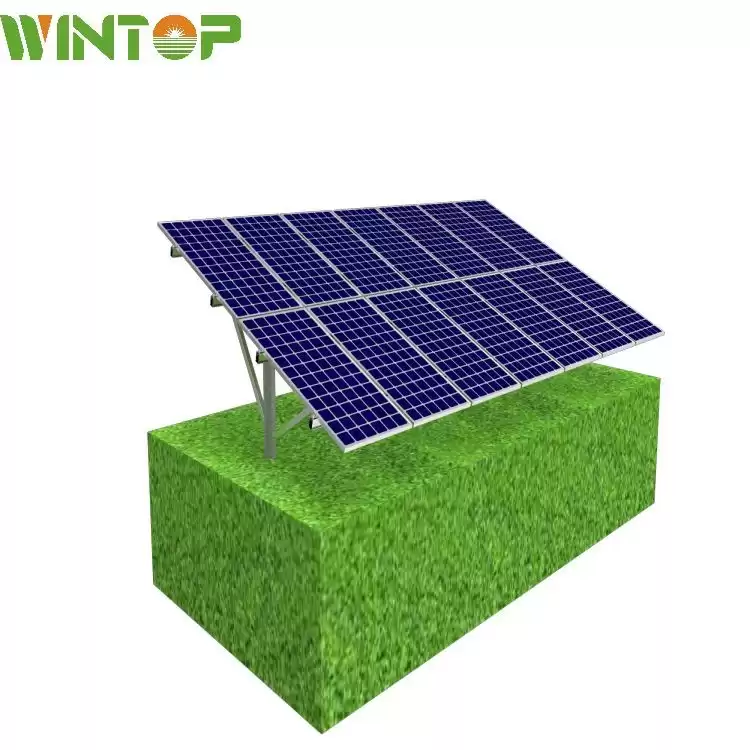

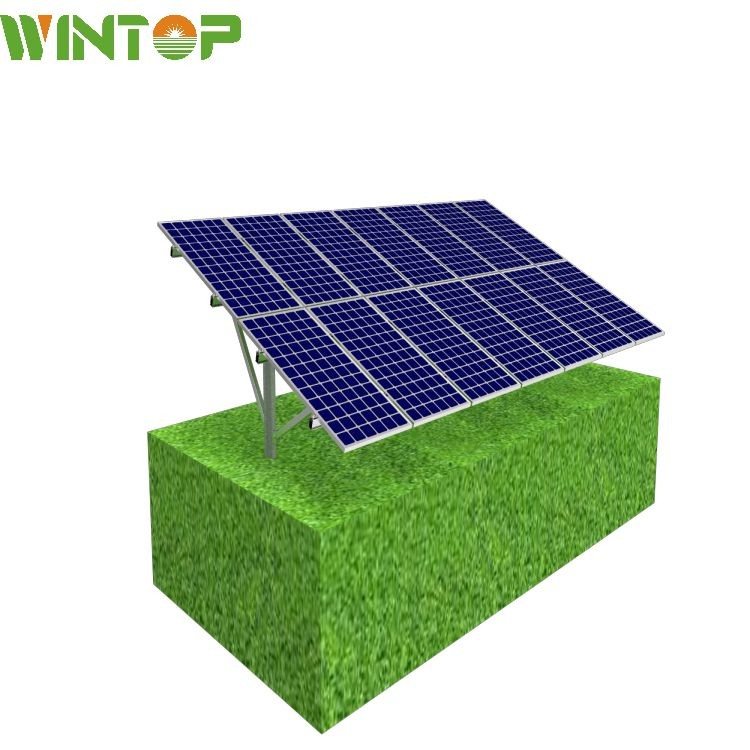

Solar Ground piling Foundation mounting system

Solar Ground piling Foundation mounting system is applied for large solar project panel installation on a non-sandy ground.


  • Module OrientationHorizontal, Vertical
  • Design standardAS/NZS1170,JIS C 8955-2017
  • Bracket materialAL6005-T5(Anodized Oxidation)
  • Applicable module typeMono-crystalline, Poly-crystalline, Double wave and Thin film
  • Distance from module lowest point to the groundUp to request
  • Snow load1.4KN/m²
  • Wind load60m/s(216kmh/133mph)
  • Fastener MaterialStainless steel SUS304
  • Installation angleUp to request
  • Installation foundationC-shape pilling
  • Installation locationGround
  • BrandWintop
  • Warranty10 years
  • Service Lifemore than 20 years

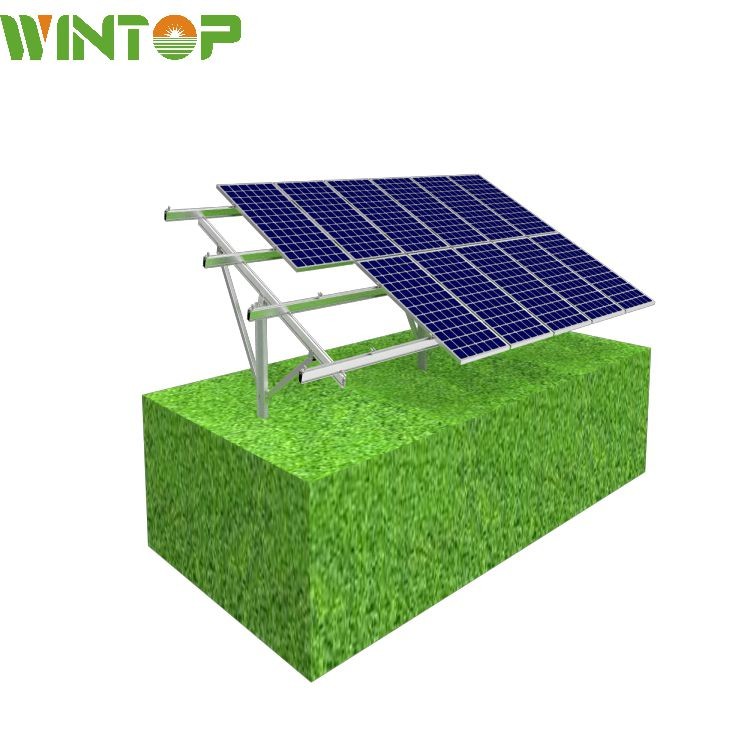

Solar Ground piling Foundation mounting system

Product Description

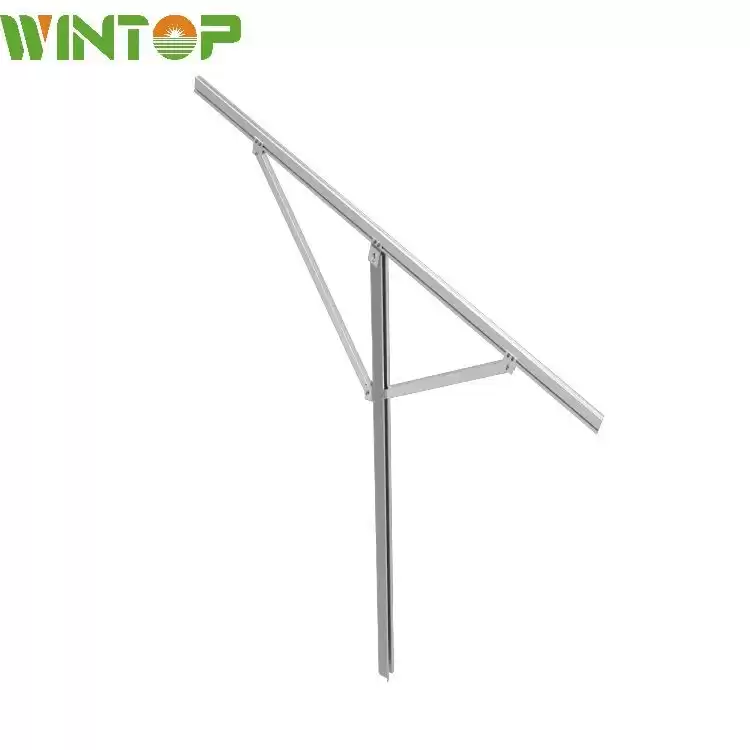

Solar ground piling foundation mounting system is suitable for framed or frameless solar panel installation, especially on uneven terrain. It is also suitable for flat ground.For solar ground pile mounting system,the unique post can be easily driven into the ground 1~2 meters by pile machine,then you can mount the pre-assembled beam structure and other mounts easily.


Technical Parameters

Installation location Ground
Installation foundation C-shape pilling, U-shape pilling
Installation angle Up to request
Wind load 60m/s (216kmh/133mph)
Snow load 1.4KN/m²
Distance from module lowest point to the ground Up to request
Applicable module type Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation Horizontal, Vertical
Design standard AS/NZS1170,JIS C 8955-2017
Bracket material AL6005-T5(Anodized Oxidation)
Fastener Material Stainless steel SUS304
Warranty&Duration 10 years&More than 20 years

Features & Benefits

  1. Light weight, easy transportation & installation and safe construction;
  2. The surface is treated by oxidation, high corrosion resistance & good stability;
  3. Suitable for various designs and solutions;
  4. The maxiumum pre-assembly, save contruction time and labor cost;
  5. Suitable for sandy soil;

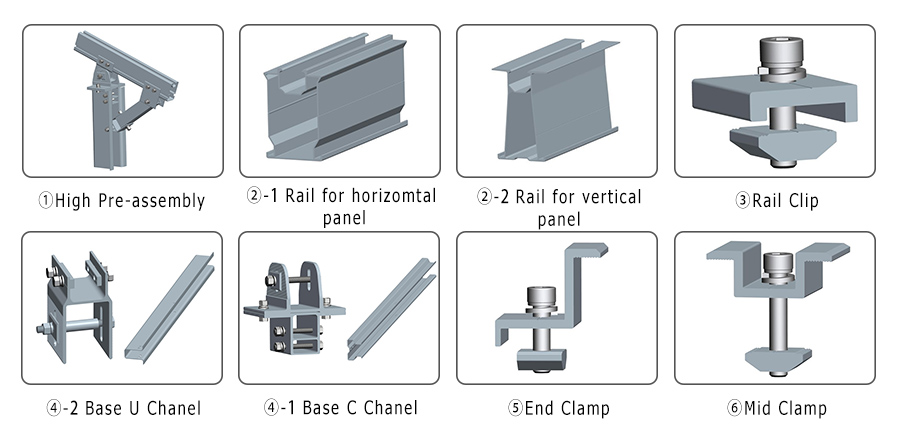

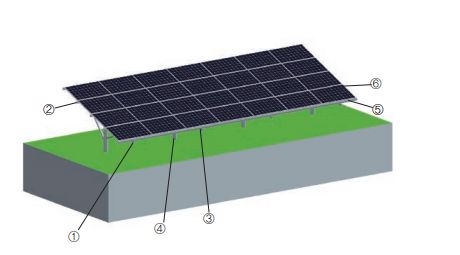

Components

solar pile mounting ground

ground pile mounting componments

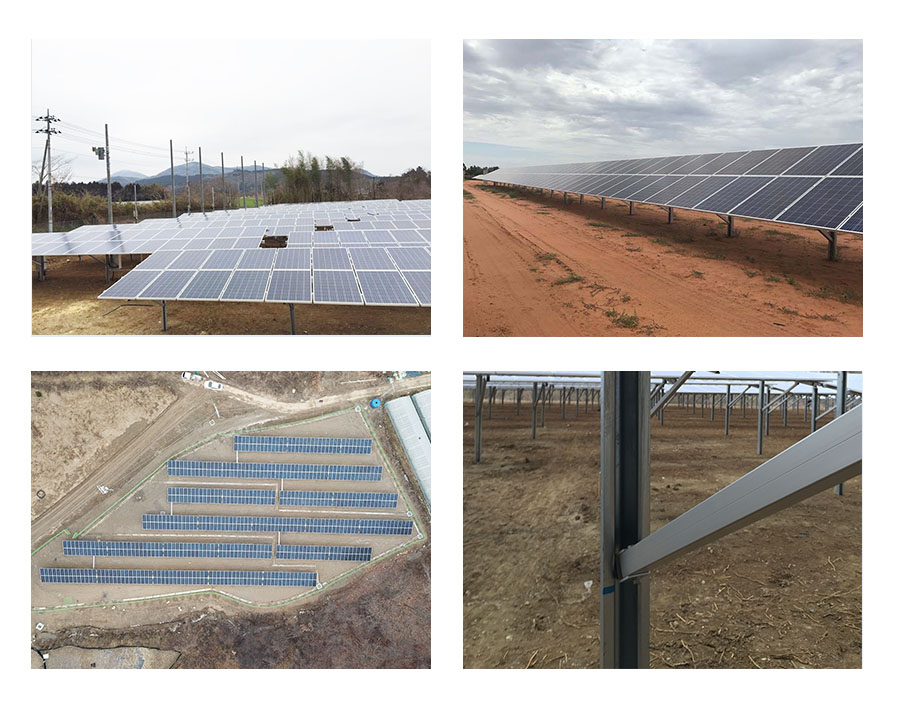

Project

pile groung system case

Certificate







QC

WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.


FAQ


(1) Are you a manufacturer, trading company or a third party?

We are a manufacturer, and we have built up our company since 2016.

(2) Where is your factory located?

Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.

(3) How can I get to your factory?

When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.

(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?

It’s always my pleasure, hotel booking service is available.

(5) What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
