Solar panel roof mounting is designed for maximum wind load of commercial and residential roof.Our hooks can be customized. All hooks are highly-assembled and make the installation easy.
Technical Parameters
|
Installation AngleF
|
Flat
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|
Solar panel roof mounting
Feature:

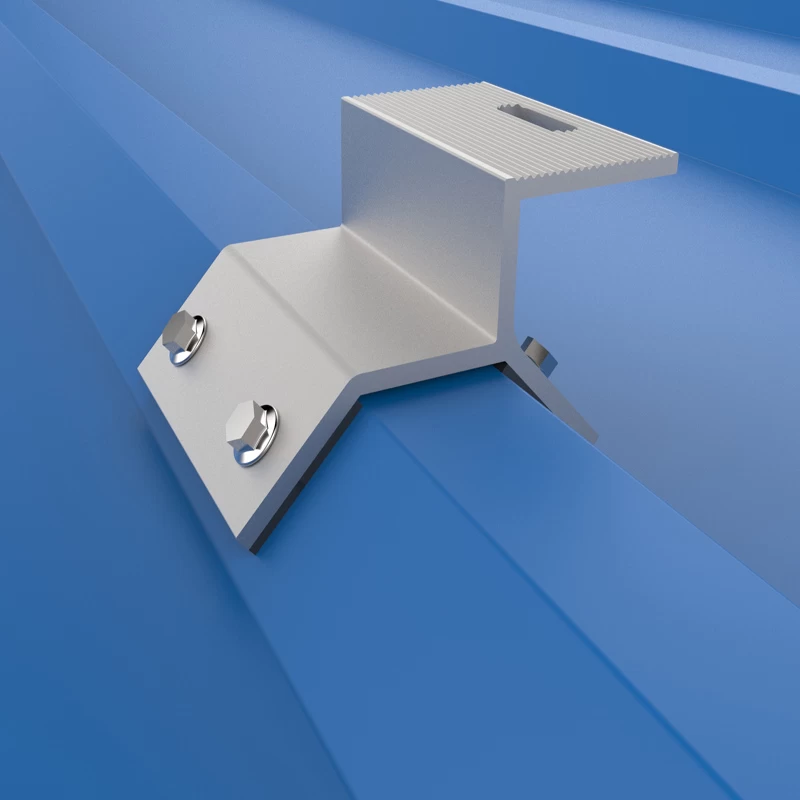

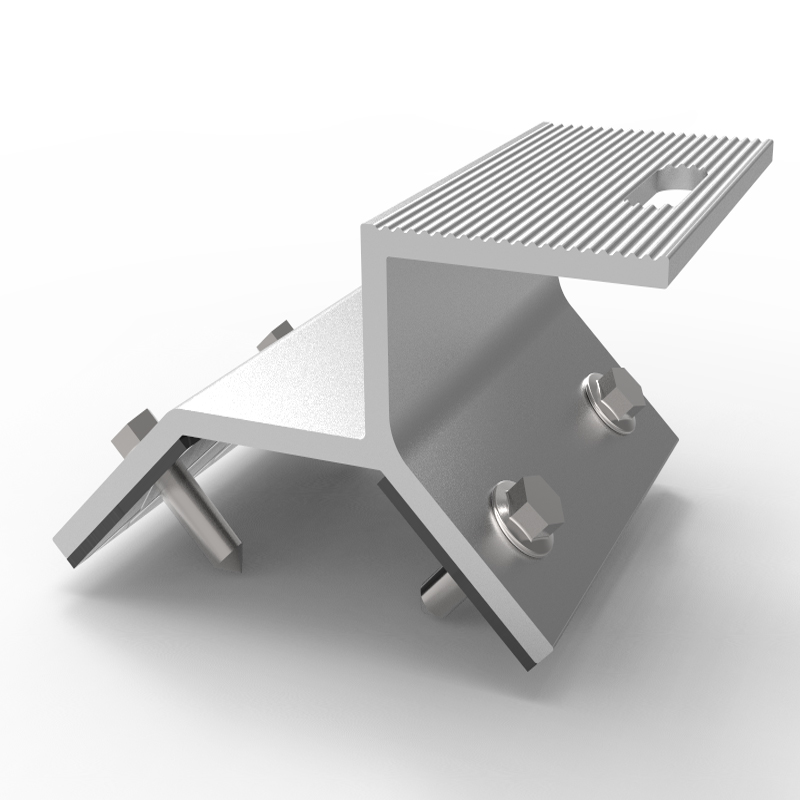

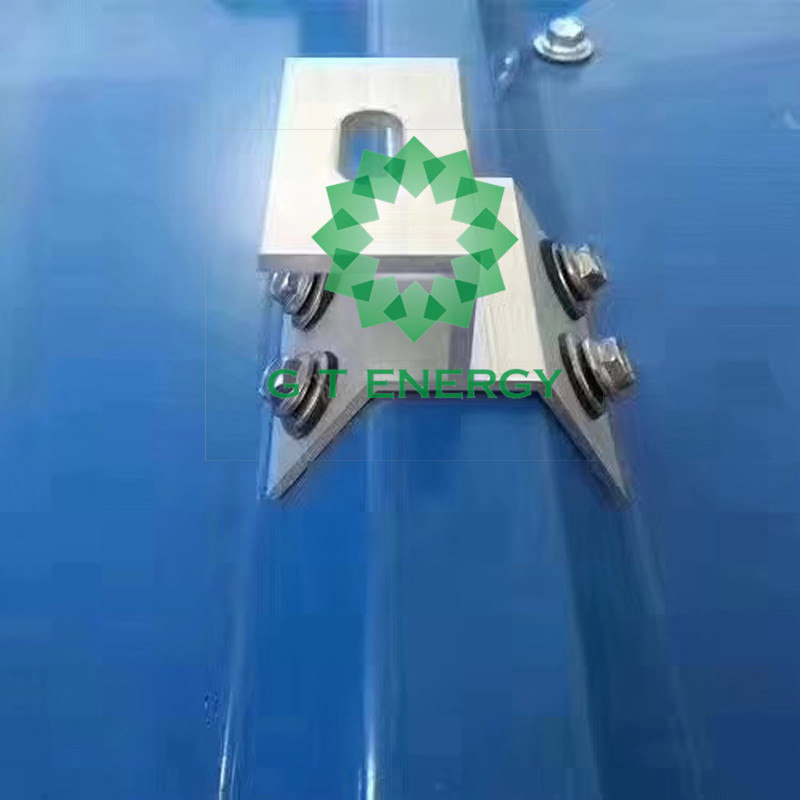

1. The trapezoidal aluminum hook is also
suitable for the specific trapezoidal tile;
the self-tapping screw from the
side door is used to fix the aluminum hook
to the color steel tile.
2. Compared to stainless steel hooks,
aluminum alloy hooks are lighter, making the roof less stress
3. The rubber trap is attached to the
bottom of the trapezoidal aluminum hook to prevent the color steel tile from
leaking.
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

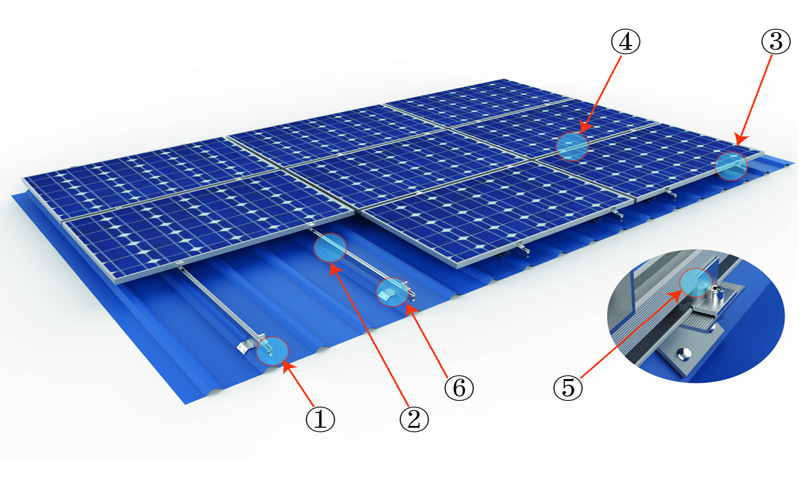

Component photos of solar panel roof mounting
1. Solar roof rail 2. Solar roof rail splice 3. Solar end clamp 4. Solar inter clamp
5. Solar rail clamp 6. Solar roof hook

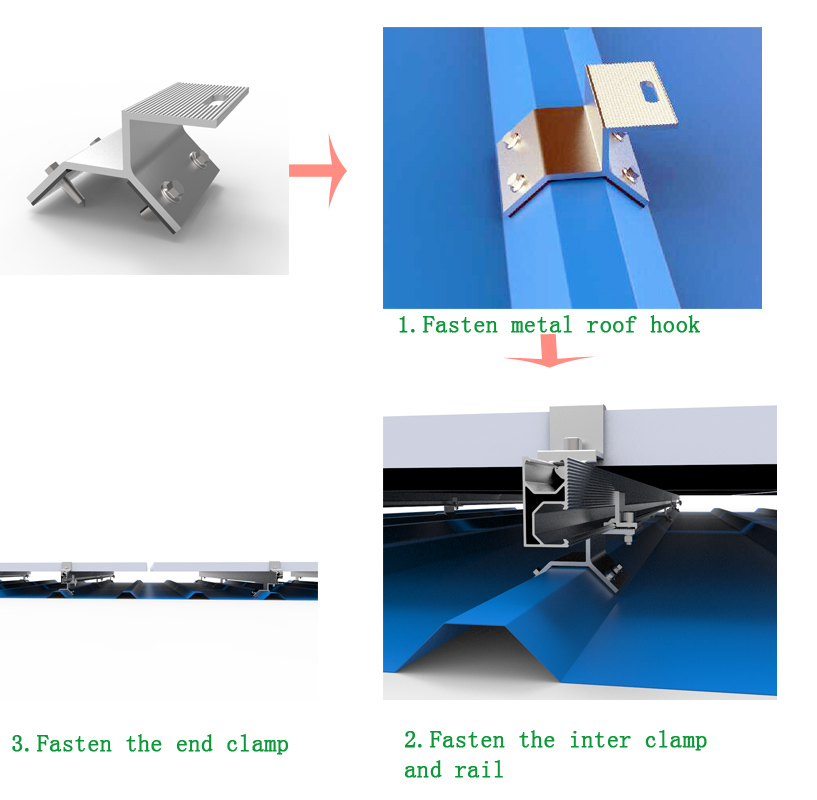

Installation steps of solar panel roof mounting

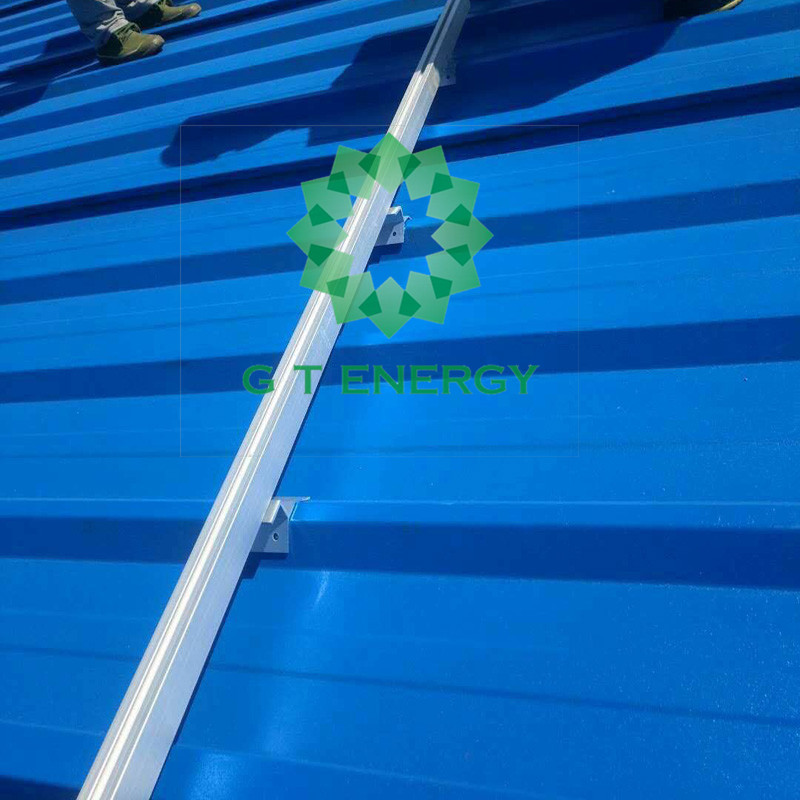

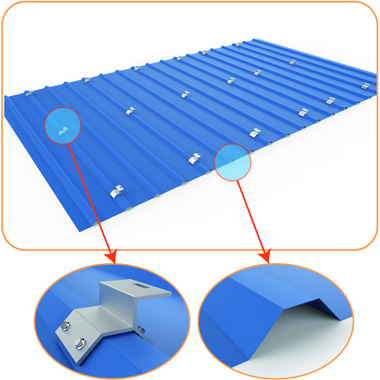

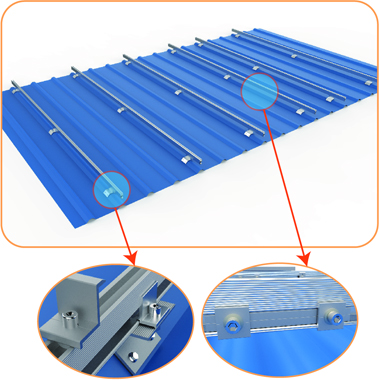

Step1：Install galvanized roof Step2：Install roof rails and rail splices
hook according to the drawing
Install galvanize Shape of galvanized roof Inter clamp End clamp
roof hook

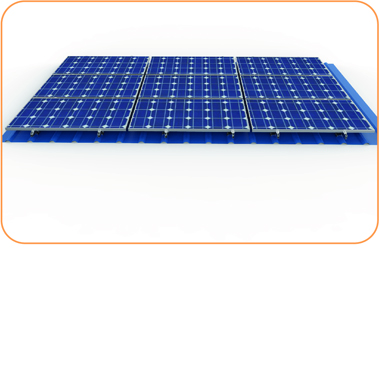

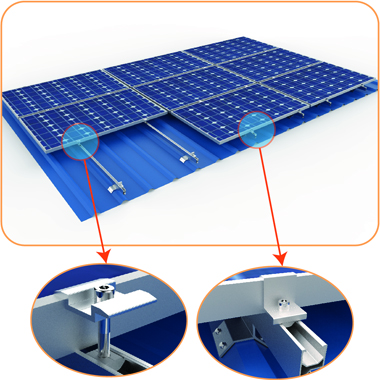

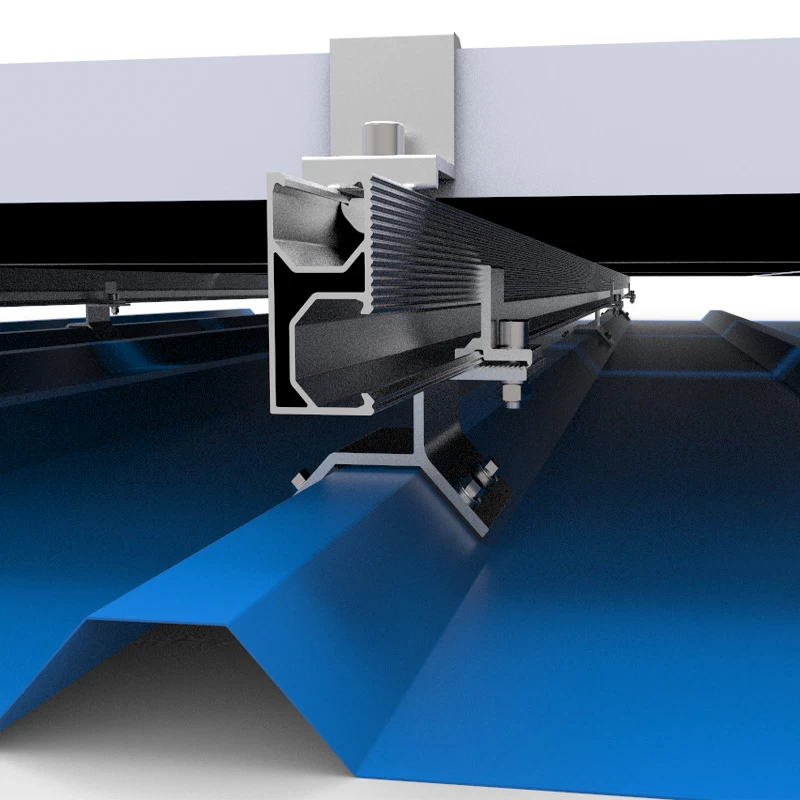

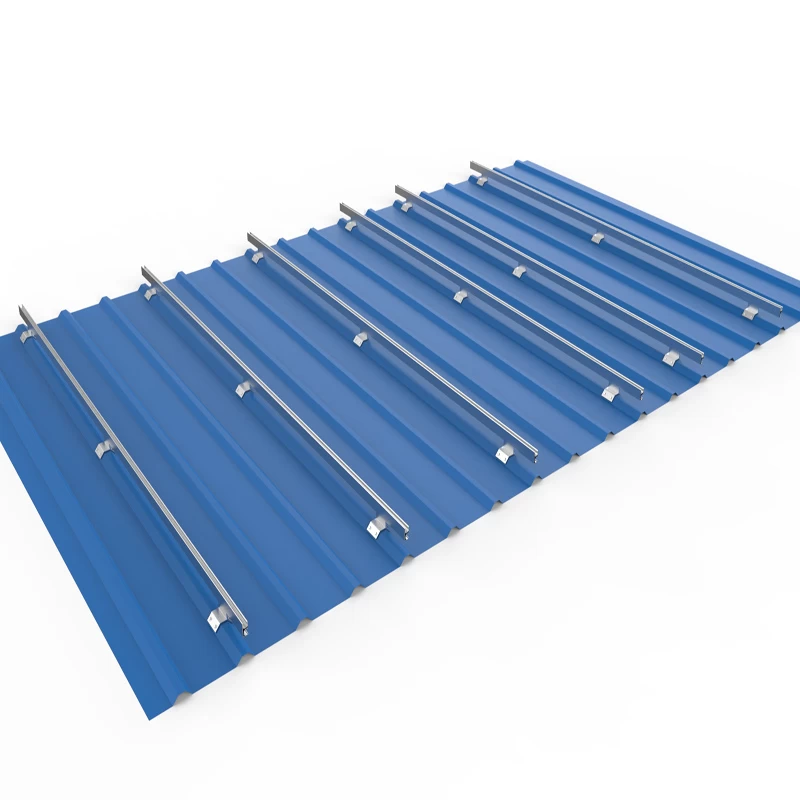

Step3：Fasten panel by inter clamp Step4： Installation completion diagram
and end clamp
Inter clamp End clamp
Component photos-multiple design
Installation steps

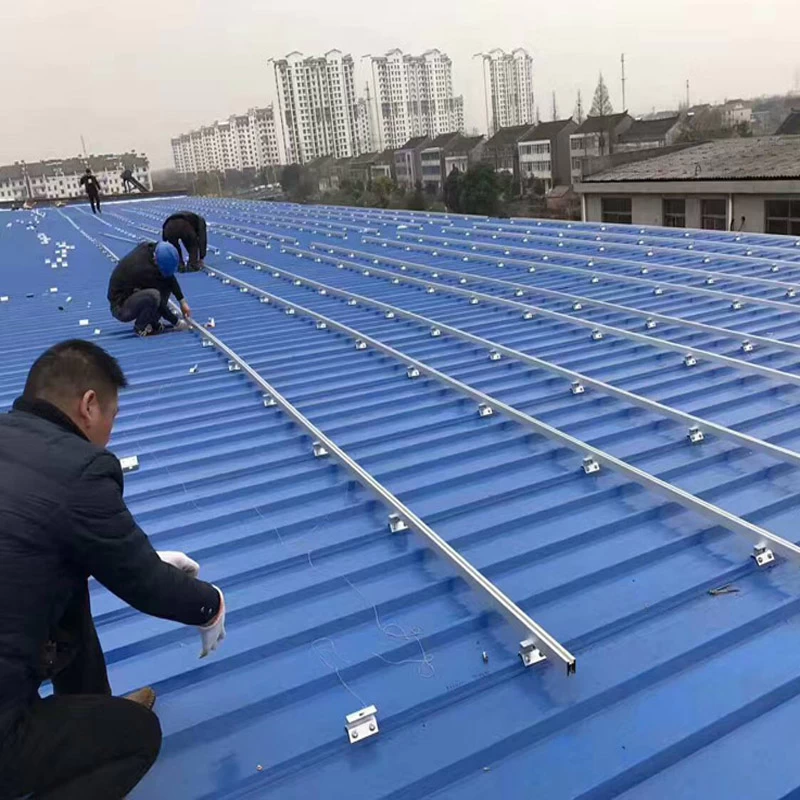

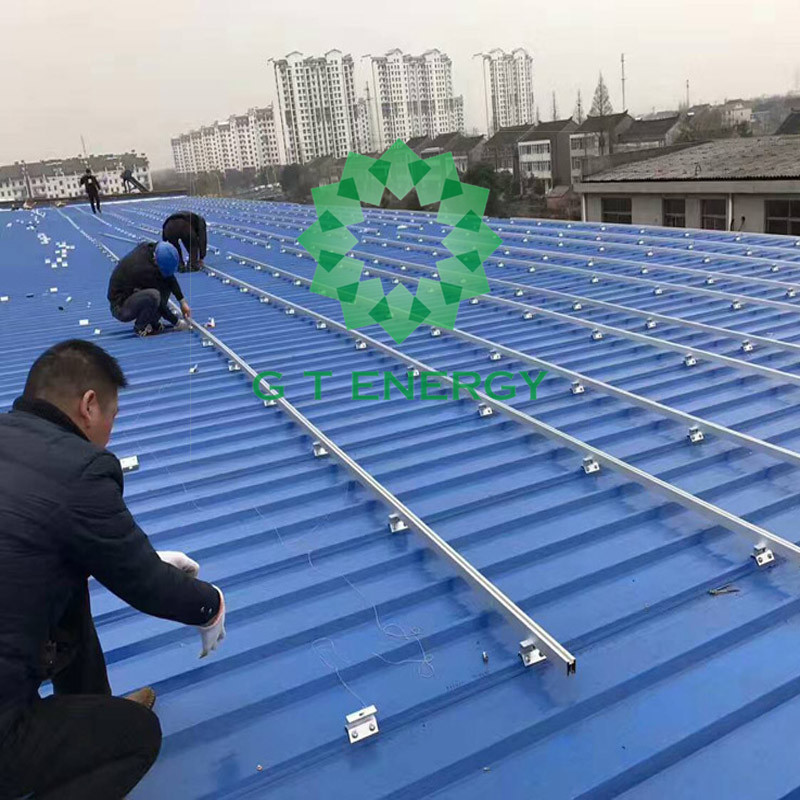

Project photos
