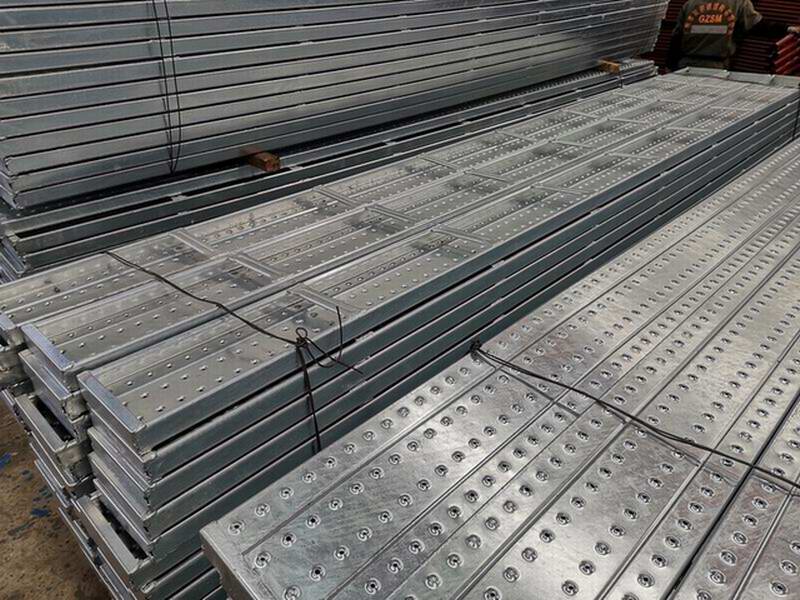

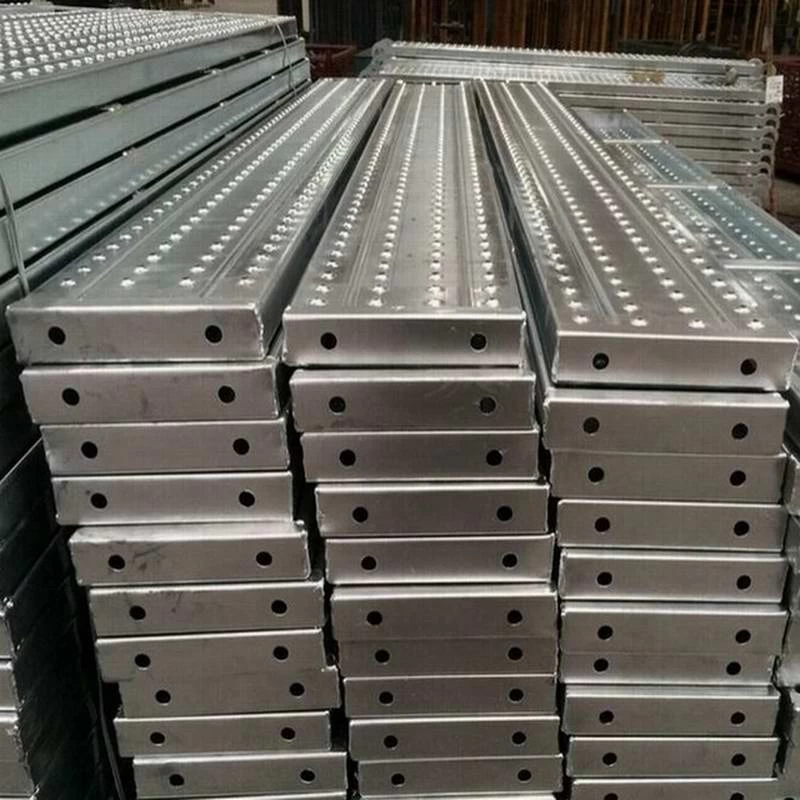

South-east Asia Type Steel Plank, 240mm (9.5") wide, t=1.5mm, without hooks
|
Code
|
Size (Metric)
|
Size (Imperial)
|
Weight(kg)
|
Weight(lbs)
|
|
SP5.24400
|
240x4000mm
|
9.5" x 13'-1 1/2"
|
19.06
|
42.03
|
|
SP5.24350
|
240x3500mm
|
9.5" x 11'-5 13/16"
|
16.72
|
36.87
|
|
SP5.24300
|
240x3000mm
|
9.5" x 9'-10 1/8"
|
14.38
|
31.71
|
|
SP5.24250
|
240x2500mm
|
9.5" x 8'-2 7/16"
|
12.04
|
26.55
|
|
SP5.24200
|
240x2000mm
|
9.5" x 6'-6 3/4"
|
9.70
|
21.39
|
|
SP5.24150
|
240x1500mm
|
9.5" x 4'-11 1/16"
|
7.37
|
16.25
|
|
SP5.24100
|
240x1000mm
|
9.5" x 3'-3 3/8"
|
5.03
|
11.09
|
|
SP5.24050
|
240x500mm
|
9.5" x 1'-7 11/16"
|
2.69
|
5.93
|
Material: Steel grade Q235. Plank thickness 1.5mm,width 240mm, height 45mm.
Surface Treatment: Pre-galvanized is recommended, hot dip galvanized , powder coated or painted is also available.
Other thickness 1.2mm is available by request.
South-east Asia Type Steel Plank, 210mm (8.26") wide, t=1.5mm, without hooks
|
Code
|
Size (Metric)
|
Size (Imperial)
|
Weight(kg)
|
Weight(lbs)
|
|
SP5.21400
|
210x4000mm
|
8.26" x 13'-1 1/2"
|
17.46
|
38.50
|
|
SP5.21350
|
210x3500mm
|
8.26" x 11'-5 13/16"
|
15.32
|
33.78
|
|
SP5.21300
|
210x3000mm
|
8.26" x 9'-10 1/8"
|
13.17
|
29.04
|
|
SP5.21250
|
210x2500mm
|
8.26" x 8'-2 7/16"
|
11.03
|
24.32
|
|
SP5.21200
|
210x2000mm
|
8.26" x 6'-6 3/4"
|
8.89
|
19.60
|
|
SP5.21150
|
210x1500mm
|
8.26" x 4'-11 1/16"
|
6.74
|
14.86
|
|
SP5.21100
|
210x1000mm
|
8.26" x 3'-3 3/8"
|
4.60
|
10.14
|
|
SP5.21050
|
210x500mm
|
8.26" x 1'-7 11/16"
|
2.45
|
5.40
|
Material: Steel grade Q235. Plank thickness 1.5mm,width 210mm, height 45mm.
Surface Treatment: Pre-galvanized is recommended, hot dip galvanized , powder coated or painted is also available.
Other thickness 1.2mm is available by request.
