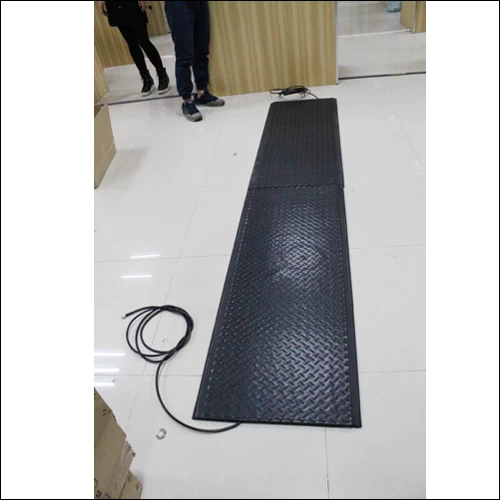

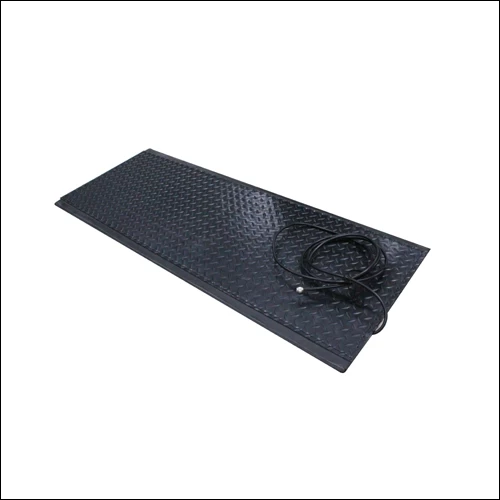

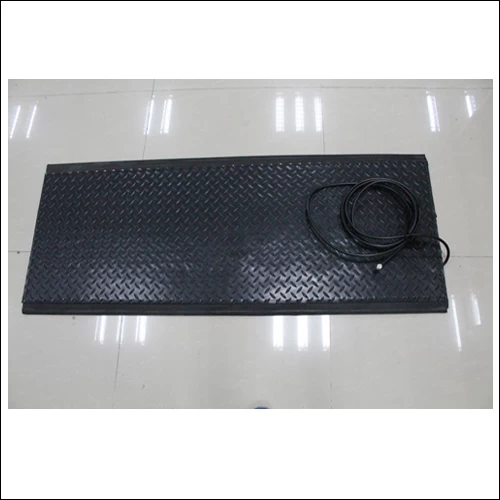

Sports timing UHF RFID Marathon Mat Antenna

1. Anti-interference, waterproof and dustproof, anti-static, workable in harsh environment;

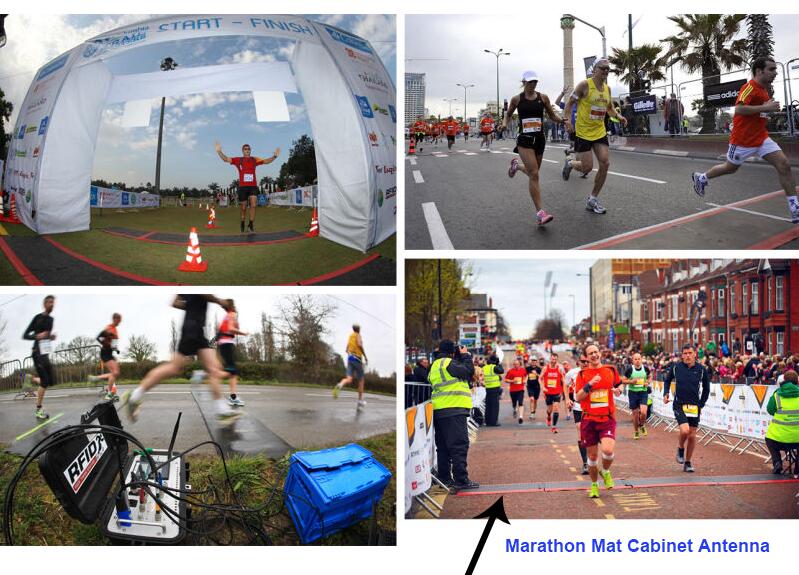

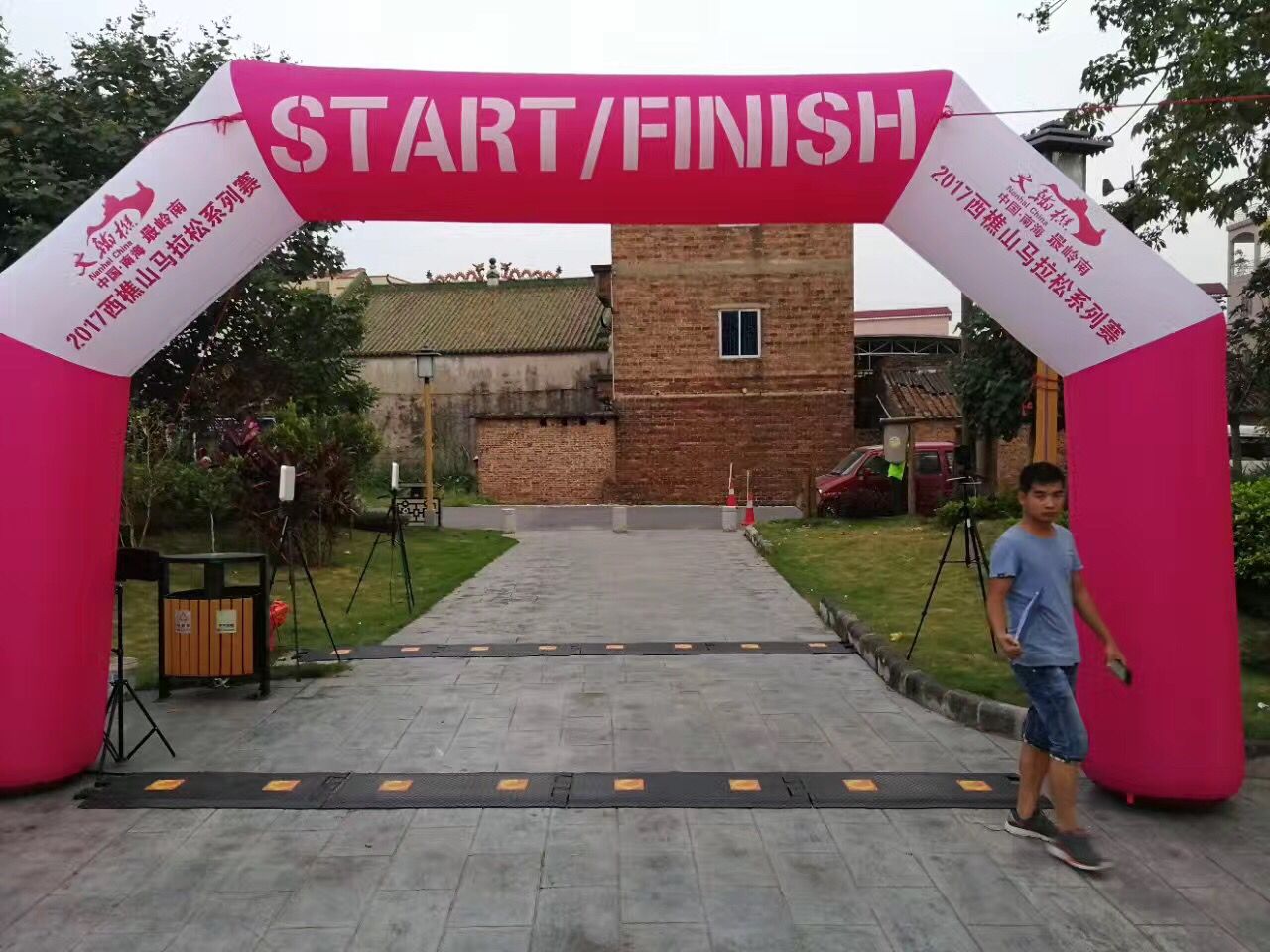

2. The main application is for sports or racing timing systems.

IP67 Waterproof UHF RFID Chip Timing Floor/Mat/Ground antenna for sale

Facebook Twitter Pinterest LinkedIn 分享

Description

12 dBi Long Range UHF RFID race timing system for Marathon floor mat antenna(JT--T12665)

Antenna Name	Marathon Floor Mat Antenna
Model	JT-T12665
Working Frequency	902~928 MHz 865-868 MHz
Antenna Gain	12 dBi
Protocol	ISO 18000-6C, EPC global C1Gen 2
Horizontal Beam width	Hor: 70,Vert: 60
VSWR	Less than 1.3
Impedance	50
Polarization	Circular
Connector	TNC-male (Customizable)
Lightning Protection	GND
Dimension	1260*650 mm
Weight(kg)	7.8 kg
Reflector Material	Aluminum alloy
Radome Material	ABS
Operating Temperature	-40~80℃
Cable Length	3 m
Cable Type	50-7

>>The Schematic Diagram
