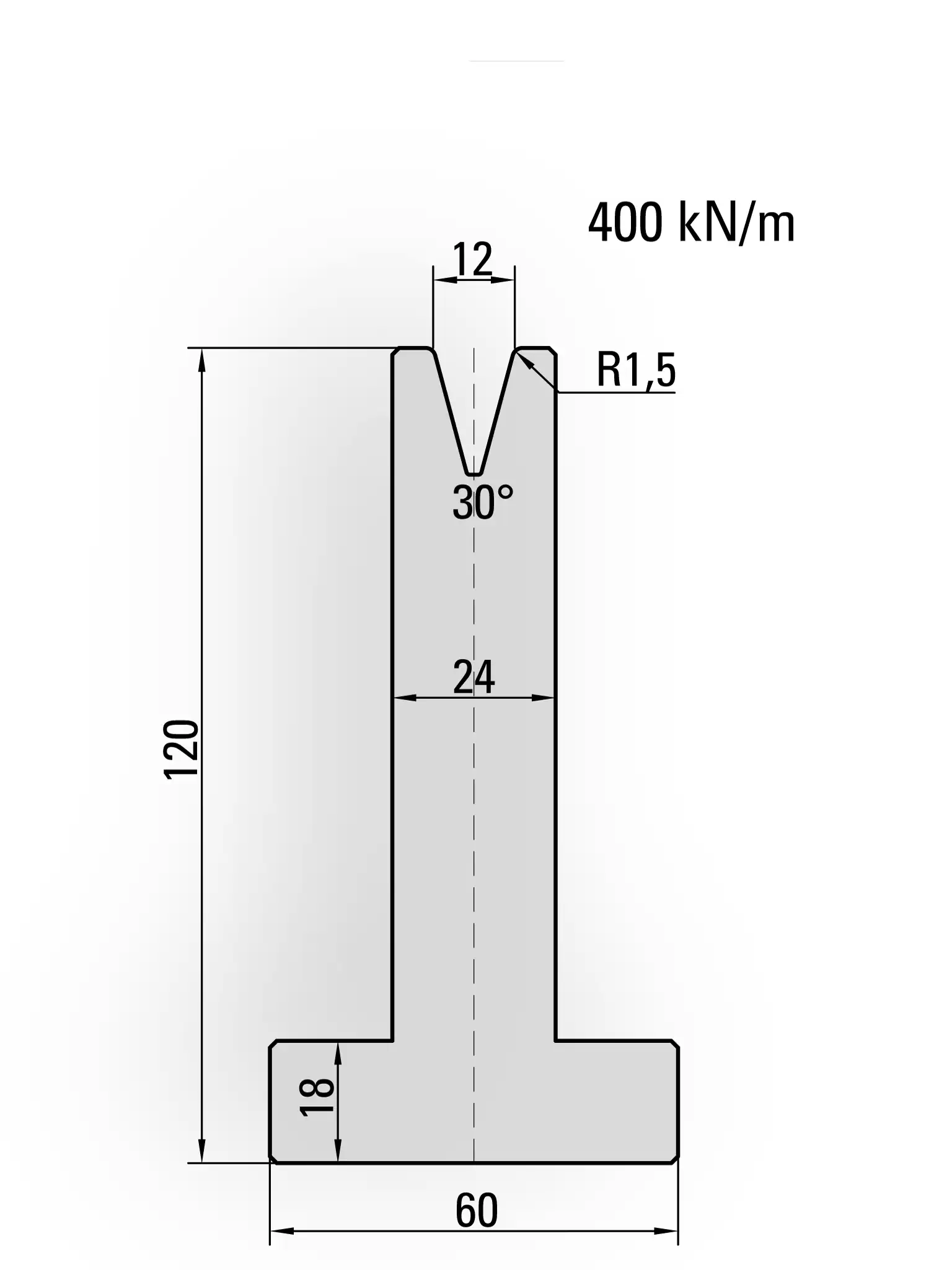

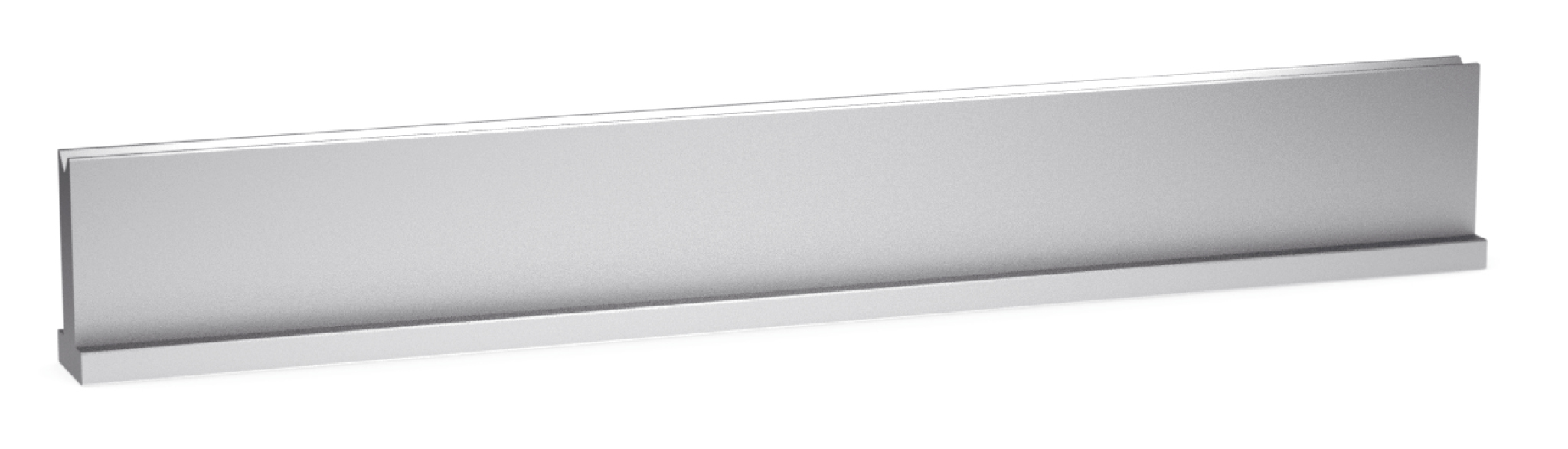

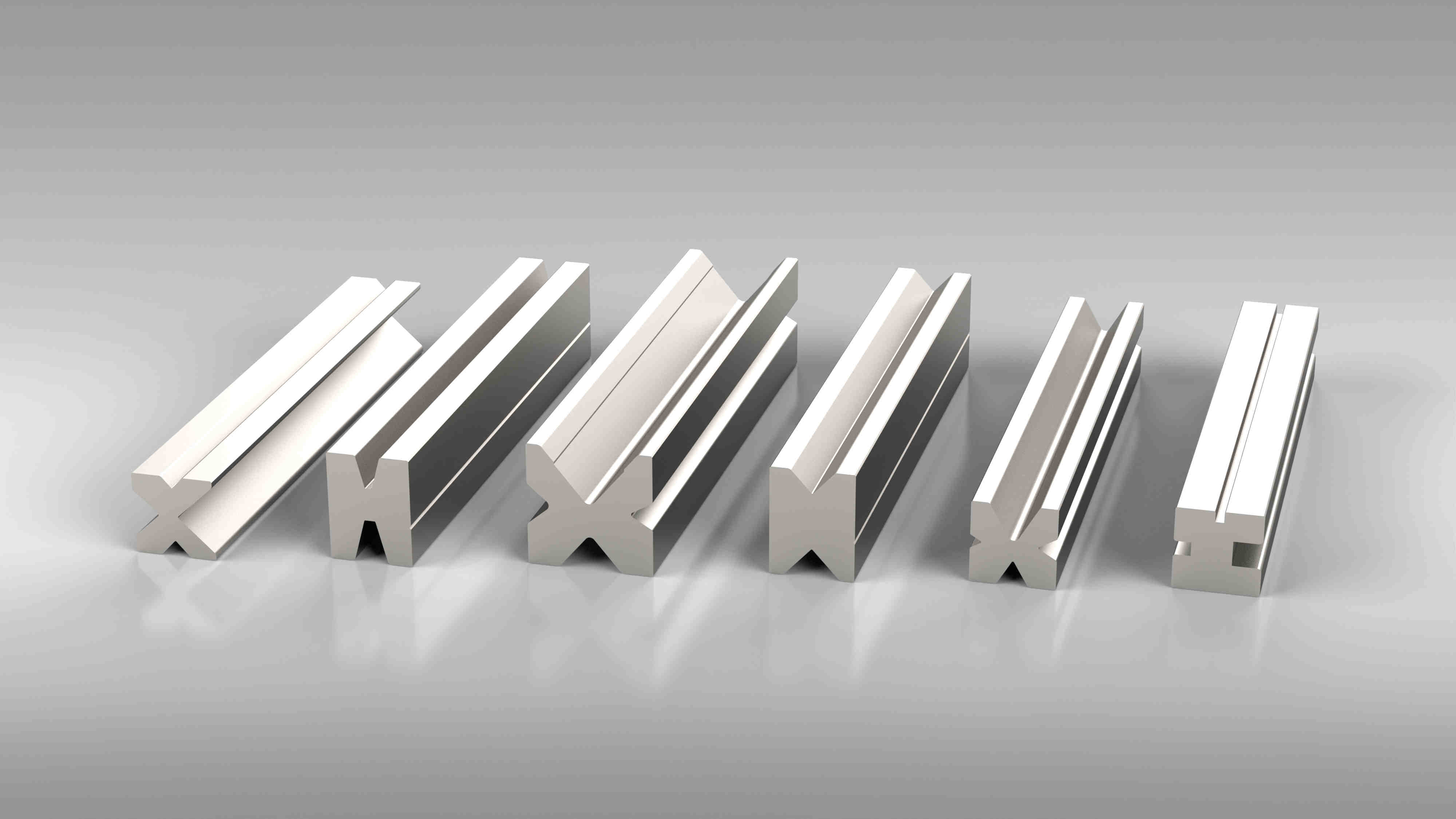

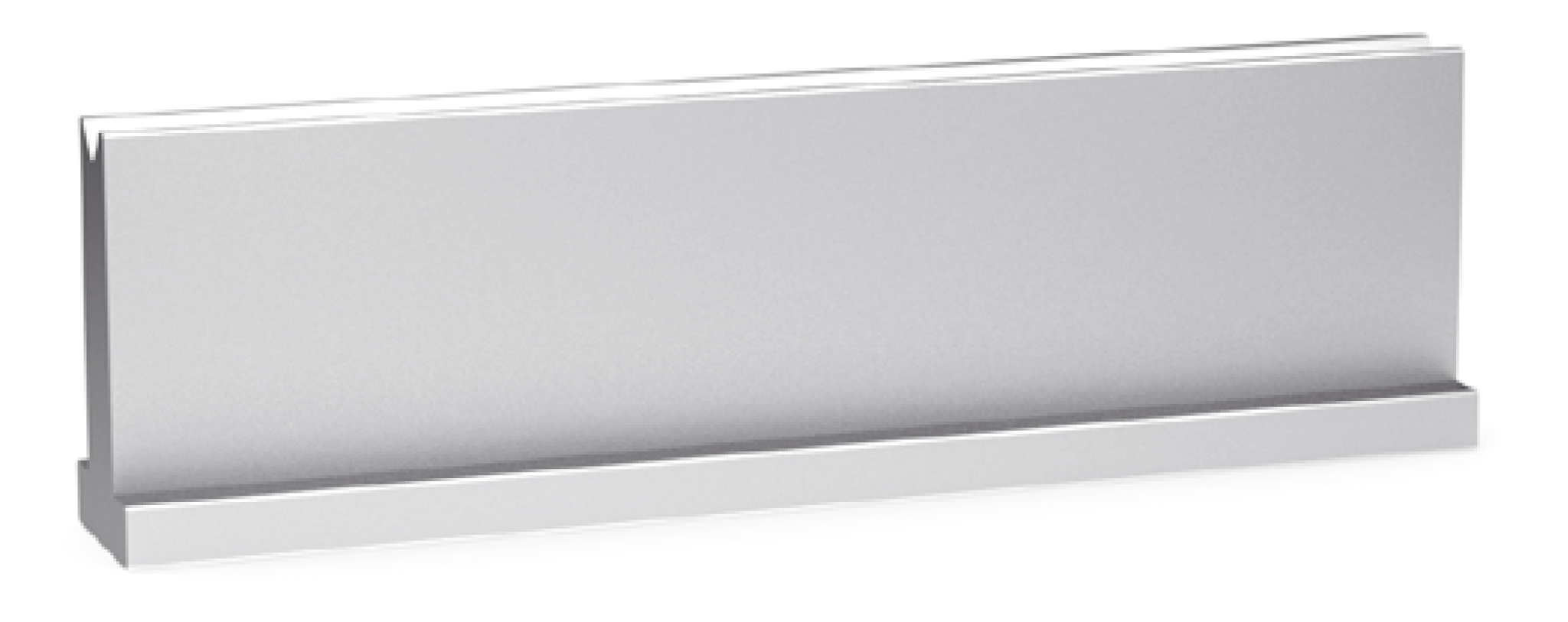

Standard CNC lower die section
There are many segments size , like
835mm seg(10,15,20,40,50,100,200,400),
805mm seg(100,370,10,15,20,40,50,200R),
795mm seg(100,250,20,25,30,35,40,45,50,200),
495mm seg(170,100,50,45,40,35,30,25) .
If these segment size cannot meet your request, pls tell us you want. then we will make it for you.
If you don't know how to choose the lower die for you workpiece, pls provide your punch size, machine model and so on.
Material: 42CrMo / C45
Hardness: HRC47+/-3
Quench: Full body heat treatment
Package: Multi plywood
