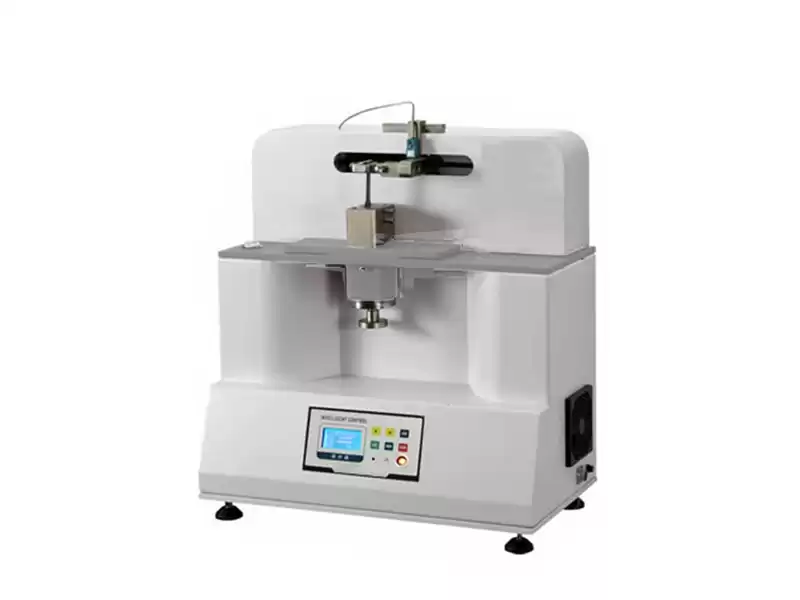

Steel Shank Fatigue Tester

Steel Shank Fatigue Tester is intended to determine the fatigue resistance of steel shanks used for the reinforcement of the waist region of footwear for women, men and children.

Test Standards

ISO18895
DIN EN 12958
GB/T 28011

Parameters

Model AT-F3022
Lower fixed clamp Height: 32mm±2mm
Adjustable Upper Clamp force applied to shank：49N±2N
Rate: 4 cycles/s
Upper and lower Grip space 70mm±2mm
Test clamp applied force 4900N.mm±50N.mm
Counter LCD 0~999,999
Dimension 44.8X14X35cm
Weight 30kg
Power 1 phase, AC220V, 3A or Specified
