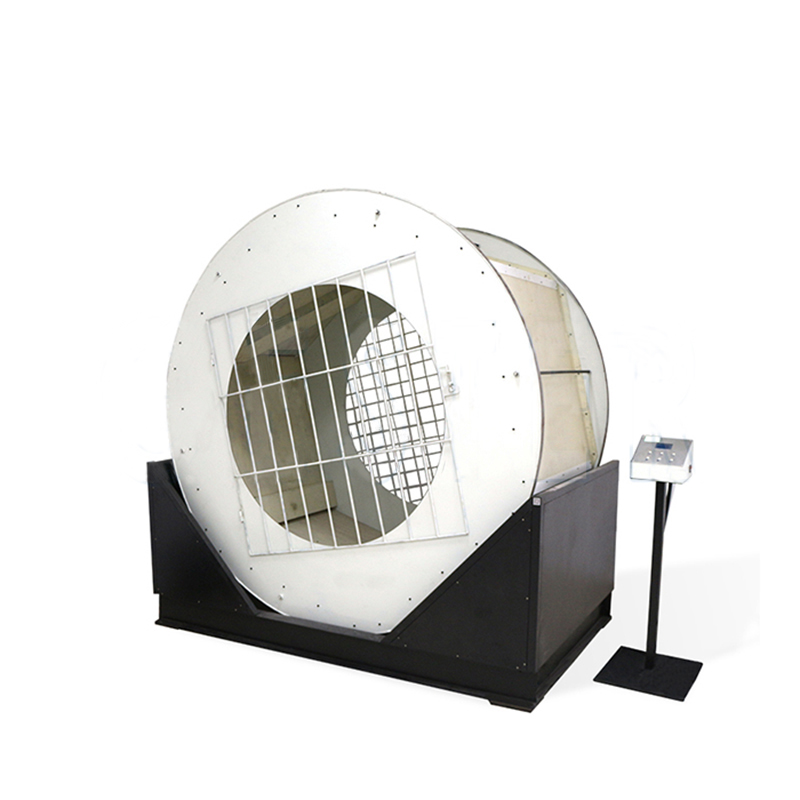

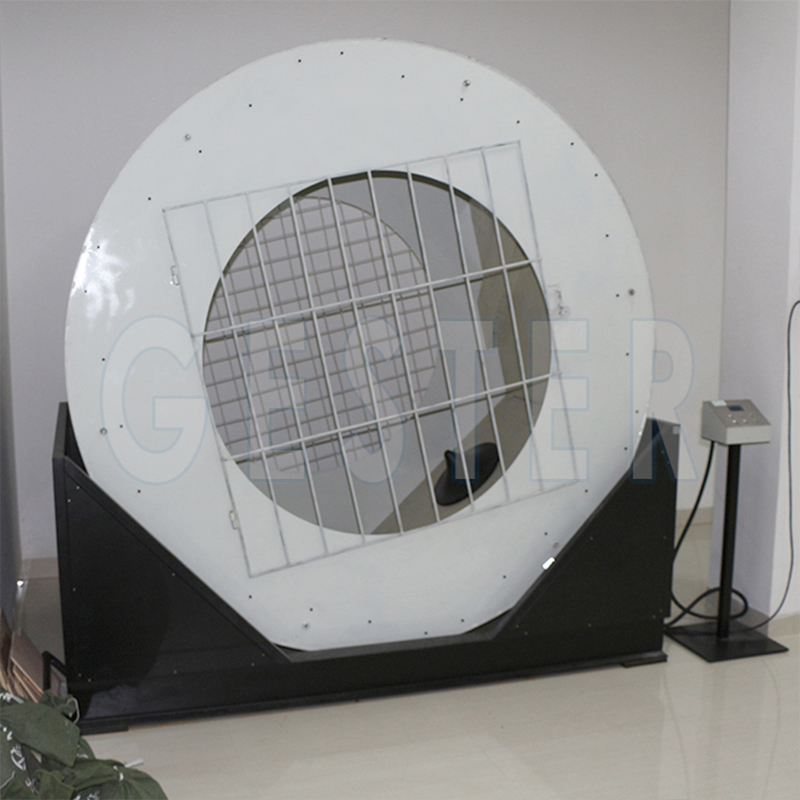

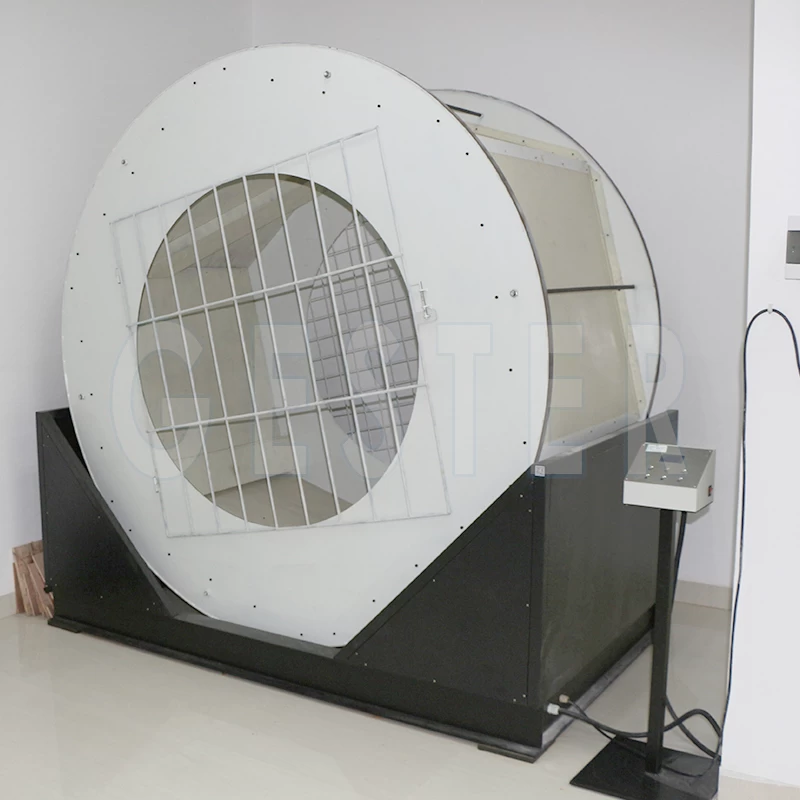

GT-LC07 Suitcase Drum Drop Test Machine
Product Introduction
Application:
Also called suitcase drum drop test machine, roller tester.It is made by American SAMSONITE standard.
Do rollover impact test for suitcase and other packing-cases while delivery.
The suitcase rollover and do the impact inside the drum.and then check the damaged conditions after the set number of revolutions finished.
|
Dimensions
Key Specifications
Model
|
GT-LC07
|
Diameter & depth (drum)
|
Diameter: Φ72 in
Depth: 48 in
|
Times Setting
|
0～999999, automatically stop
|
Barrier standard
|
3 groups of 60 angle barrier
|
Baffle
|
2 groups of 90 angle
|

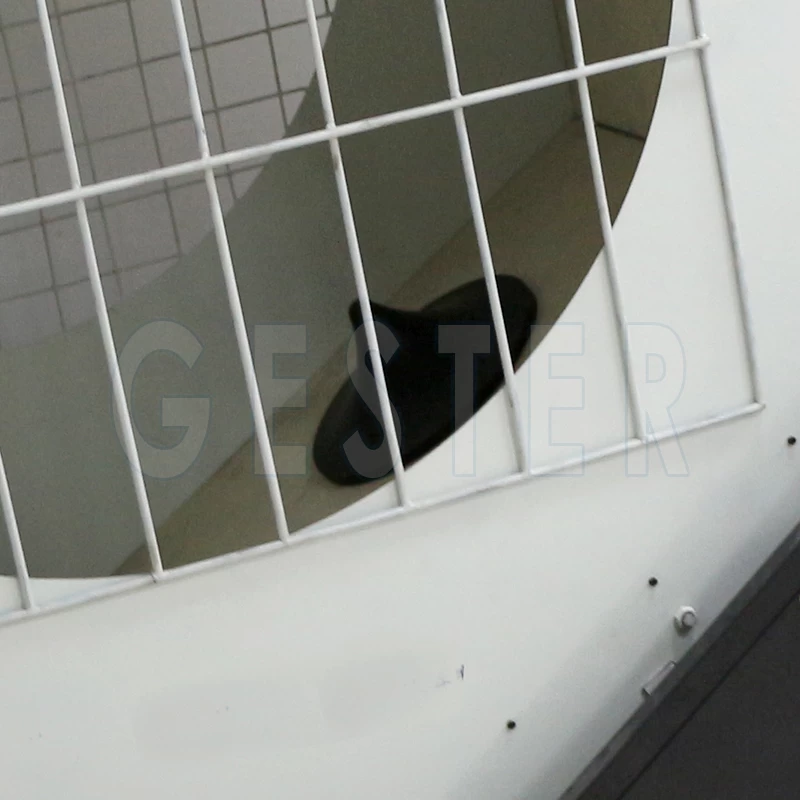

Impact object
|
Cone-shaped metal
|
Max.dimension(specimen)
|
100×70×40cm
|

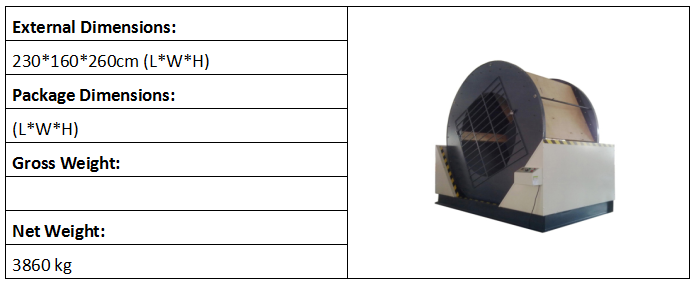

Machine dimension
|
230×160×260cm
|
Weight
|
3860 kg
|
Power
|
1∮, 220V/50HZ
|
