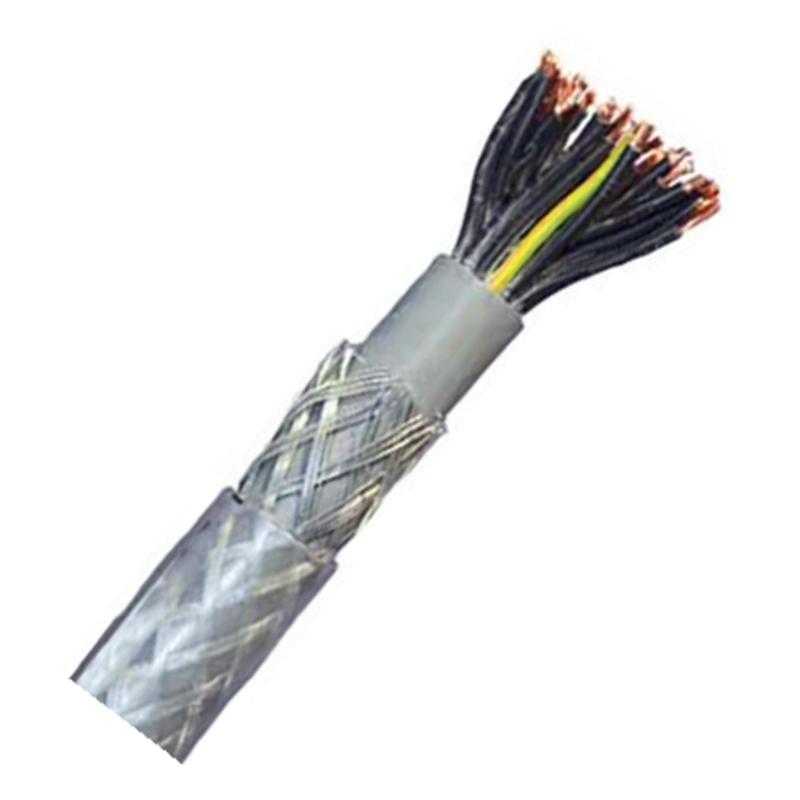

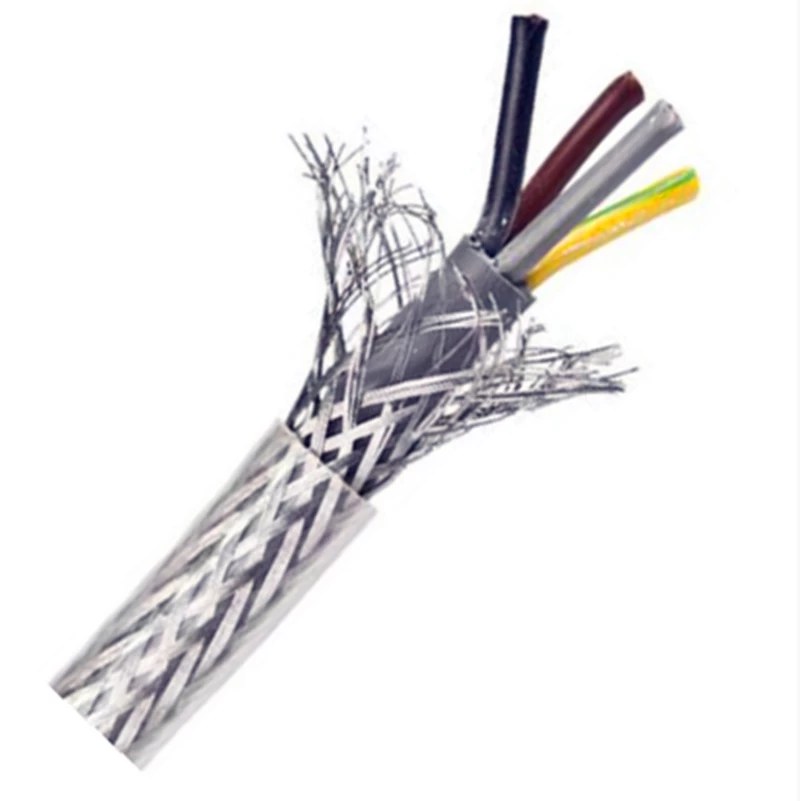

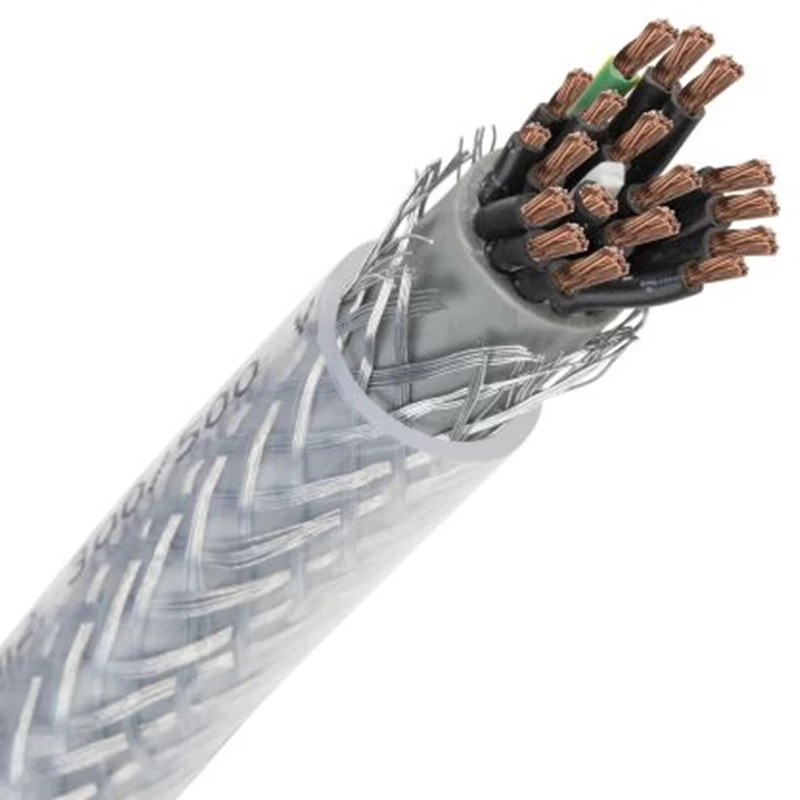

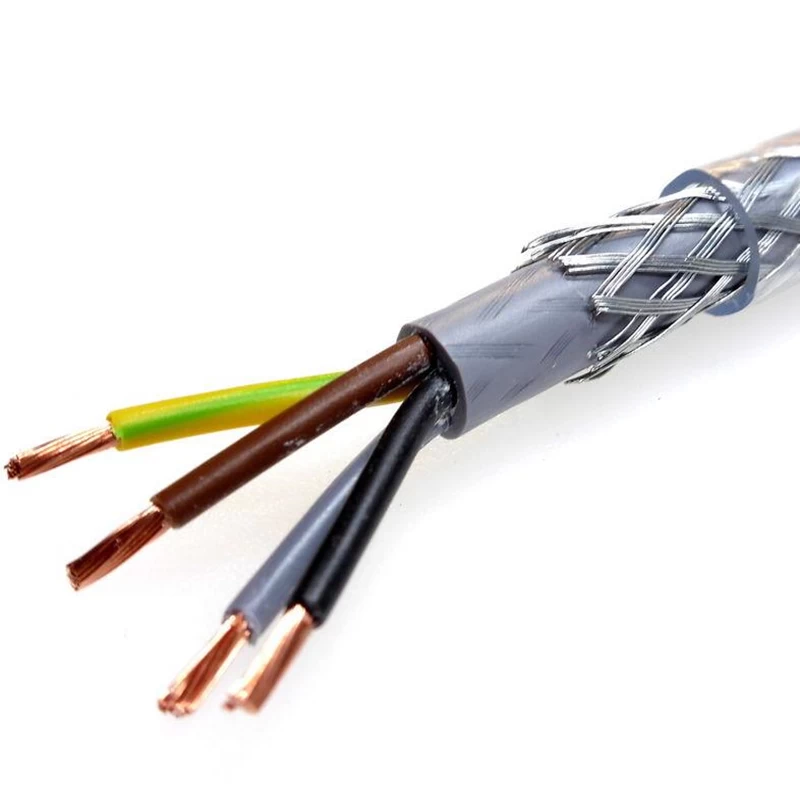

SY PVC insulated steel wire armoured YSLYSY KVV32 control cable

SY PVC insulated steel wire shielded YSLYSY KVVP control cable, plain annealed copper wire conductor, PVC insulation, PVC inner sheath, galvanized steel wire armoured, PVC sheath, 300/500V.



SY PVC insulated steel wire armoured YSLYSY KVV32 control cable


PRODUTS KEYWORDS

KVV32 cable, control cable, SY SWA control cable, YSLYSY control cable.


PRODUCTS APPLICATION

SY PVC insulated steel wire armoured YSLYSY KVV32 control cable, steel wire braided flexible connecting cables for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load. Suitable for use in dry, moist and wet rooms. The galvanized steel wire braid serves as protection against mechanical traverse loads and acts as a magnetic screen against interference. These cables are not used for outdoor or underground installation.

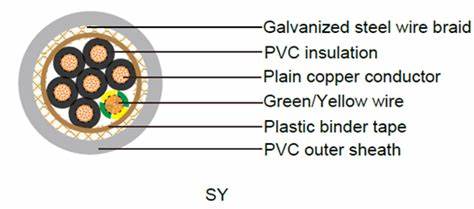

PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire; strand flexible, class 5.

---Insulation Material

    PVC (Polyvinyl Chloride)

---Insulation Color

    Black with numbered cores & green/yellow.

---Inner Sheath Material

    PVC (Polyvinyl Chloride)

---Armoured Material

    GSWB (Galvanized Steel Wire Braid)

---Out Sheath Material

    PVC (Polyvinyl Chloride)

---Out Sheath Color

    Black, white, grey, transparent, or other colours.

---Core Number

    1 core to 80 cores, 1C ~80C.

---Conductor Cross-section

    0.5~150 mm2

---Voltage Rate (U0/U)

    300/500V.

---Working Temperature

    -15℃~+70℃.

---Minimum Bending Radius

    Fixed: 6 x overall diameter

    Flexed: 12.5 x overall diameter

---Production Standard

   GB/T 9330, GB/T 12706, IEC 60227, IEC 60502, VDE 0250, VDE 0207.

---Products Packing

   Roll, wooden pallet, wooden drum, or others.

---Products Delivery

   Within 7-10 working days as soon as we received the deposit.


REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

    ---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

    ---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

    ---Hante Cable: it is your Production Base, Overseas Warehouse, and Purchase Consultant in wire and cable

    industry.
