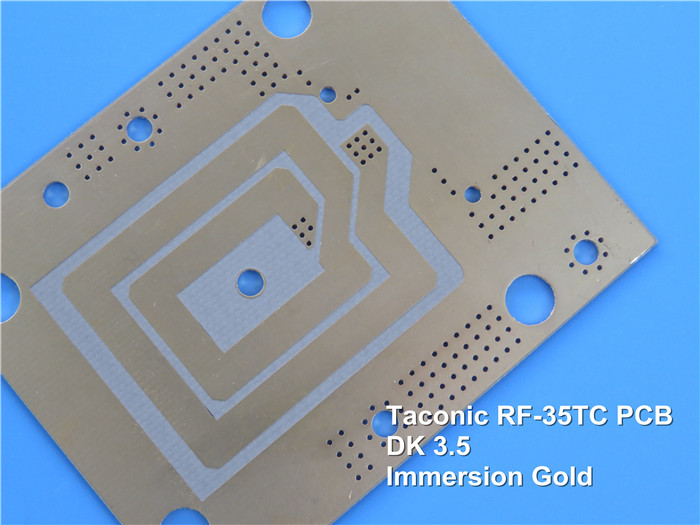

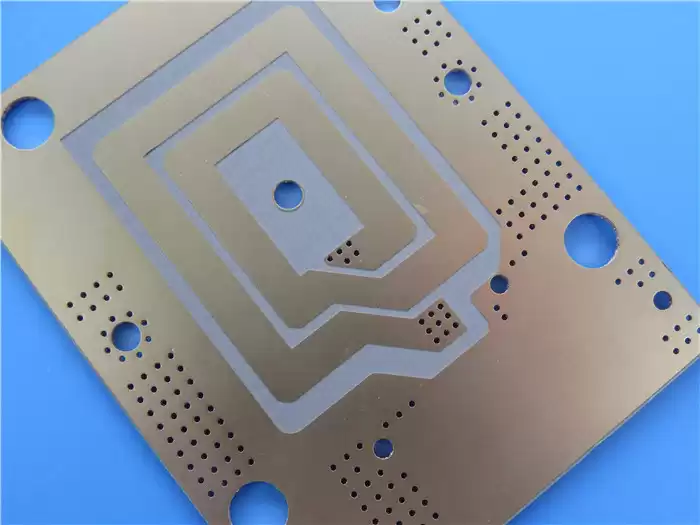

Taconic High Frequency PCB Built on RF-35TC
10mil 0.254mm with Immersion Gold for Filters and Couplers etc.
This material is best suited for high power
applications where every 1/10th of a dB is critical and the PCB substrate is
expected to diffuse heat away from both transmission lines and surface mount
components such as transistors.
RF-35TC is a PTFE based, ceramic filled fiberglass
substrate. It will not oxidize, yellow or show upward drift in dielectric
constant and dissipation factor like its synthetic rubber (hydrocarbon)
competitors.
This laminate has a low dielectric constant value of 3.50 and has extremely low Df of 0.0011. It provides a low dissipation
factor with high thermal conductivity and bonds very well to low profile
copper, further reducing insertion loss.
The RF-35TC laminates are ideal for antennas, satellites, filters, couplers and power amplifiers.
PCB Specifications：
|
PCB SIZE
|
75 x 86mm=1PCS
|
|
BOARD TYPE
|
Double
sided PCB
|
|
Number
of Layers
|
2 layers
|
|
Surface
Mount Components
|
YES
|
|
Through
Hole Components
|
YES
|
|
LAYER STACKUP
|
Copper
------- 35um(1 oz)+plate TOP layer
|
|
RF-35TC 0.254mm
|
|
Copper ------- 35um(1oz) + plate BOT Layer
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
7.1
mil / 5 mil
|
|
Minimum
/ Maximum Holes:
|
0.4
mm / 5.2 mm
|
|
Number
of Different Holes:
|
6
|
|
Number
of Drill Holes:
|
41
|
|
Number
of Milled Slots:
|
0
|
|
Number
of Internal Cutouts:
|
3
|
|
Impedance
Control:
|
no
|
|
Number
of Gold finger:
|
0
|
|
BOARD
MATERIAL
|
|
|
Glass
Epoxy:
|
RF-35TC
0.254mm
|
|
Final
foil external:
|
1.5
oz
|
|
Final
foil internal:
|
N/A
|
|
Final
height of PCB:
|
0.3
mm ±0.1mm
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
Immersion gold
|
|
Solder
Mask Apply To:
|
TOP, 12micron
Minimum
|
|
Solder
Mask Color:
|
Green,
PSR-2000GT600D, Taiyo Supplied.
|
|
Solder
Mask Type:
|
LPSM
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
TOP
|
|
Colour
of Component Legend
|
White, IJR-4000
MW300, Taiyo brand
|
|
Manufacturer
Name or Logo:
|
Marked on the
board in a conductor and leged FREE AREA
|
|
VIA
|
Plated
through hole(PTH), minimum size 0.4mm.
|
|
FLAMIBILITY RATING
|
UL
94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
|
|
Board
plating:
|
0.0029"
|
|
Drill
tolerance:
|
0.002"
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
Data Sheet of RF-35TC:
|
RF-35TC
TYPICAL VALUES
|
|
Property
|
Test Method
|
Unit
|
Value
|
Unit
|
Value
|
|
DK at 10 GHz
|
IPC-650
2.5.5.5.1(modified)
|
|
3.5
|
|
3.5
|
|
Tck(-30
to 120℃）
|
IPC-650
2.5.5.5.1(modified)
|
ppm
|
24
|
ppm
|
24
|
|
Df at 10 GHz
|
IPC-650
2.5.5.5.1(modified)
|
|
0.0011
|
|
0.0011
|
|
Dielectric Breakdown
|
IPC-650
2.5.6(in-Plane,Two Pins in Oil)
|
kV
|
56.7
|
kV
|
56.7
|
|
Dielectric Strength
|
ASTM
D 149(Through Plane)
|
V/mil
|
570
|
V/mm
|
22,441
|
|
Arc Resistance
|
IPC-650
2.5.1
|
Seconds
|
304
|
Seconds
|
304
|
|
Moisture Absorption
|
IPC-650
2.6.2.1
|
%
|
0.05
|
%
|
0.05
|
|
Flexural Strength(MD)
|
ASTM
D 790/IPC-650 2.4.4
|
psi
|
12,900
|
N/mm2
|
88.94
|
|
Flexural Strength(CD)
|
ASTM
D 790/IPC-650 2.4.4
|
psi
|
11,700
|
N/mm2
|
80.67
|
|
Tensile Strength(MD)
|
ASTM
D 3039/IPC-TM-650 2.4.19
|
psi
|
9,020
|
N/mm2
|
62.19
|
|
Tensile Strength(CD)
|
ASTM
D 3039/IPC-TM-650 2.4.19
|
psi
|
7,740
|
N/mm2
|
53.37
|
|
Elongation at Break(MD)
|
ASTM
D 3039/IPC-TM-650 2.4.19
|
%
|
1.89
|
N/mm
|
1.89
|
|
Elongation at Break(CD)
|
ASTM
D 3039/IPC-TM-650 2.4.19
|
%
|
1.7
|
%
|
1.7
|
|
Young's Modulus(MD)
|
ASTM
D 3039/IPC-TM-650 2.4.19
|
psi
|
667,000
|
N/mm2
|
4,599
|
|
Young's Modulus(CD)
|
ASTM
D 3039/IPC-TM-650 2.4.19
|
psi
|
637,000
|
N/mm2
|
4,392
|
|
Poisson's Ratio(MD)
|
ASTM
D 3039/IPC-TM-650 2.4.19
|
|
0.18
|
|
0.18
|
|
Poisson's Ratio(CD)
|
ASTM
D 3039/IPC-TM-650 2.4.19
|
|
0.23
|
|
0.18
|
|
Compressive Modulus
|
ASTM
D 695(23℃)
|
psi
|
560,000
|
N/mm2
|
3,861
|
|
Flexural Strength(MD)
|
ASTM
D 790/IPC-650 2.4.4
|
psi
|
1.46
x 106
|
N/mm2
|
10,309
|
|
Flexural Strength(CD)
|
ASTM
D 790/IPC-650 2.4.4
|
psi
|
1.50
x 106
|
N/mm2
|
10,076
|
|
Peel Stength(½ oz.CVH)
|
IPC-650
2.4.8(Thermal Stress.)
|
Ibs./inch
|
7
|
g/cm3
|
1.25
|
|
Thermal Conductivity(Unclad,125℃)
|
ASTM
F433(Guarded Heat Flow)
|
W/(mK)
|
0.6
|
W/(mK)
|
0.6
|
|
Thermal Conductivity(C1/C1,125℃)
|
ASTM
F433(Guarded Heat Flow)
|
W/(mK)
|
0.92
|
W/(mK)
|
0.92
|
|
Thermal Conductivity(CH/CH,125℃)
|
ASTM
F433(Guarded Heat Flow)
|
W/(mK)
|
0.87
|
W/(mK)
|
0.87
|
|
Dimensional Stability(MD)
|
IPC-650-2.4.39
Sec.5.4(After Etch)
|
mils/in.
|
0.23
|
mm/M
|
0.23
|
|
Dimensional Stability(CD)
|
IPC-650-2.4.39
Sec.5.4(After Etch)
|
mils/in.
|
0.64
|
mm/M
|
0.64
|
|
Dimensional Stability(MD)
|
IPC-650-2.4.39
Sec.5.5(Thermal Stress.)
|
mils/in.
|
-0.04
|
mm/M
|
-0.04
|
|
Dimensional Stability(CD)
|
IPC-650-2.4.39
Sec.5.5(Thermal Stress.)
|
mils/in.
|
0.46
|
mm/M
|
0.46
|
|
Surface Resistivity
|
IPC-650
2.5.17.1(after elevated temp.)
|
Mohms
|
8.33
x 107
|
Mohms
|
8.33
x 107
|
|
Surface Resistivity
|
IPC-650
2.5.17.1(after humidity)
|
Mohms
|
6.42
x 107
|
Mohms
|
6.42
x 107
|
|
Volume Resistivity
|
IPC-650
2.5.17.1(after elevated temp.)
|
Mohms/cm
|
5.19
x 108
|
Mohms/cm
|
5.19
x 108
|
|
Volume Resistivity
|
IPC-650
2.5.17.1(after humidity)
|
Mohms/cm
|
2.91
x 108
|
Mohms/cm
|
2.91
x 108
|
|
CTE(X axis)(25-260℃)
|
IPC-650
2.4.41/ASTM D 3386
|
ppm/℃
|
11
|
ppm/℃
|
11
|
|
CTE(Y axis)(25-260℃)
|
IPC-650
2.4.41/ASTM D 3386
|
ppm/℃
|
13
|
ppm/℃
|
13
|
|
CTE(Z axis)(25-260℃)
|
IPC-650
2.4.41/ASTM D 3386
|
ppm/℃
|
34
|
ppm/℃
|
34
|
|
Density
|
ASTM
D 792
|
g/cm3
|
2.35
|
g/cm3
|
2.35
|
|
Hardness
|
ASTM
D 2240(Shore D)
|
|
79.1
|
|
79.1
|
|
Strain at Break(MD)
|
ASTM
D 790/IPC-650 2.4.4
|
%
|
0.014
|
%
|
0.014
|
|
Strain at Break(CD)
|
ASTM
D 790/IPC-650 2.4.4
|
%
|
0.013
|
%
|
0.013
|
|
Specific Heat
|
ASTM
E 1269-05,E 967-08,E968-02
|
j/(g℃)
|
0.94
|
j/(g℃)
|
0.94
|
|
Td(2%
Weight Loss)
|
IPC-650
2.4.24.6/TGA
|
oF
|
788
|
℃
|
420
|
|
Td(5%
Weight Loss)
|
IPC-650
2.4.24.6/TGA
|
oF
|
817
|
℃
|
436
|
RF-35TC PCB Applications:
Taconic PCB is a printed circuit board manufactured using Taconic PCB
material. These materials are ceramic filled teflon and glass fiber
reinforced materials. The Taconic PCB are suitable for RF
applications in the communications and aerospace industries.
