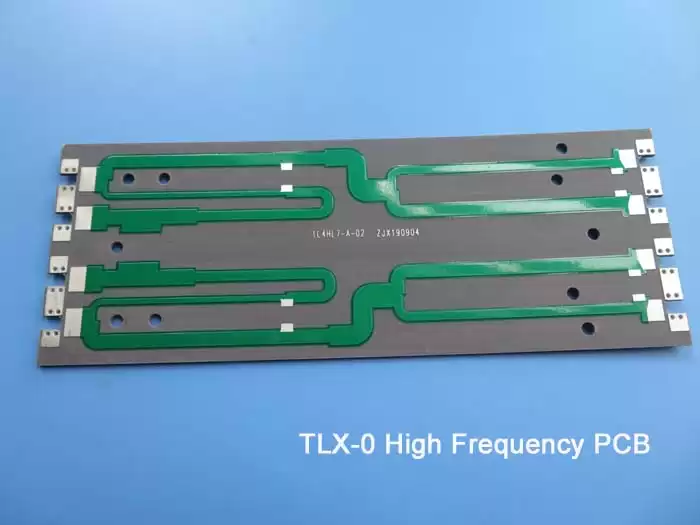

TLX-0 Microwave PCB 2-layer Low DK 2.45 Taconic
High Frequency PCB 62mil 1.575mm With Immersion Silver
TLX is PTFE based fiberglass laminate, it is
ideal for use inradar systems,mobile communications,microwave test
equipment,microwave transmission devicesandRF components.
TLX is a workhorse in the RF microwave
substrate world where the fiberglass offers mechanical reinforcement wherever a
substrate experiences severe environments such as: resistance to creep for PCBs
bolted to a housing that encounter high levels of vibration during space
launch, high temperature exposure in engine modules, radiation resistance inspace,antennafor warships that undergo extreme environments at sea and a
substrate for altimeters that see a wide range of temperatures during flight.
There're TLX-0 (dk2.45), TLX-9 (dk2.50), TLX-8
(dk2.55), TLX-7 (dk2.60) and TLX-6 (dk2.65) in the TLX family. Dielectric
thickness of TLX-0 ranges from 0.127mm to 6.35mm (5mil-250mil), TLX-9 ranges
from 0.05mm to 6.35mm (2mil - 250mil), TLX-8 ranges from 0.064mm to 6.35mm
(2.5mil to 250mil), TLX-7 ranges from 0.089mm to 6.35mm (3.5mil - 250mil), TLX-6 ranges from 0.089mm to 6.35mm (3.5mil to 250mil).
PCB Date Sheet:
|
Final
height of PCB:
|
1.6 mm ±10%
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
HASL Lead Free
|
|
Solder
Mask Apply To:
|
Bottom, 12micron
Minimum
|
|
Solder
Mask Color:
|
Green,
PSR-2000GT600D, Taiyo Supplied.
|
|
Solder
Mask Type:
|
LPSM
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
Bottom
|
|
Colour
of Component Legend
|
White, IJR-4000
MW300, Taiyo brand
|
|
Manufacturer
Name or Logo:
|
Marked on the
board in a conductor and leged FREE AREA
|
|
VIA
|
N/A
|
|
FLAMIBILITY RATING
|
UL
94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
|
|
Board
plating:
|
0.0029"
|
|
Drill
tolerance:
|
0.002"
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
DK-TLX-0:
|
Type
|
DK
|
|
TLY-5A
|
2.17
|
|
TLY-5
|
2.20
|
|
TLY-3
|
2.33
|
|
TLT-0
|
TLX-0
|
2.45
|
|
TLT-9
|
TLX-9
|
2.50
|
|
TLT-8
|
TLX-8
|
2.55
|
|
TLT-7
|
TLX-7
|
2.60
|
|
TLT-6
|
TLX-6
|
2.65
|
|
TLE-95
|
2.95
|
|
TLC-27
|
2.75
|
|
TLC-30
|
RF-30
|
3.00
|
|
TLC-32
|
3.20
|
|
TLF-35
|
3.50
|
|
TLF-35-xxxx-A
|
3.50
|
|
RF-35
|
RF-35A2
|
3.50
|
|
TRF-41
|
4.10
|
|
TRF-43
|
4.30
|
|
TRF-45
|
4.50
|
|
RF-60A
|
6.15
|
|
CER-10
|
10
|
Benefits:
Excellent mechanical & thermal properties
Low & stable DK
Dimensionally stable
Low moisture absorption
UL 94 V-O rating
Tightly controlled DK
Low DF
For low layer count microwave designs
Applications:
Antennas
Couplers, Splitters, Combiners,
Amplifiers, Mixers, Filters
Passive components
Taconic is a leader in the development and manufacture of advanced
engineered composite materials for printed circuit boards. If you are
looking for a reliable Taconic PCB supplier for cooperation, please
contact us!
