Taiwan Technology China Price Floor Deck Roll Formiing Machine

Equipped with a computer controlling system. Easy to operate and running stable.

Taiwan Quality China Price.

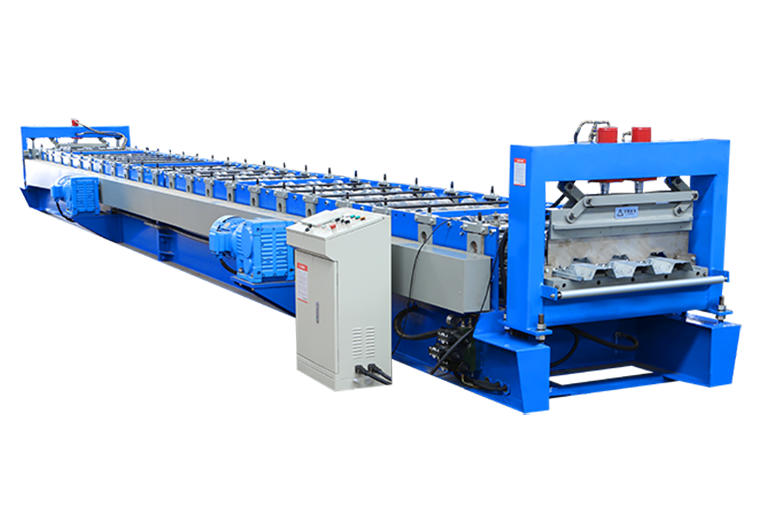

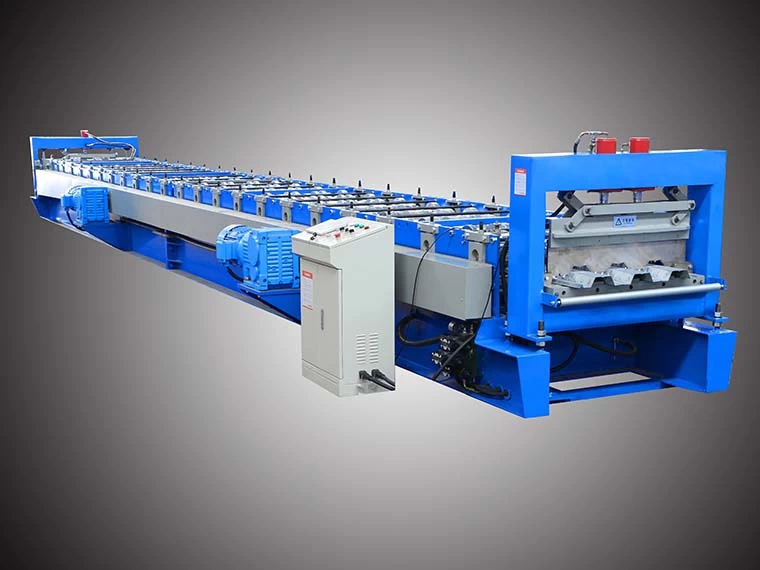

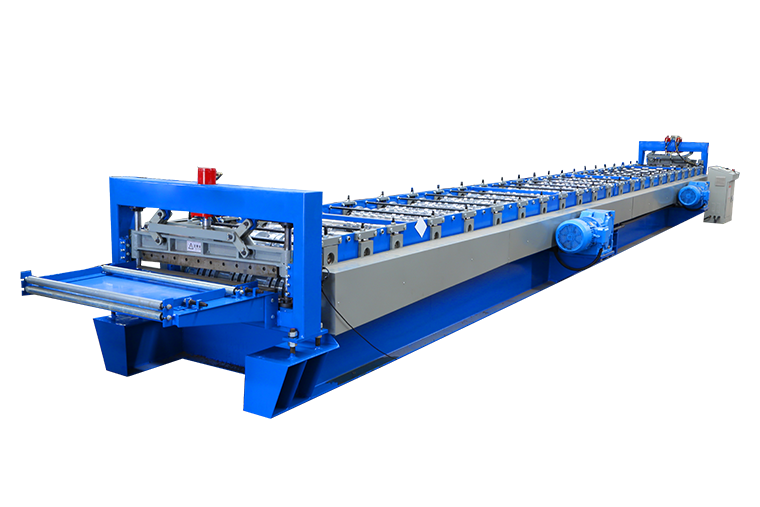

     YX51-750 Metal Floor Deck Roll Forming Machine

 Metal Floor Deck Roll Formiing Machine


1.Main features of floor decking roll forming machine



    The advantages of floor decking machine are as follows:

    1.Low cost, light weight but high strength, short building period, and re-cycle use

    2.Save material , no waste.

    3.Easy operation, low maintenance cost



2.Detailed Images of YX51-750 floor deck roll forming machine



    Machine Parts

        1) YX51-750 floor deck machine hydraulic pre-cutter

        Brand: BMS    Original: China

        With feeding material guide.

Metal Floor Deck Roll Forming Machine

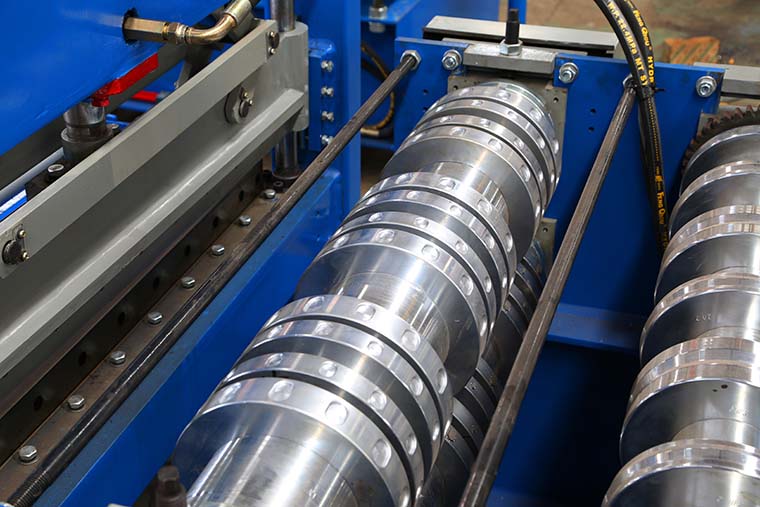

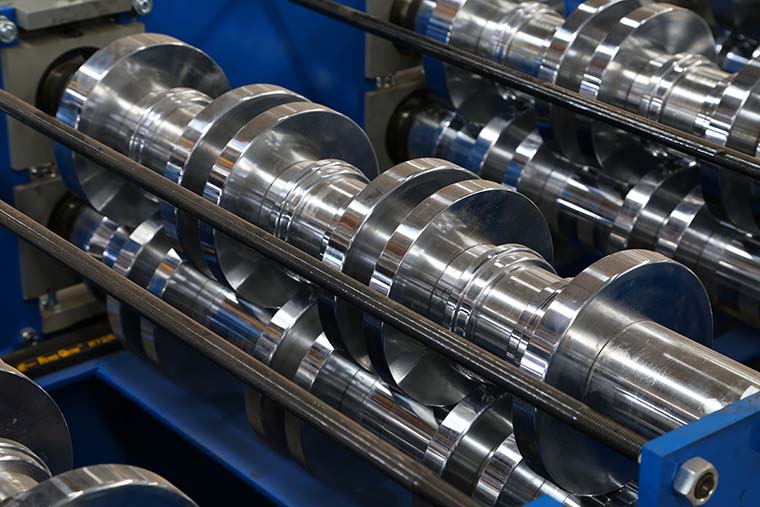

        2) YX51-750 floor deck machine rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        Body framemade from 350# H type steel by welding



Metal Floor Deck Roll Forming Machine


Metal Floor Deck Roll Forming Machine

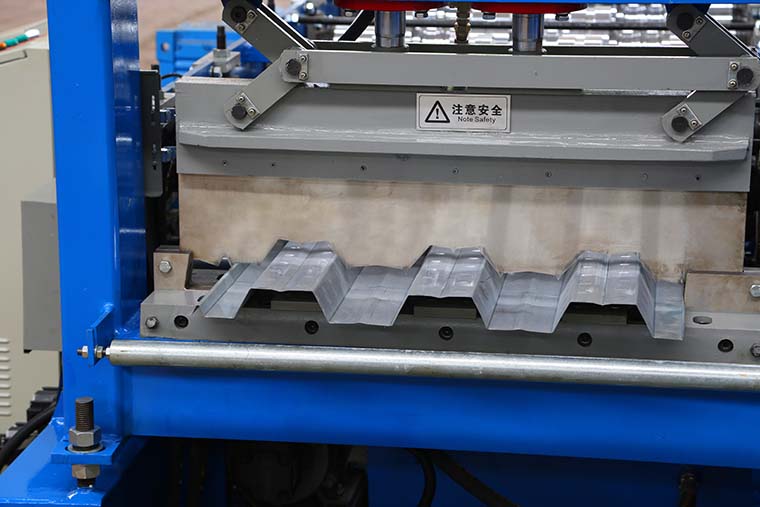

        3) YX51-750 floor decki machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa



Metal Floor Deck Roll Forming Machine

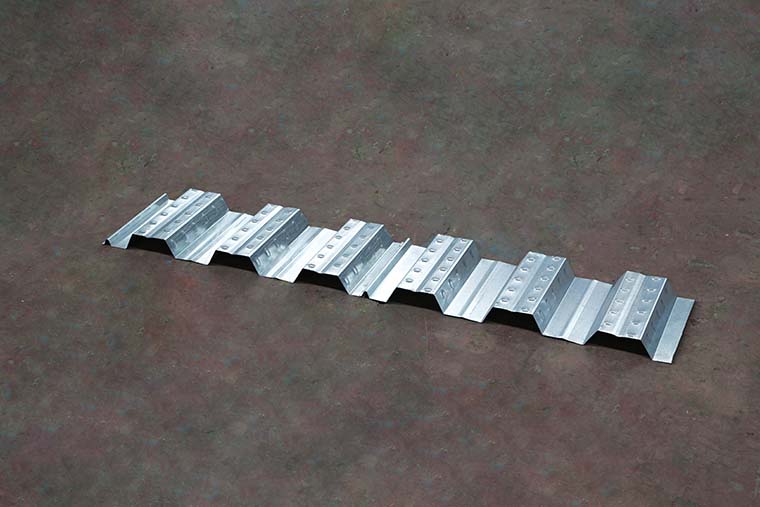

        4) YX51-750 floor deck machine product show



Metal Floor Deck Roll Forming Machine

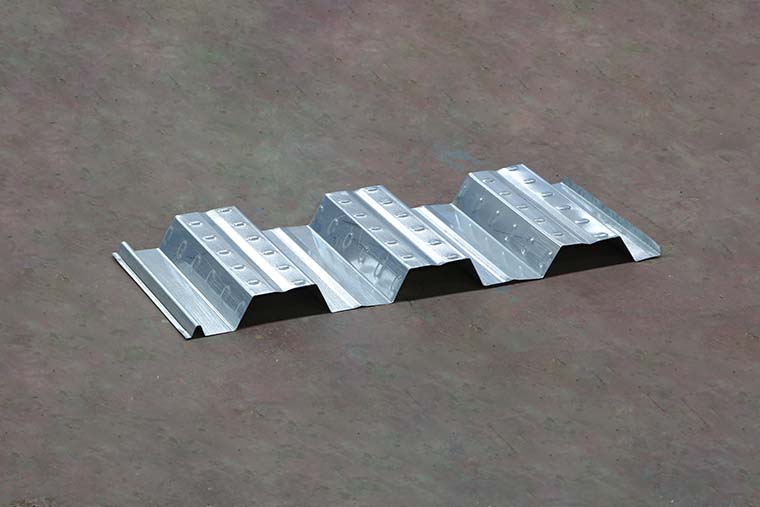

                                                                            Overlap effect


Metal Floor Deck Roll Forming Machine



        5) YX51-750 floor deck machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1200mm, coil ID range 508mm±30mm

        Capacity: 5-9 Ton





Metal Floor Deck Roll Forming Machine

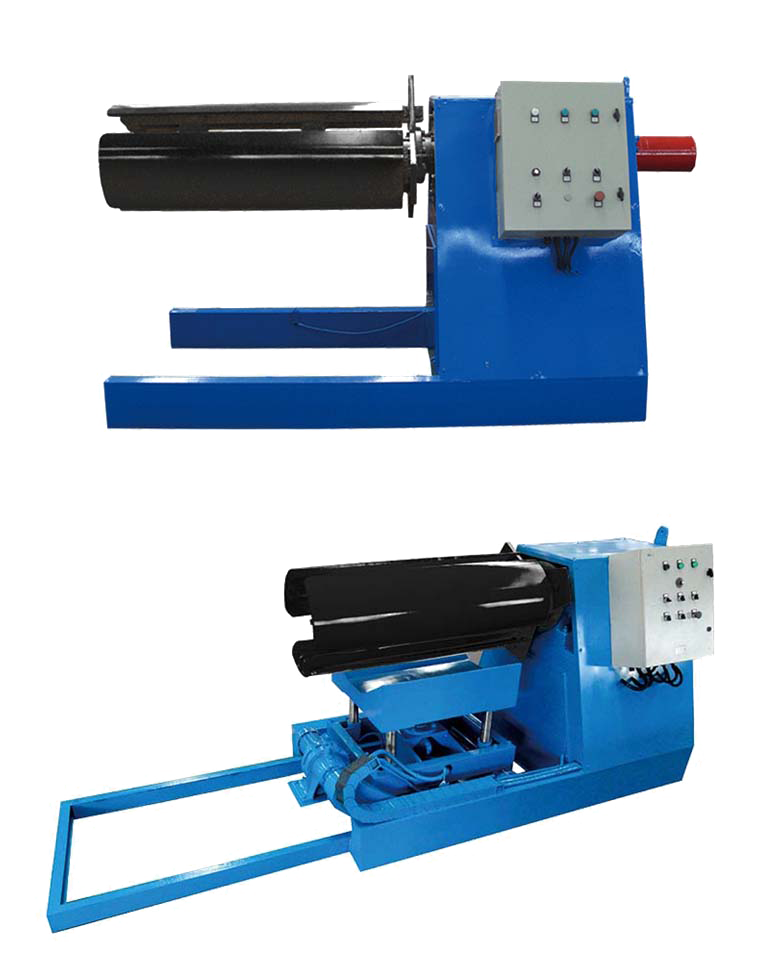

        With 6 tons hydraulic decoiler for option

Metal Floor Deck Roll Forming Machine



        6) YX51-750 floor deck machine exit rack

        Un-powered,one unit

Other details of YX51-750 floor deck roll forming machine



Suitable for material with thickness 0.8-1.5mm

Shafts manufactured from 45#,Main shaft diameter=φ90mm,precision machined

Motor driving,Gear chain transmission, 20 steps to form.

Main motor=15KW , Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of floor deck roll forming machine



1. The warranty of purlin floor decking roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.



We know Floor Deck Roll Forming Machines and we’ve got the ranges and the prices to suit your needs. Welcome to view more.
