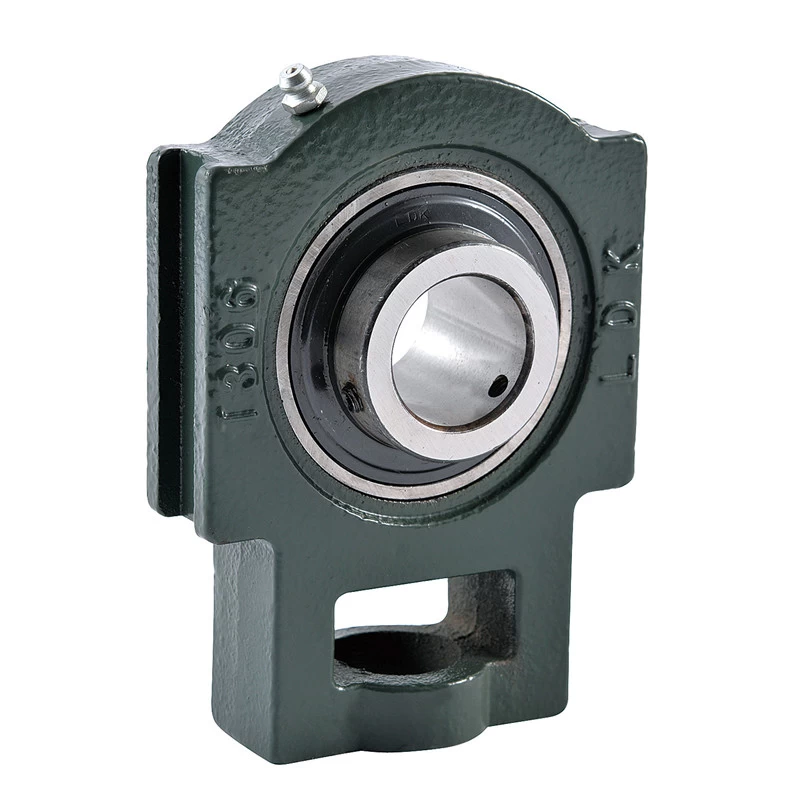

Take Up Bearing Units UCT3

UCT300  Heavy duty,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

Take Up Housing UCT305

Unit No
Shaft Dia
d
(mm)

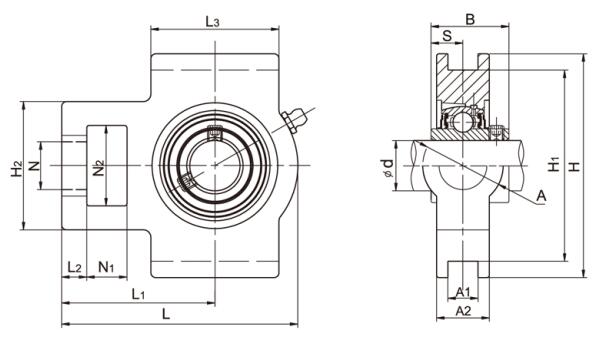

Dimensions(mm) Weight (kg)
N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B S
UCT305 25 16 12 62 36 26 65 12 80 90 122 36 26 76 38 15 1.41
UCT306 30 18 14 70 41 28 74 16 90 100 137 41 28 85 43 17 1.85
UCT307 35 20 15 75 45 30 80 16 100 111 150 45 32 94 48 19 2.45
UCT308 40 22 17 83 50 32 89 18 112 124 162 50 34 100 52 19 3.09
UCT309 45 24 18 90 55 34 97 18 125 138 178 55 38 110 57 22 4.08
UCT310 50 27 20 98 61 37 106 20 140 151 191 61 40 117 61 22 5.25
UCT311 55 29 21 105 66 39 115 22 150 163 207 66 44 127 66 25 6.41
UCT312 60 31 23 115 71 41 123 22 160 179 220 72 46 135 71 26 7.61
UCT313 65 32 25 116 70 43 134 26 170 190 238 80 50 146 75 30 9.22
UCT314 70 36 25 130 85 46 140 26 180 202 252 90 52 155 78 33 11.4
UCT315 75 36 25 134 85 46 150 26 192 216 262 90 55 160 82 32 12.9
UCT316 80 42 28 150 98 53 160 30 204 230 282 102 60 174 86 34 15.65
UCT317 85 42 30 152 98 53 170 32 214 240 298 102 64 183 96 40 19.34
UCT318 90 46 30 160 106 57 175 32 228 255 312 110 66 192 96 40 21.25
UCT319 95 46 31 165 106 57 180 35 240 270 322 110 72 197 103 41 24.4
UCT320 100 48 32 175 115 59 200 35 260 290 345 120 75 210 108 42 30.6
UCT321 105 48 32 175 115 59 200 35 260 290 345 120 75 210 112 44 30.2
UCT322 110 52 38 185 125 65 215 38 285 320 385 130 80 235 117 46 38.8
UCT324 120 60 42 210 140 70 230 45 320 355 432 140 90 267 126 51 54.6
UCT326 130 65 45 220 150 75 240 50 350 385 465 150 100 285 135 54 68.4
UCT328 140 70 50 230 160 80 255 50 380 415 515 155 100 315 145 59 83.2
