ISO9001 certified factory, hot selling through hole drum core inductor 4.7uH 100uH 680uH, high quality and competitive price, our production is increasing every year, inductor design basically meet all global safety standards. Small, medium and high-quantity are available.
Quick Details
|
Part No: Through Hole Drum Core Power Inductor
|
Brand name: MCT
|
|
Storage Temperature: -25°C ~ +125°C
|
Custom made: Available
|
|
Operating Temperature: -25°C ~ +85°C
|
Logo: Can be customized
|
|
Packing: Carton, can custom
|
Shipping: Air, Ship, etc
|
|
Lead time: 25 days after payment
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
OEM: Available
|
Part Information

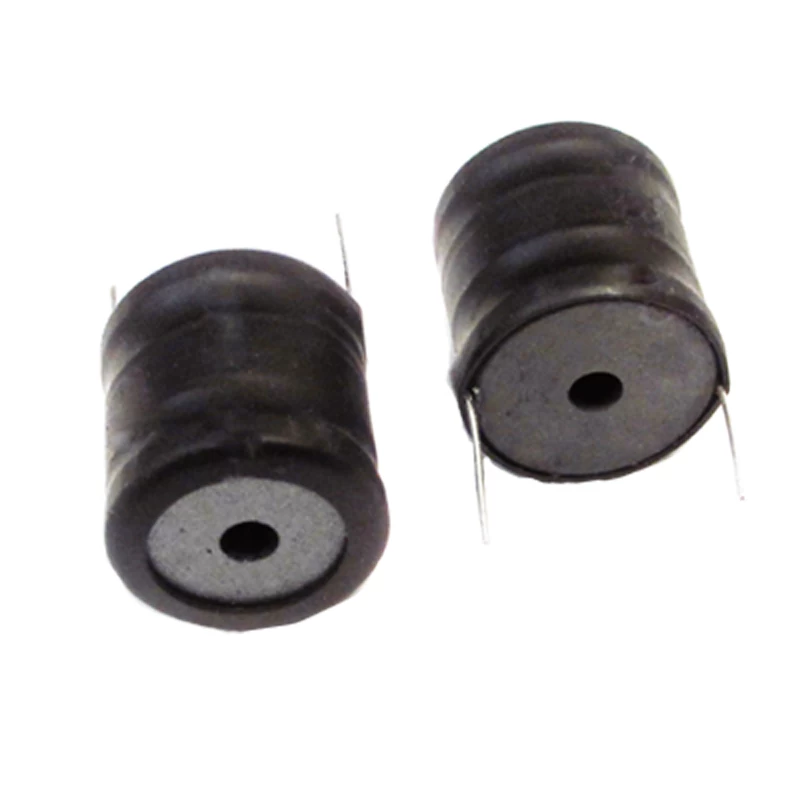

Product Name: Through Hole Ferrite Drum Core Power Inductor UL Tube Power Choke
Applications: DC-DC converter, OA equipment, notebook computer, small size communication equipment, digital camera.
Features: Ferrite core with UL tube. Wire wound construction. High current, low DCR.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification

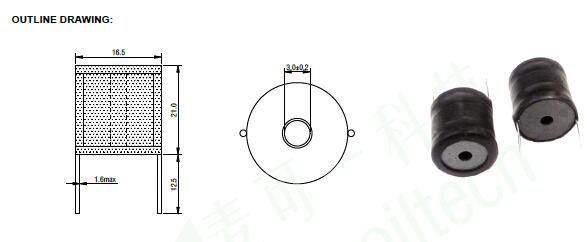

We offer following dimension larger drum core inductor
|
Core Size
|
Out diameter
|
Hole diameter
|
Hight
|
Core Size
|
Out diameter
|
Hole diameter
|
Hight
|
|
65×43×35
|
65
|
35
|
43
|
28×23×18
|
28
|
18
|
23
|
|
65×38×35
|
65
|
35
|
38
|
28×25×14
|
28
|
14
|
25
|
|
56×55×33
|
56
|
33
|
55
|
26×25×14
|
26
|
14
|
25
|
|
50×30×21
|
50
|
21
|
30
|
26×20×14
|
26
|
14
|
20
|
|
45×35×28
|
45
|
28
|
35
|
25×25×14
|
25
|
14
|
25
|
|
40×30×25
|
40
|
25
|
30
|
25×22×14
|
25
|
14
|
22
|
|
40×30×21
|
40
|
21
|
30
|
25×15×14
|
25
|
14
|
15
|
|
40×37×18
|
40
|
18
|
37
|
23×18×13
|
23
|
13
|
18
|
|
40×35×21
|
40
|
21
|
35
|
22×35×13
|
22
|
13
|
35
|
|
40×30×18
|
40
|
18
|
30
|
22×25×13
|
22
|
13
|
25
|
|
40×25×18
|
40
|
18
|
25
|
22×21×13
|
22
|
13
|
21
|
|
35×25×21
|
35
|
21
|
25
|
22×20×13
|
22
|
13
|
20
|
|
35×28×21
|
35
|
21
|
28
|
22×18×13
|
22
|
13
|
18
|
|
35×35×18
|
35
|
18
|
35
|
22×18×11
|
22
|
11
|
18
|
|
30×25×15
|
30
|
15
|
25
|
22×14×13
|
22
|
13
|
14
|
|
30×25×14
|
30
|
14
|
25
|
22×14×11
|
22
|
11
|
14
|
|
30×20×15
|
30
|
15
|
20
|
20×20×13
|
20
|
13
|
20
|
|
30×20×14
|
30
|
14
|
20
|
20×20×11
|
20
|
11
|
20
|
|
28×28×18
|
28
|
18
|
28
|
20×14×13
|
20
|
13
|
14
|
|
28×25×18
|
28
|
18
|
25
|
20×14×11
|
20
|
11
|
14
|
Data Table
|
Part Number
|
Inductance
|
Tolerance
|
DCR (Max)
|
Saturation
Current
（Max）
|
Temperature
Rise Current
(Max)
|
|
Units
|
μH
|
%
|
Ω
|
A
|
A
|
|
Symbol
|
L
|
K,M
|
DCR
|
Isat
|
Irms
|
|
MCTBD-01-1R0
|
1.0
|
K,M
|
0.003
|
87.0
|
9.0
|
|
MCTBD-01-1R2
|
1.2
|
K,M
|
0.003
|
68.0
|
9.0
|
|
MCTBD-01-1R5
|
1.5
|
K,M
|
0.004
|
56.0
|
9.0
|
|
MCTBD-01-1R8
|
1.8
|
K,M
|
0.004
|
56.0
|
9.0
|
|
MCTBD-01-2R2
|
2.2
|
K,M
|
0.005
|
47.0
|
9.0
|
|
MCTBD-01-2R7
|
2.7
|
K,M
|
0.005
|
47.0
|
9.0
|
|
MCTBD-01-3R3
|
3.3
|
K,M
|
0.005
|
40.0
|
9.0
|
|
MCTBD-01-3R9
|
3.9
|
K,M
|
0.006
|
36.0
|
9.0
|
|
MCTBD-01-4R7
|
4.7
|
K,M
|
0.007
|
32.0
|
9.0
|
|
MCTBD-01-5R6
|
5.6
|
K,M
|
0.007
|
29.0
|
9.0
|
|
MCTBD-01-6R8
|
6.8
|
K,M
|
0.008
|
26.0
|
9.0
|
|
MCTBD-01-8R2
|
8.2
|
K,M
|
0.009
|
24.5
|
9.0
|
|
MCTBD-01-100
|
10
|
K
|
0.010
|
21.2
|
9.0
|
|
MCTBD-01-120
|
12
|
K
|
0.011
|
19.0
|
9.0
|
|
MCTBD-01-150
|
15
|
K
|
0.015
|
17.5
|
7.2
|
|
MCTBD-01-180
|
18
|
K
|
0.016
|
16.5
|
7.2
|
|
MCTBD-01-220
|
22
|
K
|
0.025
|
15.8
|
5.5
|
|
MCTBD-01-270
|
27
|
K
|
0.030
|
14.4
|
4.5
|
|
MCTBD-01-330
|
33
|
K
|
0.040
|
13.2
|
4.0
|
|
MCTBD-01-390
|
39
|
K
|
0.046
|
11.8
|
4.0
|
|
MCTBD-01-420
|
42
|
K
|
0.050
|
11.3
|
3.8
|
|
MCTBD-01-470
|
47
|
K
|
0.062
|
11.0
|
2.8
|
|
MCTBD-01-560
|
56
|
K
|
0.069
|
10.0
|
2.8
|
|
MCTBD-01-680
|
68
|
K
|
0.077
|
8.9
|
2.8
|
|
MCTBD-01-820
|
82
|
K
|
0.083
|
8.2
|
2.8
|
|
MCTBD-01-101
|
100
|
K
|
0.095
|
7.5
|
2.8
|
|
MCTBD-01-121
|
120
|
K
|
0.127
|
5.8
|
2.0
|
|
MCTBD-01-151
|
150
|
K
|
0.181
|
5.6
|
1.6
|
|
MCTBD-01-181
|
180
|
K
|
0.217
|
5.1
|
1.6
|
|
MCTBD-01-221
|
220
|
K
|
0.240
|
4.3
|
1.6
|
|
MCTBD-01-271
|
270
|
K
|
0.300
|
4.1
|
1.6
|
|
MCTBD-01-331
|
330
|
K
|
0.336
|
3.8
|
1.3
|
|
MCTBD-01-391
|
390
|
K
|
0.460
|
3.3
|
1.0
|
|
MCTBD-01-471
|
470
|
K
|
0.636
|
3.2
|
0.8
|
|
MCTBD-01-561
|
560
|
K
|
0.696
|
2.9
|
0.8
|
|
MCTBD-01-681
|
680
|
K
|
0.700
|
2.9
|
0.8
|
