Tiger 0.8mm green/black fabric driving power transmission belt

Tiger 0.8mm green/black fabric driving power transmission belt is one side of green fabric cover,another side of black fabric cover,and polyamide middle layer.



PRODUCT:HNI-series,HNI-5B



MAIN FEATURE

Tiger 0.8mm green/black fabric driving power transmission belt is only made of both sides of faric cover,polyamide tension layer.


TECHNICAL DATAS

Type

HNI-5B

Belt thickness

0.8mm

Color

green,black

Surface

rough structure

Weight

1.0kg/m2

0.2046 lbs./ft.2

Force at 1% elongation

3N/mm

16.797 lbs./in.

Temperature range

-10 to 110°C

14 to 230°F

Min. pulley diameter

25mm

0.984in.

Standard roll belt width

500mm

19.685in.

Max. roll belt width

540mm

21.26in.

Processing

Rubber coated on the top or other special processing requirement.

Endless instructions

Hot splicing with overlap is always preferable.

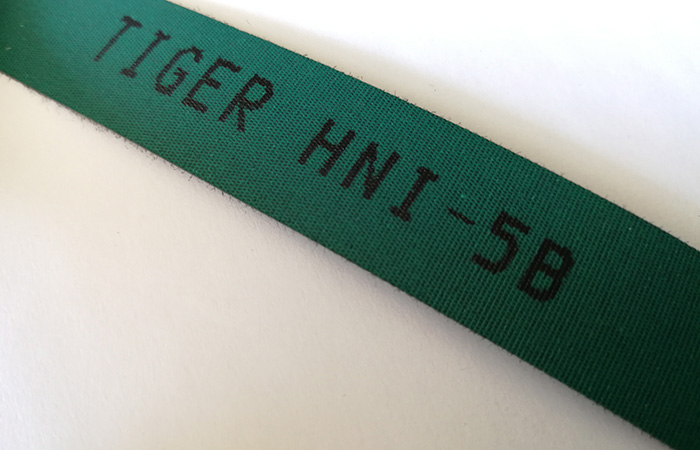

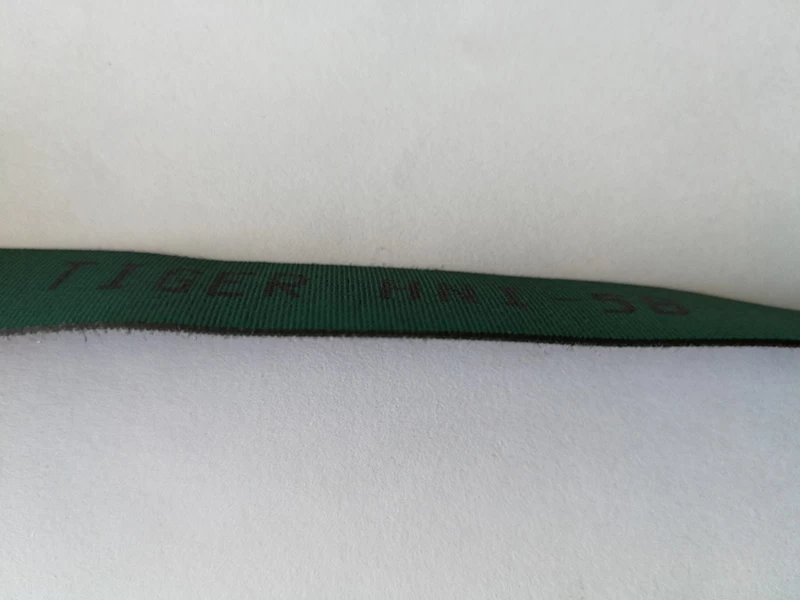

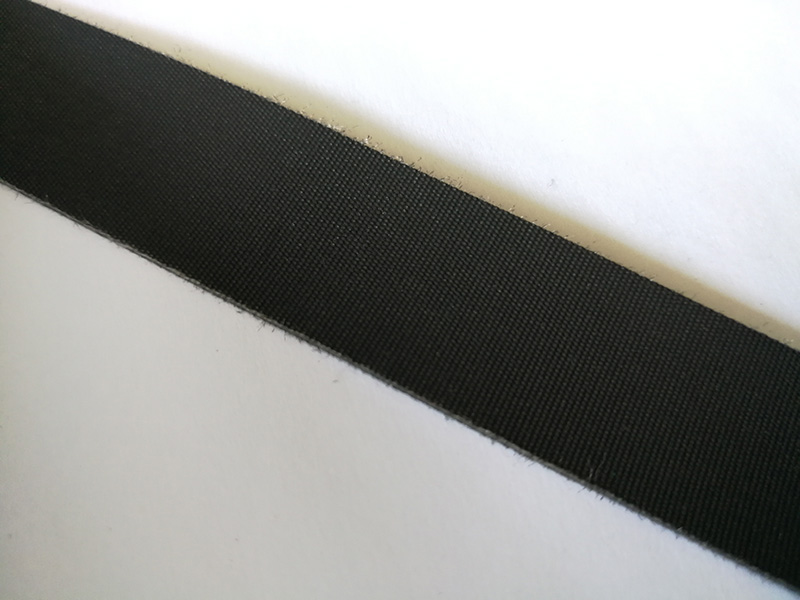

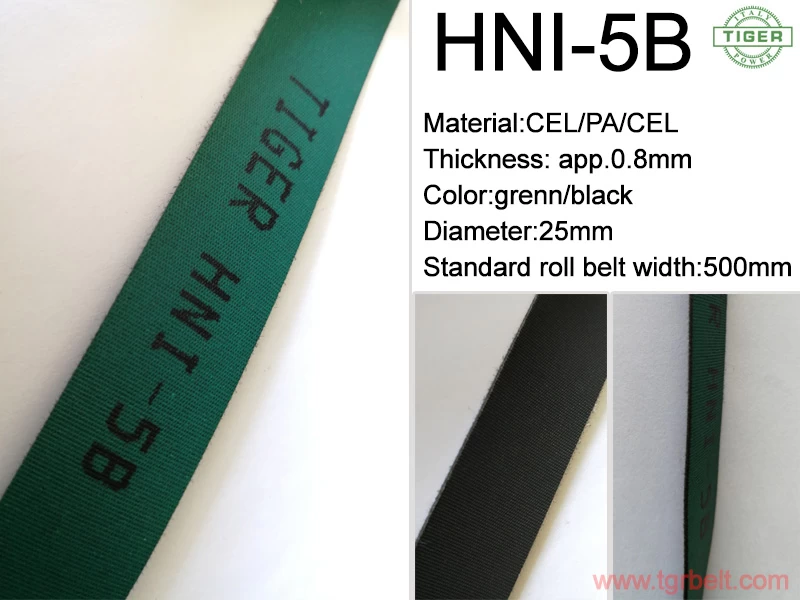

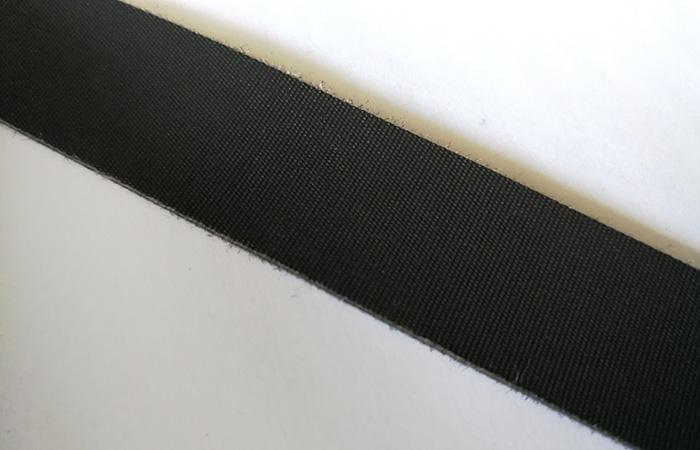

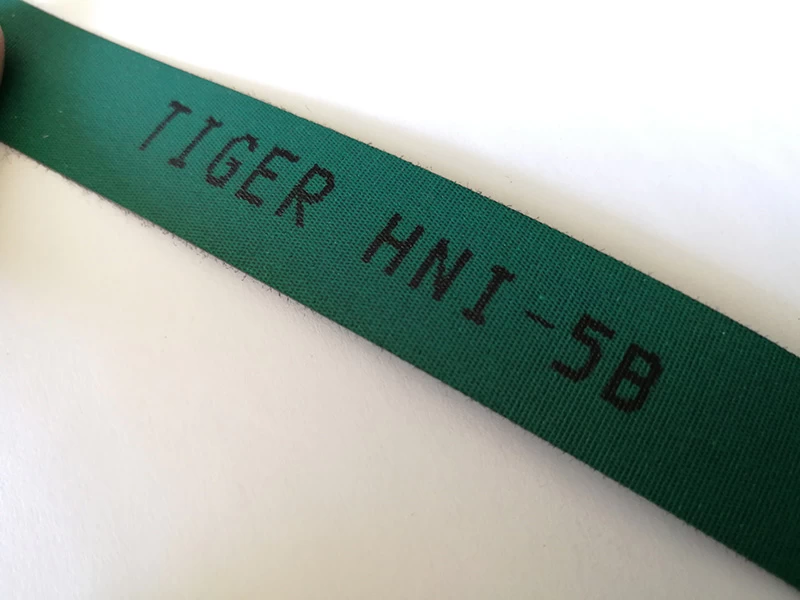

PRODUCT PICTURES
