PRODUCT:HNI-series,HNI-5C
MAIN FEATURE
Tiger 1.0mm high efficient drive belt is only
made of green polyamide layer and green fabric friction cover.
TECHNICAL DATAS
|
Type
|
HNI-5C
|
|
Belt thickness
|
1.0mm
|
|
Color
|
green
|
|
Surface
|
rough structure
|
|
Weight
|
1.0kg/m2
|
0.2046 lbs./ft.2
|
|
Force at 1% elongation
|
4N/mm
|
22.396 lbs./in.
|
|
Temperature range
|
-10 to 110°C
|
14 to 230°F
|
|
Min. pulley diameter
|
35mm
|
1.379in.
|
|
Standard roll belt width
|
500mm
|
19.685in.
|
|
Max. roll belt width
|
540mm
|
21.26in.
|
|
Processing
|
Rubber coated on the top or other special processing
requirement.
|
|
Endless instructions
|
Hot splicing with overlap is always
preferable.
|

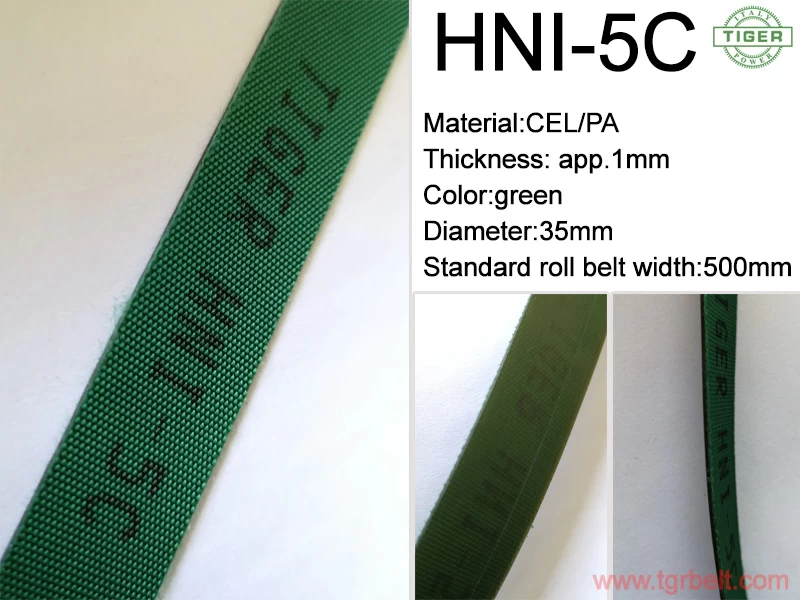

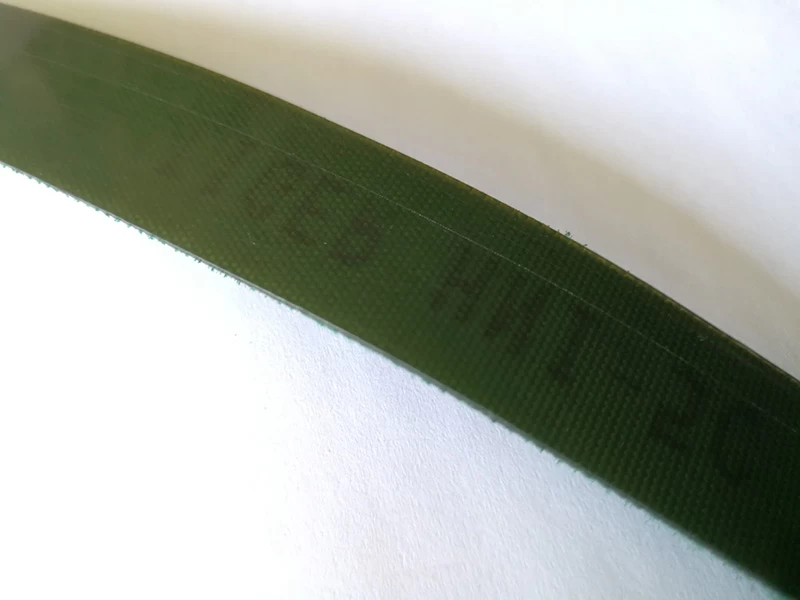

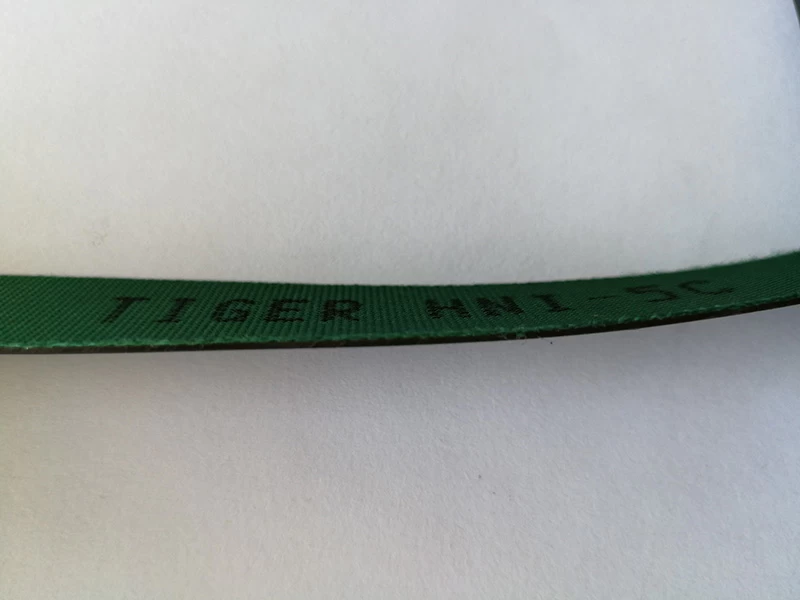

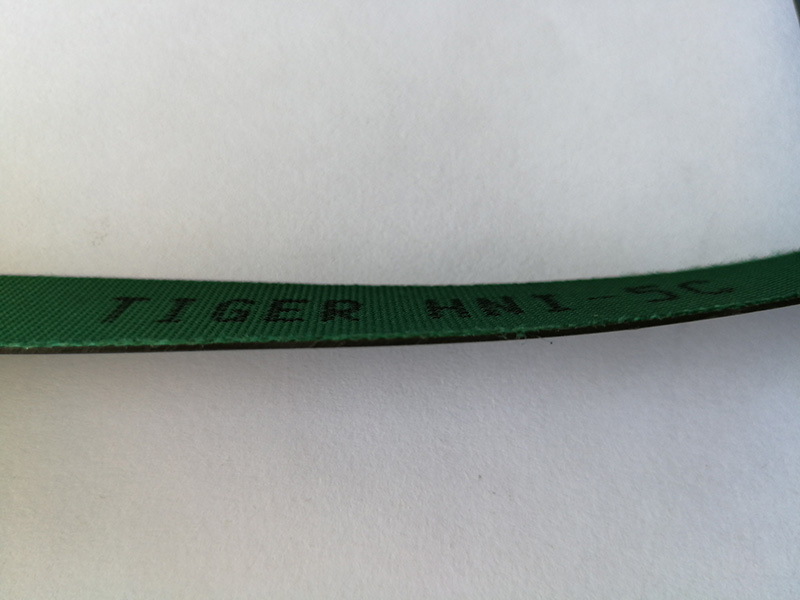

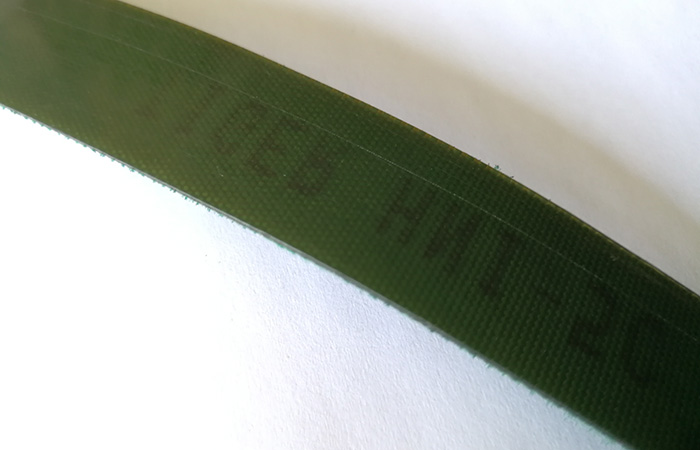

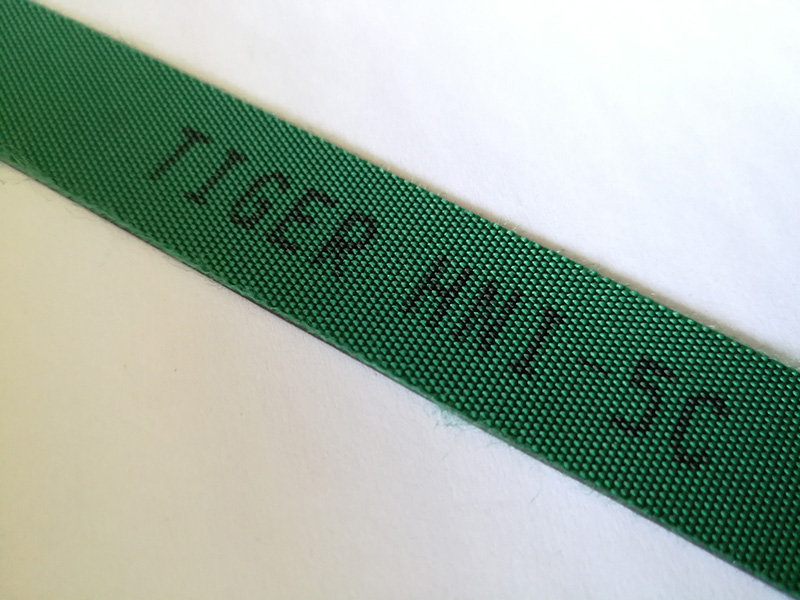

PRODUCT PICTURES
