Tiger 3.0mm high abrasion resistance polyamide belt

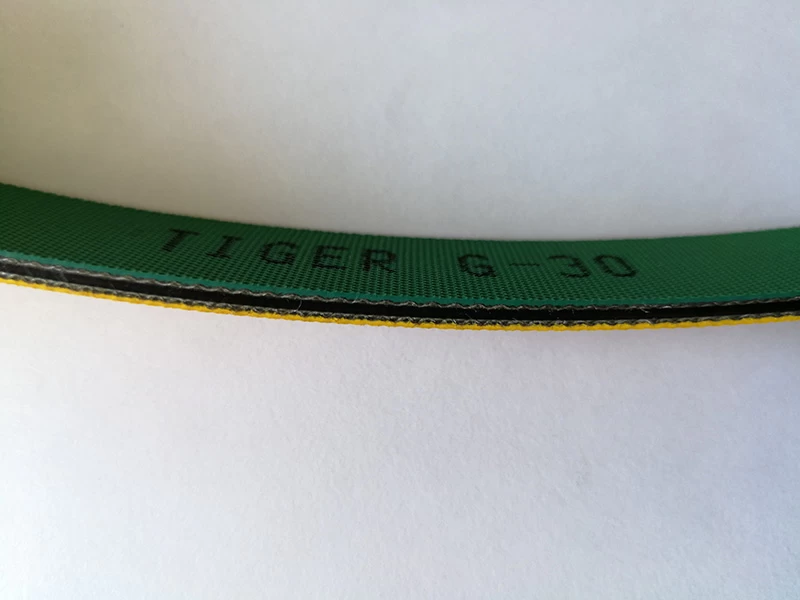

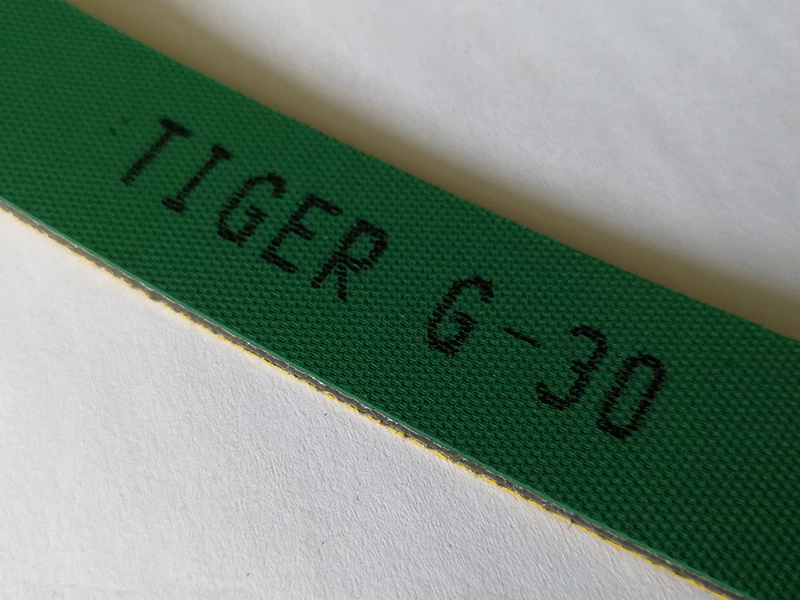

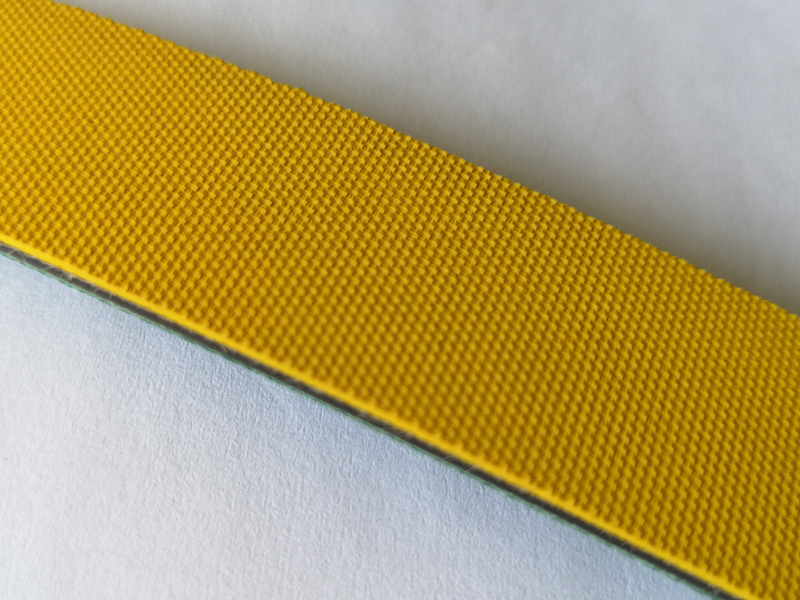

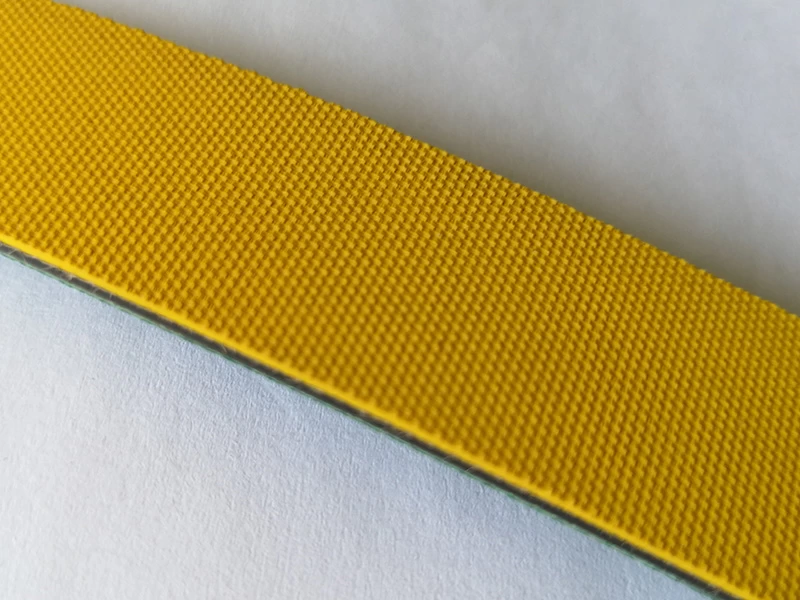

Tiger 3.0mm high abrasion resistance polyamide belt is one side of green rubber coating,another side of yellow rubber coating and polyamide middle layer.

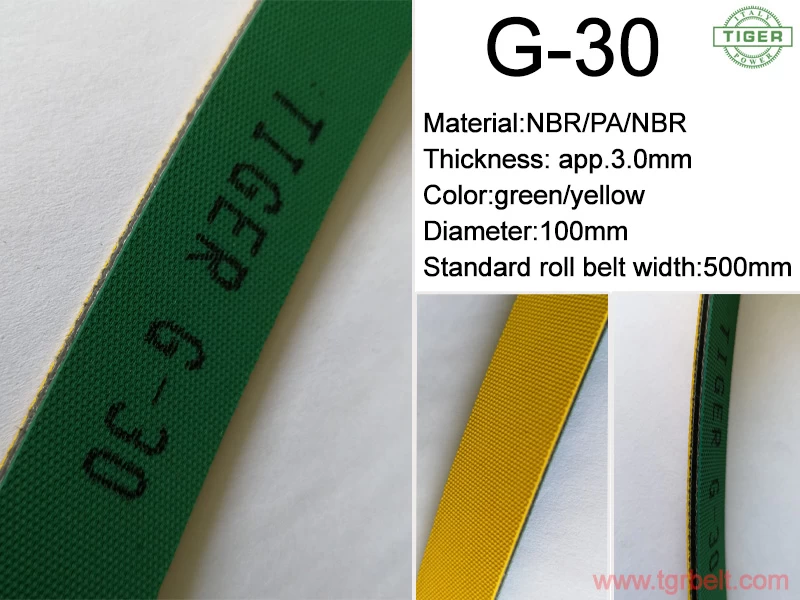

PRODUCT:G-series,G-30


MAIN FEATURE

Tiger 3.0mm high abrasion resistance polyamide belt is green and yellow NBR material,and polyamide tension layer.


TECHNICAL DATAS

Type

G-30

Belt thickness

3.0mm

Color

green,yellow

Surface

rough

Weight

3.2kg/m2

0.655 lbs./ft.2

Force at 1% elongation

12N/mm

67.189lbs./in.

Temperature range

-10 to 110°C

14 to 230°F

Min. pulley diameter

100mm

3.937in.

Standard roll belt width

500mm

19.685in.

Max. roll belt width

540mm

21.26in.

Processing

Rubber coated on the top or other special processing requirement.

Endless instructions

Hot splicing with overlap is always preferable.


APPLICATION

Tiger 3.0mm high abrasion resistance polyamide belt is used as common transmission belt or tangential belt.
