PRODUCT:F-series,F-40D
MAIN FEATURE
Tiger 3.3mm green/gray leather polyamide transmission belt is green NBR and gray leather material,and polyamide tension layer.
TECHNICAL DATAS
|
Type
|
F-40D
|
|
Belt thickness
|
3.3mm
|
|
Color
|
green,light gray
|
|
Surface
|
rough NBR top cover,leather friction cover
|
|
Weight
|
2.5kg/m2
|
0.716 lbs./ft.2
|
|
Force at 1% elongation
|
10N/mm
|
55.99 lbs./in.
|
|
Temperature range
|
-10 to 110°C
|
14 to 230°F
|
|
Min. pulley diameter
|
40mm
|
1.575in.
|
|
Standard roll belt width
|
500mm
|
19.685in.
|
|
Max. roll belt width
|
540mm
|
21.26in.
|
|
Processing
|
Rubber coated on the top or other special processing requirement.
|
|
Endless instructions
|
Hot splicing with overlap is
always preferable.
|

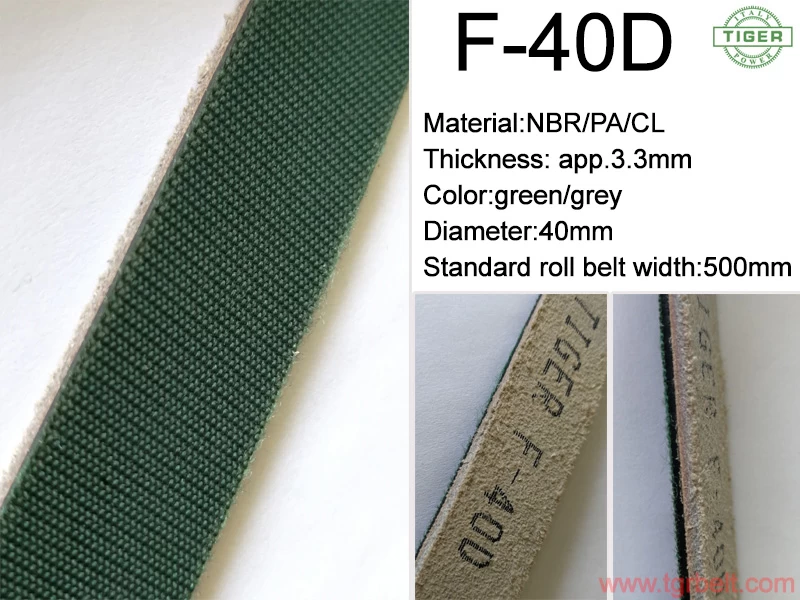

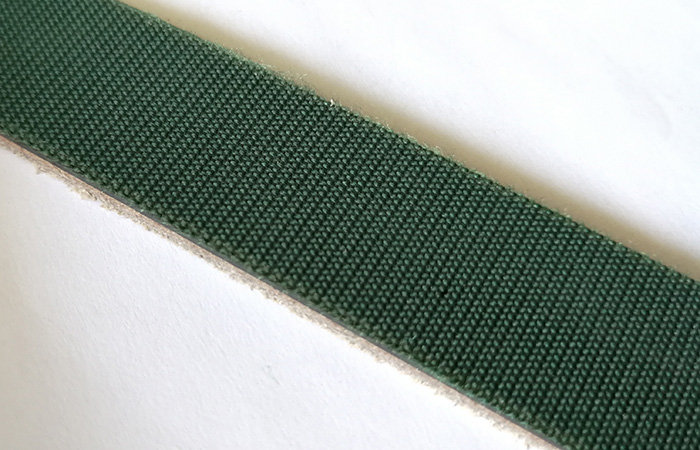

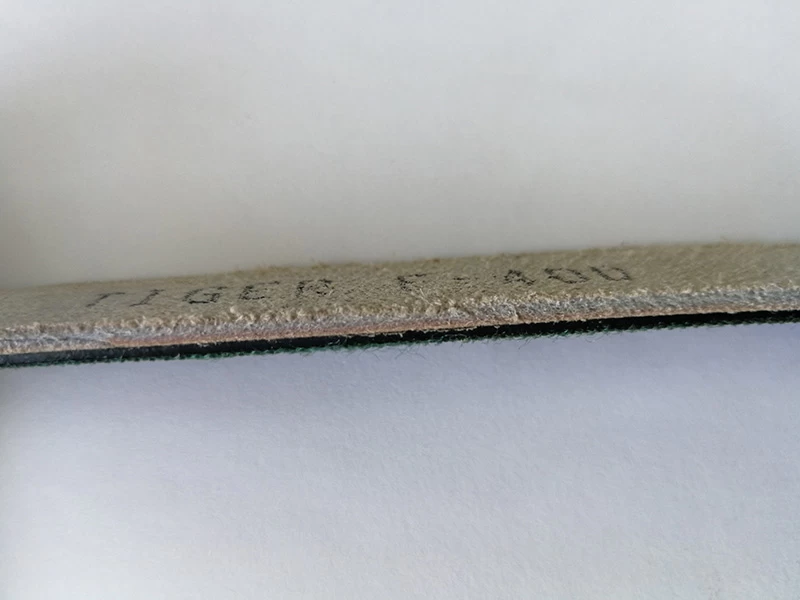

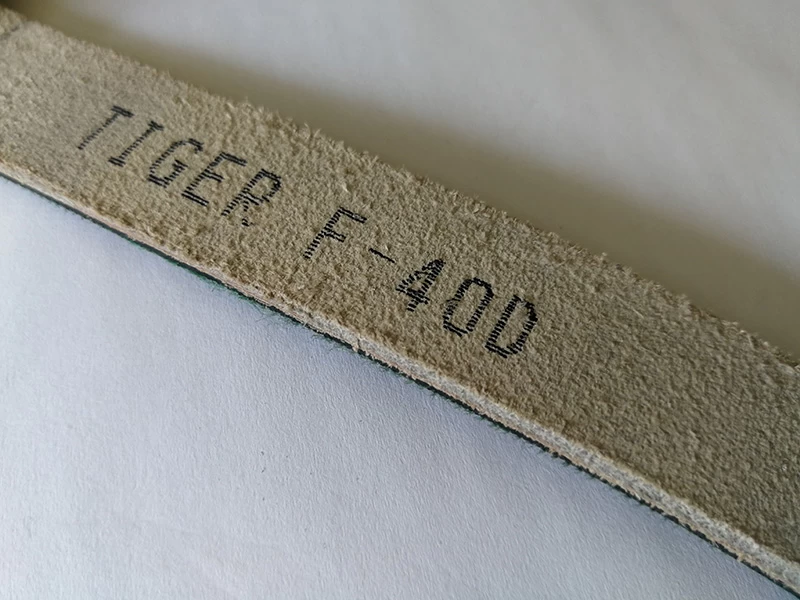

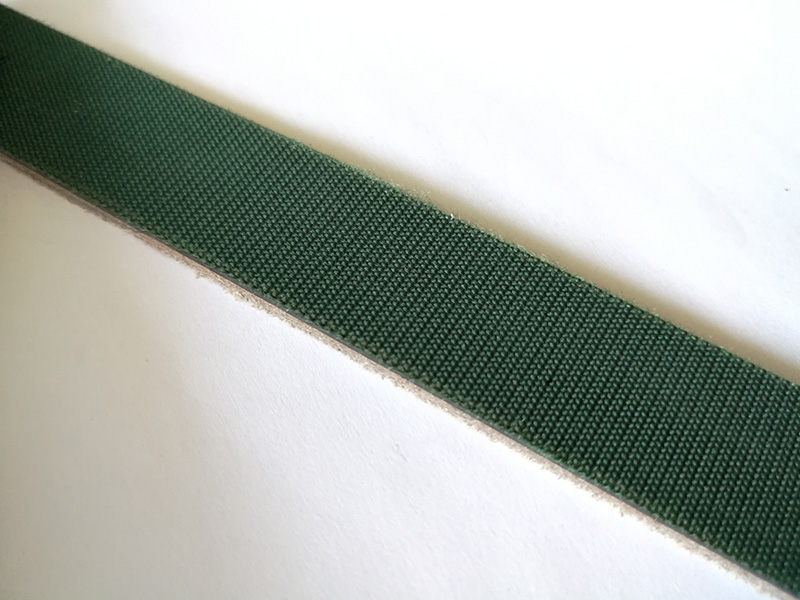

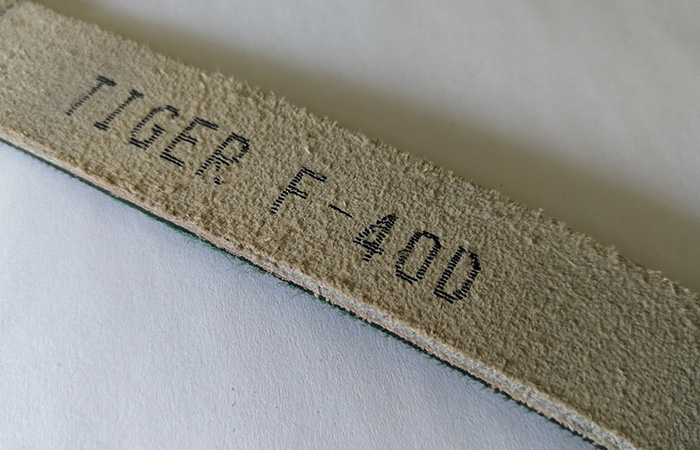

PRODUCT PICTURES
APPLICATION
Tiger 3.3mm green/gray leather polyamide transmission belt is used as common transmission belt or tangential belt.
