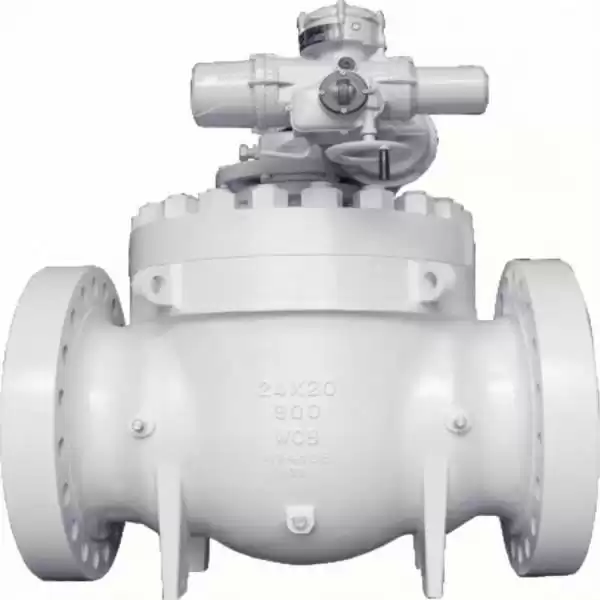

Top Entry Ball Valve 24x20Inch 900LB WCB

API6D Top Entry Full Bore Trunnion Ball Valve

24x20Inch,900LB,WCB,F53+TCC,Gear Box

Manufacture STAVAL Factory Offers.

Top Entry Ball Valve 24x20Inch 900LB WCB

Feature:

Fire Safe Design, Anti Static Design, Anti Blowout Stem, Double Block Double Bleed, Double Position, Drian And Vent

Key Specification

Type	Ball Valve
Size	24Inch x 20Inch
Pressure	900LB
Construction	Top Entry, Full Bore, Trunnion, Bolt Bonnet,
Connection	RTJ End
Body/Bonnet Material	A216WCB
Ball Material	A182 F53+TCC
Stem Material	A182 F53
Seat Material	A182 F53+TCC
Bolt/Nut	B7/2H Zn
Design Standard	API6D
Face to Face Dimension	ASME B16.10
End Connection	ASMEB 16.5
Fire Safe Design	API607
Inspection & Test Std.	API598
Temperature Range	-29℃~+538℃
Medium	Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL

Inspection Report Issued By STAVAL
