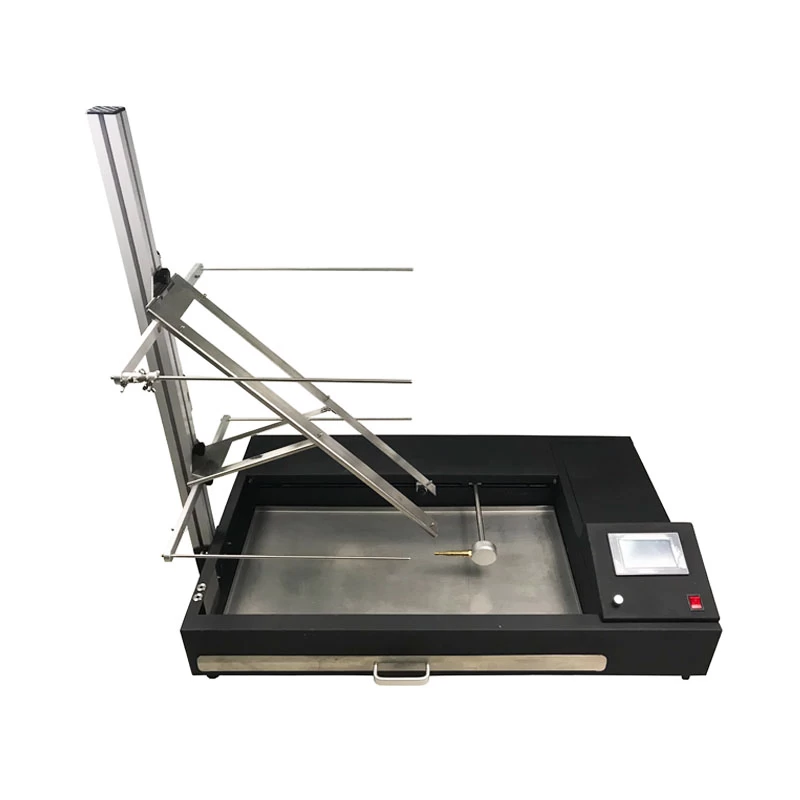

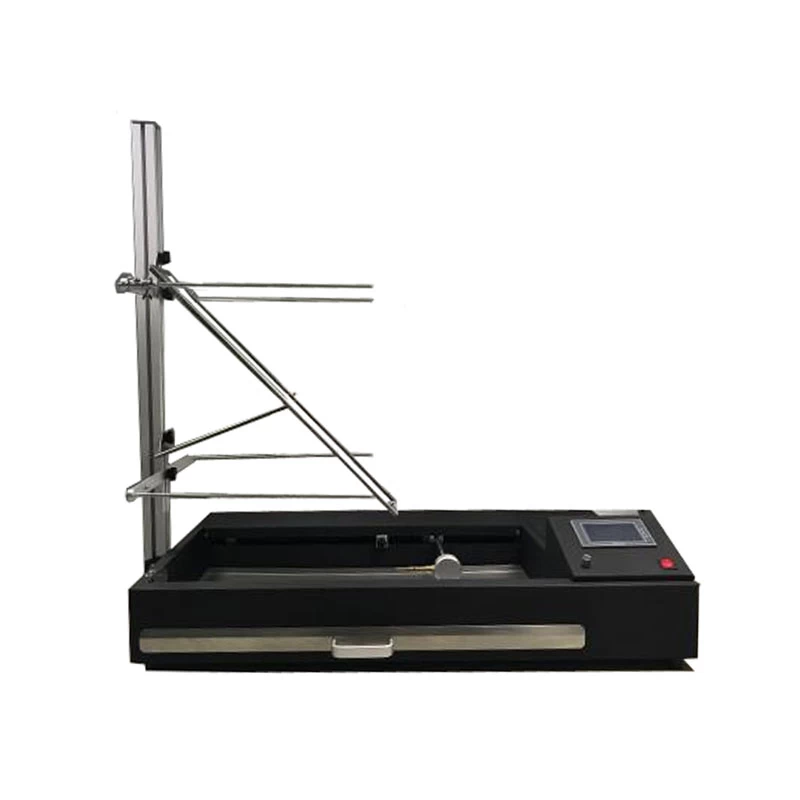

AT27-Toy Inflammability Tester
Application Of Toy Inflammability Tester
Toy Inflammability Tester is used for testing the flammability of toys or toy materials.
Test sample range Of Toy Inflammability Tester
-
Beard, tentacles, wigs, masks and other headdress toys containing plush, hair, or other additional materials;
-
Cosmetic costumes (such as denim suits, nurse uniforms), including related headwear and toys for children (not including paper materials);
-
Toys for children to enter (such as toy tents, puppet theaters, Indian huts);
-
Soft-filled toys containing stuffed or textile fabrics, but not including soft dolls that are made of polymeric materials for their heads and limbs.
Principle Of Toy Inflammability Tester
The finished sample or material sample is mounted on the corresponding fixture, and use the required flame to burn the sample for a certain period of time., then record relevant data (such as burning time, burning rate) for evaluating the combustion performance.
Standards Of Toy Inflammability Tester
EN71-2
ISO8124-2
GB 6675.3
Key Specification Of Toy Inflammability Tester
|
Model
|
AT27 Toy
Inflammability Tester
|
|
Setting range of ignition time
|
0~99.9s
|
|
Burning timing range
|
0~99.9s
|
|

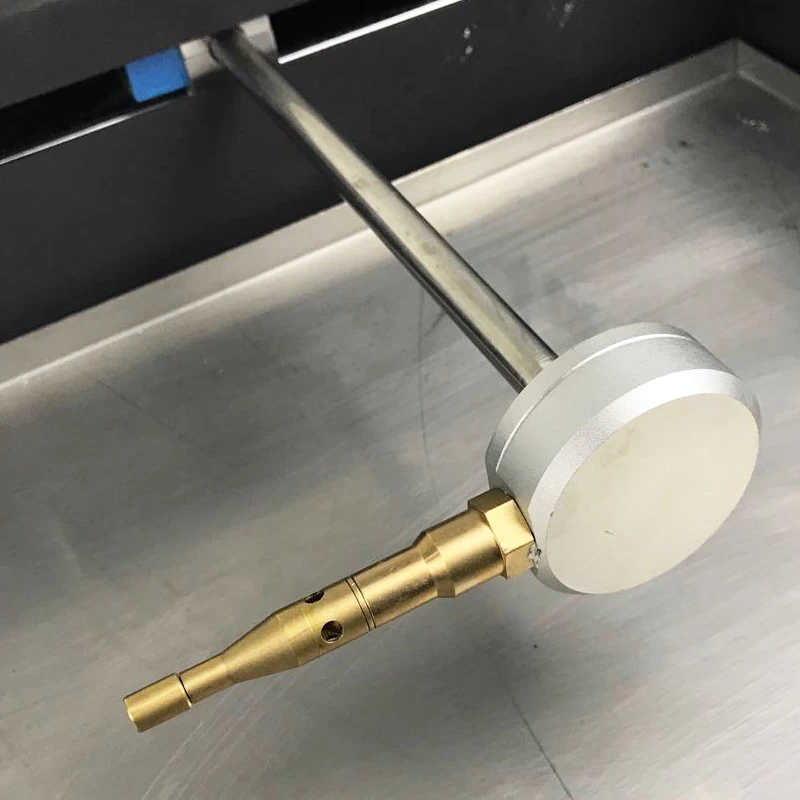

Fire nozzle
|
According to ISO 6941
|
|
Fire nozzle angle
|
Angle with horizontal line: 0°/45°/90° (adjustable)
|
|
Test flame height
|
20mm/40mm
|
|
U-shaped clamp inner frame
|
80mmx600mm
|
|
U-shaped fixture marking line
position
|
The 1st marking line is 50mm from the bottom of the fixture;
The 2nd marking line is 500mm away from the first marking line
|
|
Combustion gas
|
Butane gas
|
|
Power supply
|
AC 220V 50/60Hz
|
|
Dimension (WxDxH)
|
90x63x87cm
|
|
Weight
|
40Kg
|
