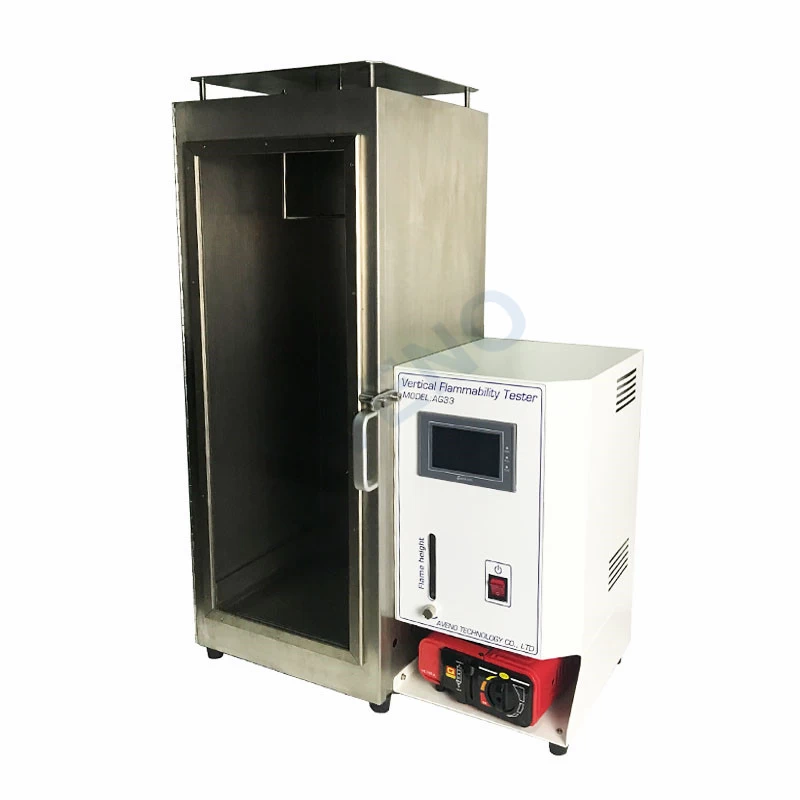

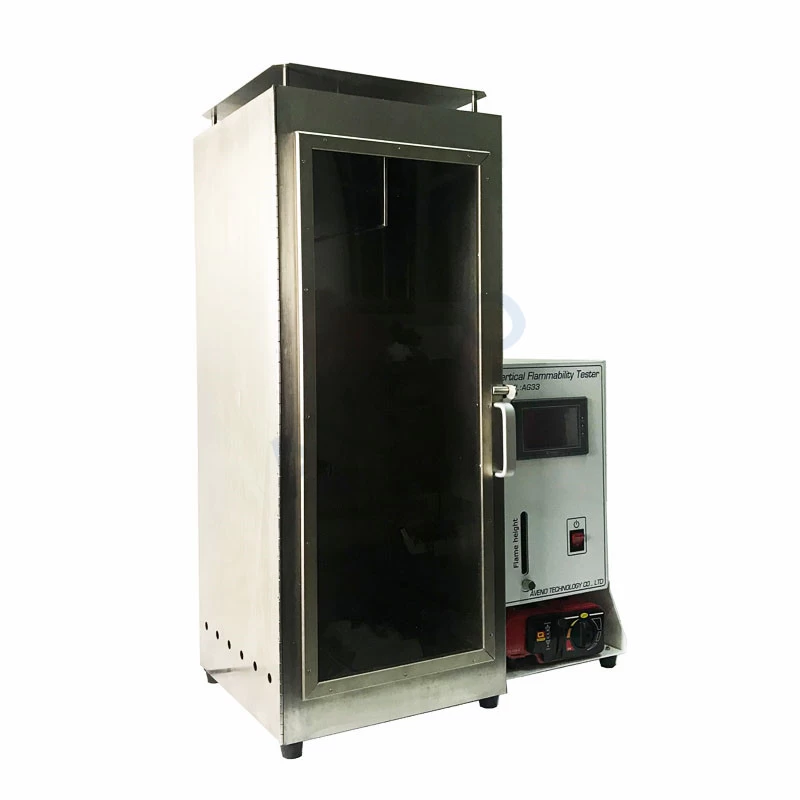

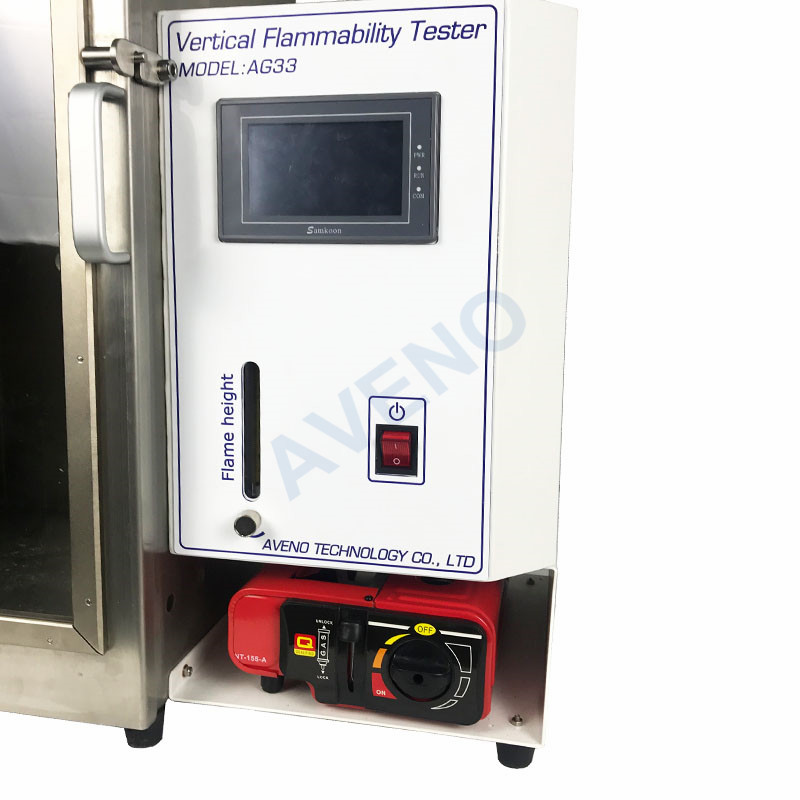

AG33- Vertical Flammability Tester
Application Of Vertical
Flammability Tester
Vertical Flammability Tester is used to
measuring the vertical flame spread of Flame retardant textiles, such as
children’s sleepwear, fabrics and other textile materials or fabric resilient
filling materials used in upholstered furniture.
Feature Of Vertical Flammability Tester
1. Test chamber and fixture use SUS304 stainless
steel, with toughened glass transparent window, neat and convenient to observe
the sample changes during testing.
2. Circulation ventilation system for long-term
cooling of the instrument to ensure stable internal environment.

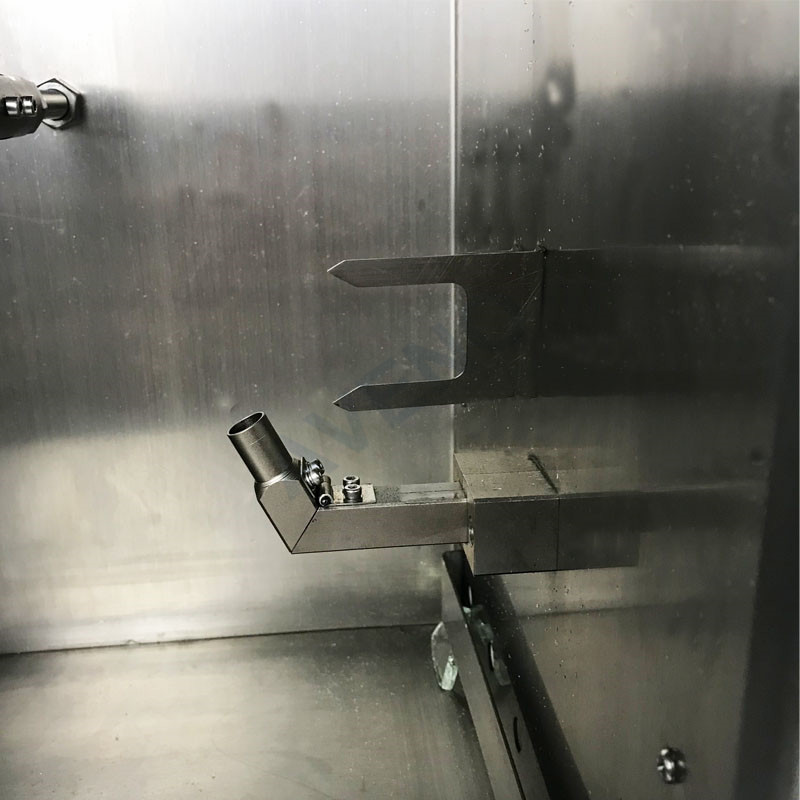

3. Motor drive rotary flame ignitor, stroke switch
limit, operate smoothly and accurately.
Standards Of Vertical Flammability Tester
GB/T
5455, 16CFR 1615/1616, CALIF TB117, ASTM D6413.
Key Specification Of Vertical Flammability Tester
|
Model
|
AG33-1
|
AG33-2
|
AG33-3
|
|
Standards
|
16CFR
1615/1616
GB/T
5455
|
ASTM
D6413
|
CALIF
TB117
|
|

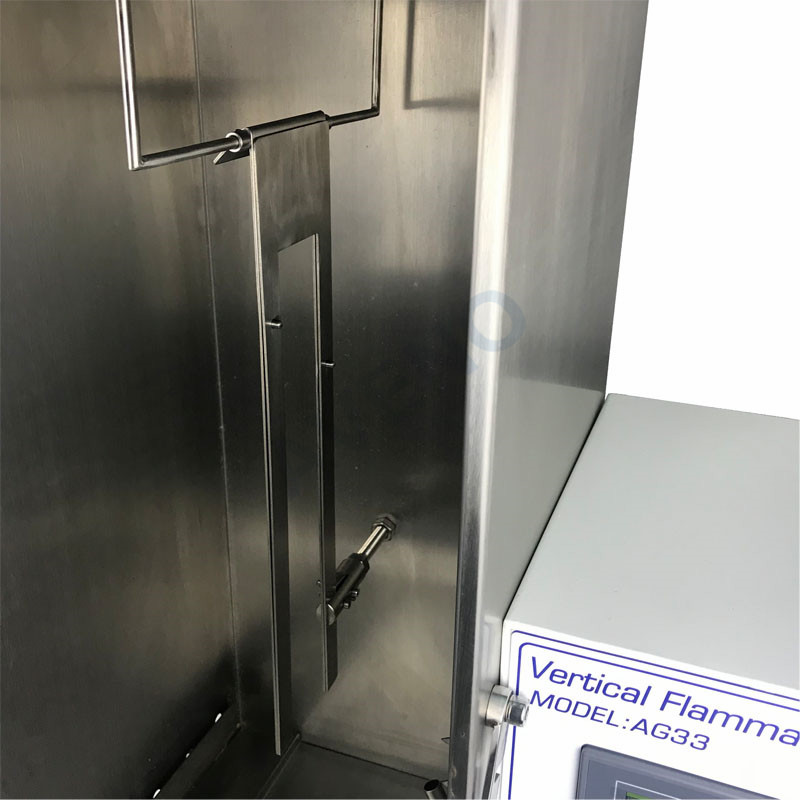

Sample
holder
dimension
|
Inner
frame
|
356*51mm
|
356*51mm
|
Flexible
foam holder
|
|
Outside
frame
|
422*89*2mm
|
442*76*12.5mm
|
|
Nozzle
angle
|
65°
|
90°
|
90°
|
|
Test
frame height
|
40mm
|
38mm
|
38mm
|
|
Distance
of sample end and burner top
|
17mm
|
19mm
|
19mm
|
|
Power
supply
|
AC220V/50/60HZ
|
|
Dimension
|
60*40*85cm
|
|
Weight
|
35kg
|
Accessories Of Vertical
Flammability Tester
|
Standard
Accessories
|
Sample
holder
|
1pc
|
|
Flame
measure scale
|
1pc
|
|

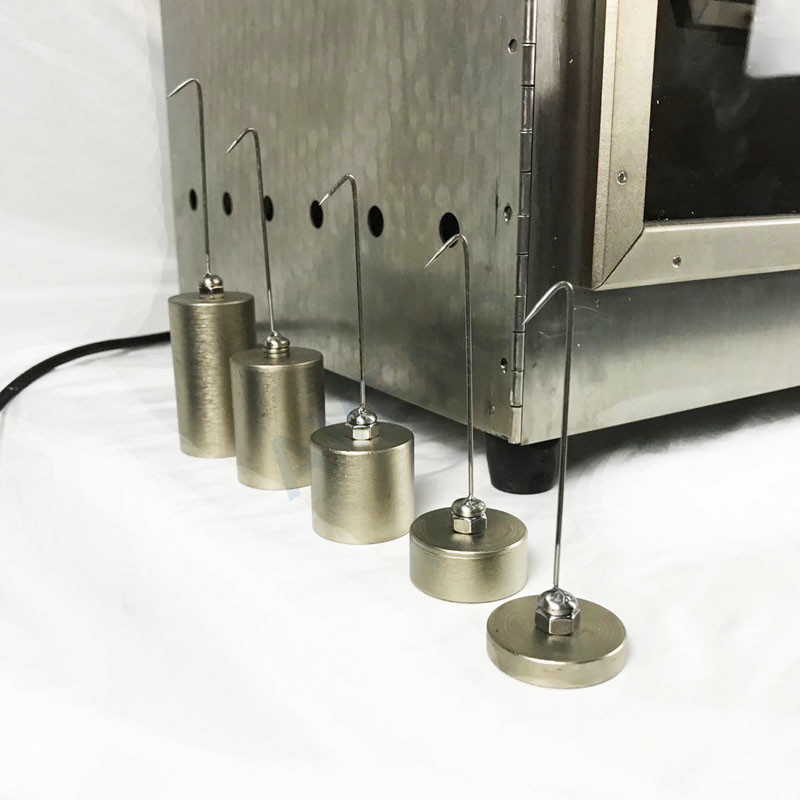

Weights
|
5pcs
|
|
Air
supply device
|
1pc
|
|
Power
line
|
1pc
|
