Transformer Bobbin EF25 Vertical 4+4 Pins Bobbin

EF25 vertical bobbin 4+4 pins. EF25 single slot transformer bobbin. Bobbin Size=37mmX18.5mmX20.4mm. Parallel Distance=17.3mm. Pin pitch=4.5mm. Nylon and PET material bobbin. DIP transformer bobbin.



High quality EF25 vertical transformer bobbin supplier, 4+4 pins EF bobbin, we can design according to customer's requirement.


Quick Details

Part No: MCT-EF2524

Brand Name: MCT

Material: PA66

Color: Beige

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: Transformer Bobbin EF25 Vertical 4+4 Pins Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

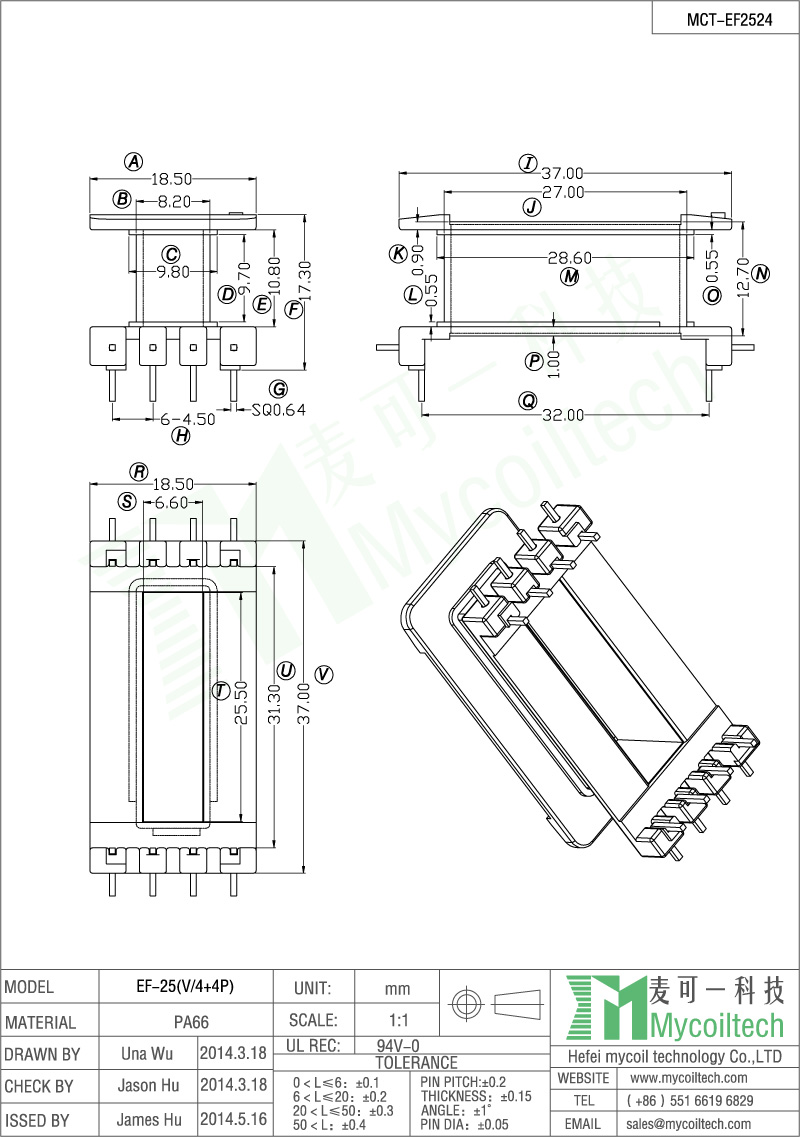

Product Specification

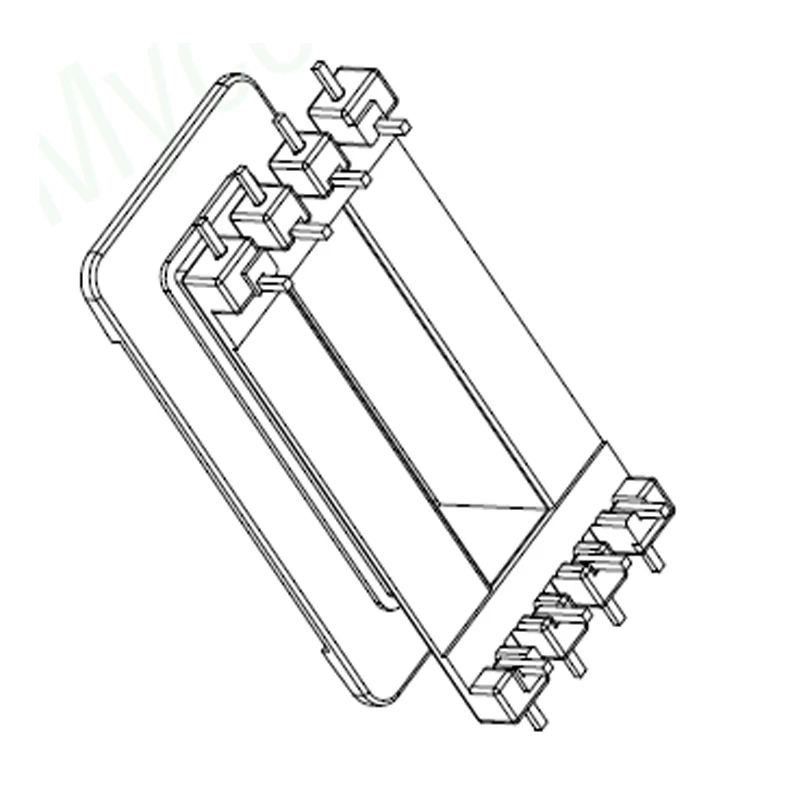

4+4 pin EF25 vertical bobbin
