TRF-45

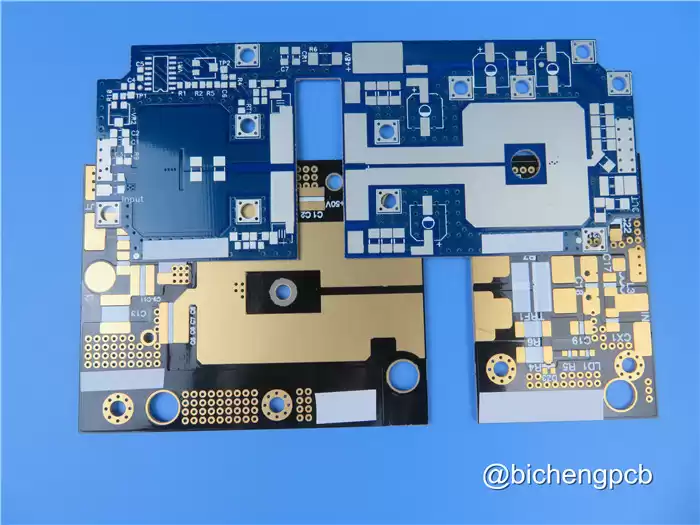

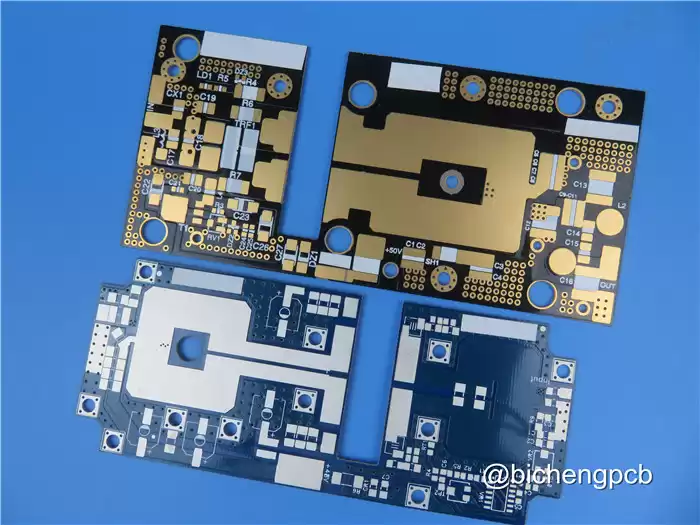

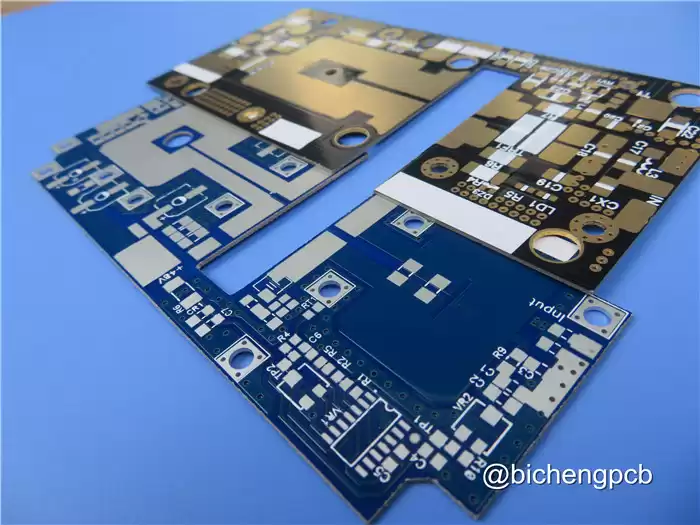

RF PCB 1.0mm Double Sided High Thermal Conductivity Low Loss PCB
(Printed
Circuit Boards are custom-made products, the picture and parameters shown are
just for reference)
Brief
Introduction:
It’s an
electroless nikel and immersion gold (ENIG) circuit board with dielectric
constant (DK) 4.5. Bottom layer is fully exposed to air.
PCB
Specifications:
|
PCB SIZE
|
100 x 65mm=1up
|
|
BOARD TYPE
|
Double
sided PCB
|
|
Number
of Layers
|
2 layers
|
|
Surface
Mount Components
|
YES
|
|
Through
Hole Components
|
NO
|
|
LAYER STACKUP
|
copper
------- 17um(0.5 oz)+plate TOP layer
|
|
TRF-45 1.02mm
|
|
copper ------- 17um(0.5 oz) + plate BOT Layer
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
5.0
mil / 6.0 mil
|
|
Minimum
/ Maximum Holes:
|
0.4
mm / 3.5 mm
|
|
Number
of Different Holes:
|
1
|
|
Number
of Drill Holes:
|
3
|
|
Number
of Milled Slots:
|
1
|
|
Number
of Internal Cutouts:
|
1
|
|
Impedance
Control:
|
no
|
|
Number
of Gold finger:
|
0
|
|
BOARD
MATERIAL
|
|
|
Glass
Epoxy:
|
TRF-45
|
|
Final
foil external:
|
1.0
oz
|
|
Final
foil internal:
|
N/A
|
|
Final
height of PCB:
|
1.1
mm ±0.1
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
Immersion gold,
65%
|
|
Solder
Mask Apply To:
|
Top Layer
|
|
Solder
Mask Color:
|
Black
|
|
Solder
Mask Type:
|
Kuangshun
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
Top
Layer
|
|
Colour
of Component Legend
|
White
|
|
Manufacturer
Name or Logo:
|
N/A
|
|
VIA
|
Plated
through hole(PTH), minimum size 0.4mm.
|
|
FLAMIBILITY RATING
|
94V-0
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
|
|
Board
plating:
|
0.0029"
|
|
Drill
tolerance:
|
0.002"
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
Other PCB Available
Materials:
FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M,
TU-872 SLK, TU-768, IT-180A etc.)
Rogers RO4350B, RO4003C, RO4730G3,
RO4360G2, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.
Rogers RT/duroid 5880, RT/duroid 5870,
RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.
Rogers
TMM4, TMM10, Kappa 438 etc.
PTFE F4B (DK2.2, DK2.65,
DK2.85, DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2)
Taconic
TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-10, RF-35TC, TLF-35,
RF-60A, RF-60TC, RF-35A2 etc.
AD450,
AD600, AD1000, TC350 etc.
Nelco
N4000, N9350, N9240
Metal core PCB, 1W/MK-3W/MK material
Flexible PCB
CAPABILITY:
2500-3000 types each month.
SERVICE AREA:
North America, Oceania, Southeast Asia, Eastern
Europe, Africa, Latin America, Western & Southern Europe, Northern Europe,
Central & South Asian, Middle East.
Applications:
Manufacturing
Process of Dual Layer PTH PCB:
The immersion gold and HASL PCB are
proceeding as following steps: (1). Material Shearing --> (2). Drilling
--> (3). PTH --> (4). Dry Film (Circuit) --> (5). Pattern Plating
--> (6). Etching --> (7). Solder Mask --> (8). Silkscreen --> (9).
Surface Finish --> (10). Profile Contour --> (11). V-groove --> (12).
Electrical Test --> (13). Packaging -->(14). Delivery
Unlike other small manufacturers, we deliver quality, speed and agility at the same time. Let our PCB prototypes supplier help you take your PCB project from concept to completion. No intermediate fees, 24-hour quick turnaround, reliable quality, to meet your urgent needs!
We can provide you with prototypes, small
batches and mass production. Any enquiry, please feel free to contact us.
