led driver 12v 300w is a perfectly compatible with single channel Govee LED tape lights. These drivers can even come to with their own paired junction boxes for installation easier.
Specification
|

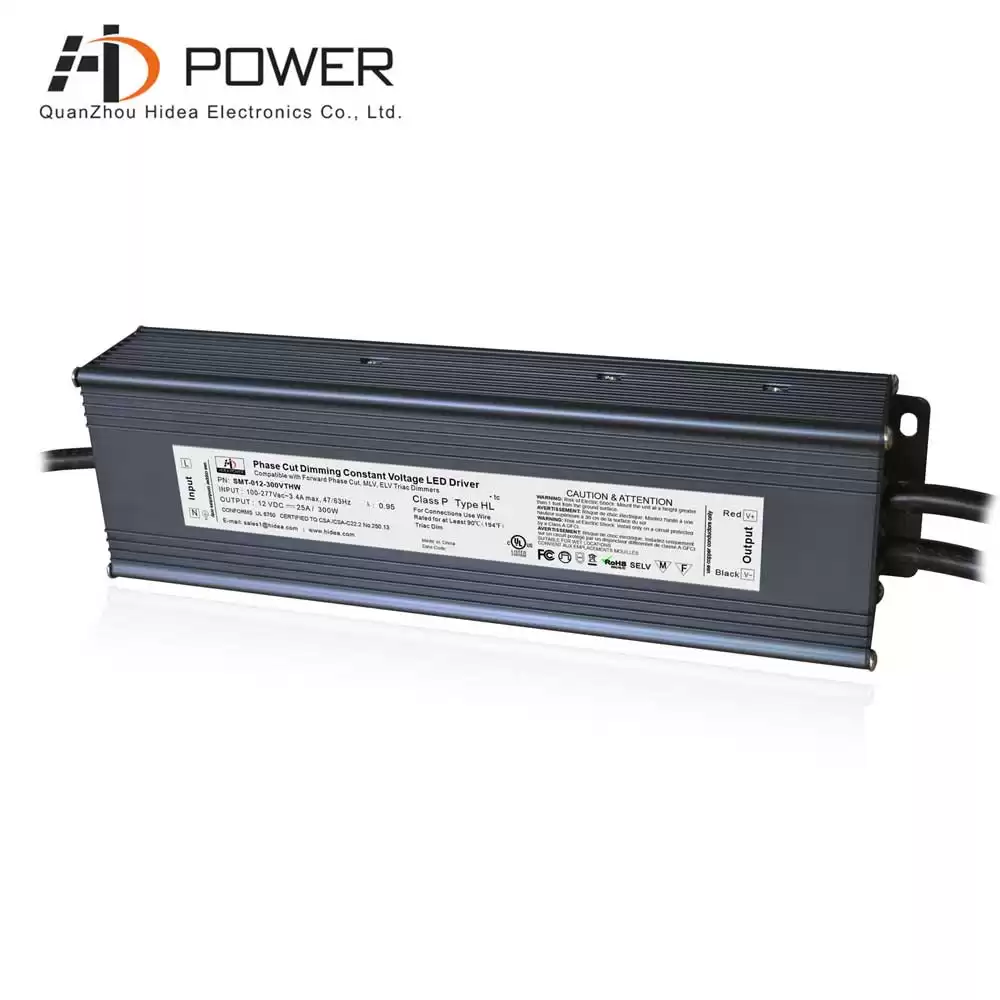

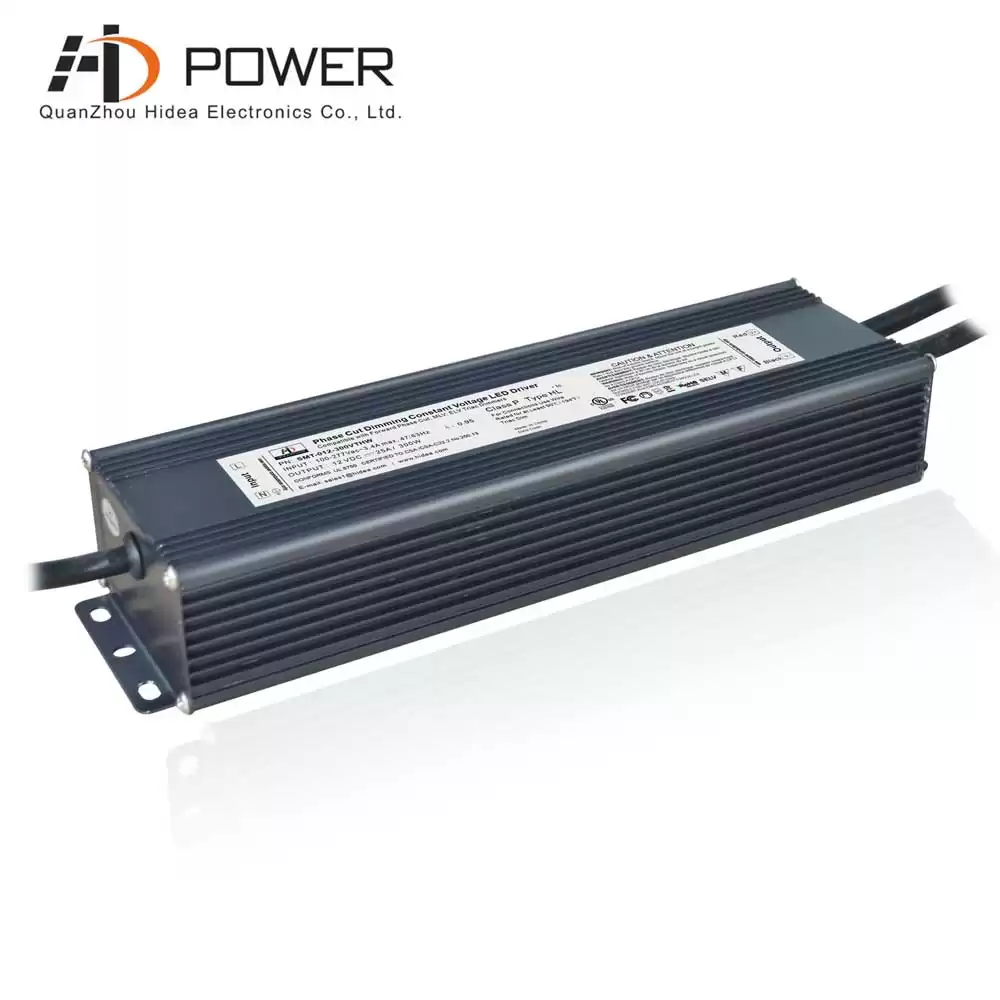

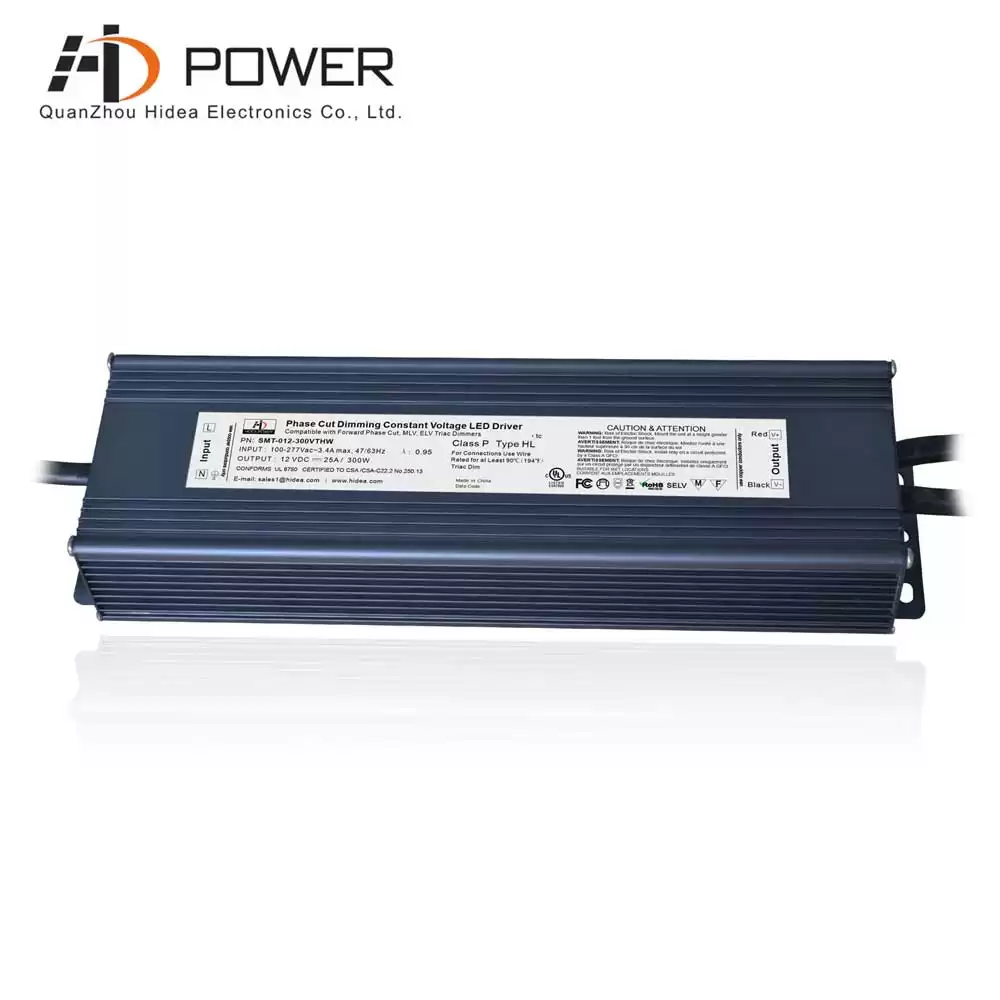

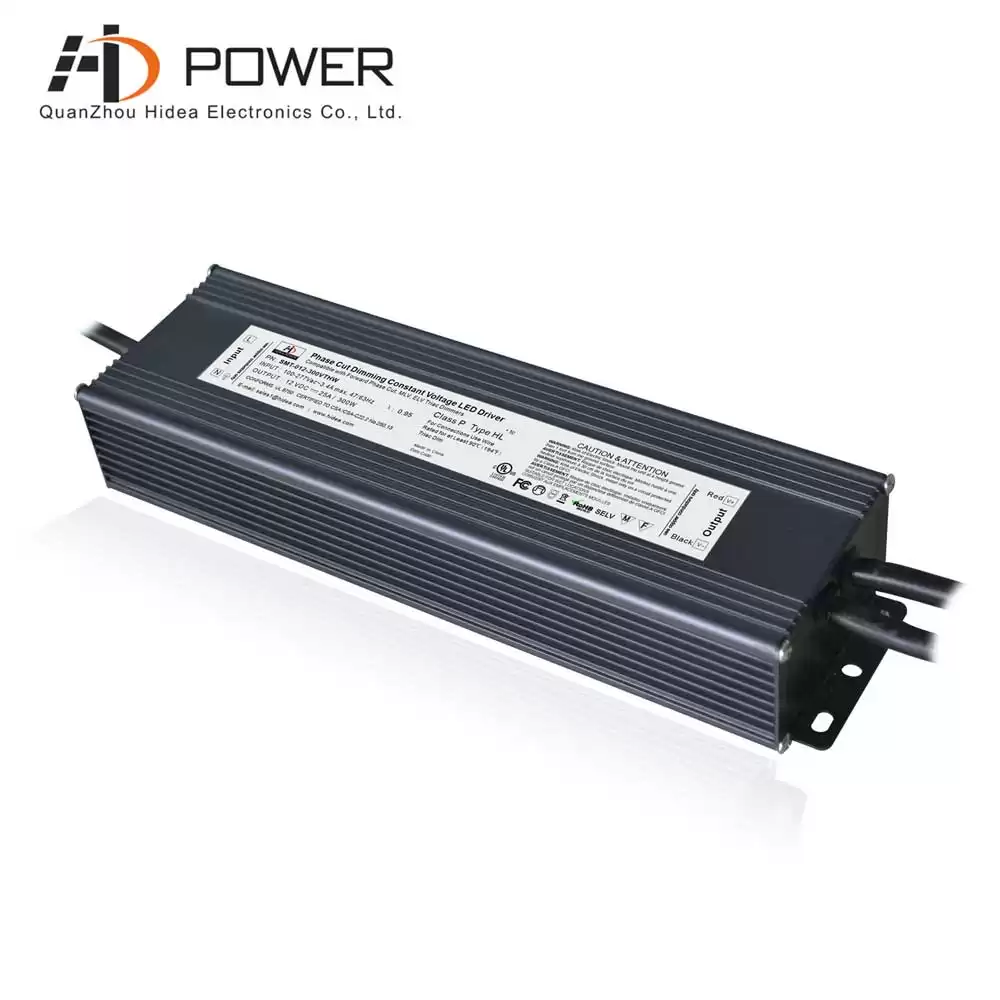

Model
|
SMT-012-300VTHW
|
SMT-024-300VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Rated current
|
25.0A
|
12.5A
|
|
Rated power
|
300W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.97@277VAC
|
0.98@120VAC 0.97@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.9ms
|
|
Full Load Efficiency(Typ.)
|
>87%
|
>88%
|
|
AC Current(Typ.)
|
3.4A@110VAC 1.76A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750
|
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
Safety&EMC
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.7Kg
|
|
Size
|
276*78*47mm (L*W*H)
|
|
packaging
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
AspectLED's strip light comes as a 16ft 5in reel of linear LED lights, their flexible PCB can be bent up to 90 degrees and cut every 3 LEDs makes it a very versatile and customizable solution for adding blue lighting, could be fully dimmed with led driver 12v 300w.
Related Products
|
 Convenient and flawless performance, available in 12V, 24V, perfect compatibility led driver for strip lights.

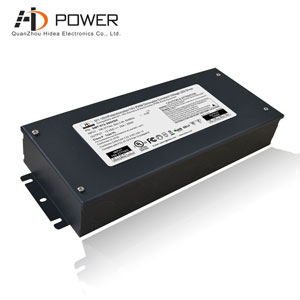

Mode：SMT-012-300VDH
