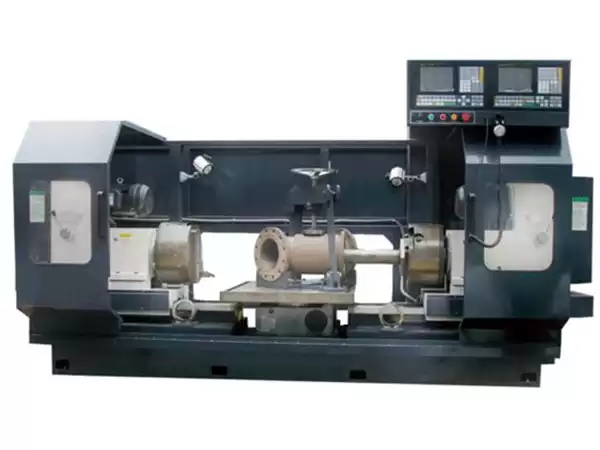

Two Side Boring Lathe

Two Side Boring Lathe

Two-sided boring lathe, filter special boring lathe is mainly used in the processing of valve, pump body, automobile parts, construction machinery and so on. The workpiece can be finished with end face, outer circle, stop mouth, inner hole, groove, thread. Turning process of conical hole and spherical process. Siemens, Guangzhou CNC system can be used in machining process, which can realize automation, high precision, variety and mass production.



Two Side Boring Lathe



Main features of machine tools

1. two side boring lathe, filter special boring lathe all selected Siemens and Fana CNC system, can realize the machining of conical hole, thread and spherical process by two axis linkage, its numerical control system compatibility is good. Powerful and easy to operate.

2. The high quality gray cast iron is used in the feed slide guide rail. The residual internal stress is fully eliminated by casting rough processing and finishing three times tempering aging treatment. The hardness of the rail surface is up to HRC55 by supersonic quenching, and the precision, rigidity and stability of the machine tool are ensured by high precision rail grinding.

3. The transmission parts are driven by precision ball screw and interpolation measures are used to eliminate the clearance, so as to ensure the smooth machining of machine transmission.

4. The power head is equipped with high power motor with three-stage manual speed change, which realizes low speed and high torque, can bear heavy cutting load and improves machining efficiency.

5. double-side boring lathe, filter special boring tool adopts hydraulic automatic clamping to improve efficiency and reduce individual labor intensity.

6. double side boring lathe, filter special boring car adopts centralized lubrication to ensure that every moving part is fully lubricated and the service life of machine tool is improved.


Main structure of machine tool

Double side boring lathe, filter special boring car mainly consists of bed, power head, feed NC slide, NC transverse feed cutter, hydraulic tooling, and equipped with independent electric cabinet, hydraulic station, centralized lubrication device. Cooling automatic cutting device, high protection.

1. Bed

The bed adopts the whole high quality casting bed and is treated by artificial triple aging tempering. The surface of the guideway is quenched with supersonic frequency. The design structure is reasonable and the rigidity precision and stability of the machine tool are guaranteed.

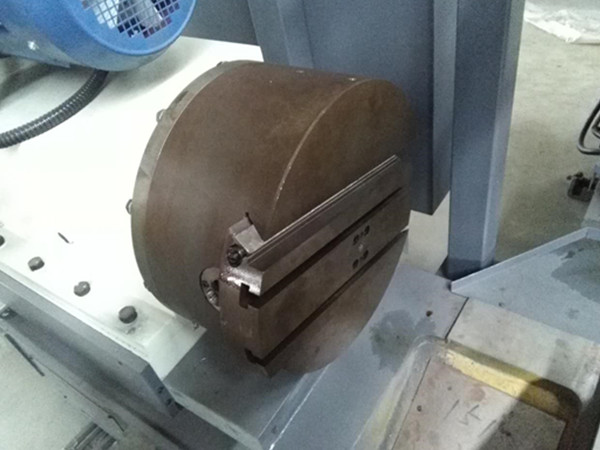

2. power head

The power head box is made of high quality castings, and the spindle is made of 20GrMnTAi material. It is forged, tempered, carburized and quenched, and processed by high precision inner and outer grinding machine. NN30 series high-precision double-row cylindrical roller bearings are used to ensure the rigidity and accuracy of the spindle.

Two Side Boring Lathe

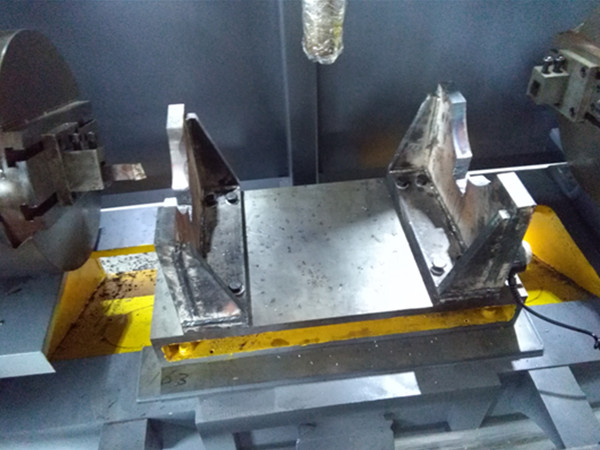

3. tooling

Two side boring lathe, filter special boring machine tooling is based on the specially designed special tooling, positioning block and positioning pin of the machined parts, all of which are quenched to ensure the reliable positioning of the workpiece. The workpiece clamping adopts hydraulic clamping to improve processing efficiency and reduce individual labor intensity.

Filter Special Boring Lathe

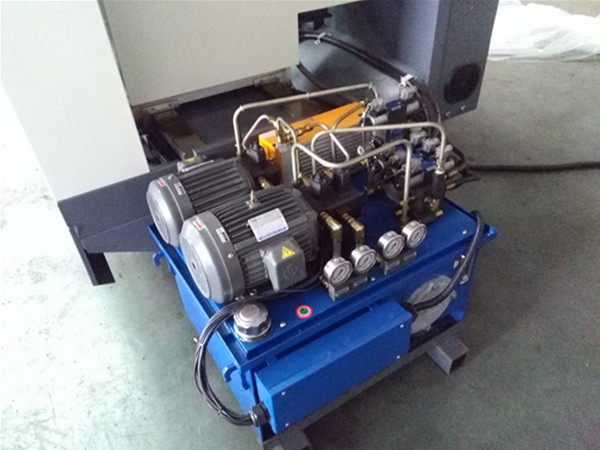

4. hydraulic device

Double side boring lathe, filter special boring car hydraulic station adopts independent superposition valve, by high quality solenoid valve, pressure regulating valve, throttle valve, dual vane pump, and equipped with air cooling device. Make sure the oil temperature is normal when the hydraulic station is working.

Turning Process of Conical Hole

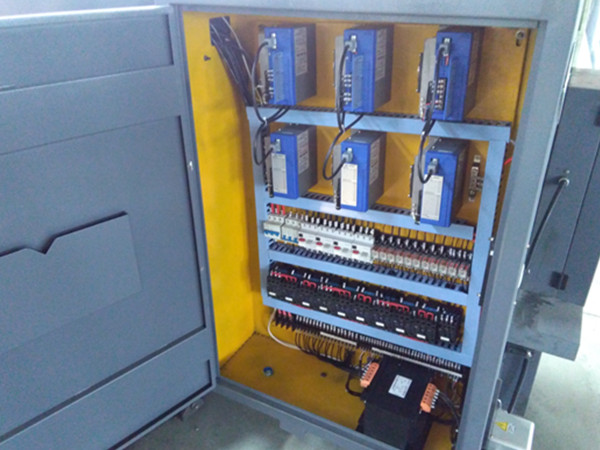

5. electric cabinet

The electric cabinet adopts independent closed, built-in numerical control system, frequency converter and machine tool to control electrical components, and set up air cooling device to ensure that the electrical components of machine tools work normally and do not enter dust.

Double Side Boring Lathe



6. centralized lubrication device

Double side boring lathe and filter special boring vehicle lubrication system are equipped with Nanjing Becchel progressive lubricating device. The lubricating oil is pumped into the lubricating place of moving parts at regular time to avoid the tedious manual operation and to improve the service life of the machine tool.

7. cooling cutting device

Double side boring lathe, filter special boring car cooling adopts large flow cooling, iron chip is washed by cooling water to flow into chip drain through the cutting mouth of the bed body, which elevates iron chip into chip collecting box to ensure machine tool field hygiene and cleanliness. Reduce the intensity of personal labor.

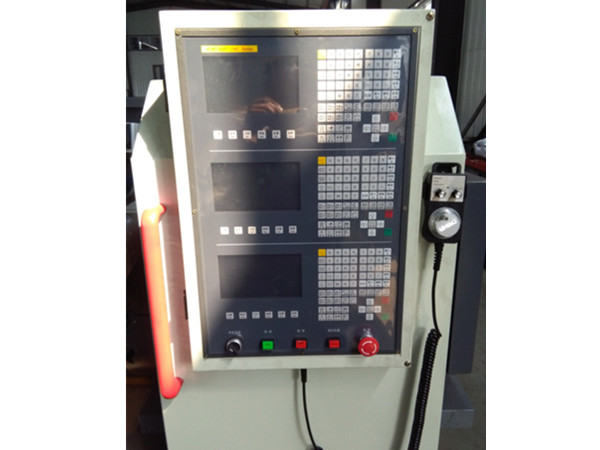

8. multifunctional numerical control system

This product is all-digital bus type high-grade numerical control device, aiming at foreign high-grade numerical control system, adopting the upper and lower computer structure of double CPU module, modularization, open system structure. Based on the NCUC industrial field bus technology with independent intellectual property rights, it has the functions of multi-channel control technology, five-axis machining, high-speed and high-precision, turn-milling compound, synchronous control and other high-grade NC system functions. It is mainly used in high speed, high precision, multi-axis, multi-channel vertical, horizontal machining center, turn-milling compound 5-axis gantry machine tool and so on.

Multifunctional Numerical Control System

Electric Source 380AC
Power 11KW
Range of Spindle Speeds(r/min) Turning  110  140  190 Boring continuously variable speed
Spindle to Worktable Distance 159
Spindle End Cone Hole  1:20
Maximum Machining Length(mm) 800
Maximum Machining Diameter(mm) 480
Suitable Valve (GB)  DN350-DN600
Z Travel (mm) 350
X Travel (mm) 150
Fast Moving Feed (mm/min) X  3000    Z  3000
Minimum Indexing Unit of Worktable 0.001°



After service

1. Ensure the equipment package meets the requirements of moisture, rain, rust, anticorrosion and shockproof, the mark is clear and correct, make the goods safe, timely delivery to the site.


2. High-quality and fast technical service

In order to better ensure the normal operation of the equipment, timely answer user questions, help users solve problems, the company special maintenance center. Responsible for equipment maintenance and technical consulting services. The maintenance center is responsible for providing free technical consulting services to customers at any time.


3, free debugging for users, open

The engineer shall be responsible for the installation, commissioning, opening and testing of on-site equipment. After the equipment has been successfully debugged, the supplier shall provide the test results in writing to the user, and the supplier's technical personnel may withdraw from the site only with the consent of the user.


4. Regular inspection

Our company sets the inspection system as one of the routine maintenance work, that is, the company organizes the equipment inspection once every six months. With the participation of designers, and listen to the user response to the problems and suggestions, constantly improve the software and hardware functions and quality of the product.


5, quality guarantee period

Warranty period: the warranty period of equipment under the contract is 12 months after the successful installation and commissioning. The cost of spare parts (except force majeure factor and artificial damage) is borne by the supplier during the warranty period.


6. lifelong maintenance to ensure the interests of users

Huadian CNC equipment Manufacturing Co., Ltd. Equipment from the date of acceptance, normal conditions (in addition to force majeure factors and artificial damage, free warranty for 12 months. Warranty expires. The company continues to provide lifetime free service, if you need to replace spare parts, only charge cost.


7. Establish user files and improve product quality

In addition to carrying out customer technical consulting service, the company maintenance center is also responsible for receiving and collecting customer complaints and consulting information to ensure that the questions and requests raised by users can be dealt with in a timely manner. And to track and verify the handling situation. At the same time to establish user records of the use of products to provide the basis for future product quality improvement. We will continue to strive to improve. To provide customers with the most satisfactory products and services.


8. Spare parts reserve and mode of supply

Our company reserves all kinds of equipment fittings for a long time, can choose express delivery, china railway express, air transportation, road distribution and so on according to the request of the user. The emergency spare parts can be transported to the user's scene within 24 hours


9. Technology upgrade service

Our company provides the software upgrade version free of charge to the user. When we need to change the PLC program or the computer program due to the special requirements of the user and the process change, we are responsible for the change and will not charge for the software.
