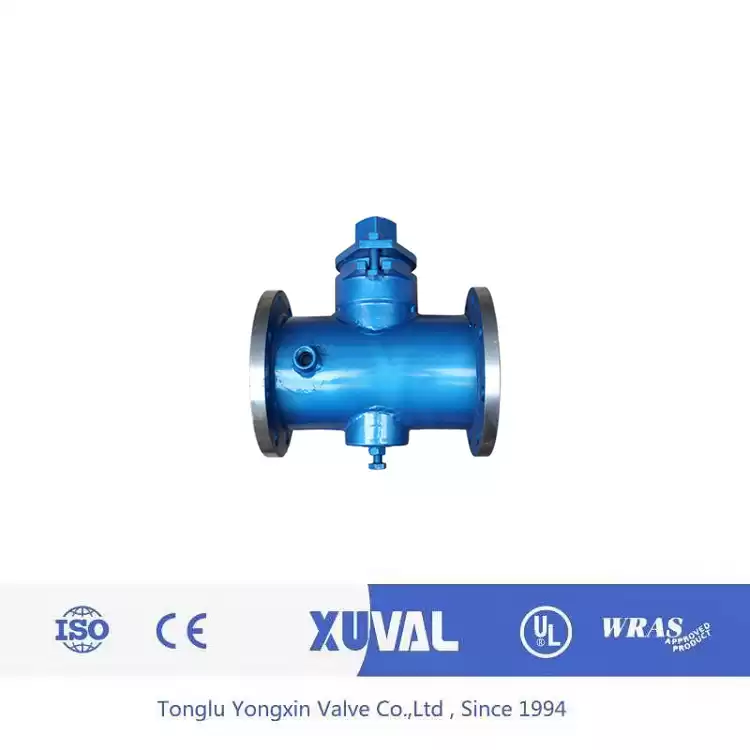

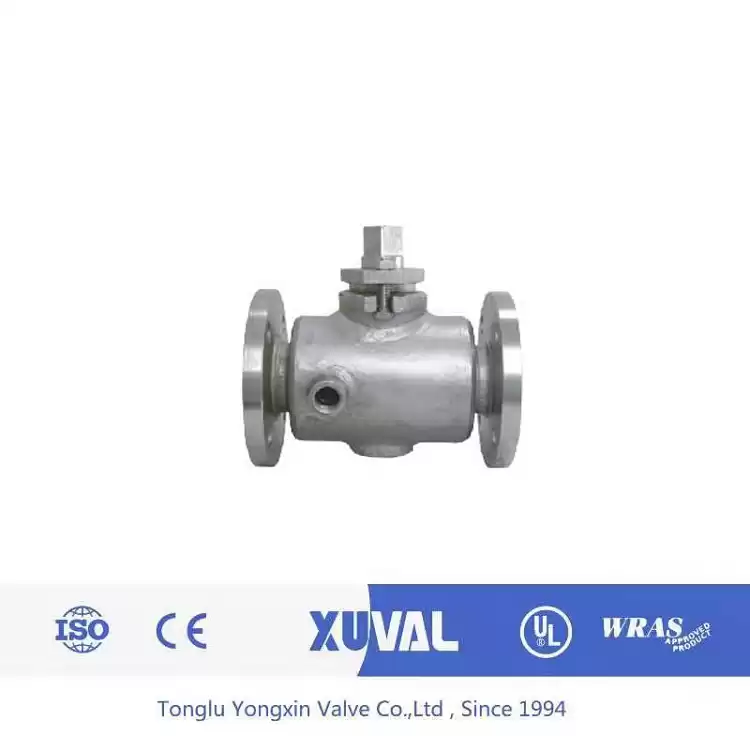

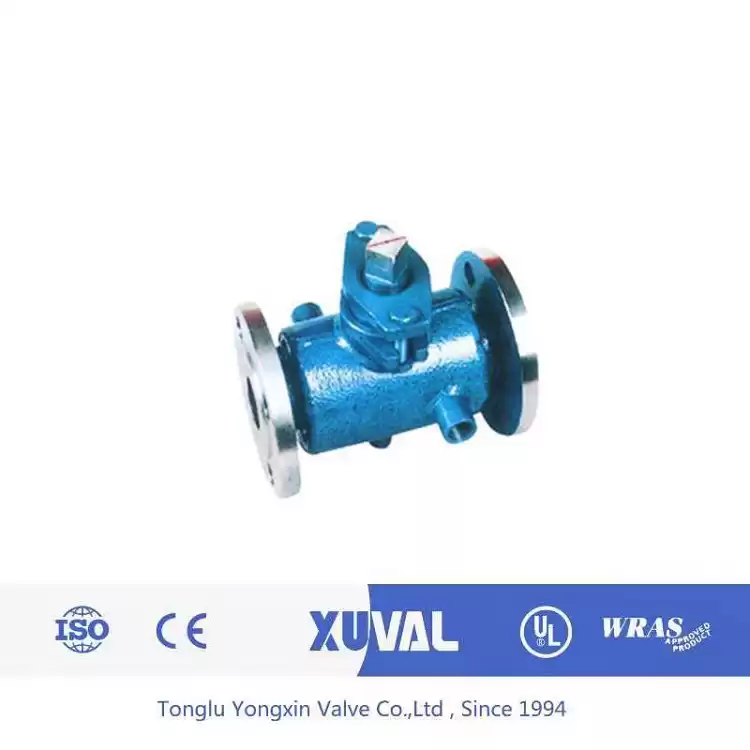

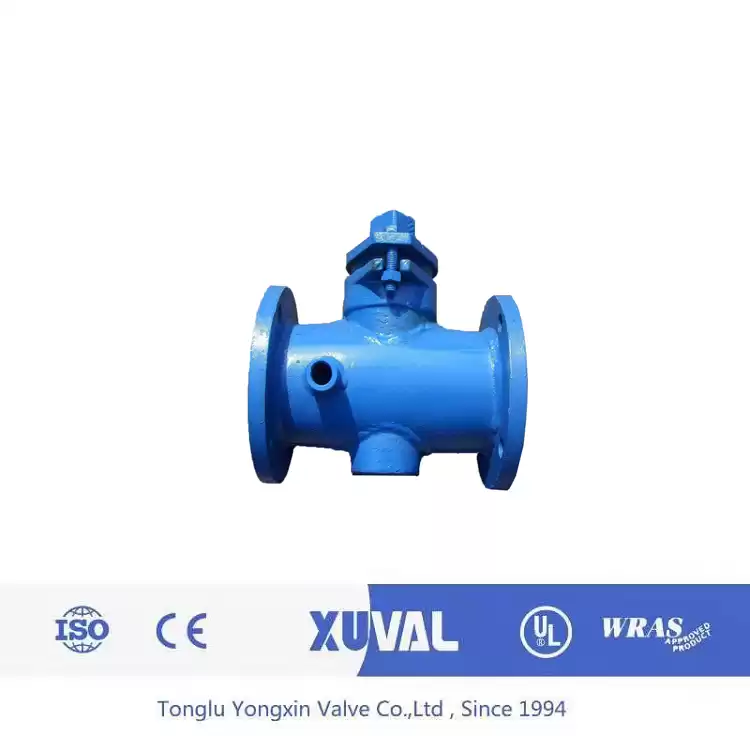

Two way heat preservation plug valve

Two - way insulation plug valve is an industrial equipment parts, composed of valve body, plug, etc.



Two - way insulation plug valve is an industrial equipment parts, composed of valve body, plug, etc.


Main performance specification:

Model

Nominal pressure

PN(Mpa)

Test pressure PS (Mpa)

Working pressure

P (Mpa)

Applicable medium

Working temperature

(℃)

Shell Seal
BX43W-1.0P 1.0 1.5 1.1 1.0 Nitrate class ≤250
BX43W-1.0C 1.0 1.5 1.1 1.0 Non-corrosive,weak corrosive 250

Main dimensions:
Size (DN) L
D D1 D2 Z-φd
20 90 150 105 75 55 4-14
25 110 160 115 85 65 4-14
32 115 190 135 100 78 4-18
40 150 200 145 110 85 4-18
50 170 220 160 125 100 4-18
65 220 280 180 145 120 4-18
80 250 300 195 160 135 4-18
100 300 340 215 180 155 8-18
125 350
245 210 185 8-18
150 400
280 240 210 8-23
200 450
335 295 265 8-23
250 530
390 350 320 12-23
300 580
440 400 368 12-23

Main Parts and Materials:

Part Name Body,plug Packing

BX43W-1.0P

BX43W-1.0R

Stainless steel Graphite packing+304
BX43W-1.0C Cast steel


Packing & Delivery :

Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
