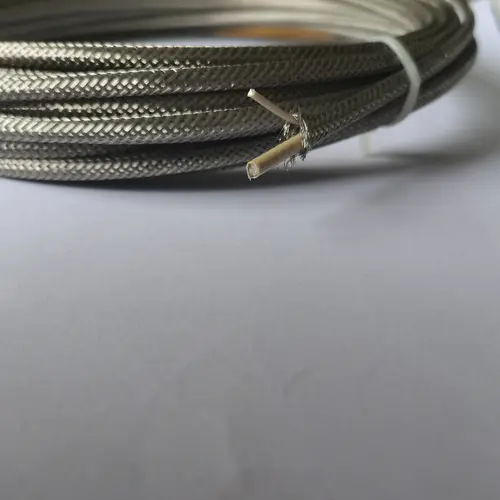

CITCABLE range of UHV Cables (Ultra-High Vacuum) and Low Outgassing wires are designed to operate in areas where low outgassing rates are critical.
Product Construction:
Dimension similar to RG174（OD：2.2mm）, RG178（OD：1.5mm)

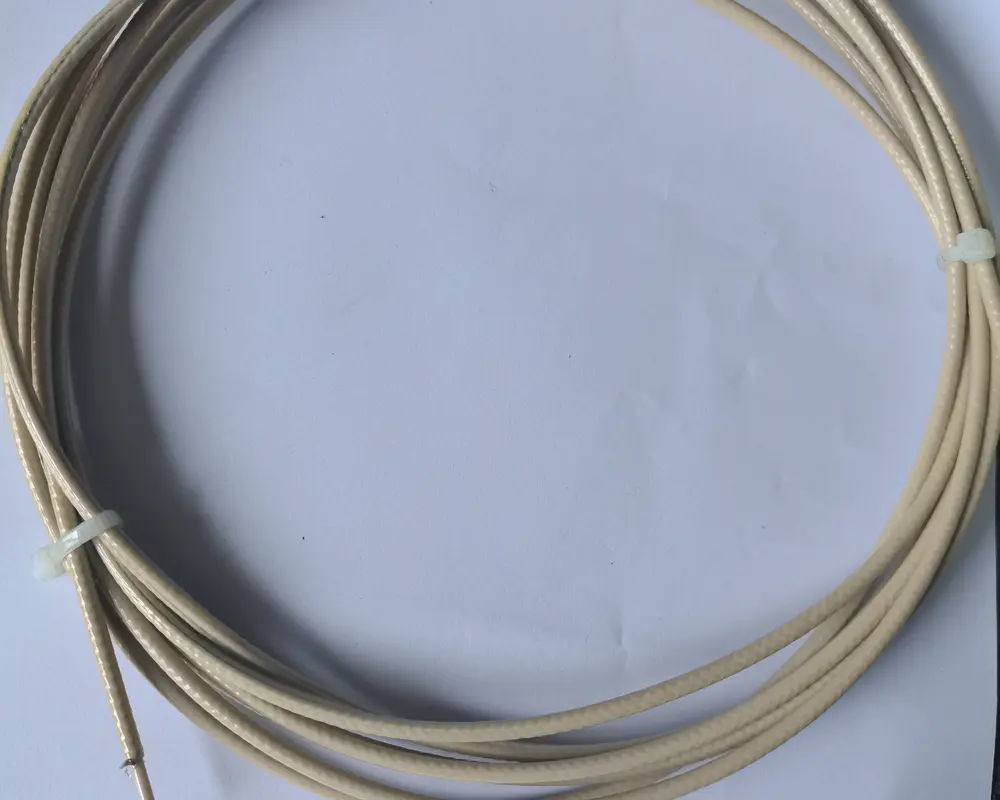

PEEK insulated wires with Silver-plated or Nickel-plated conductors
High Radiation Resistance 109 Rad= 107 Gy

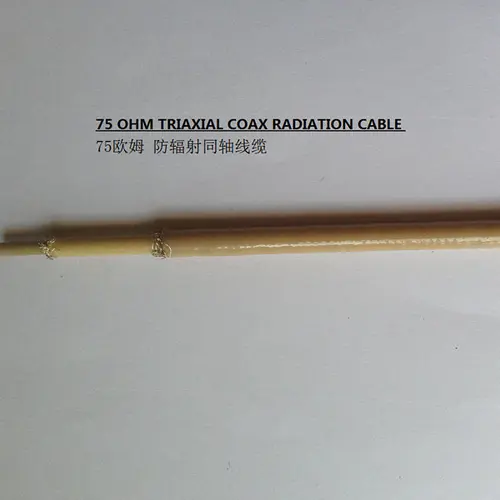

Communication systems 33ohm, 50oh, 75ohm RF cable, and upt/stp 100ohm, 120ohm 150ohm cable, and peek Fiber Oifer cable
Key Characteristics:
» Operating temperature: -195°C to 250°C
» 600V or 600KDV Rating
» Available with Silver-Plated ,Nickel-Plated or others Conductors
» Standard colors and striped color options for ease of identification
» Halogen free and low toxicity
» Toxicity index > 0.2 < 1.5 (type 2)
» Excellent radiation resistance
Typical Applications:
» Low Outgassing wires and UHV Cables
» Nuclear Power Wiring
» Chemical Processing
» Ultrahigh vacuum (UHV) environments
» Product Data A range of halogen free, radiation resistant PEEK,PI,TPI insulated wires.
» Temperature Rating: -100°C to 260°C for Silver-Plated Copper Conductors and Nickel-Plated Copper Conductors
