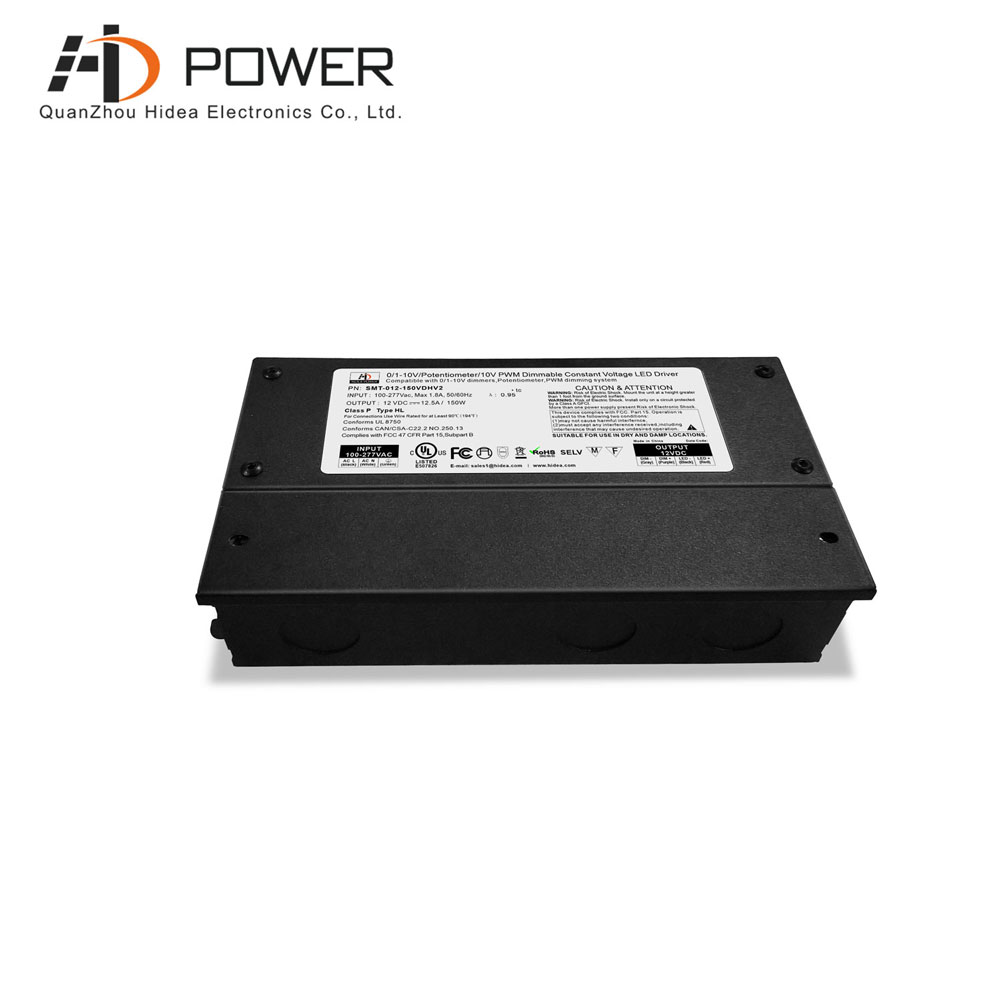

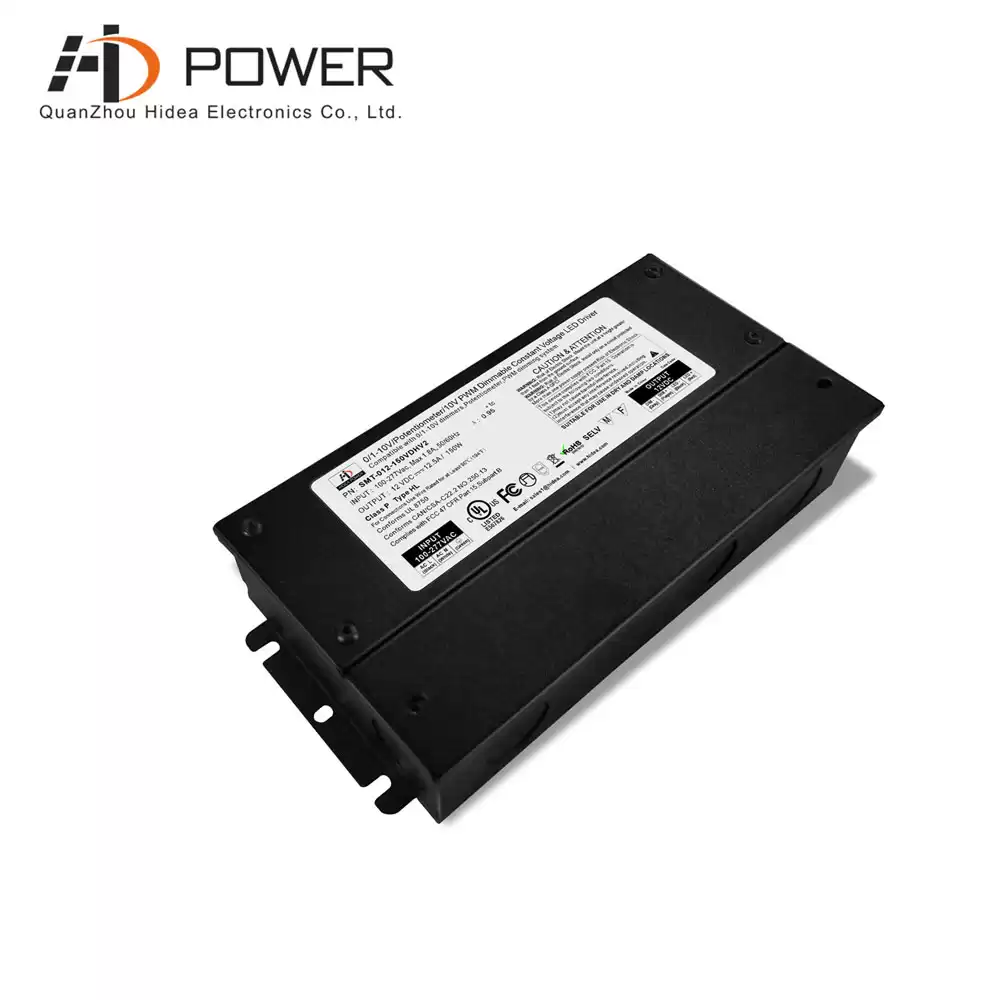

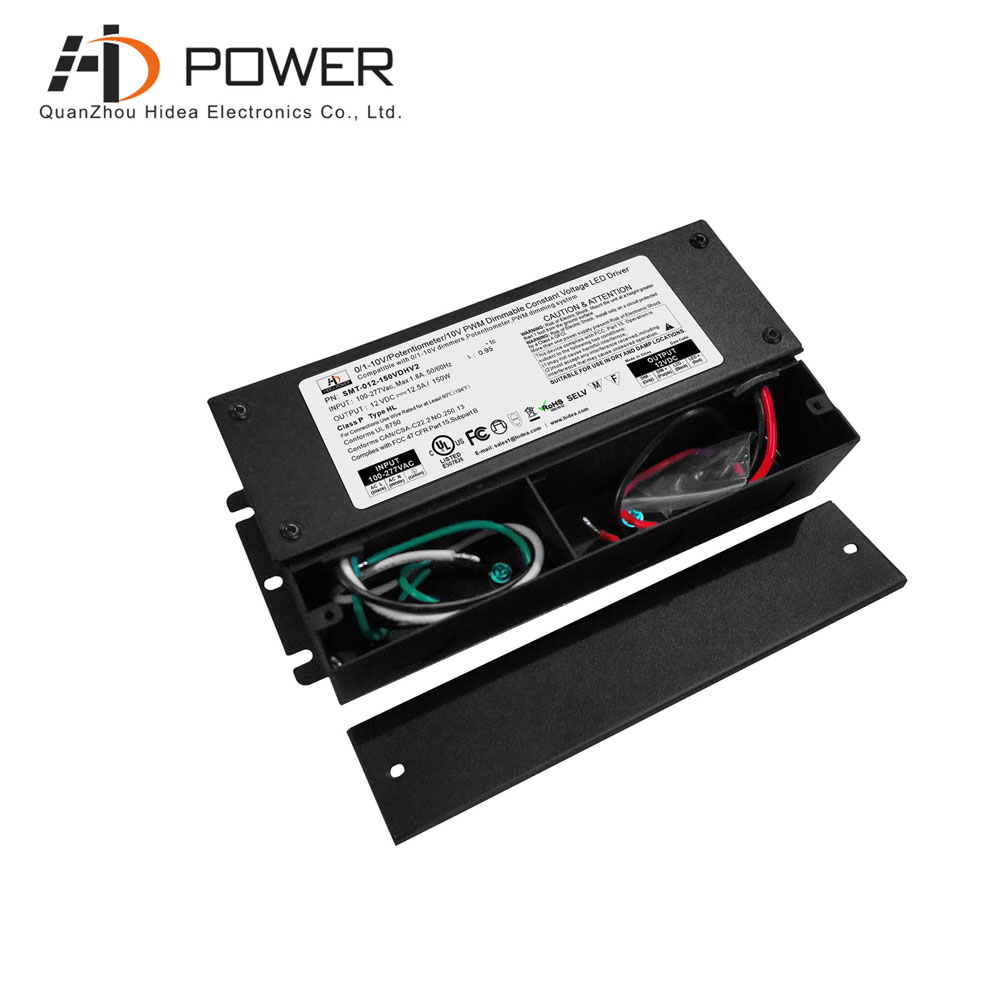

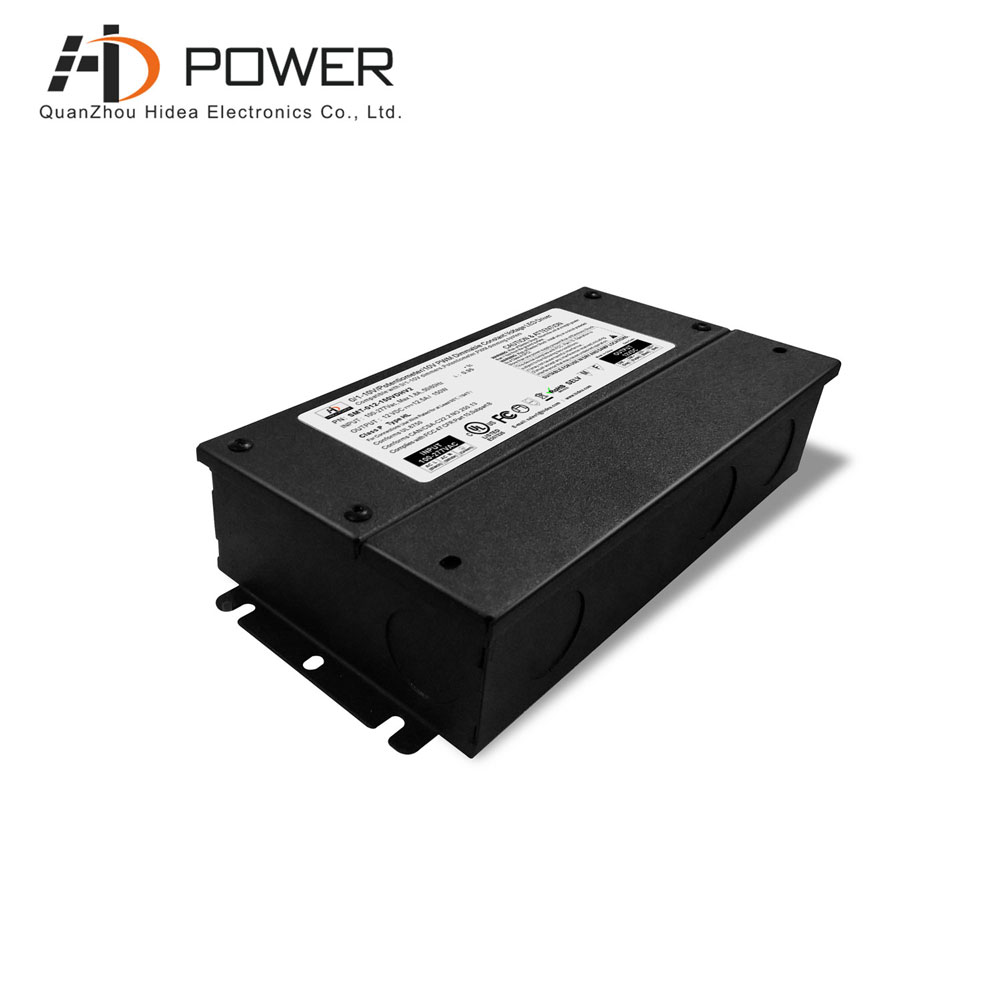

There is increasing 12v/24v 150w 0-10v dimmable led driver's needs in the market to control the lighting area. Our led driver are using in many indoor or outdoor lighting, such as ACUITY CABINET lighting.
Specification
|
Model
|
SMT-012-150VDH (1.0 version)
SMT-012-150VDHV2 (2.0 version)
SMT-012-150VDHWV2 (3.0 version)
|
SMT-024-150VDH (1.0 version)
SMT-024-150VDHV2 (2.0 version)
SMT-024-150VDHWV2 (3.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
12.5A
|
6.25A
|
|
Rated Power
|
150W
|
150W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
0.99@120VAC 0.94@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
85% @120Vac 86%@277Vac
|
85% @120Vac 87%@277Vac
|
|
AC Current(Max.)
|
1.8A@100Vac
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.8Kg (1.0 version)
|
|
Size
|
1.0 version: 260*103*46mm (L*W*H) /2.0 version: 260*105*45mm (L*W*H)/3.0 version: 260*125*45mm (L*W*H)
|
|
packing
|
Packaging: 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
This enclosure 0-10v dimming 150w led driver has widely appliciations, such Home,store, jewelry shops, showrooms, showcase, cabinet, backdrop, shops, advertising signs, decoration. It can match good well with DECOR led strips.
Related Products
|

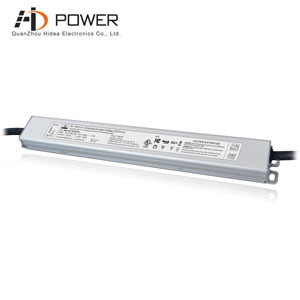

 Slim line mini size 12v 150w Dali dimming led power supply with 7 years warranty
