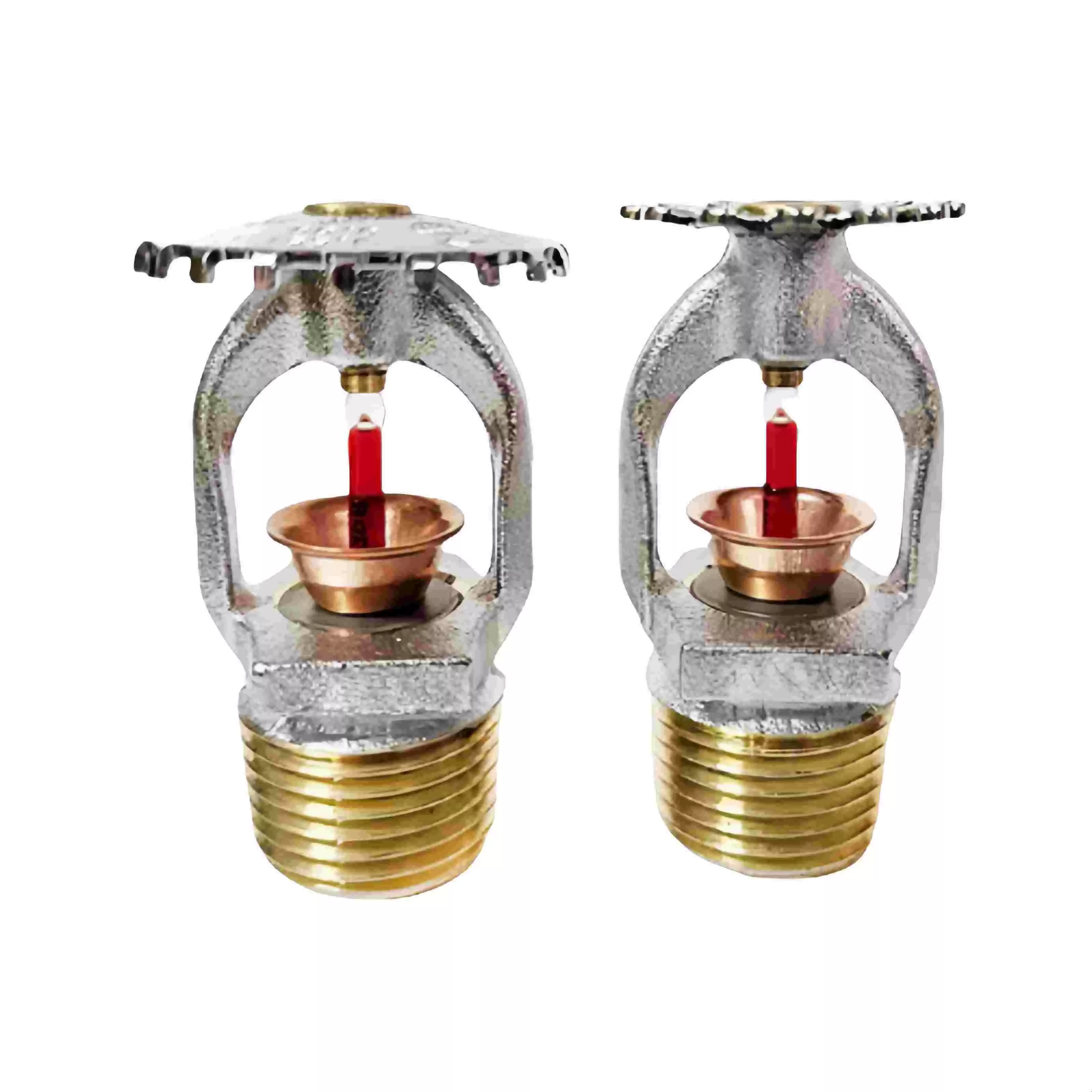

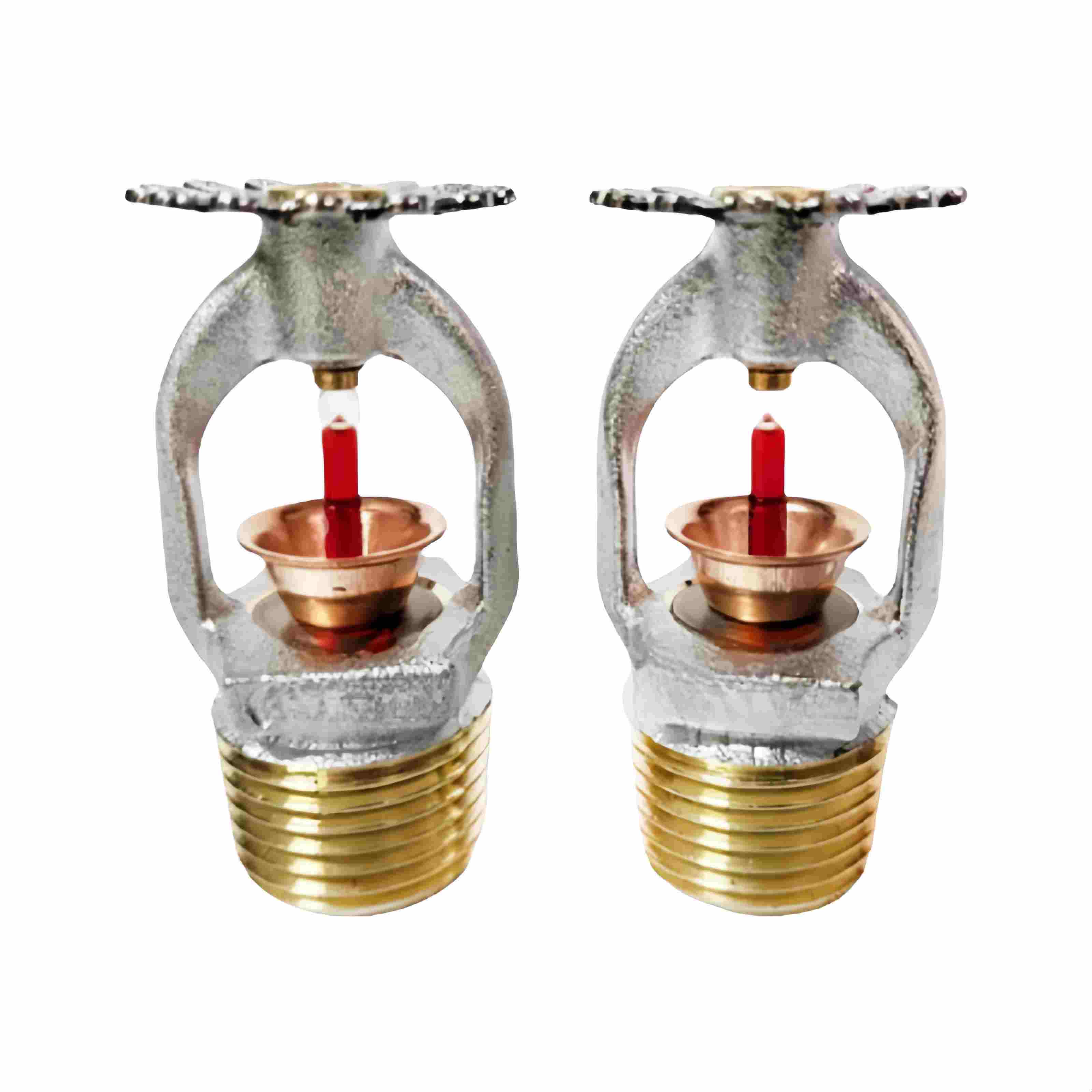

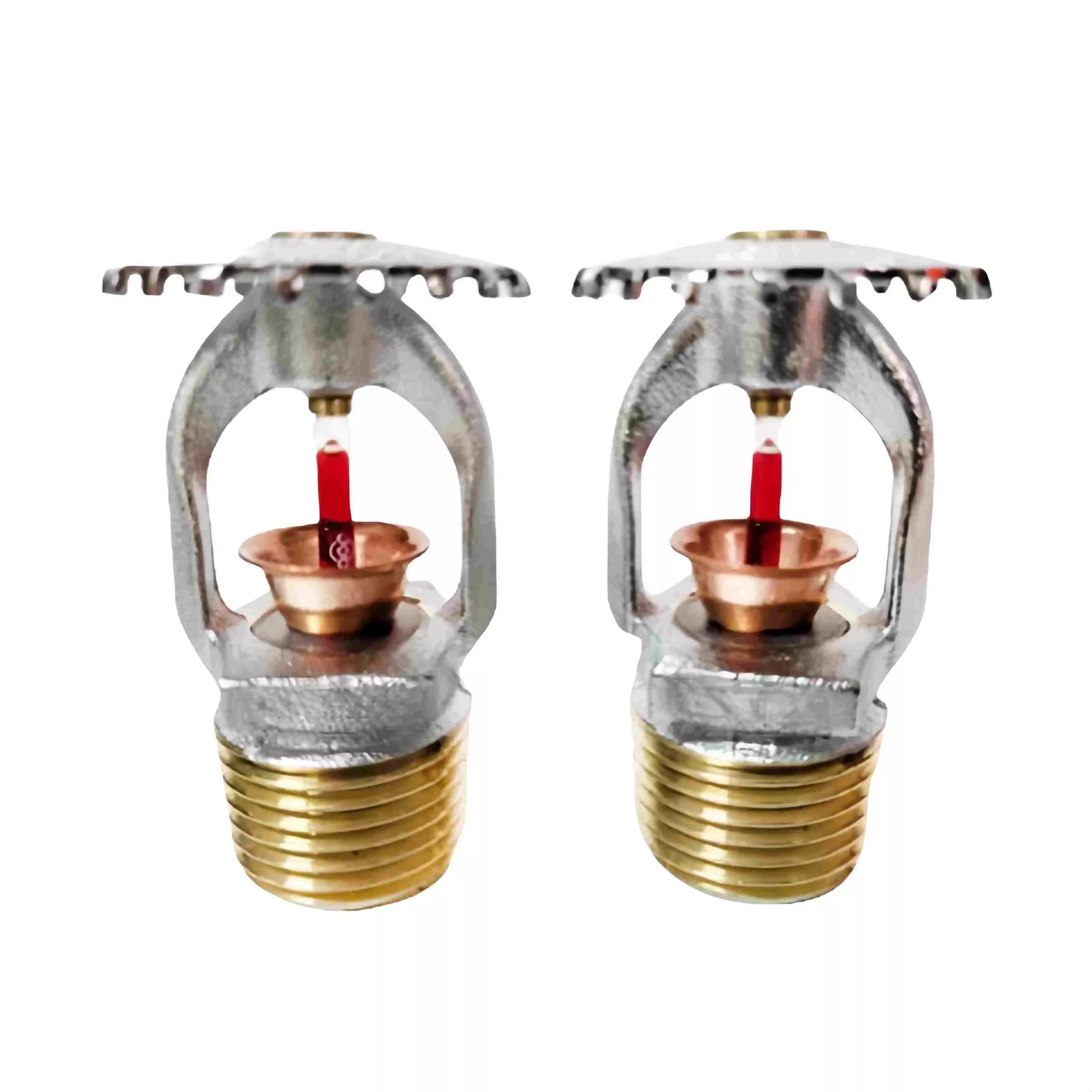

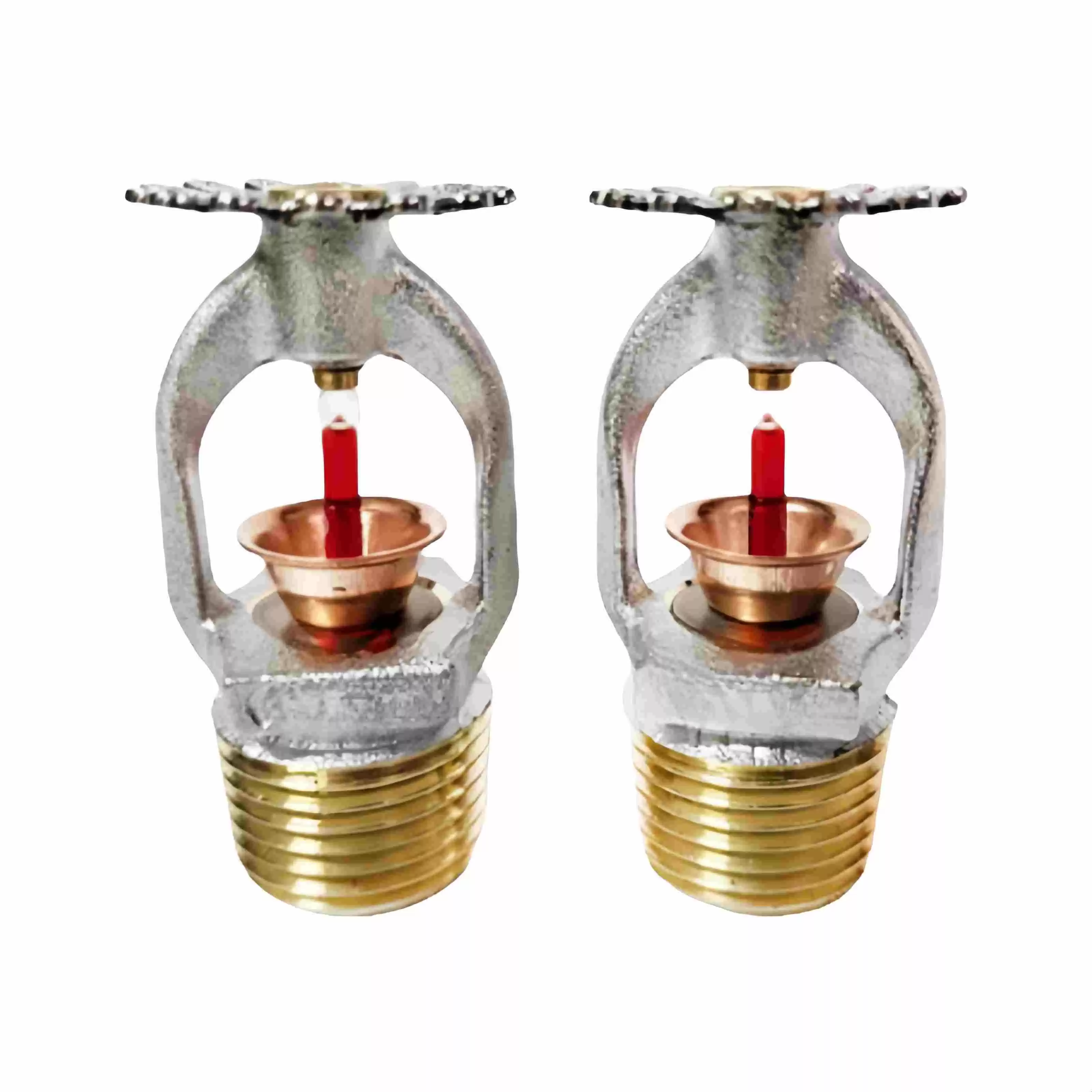

UL FM Quick Response Fire Sprinkler Head

Its core feature is that the thermal sensing speed of the thermal sensitive element is much higher than that of the standard response nozzle.



Product Description

Compared with standard response nozzles, the glass balls of fast-response nozzles are more slender, the volume of the internal expanding liquid is smaller, or their fusible connection heat transfer design is more efficient. This means that under the same fire conditions, heat can be transferred to the liquid or solder more quickly, enabling it to reach the operating temperature in a shorter time.This enables it to detect fires earlier and start spraying water, thus intervening at an extremely early stage of the fire.



Features

 • Significantly enhance life safety: This is the most crucial advantage. A rapid response means that the fire can be controlled earlier, effectively lowering the temperature at the fire scene, dispersing smoke and reducing the production of toxic gases such as carbon monoxide, thus winning crucial time for personnel evacuation.

 • Smaller fire losses: Extinguishing or controlling a fire before it has fully developed can significantly reduce the area affected by the fire and property losses.

 • Higher fire control efficiency: Quick start-up means that the ceiling area can be cooled earlier, preventing the occurrence of "flashover" phenomena.

Product Parameter

Installation Type Pendent,Uright,Sidewall
Pipe Tread Connection 1/2 inch NPT (DN15),3/4 inch NPT(DN20)
K Factor K 5.6 K 8.0
Max. Working Pressure 175 psi
Temperature Range 135℉,155℉,175℉,200℉,286℉,360℉
Finish Natural Brass

FAQ

Q:What’s the MOQ for ul fire sprinkler?

A:For standard sizes, our MOQ is usually 1000 pieces. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.



Q:What is your payment terms?

A:Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.



Q:What is the delivery time?

A:The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.
