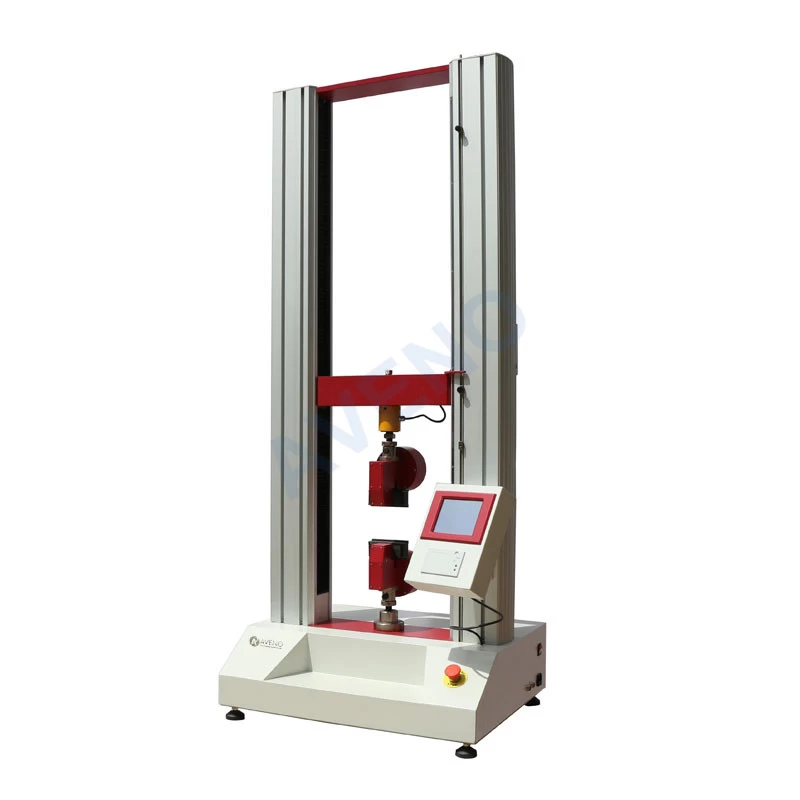

AG01-Universal Tensile Strength Tester (Double Column)
Application Of Universal Tensile Strength Tester(Double Column)
Universal Tensile Strength Tester(Double Column) is used for a variety of materials for equipment static load, tensile, compression, bending, shear, tear, mechanical strength testing machine used for testing the performance of mechanical peeling, suitable for fabric, yarn, leather, rubber, plastic film, wire and cable, physical and mechanical properties of test steel and other materials.
Feature Of Universal Tensile Strength Tester(Double Column)
-
Constant elongation (CRE) principle, microcomputer control 5. 7 inch touch screen control, built-in printer, support for online communication.
-
AC servo drive, high precision wire rod drive, wide speed range (0.01-500 mm/min), digital setting, smooth operation.
-
The software can be used to analyze the data of fracture point, break off point, yield point, initial modulus, elastic plastic deformation and so on, amplify the whole curve fixed point, query the test data at fixed point, and facilitate the mechanical testing and analysis of various materials.
-
Variety of protective measures: upper beam, lower limit position protection device; fixture protection device; setting displacement and load limit software protection; sensor overload protection; sample load software protection; overcurrent, overvoltage protection. Real time monitoring of main components
-
Aluminum alloy profile column, can option pneumatic gripers, humanized automatic mode with multiple protective measures to make sure safety.
-
Available on tablets, wireless WIFI controls, or via Android phones.
Key Specification Of Universal Tensile Strength Tester(Double Column)
|
Model
|
AG01-Universal
Tensile Strength Tester (Double Column)
|
|
Max. Capacity
|
500N,
1KN, 2KN, 5KN,10KN,(option)
|
|
Control mode
|
Computer
control with touch screen display mode
|
|
Test mode
|
CRE
principle
|
|
Test range
|
1%―100% of full capacity
|
|
Force Resolution
|
1/100,000
|
|
Force Accuracy
|
≤±0.2%F*S
|
|
Stroke Resolution
|
0.001
mm
|
|
Test Speed
|
0.001-1000mm/min,
can be set
|
|
Max stroke
|
1100mm(no including griper), (it can be custom made
|
|
Gantry width
|
400mm
|
|
Sample clamping
|
Manual
griper and pneumatic griper optional
|
|
Force Unit Switch
|
Kgf,
N, Ibf, g, ton, Mpa, Free conversion
|
|
Machine Drive
|
Servo
motor drive, synchronous wheel and precision ball screw drive
|
|
Dimensions
|
82*63*180cm
|
|
Weight
|
120kg
|
|
Power Supply
|
AC220V,
50/60HZ
|
Accessories Of Universal Tensile Strength Tester(Double Column)
|
Standard Accessories
|
Manual
grips
|
1set
|
|
English
operation software
|
1pc
|
|
Cable
connect with PC
|
1pc
|
|
Load cell
|
1pc
|
|
Option Accessories
|
Desk
Top Computer(HP)
|
|
|
Grips and load cell
|
|
Related products

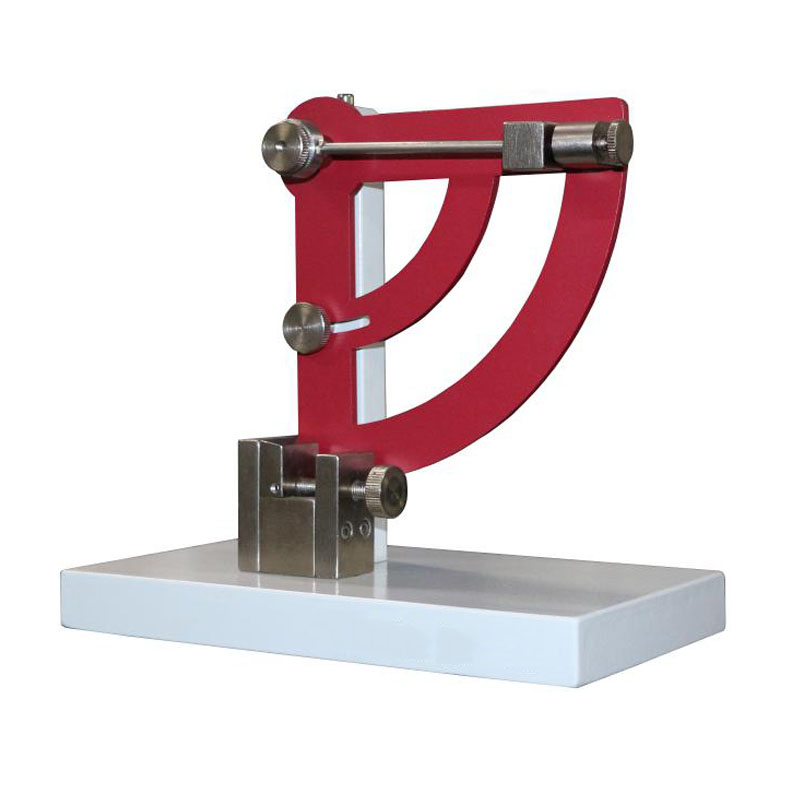

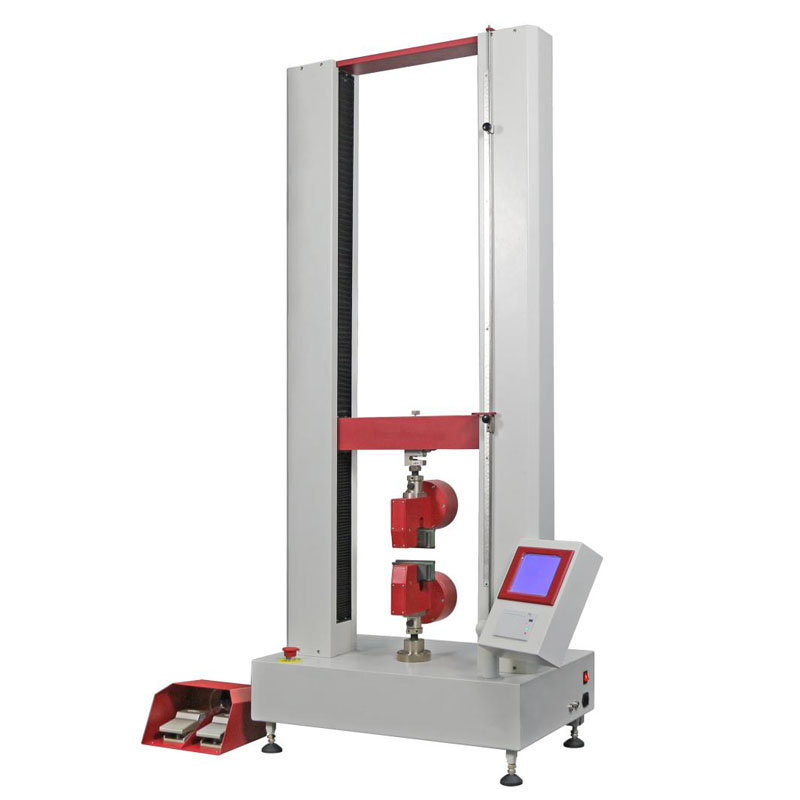

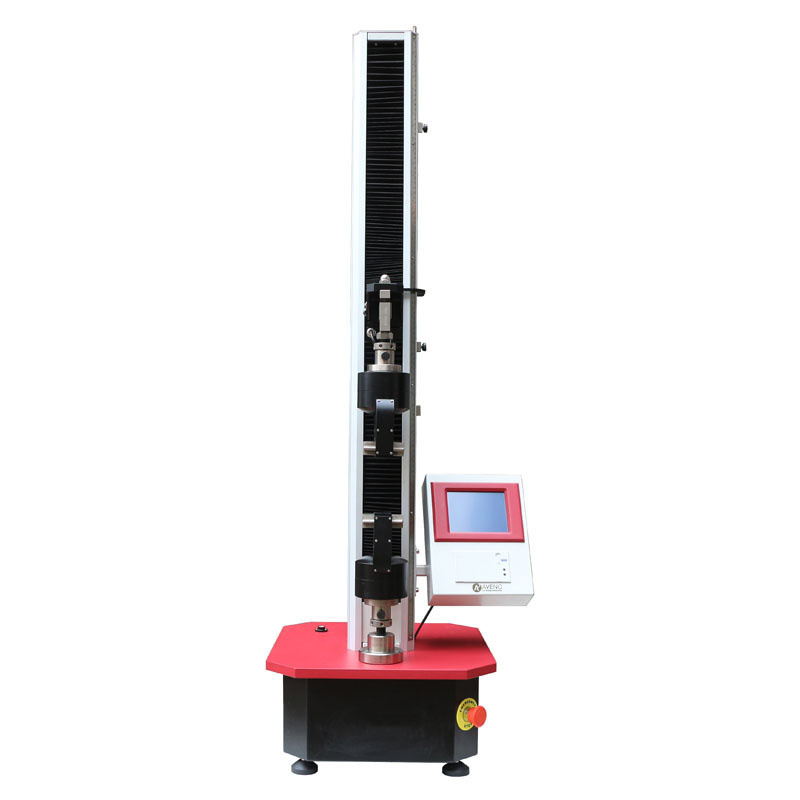

Universal Tensile Strength Tester (Single Column) Button Impact Resistance Tester Universal Tensile Strength Tester (Double Column)
