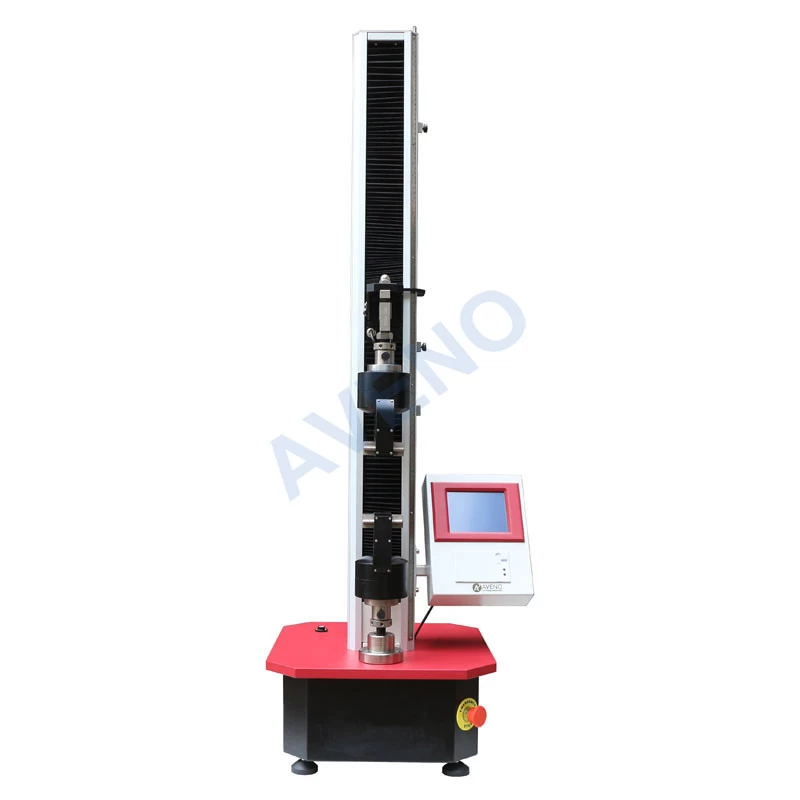

AG02 Universal Tensile Strength Tester (Single Column)
Application of Tensile Strength Tester
Universal Tensile Strength Tester is widely used in various types of fabric, clothing, textile, composite material, Non woven fabric, geotextile, and other types of materials, Widely used in test tensile, tearing, jacking, peeling, constant elongation, constant load, elasticity, seam slip, modulus and other mechanical properties.
Feature of Tensile Strength Tester
-
The instrument column adopts aluminum alloy profile column, and the surface of the instrument is treated with high temperature curing spray, which is scratch resistant and not easy to fade.
-
Imported AC servo drive, ball screw, can be set for a wide range of speed, suitable for the mechanical properties of various materials.
-

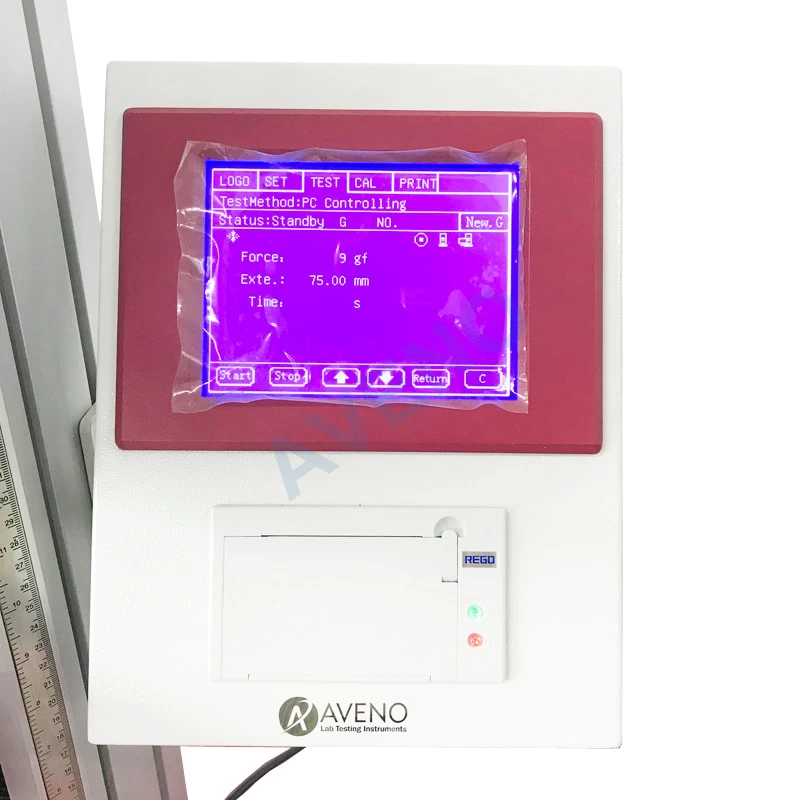

The instrument host adopts touch screen control, which is intuitive and simple to operate, and has a built-in printer for convenient use.
-

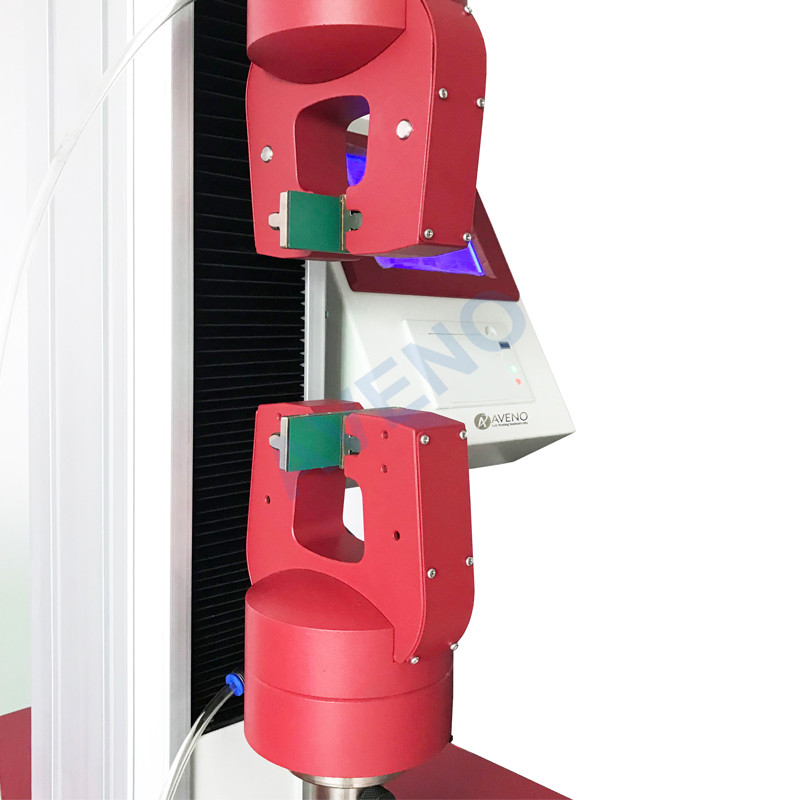

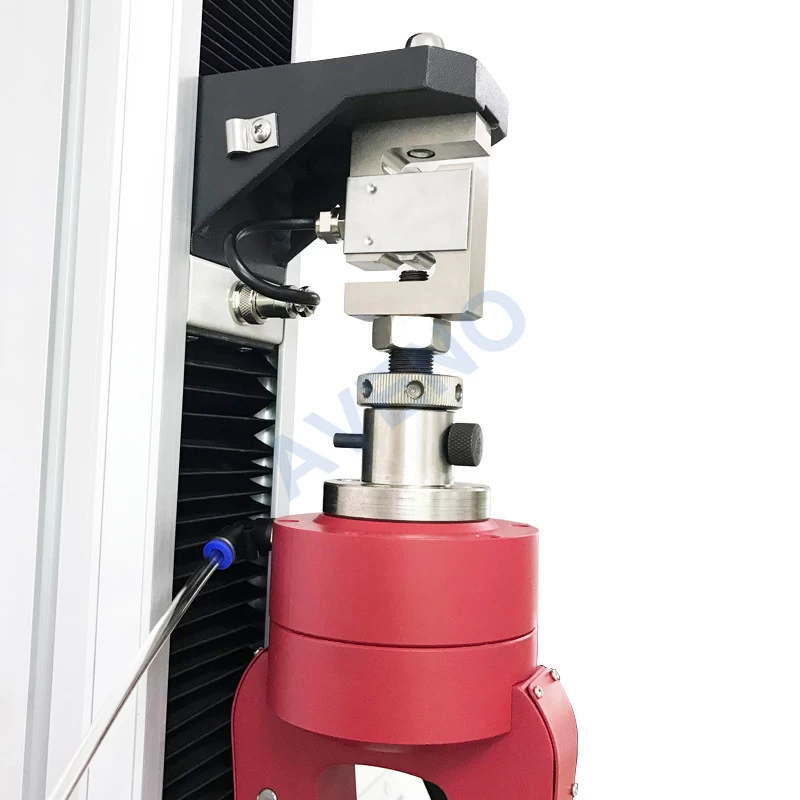

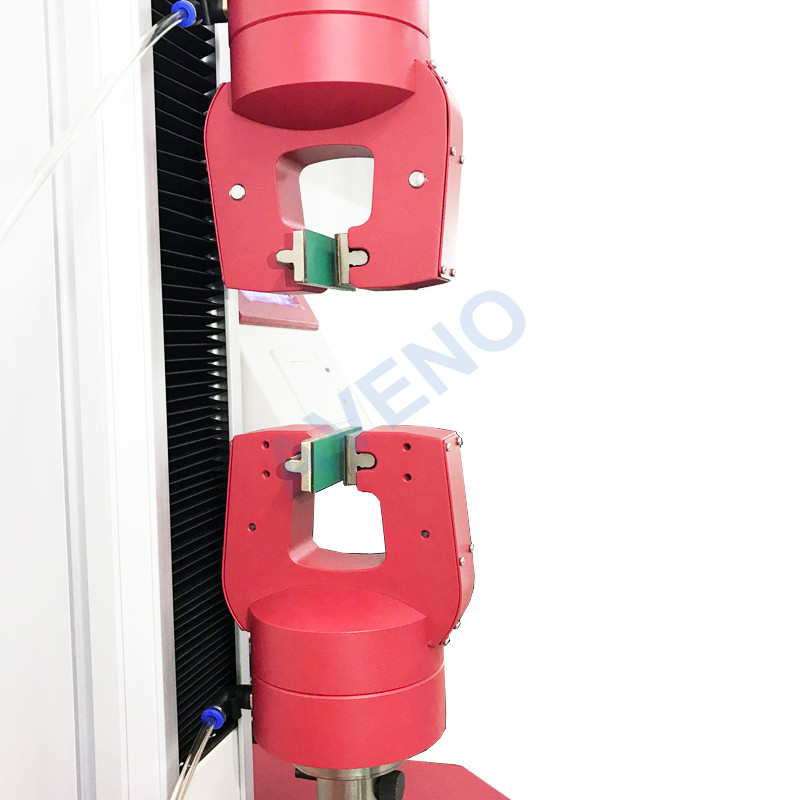

The multi-function pneumatic gripper can complete different tests by simply changing the clips, and the replacement is convenient and quick. The tensile and burst tests do not require replacement of the sensor.
-
The instrument can be controlled by a tablet PC, Wi-Fi or Android mobile phone.
Standards of Tensile Strength Tester
ISO13934-1,13934-2,13935-1,13935-2,13936-1,13936-2,13936-3, 13937-2,13937-3,13937-4,1421, 2411, 2062, 4674-1,5082, 9073.3, 9073.4, 9073.18; BS 2543, 2576, 3320, 3424, 4303, 4304; M&S P11, P12, P13, P14; JIS L1096; ASTM D 434, D751, D885, D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735.

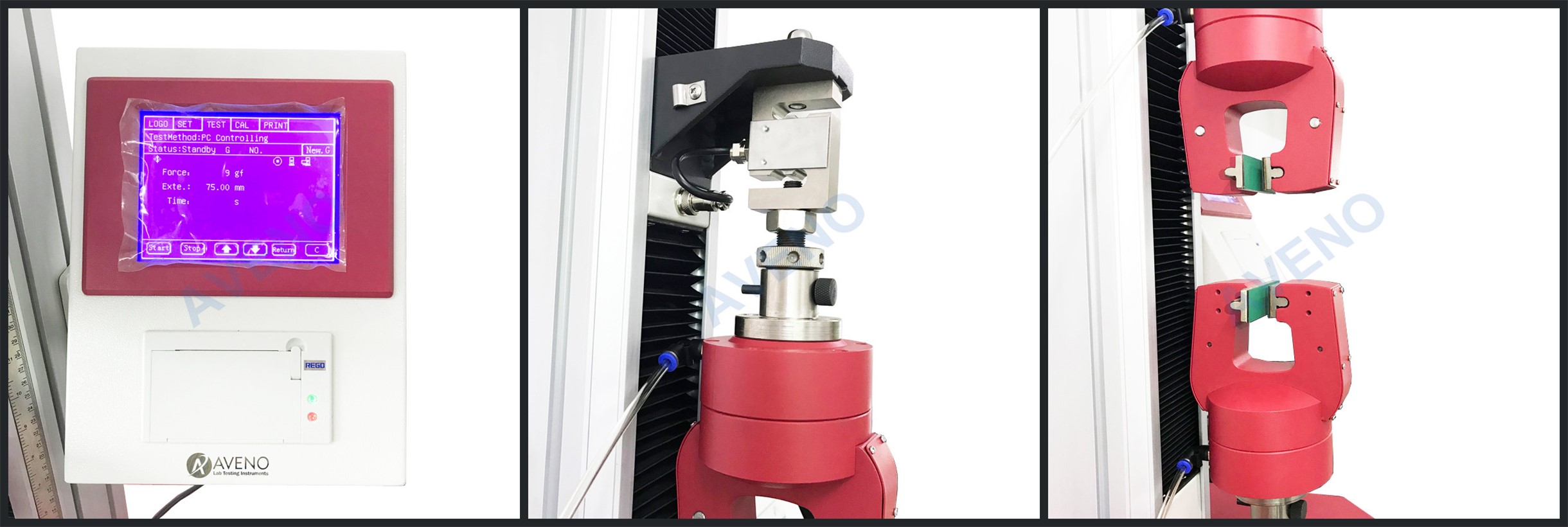

Product Details
Key Specification of Tensile Strength Tester
|
Model
|
AG02 Universal Tensile Strength Tester (Single Column)
|
|
Capacity
|
500N, 1KN, 2.5KN, 5KN and etc (optional)
|
|
Display
|
Computer display
|
|
Clamp method
|
Pneumatic, can change to manual
|
|
Force Resolution
|
1/100,000
|
|
Force Accuracy
|
≤+/-0.2%F*S
|
|
Effective stroke
|
600mm
|
|
Test Speed
|
0.001-1000 mm/min , can set on display, can be set
|
|
Force Unit Switch
|
Kgf, N, Ibf, Free conversion
|
|
Stop Mode
|
Overload stop, emergency stop button.
specimen damage automatic stop
|
|
Machine Drive
|

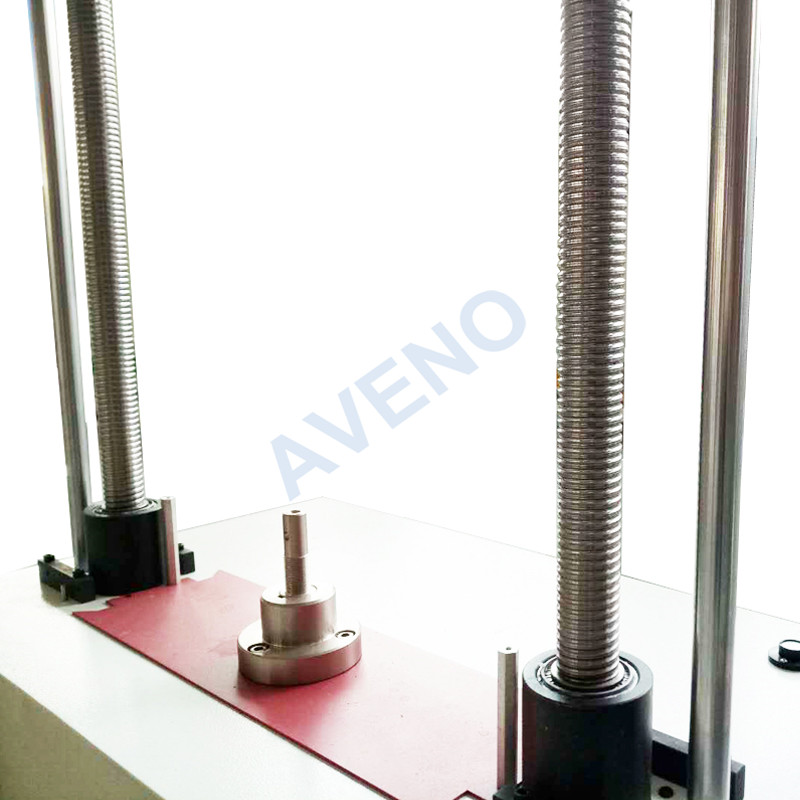

Servo motor drive, synchronous wheel and precision ball screw
drive
|
|
Power Supply
|
220V 50/60HZ 500W, can according customer requirement
|
|
Dimensions(WxDxH)
|
67*48*144cm
|
|
Weight
|
150KG
|
Standard Accessories of Tensile Strength Tester
|
Standard Accessories
|
Load cell
|
1sets
|
|
Pneumatic Grips
|
1sets
|
|
Seam slippage clamps
|
4pcs
|
|
English operation software
|
1sets
|
|
Cable connect with PC
|
1pc
|
|
English manual
|
1pc
|
|
Certificate of quality
|
1pc
|
|
Option Accessories
|
Other grips (Pneumatic and manual)
|
|
|
Desk top
computer
|
|
|
Load cell
with different capacity
|
|
Related products

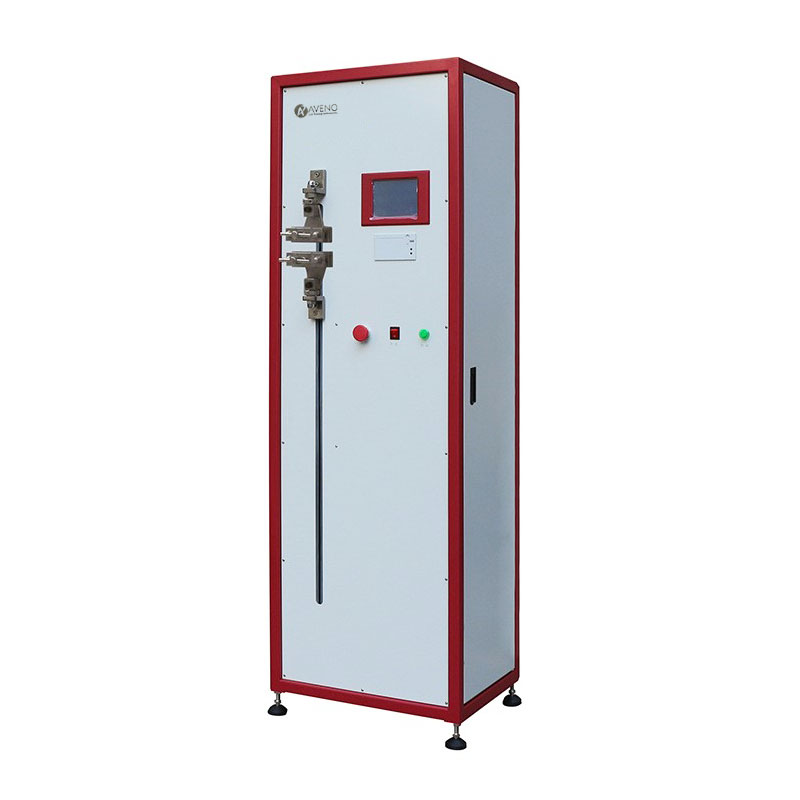

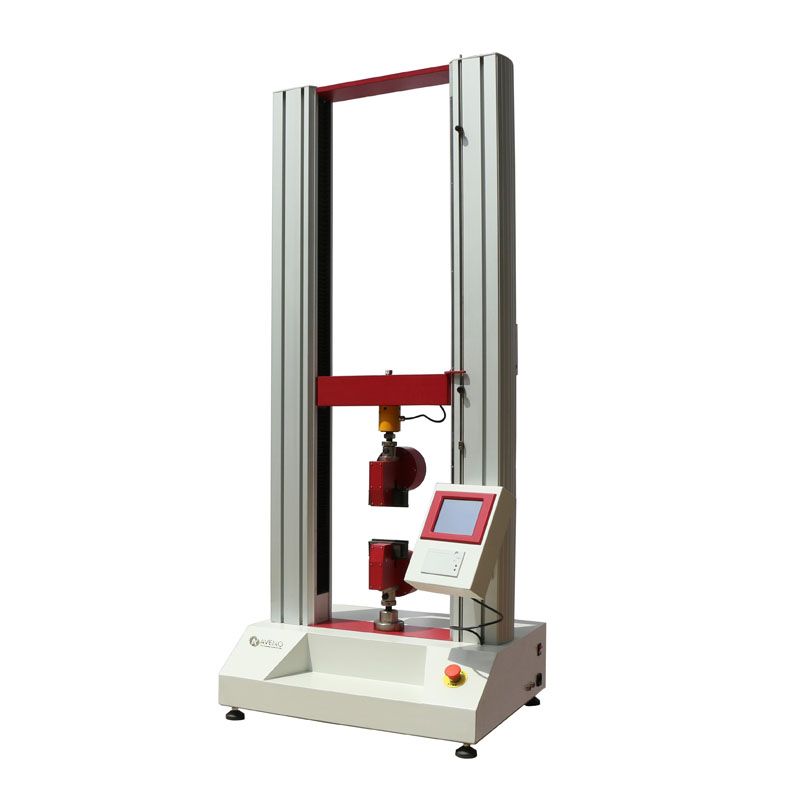

Universal Tensile Strength Tester Electronic Peeling Tester Universal Tensile Strength Tester
