Applications:

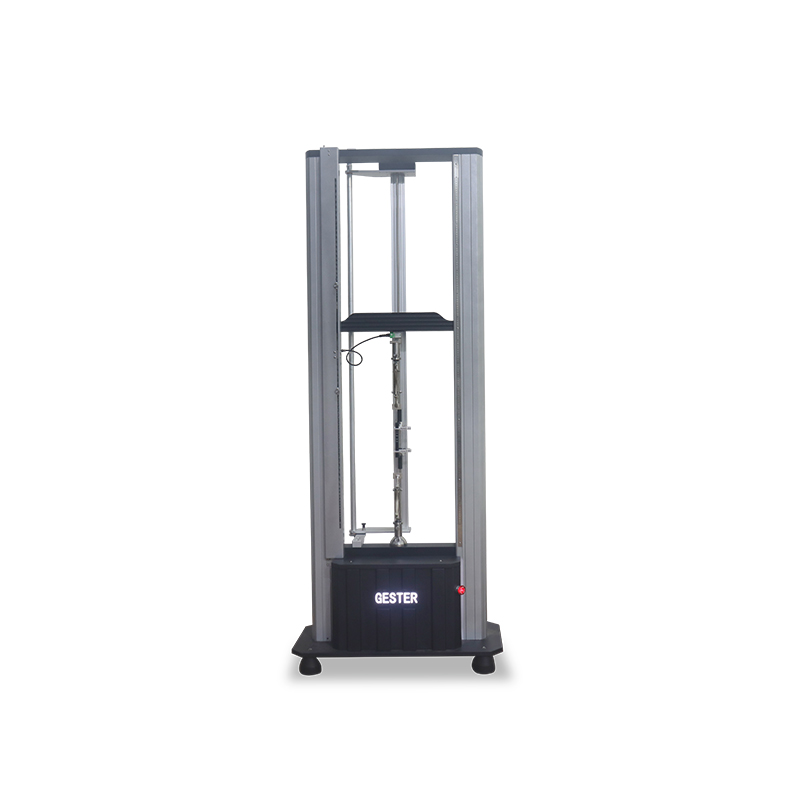

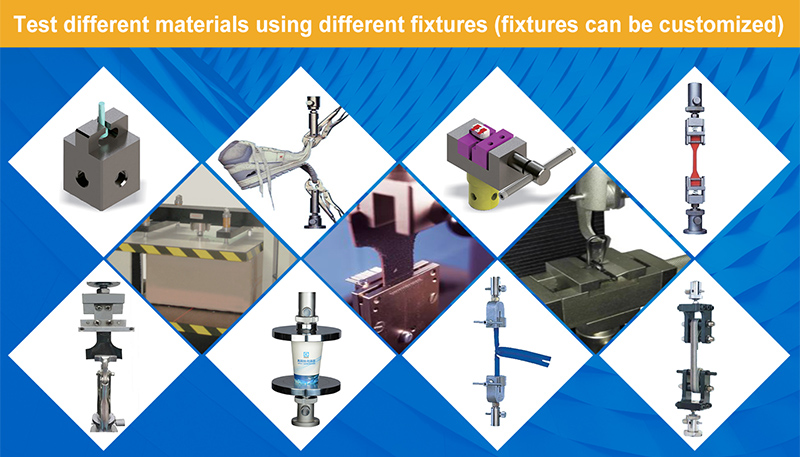

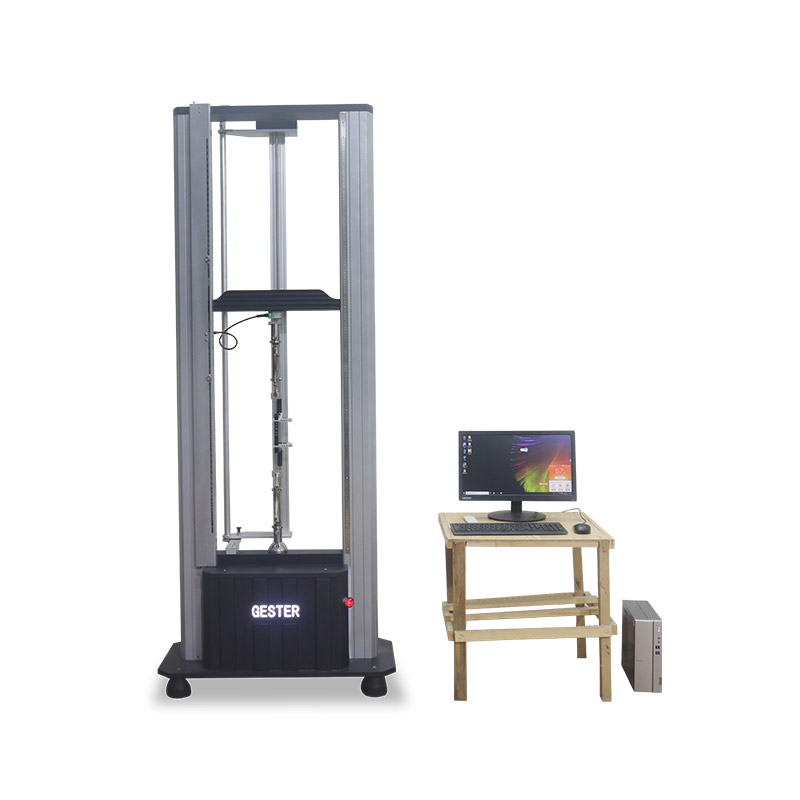

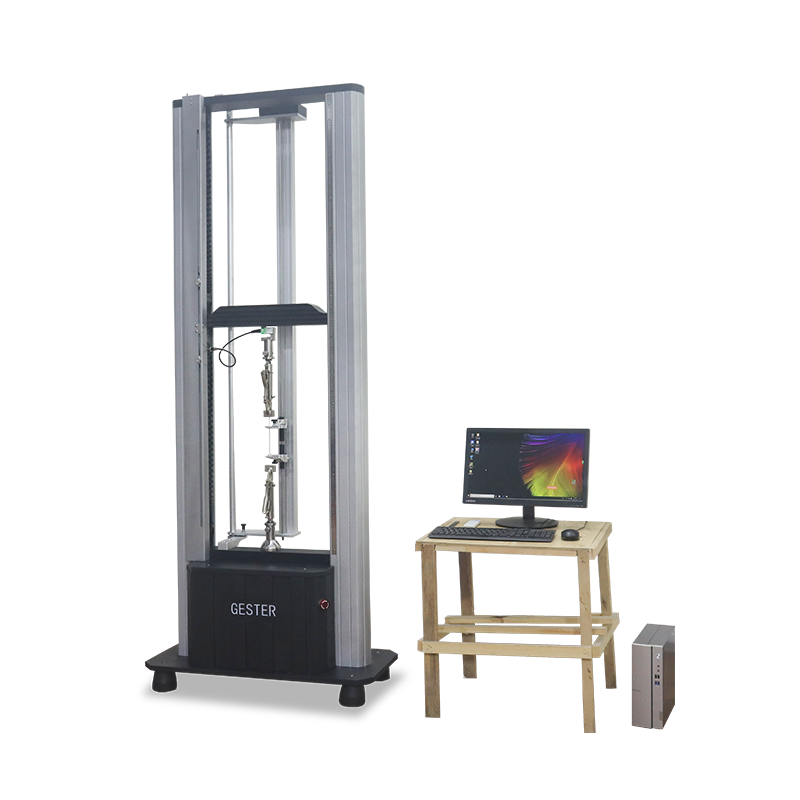

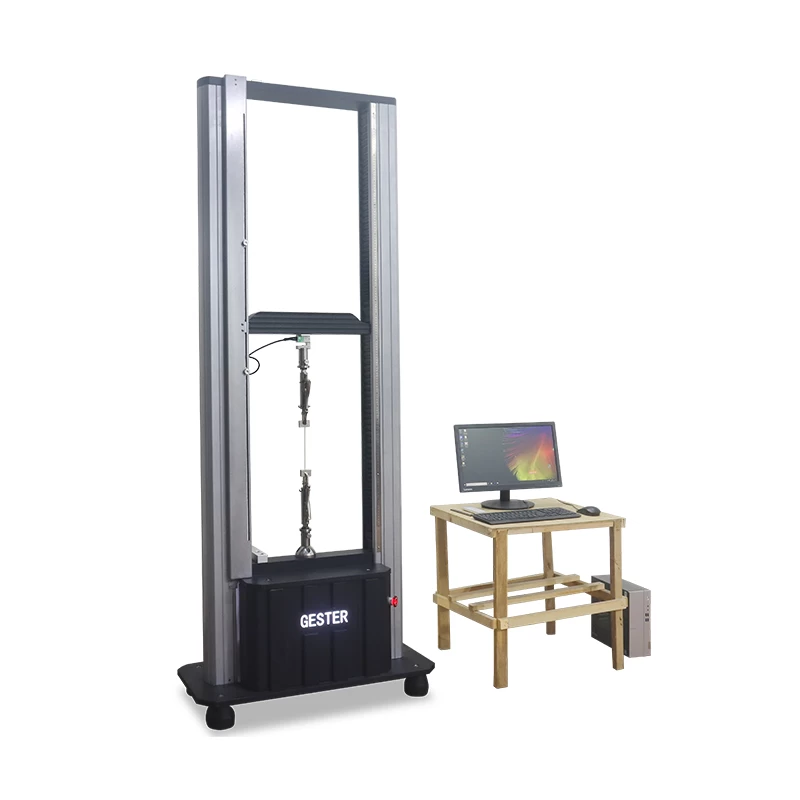

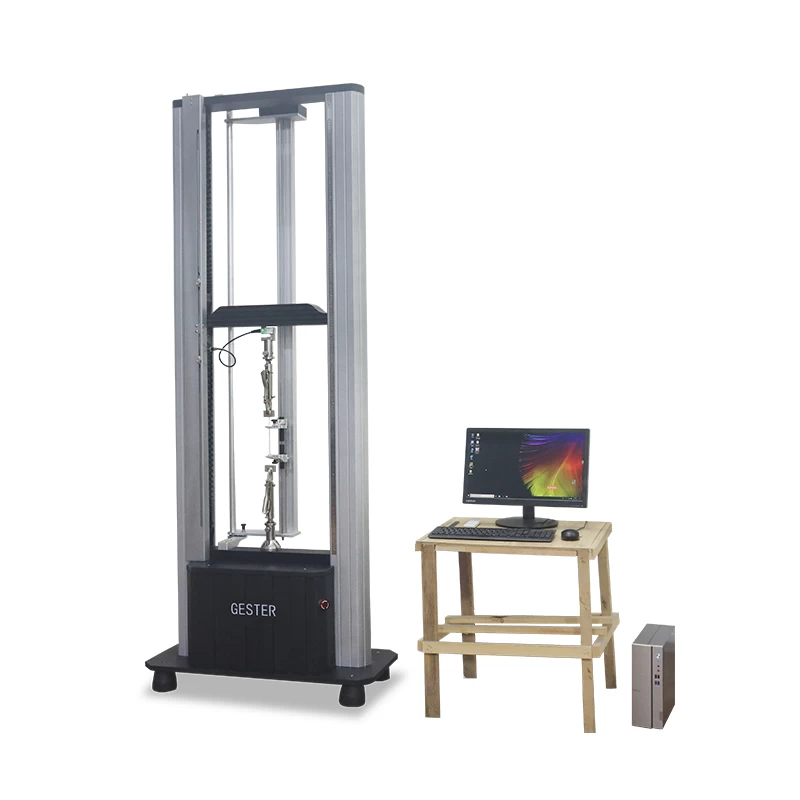

Universal Testing Machine Tensile Testing Equipment is designed for conducting tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for shoes ,rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.

Standards:

SATRA TM5, TM53, TM52, TM51, TM108, TM113, TM117, TM118, TM120, TM123, TM149, TM162, TM401, TM 411,TM 410,

ASTMD 751/2209 /412/624  FIA 1206,

BS5131- 3.7, 5.11, 5.13 , BS 5153-2.6

ISO22650, ISO 19958,ISO 3377-1, ISO 3377-2, ISO 11644,

ISO 20866, ISO 20867, ISO19957, ISO20874, ISO20344-5.2.4, ISO 20345-5.3.1.2, ISO17698,ISO20875, ISO22777, ISO22776, ISO22654, ISO20863, ISO20876, ISO17695, ISO17697, ISO34-1 ,ISO36, ISO37, ISO 17708, ISO 17696,ISO17706, ISO 22650

AS/NZS 2210.2-5.2.4

DIN 53331,

GB/T 3903.8 , GB/T 3903.9 , GB/T3903.14 , GB/T3903.20,GB/T3903.21, GB/T3903.22, GB/T 3903.23 ,

GB/T 3903.24, GB/T 3903.25, GB/T 3903.26, GB/T 3903.29 , GB/T3903.32,GB/T 3903.39,GB/T 3903.40, GB/T 3903.43

GB/T 4689.20 , GB/T20991-5.2.4 ,GB 21148-5.3.1.2, GB/T 17928, GB/T529, GB/T528, GB/T532, GB/T1143, GB/T21396

QB/T 11413 ,QB/T 2711 ,QB/T2675, QB/T2883, QB/T4118,QB/T4198

HG/T 2726, HG/T 2877, HG/T4805

1.The power system: servo motor and servo drivers and worm gear and rod reducer and ball screw.

2.Control system: adopting Pulse Command control method, it will be more accuracy and easy to control.

2.The speed control range: 0.001-500mm or 0.001-1000mm/min (option)

3.The intermediate plate adjustment is both fast coarse and slow fine-tuning.

4.It will return to original site and save automatically ater testing.

5.Data transmission mode: RS232 transmission.

6. This instrument can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control mode which can meet the test requirements of the ordinary.

7. Testing space: test width is 400 mm (standard)

8. All plate walking space: 1200 mm (excluding fixture, according to the customer requirements).

9. The entire displacement: the encoder is 1800 P/R, it can improve 4 times accuracy

10. Using the LINE DRIVE encoder strong anti-interference ability displacement resolution 0.001 mm.

Safety device: overload emergency stop device, up and down stroke limit device, leakage automatic blackout system, automatic breakpoint stop function.
