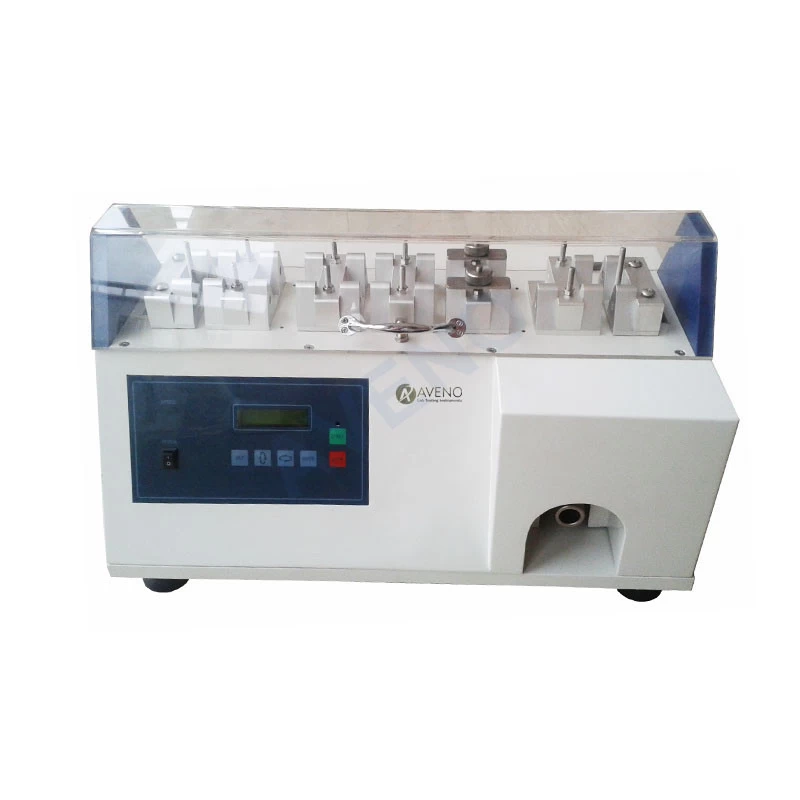

AF42-Upper and Vamp Material Flexing Tester
Application Of Upper and Vamp Material Flexing Tester
Upper and Vamp Material Flexing Tester simulates the shoe's squeezing, stretching, and twisting during walking by a continuous stretch quick action. After the test, examine the wrinkling, crease or damage of the test piece as a reference for selecting the upper material.
Standards Of Upper and Vamp Material Flexing Tester
ISO-4643, SATRA PM25, ISO 5423, GB/T 20991, ISO 22288, EN ISO 20344, AS/NZS 2210.2
Key Specification Of Upper and Vamp Material Flexing Tester
|
Model
|
AF42 Upper and Vamp Material Flexing Tester
|
|
Clamps
|
40° V shape 6.4mm(R)
|
|
Numbers of samples
|
12 pcs at one time
|
|
Counter
|
LCD, 0~999, 999
|
|
Horsepower
|
DC, Brushless Motor, 90W
|
|
Power supply
|
AC 220V, 50/60HZ
|
|
Dimension
|
59×35×36cm
|
|
Weight
|
60 kg
|
