UU10.5 Transformer Bobbin, 3+3 Pin Vertical Bobbin

3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0

Pin Pitch=5mm Parallel Distance=12.5mm

Size=17.9mmX12.6mmX17.3mm



UU10.5 high frequency transformer bobbin, low price and best quality, with ISO9001,ROHS,CE certification.



Quick Details

Place of Origin: Hefei,China(Mainland)



Custom Made: Available



Material: Phenolic

Part Number: MCT-UU10.5-20(V3+3P)



Brand Name: MCT



Color: Black

Certification: ISO9001,ROHS,CE



Packing: Carton,can be customized



OEM: Available

Lead Time: 25 days after payment



Logo: Can be customized



MOQ: Any quantity



Part Information

Product Name: UU10.5 Transformer Bobbin, 3+3 Pin Vertical Bobbin.

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: High frequency transformer, choke coils, filter inductors, current transformers.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Lily Yu

Email: sales003@mycoiltech.com

Skype:   live:sales003_125

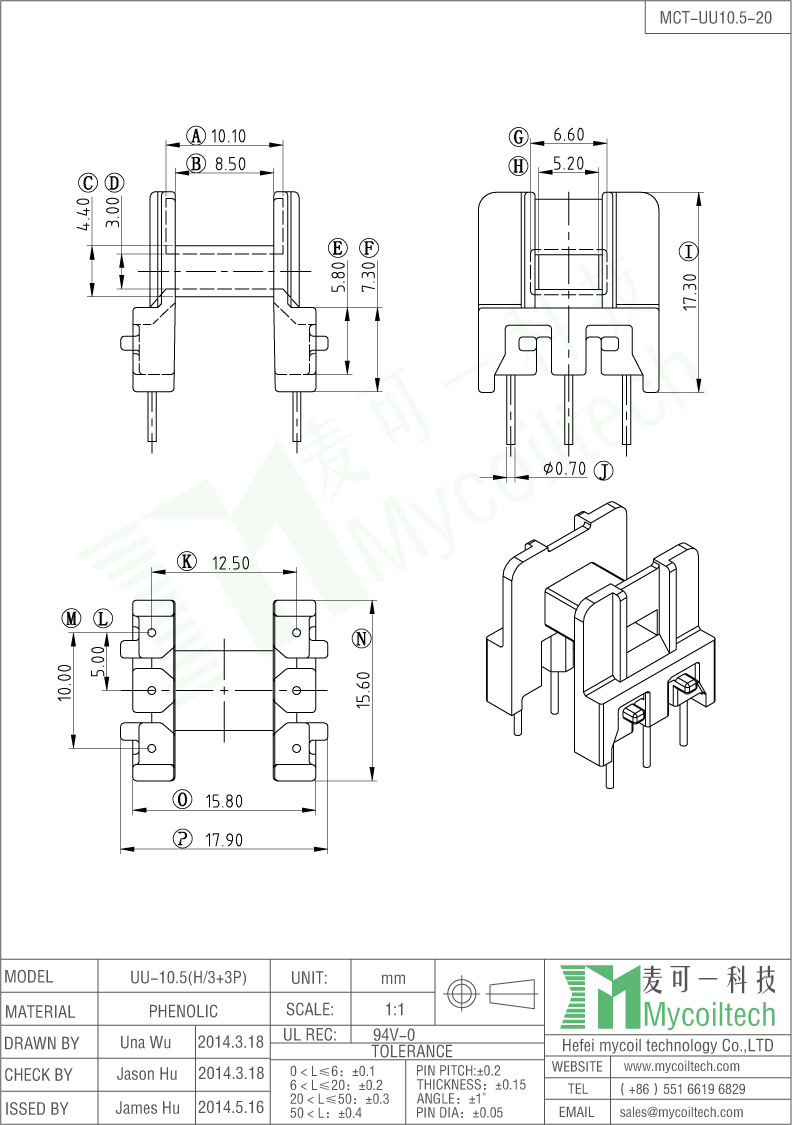

Product Specification

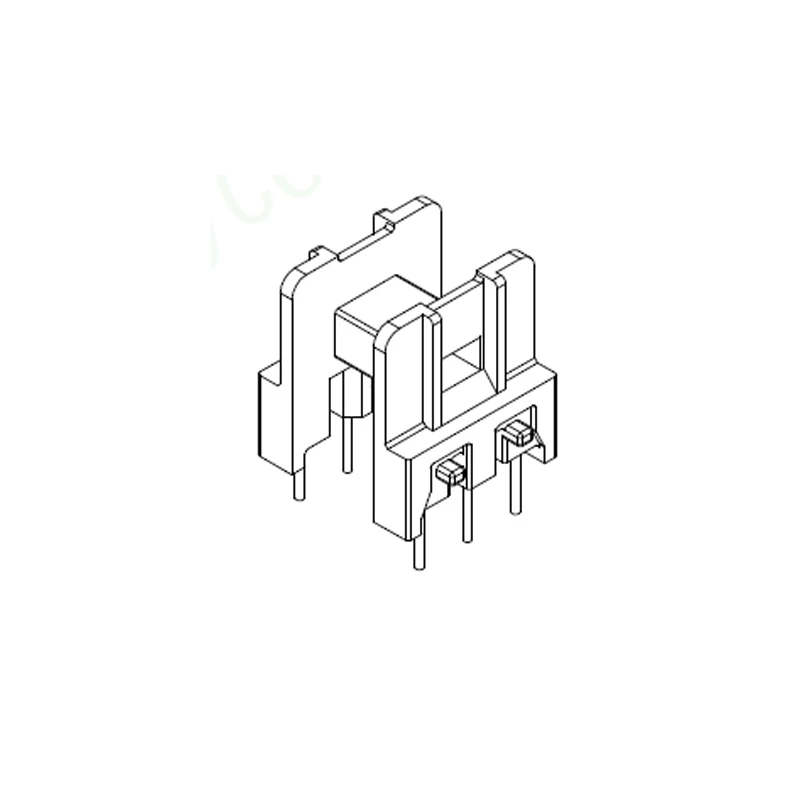

UU10.5 vertical electronic transformer bobbin
