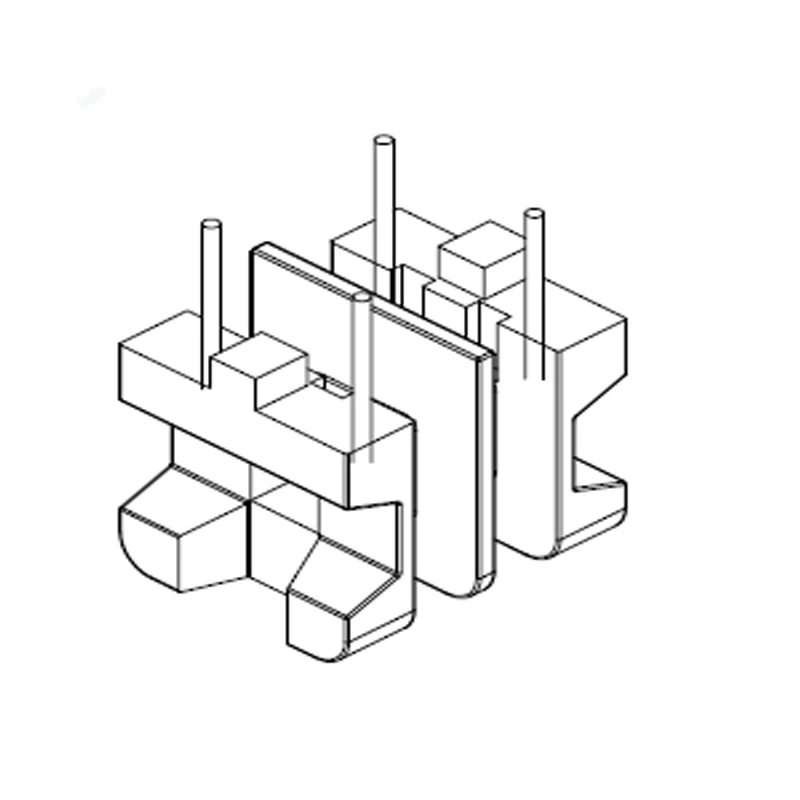

UU9.8 Horizontal Transformer Bobbin, 2+2 Pin Phenolic Bobbin

2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0

Pin Pitch=5±0.2mm Parallel Distance=8.2±0.2mm

Size=12.8mmX10.6mmX12mm±0.2



China transformer bobbin factory, offer free samples, fast lead time, any requests please contact us.



Quick Details

Place of Origin: Hefei,China(Mainland)



Custom Made: Available



Material: Phenolic

Part Number: MCT-UU9.8-01(H2+2P2F)



Brand Name: MCT



Color: Black

Certification: ISO9001,ROHS,CE



Packing: Carton,can be customized



OEM: Available

Lead Time: 25 days after payment



Logo: Can be customized



MOQ: Any quantity



Part Information

Product Name: UU9.8 Horizontal Transformer Bobbin, 2+2 Pin Phenolic Bobbin

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: High frequency transformer, choke coils, resonant inductors, filter inductors, current transformers.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Lily Yu

Email: sales003@mycoiltech.com

Skype:   live:sales003_125



Product Specification

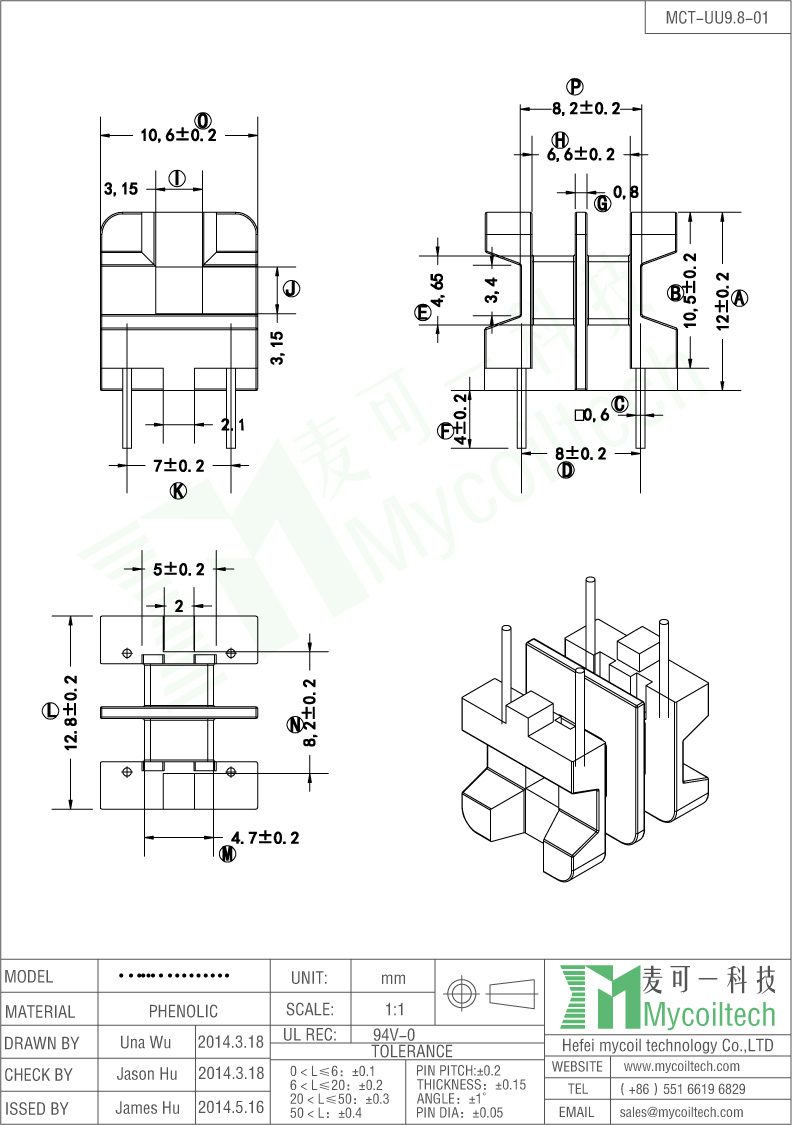

UU9.8 Transformer Bobbin
