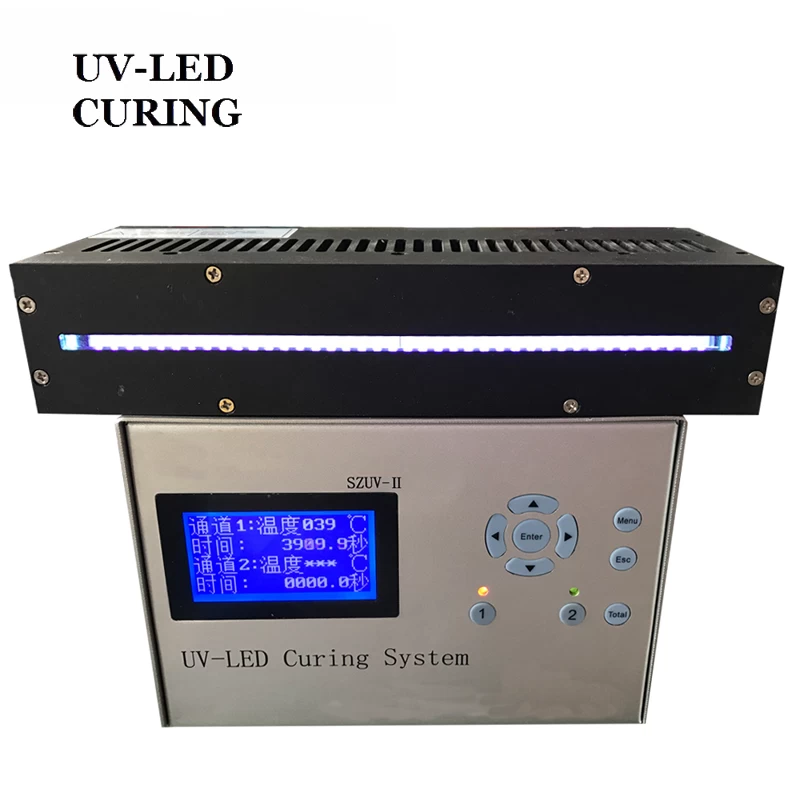

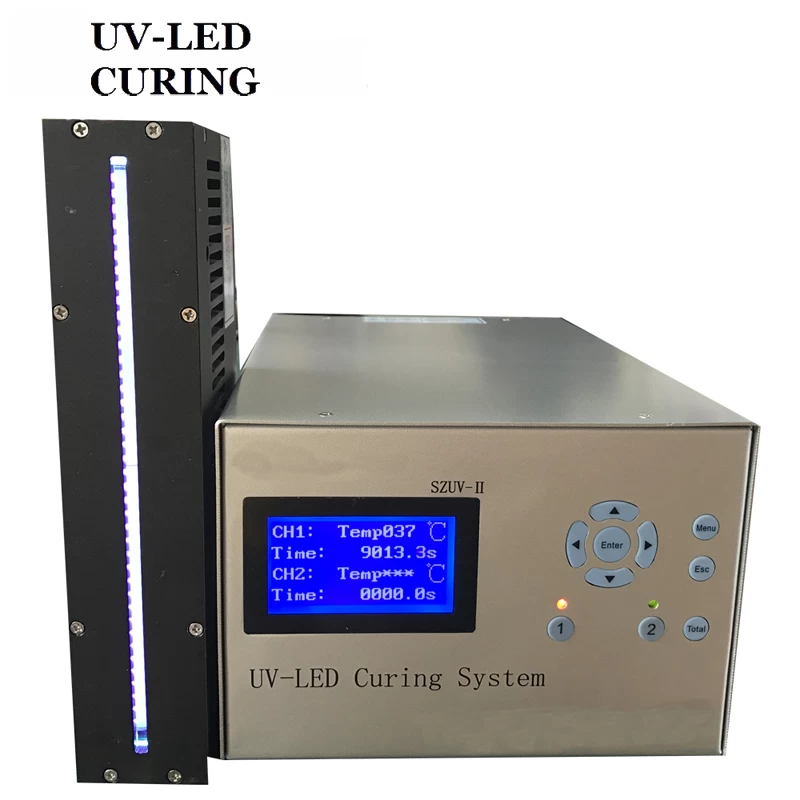

UV-LED CURING Professional and Efficient UV LED Curing Dryer is no mercurcy,no Ozone, eco-friendly. Photoelectric induction, instant on/off, no preheating required.
Product Parameters of Professional UV Curing Dryer Curing UV Ink :
|
Type
|
UV Lamp
|
Place of Origin
|
Guangdong, China (Mainland)
|
|
Brand Name
|
UV-LED CURING
|
Model Number
|
UV-LED CURING-220x7
|
|
Wavelength
|
365nm~405nm
|
Cooling Method
|
Air cooling
|
|
Name
|
XZUV-2
|
Color
|
Purple
|
|
Channel
|
2
|
Packaging Details
|
Cartons
|
|
Technical Data of Linear Type LED UV Exposure Curing Machine Controller：
|
|
Type
|
SZUV - Ⅱ
|
|
Channel
|
2
|
|
The size of controller
|
L200*W310*H150mm
|
|
Terminal I/O
|
Input
|
Pedal switch & serial RS-232 communication signals
|
|
Output
|
Serial RS-232 communication signals
|
|
Cooling method of controller
|
Air cooling
|
|
Power supply voltage
|
AC100~240V±10%(50/60HZ)
|
|
Operation mode
|
Touch Panel
|
|
Ambient temperature and humidity
|
Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH
|
|
Dimming/Exposure control
|
Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)
|
|
Setting operation
|
Using the operating switch is set, Power key parameter switch, RS-232
|
|
External Control
|
External input
|
Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch
|
|
External output
|
REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)
|
|

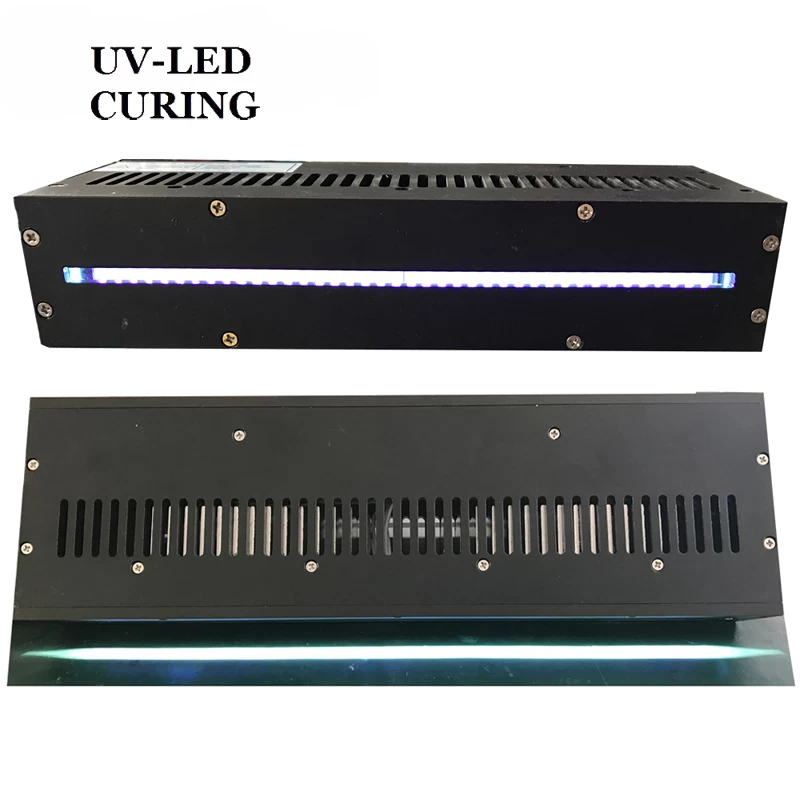

Irradiation Head Specification of High Intensity UV Printer Curing Light Source :
|
|
Curing Area
|
Wavelength
|
Power Intensity
|
Cooled Method
|
|
200*7mm
|
395nm
|
1000W/cm2
|
Air Cooled
|
